VSDISPLAY LVDs Controller Board 40pin 1600x900 for 17.3" LP173WD1 B173RW01 LTN173KT01-A01 N173FGE-L21 N17306-L02 Wled LCD Screen

• 【LCD Controller Board 】 Video input:VGA AV USB ,Power Supply:12V more than 2A ,The function for this board is to light up the screen. Please use in an insulated environment,If your LCD screen resolution is not 1600x900, please contact us to update the firmware.
• 【Compatible Screen models】1600*900 B140RTN01.0 B140RW01 V.0 N140FGE-L31 LP140WD2 B140RTN02 N140O6 B140RW02 N140FGE-L31LP156WD1 B1156RW01 LTN156KT02 N1156O6-L01 N1156O6-L02 LP173WD1 B173RW01 LTN173KT01-A01 N173FGE-L21 N17306-L02

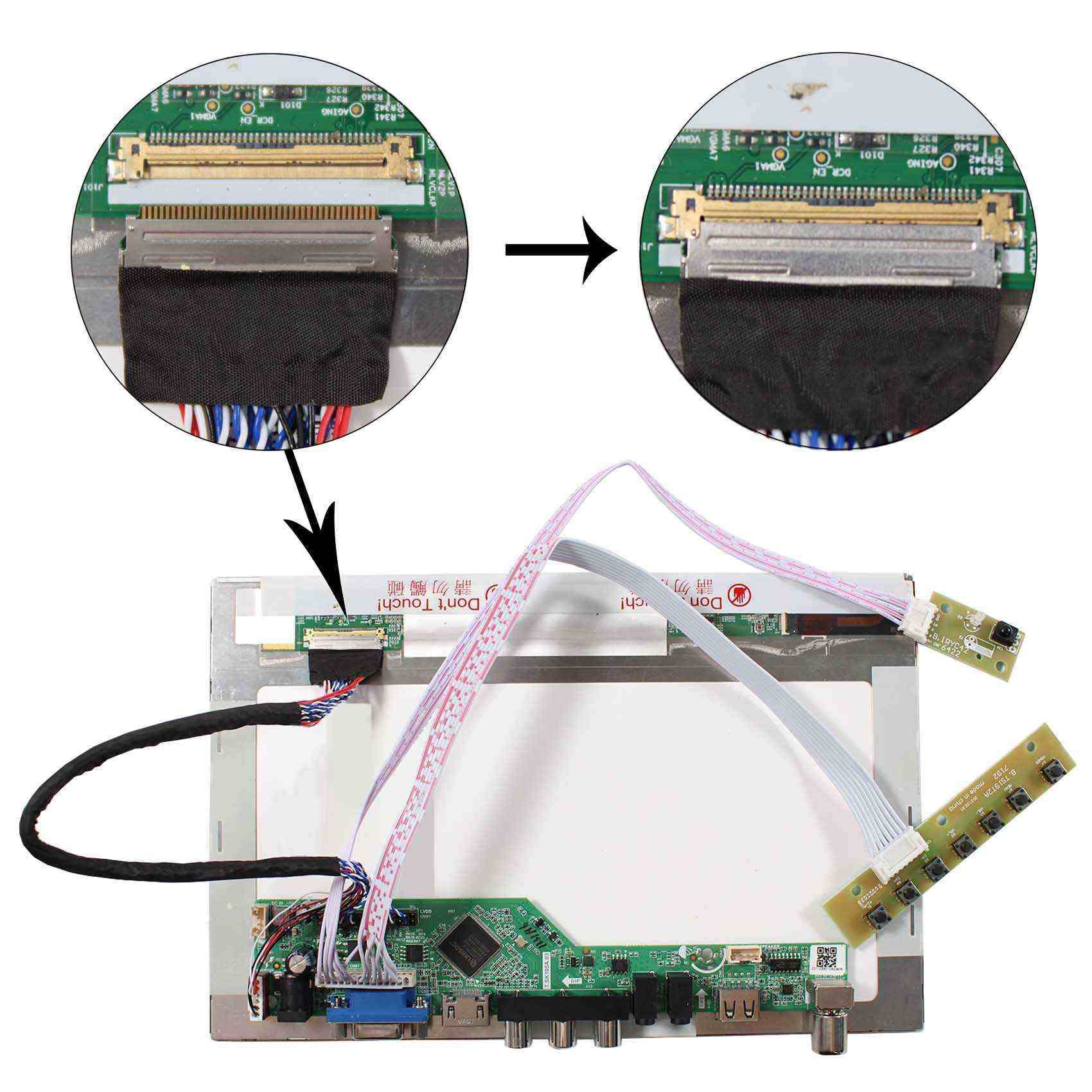

• 【Plug and play】 With simple connecting for the cables and port as the picture details ,the screen can work well when power on .If there is any problem ,Pls provide some pictures of connecting to showing the problem .then we will give you reply in 12 hours.
• 【Applications】 This kind of screen with board is widely used to work on DIY Advertising Display Monitor/Arcade Gaming Playing/Raspberry Pi/DIY Computer using ,etc..

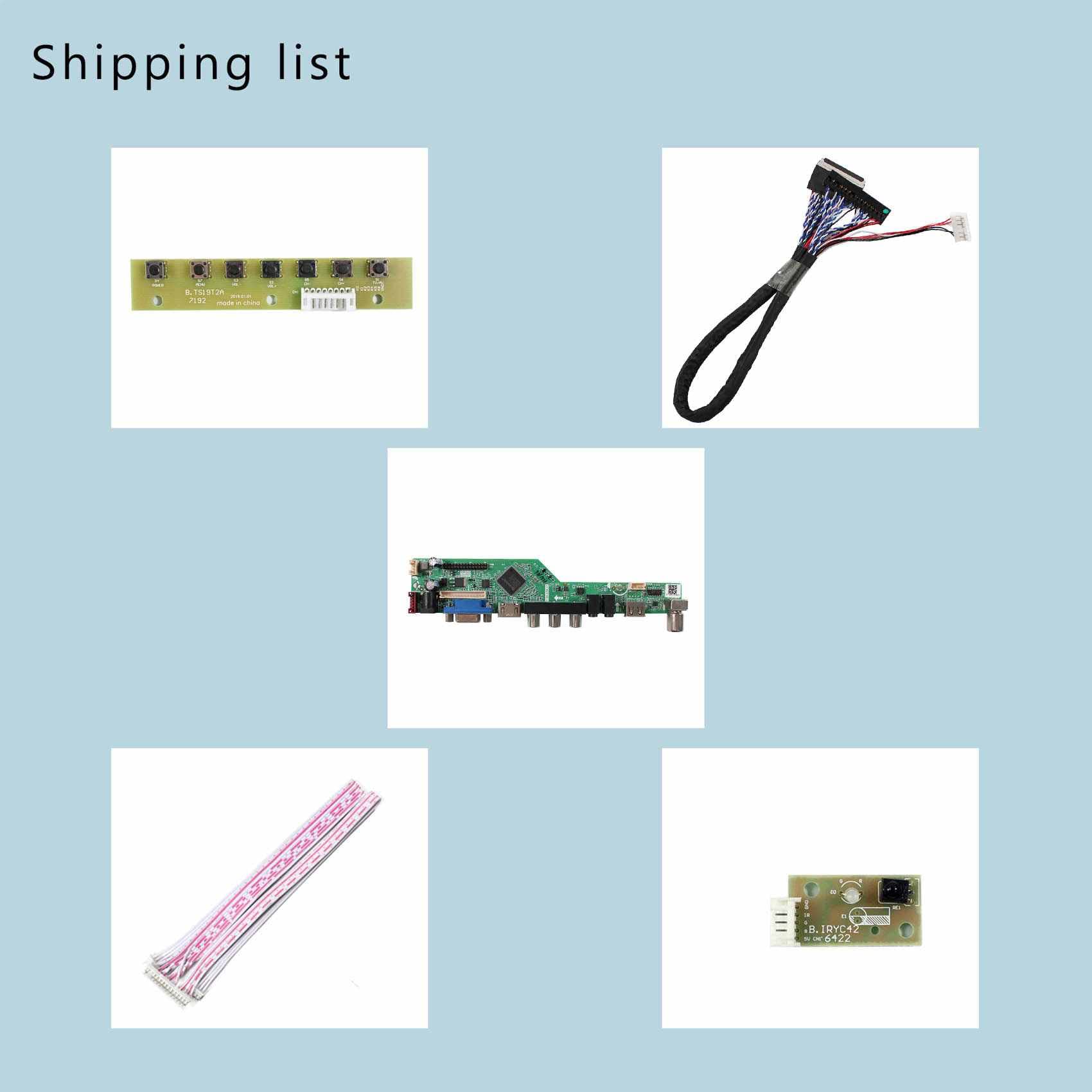

• 【Packing lists】1× VGA AV USB LCD Controller Board T.V56.03,1× 40Pin Signal Cable,1× Keyboard With Cable,1× Remote Control(Battery Not included)

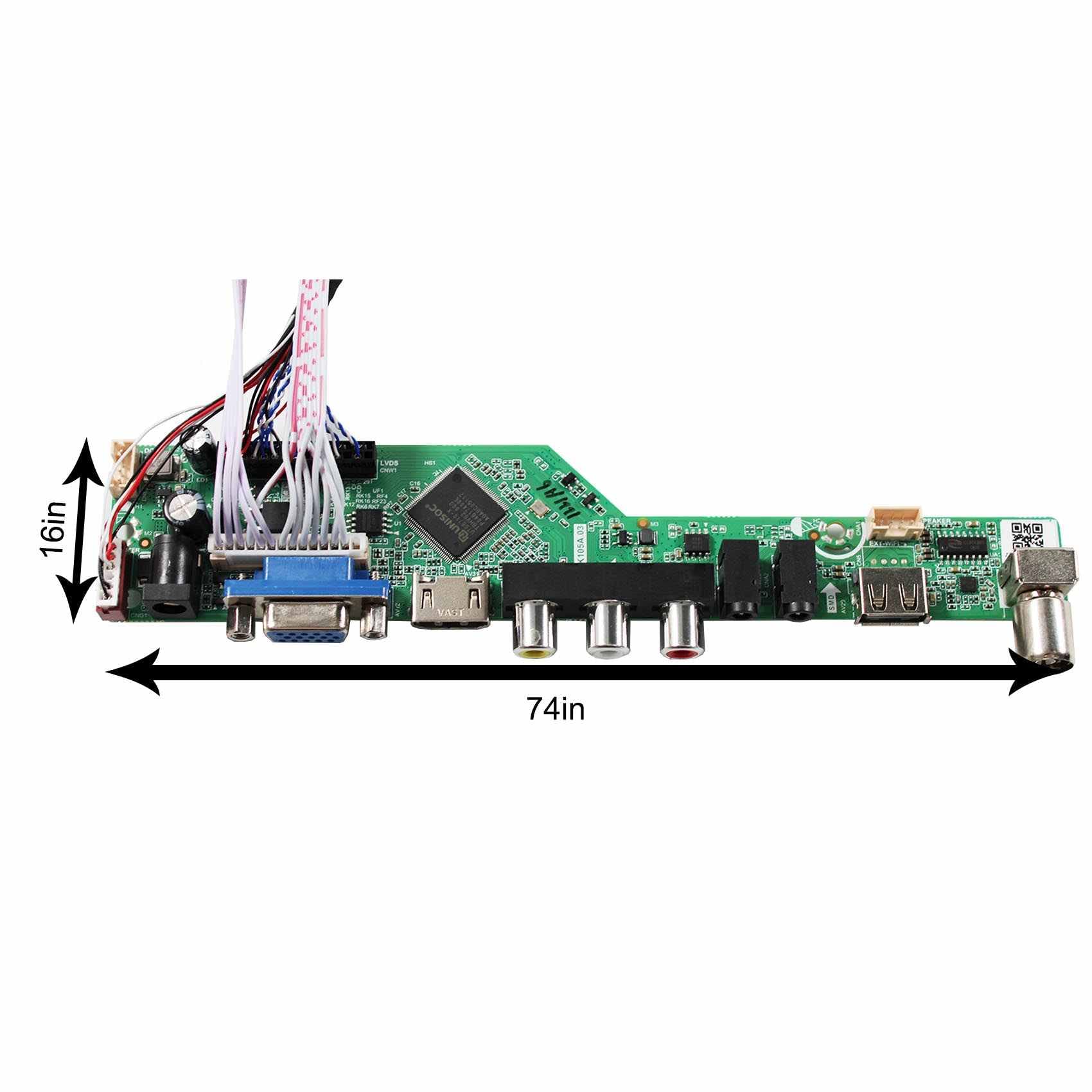

LCD Controller Board: HDMI VGA AV USB LCD Card works for LVDS interface LCD screen. Adapter input: 12Vdc more than 2A. Standby when it has no signal input. Standby model <1W. HDMI port supports audio transformation compatible with HDMI 1.3/1.4, HDCP 1.2. Support USB video. AV compatible with PAL and NTSC. Video Input: HDMI VGA AV USB Audio input: HDMI pc-audio Audio Output: Speaker Connector OSD: Brightness, auto contrast, language, etc. Language: English, French, German, Spanish, Italian, etc. Panel Size: 188mm x 43mm x 17mm Compatible with: 17.3 inches, 1600 x 900: LP173WD1 B173RW01 LTN173KT01-A01 N173FGE-L21 N17306-L02 Package includes: 1 x HDMI VGA AV USB LCD Controller Card T.V56.03 1 x 40 pin signal cable. 1 x keyboard with cable.
