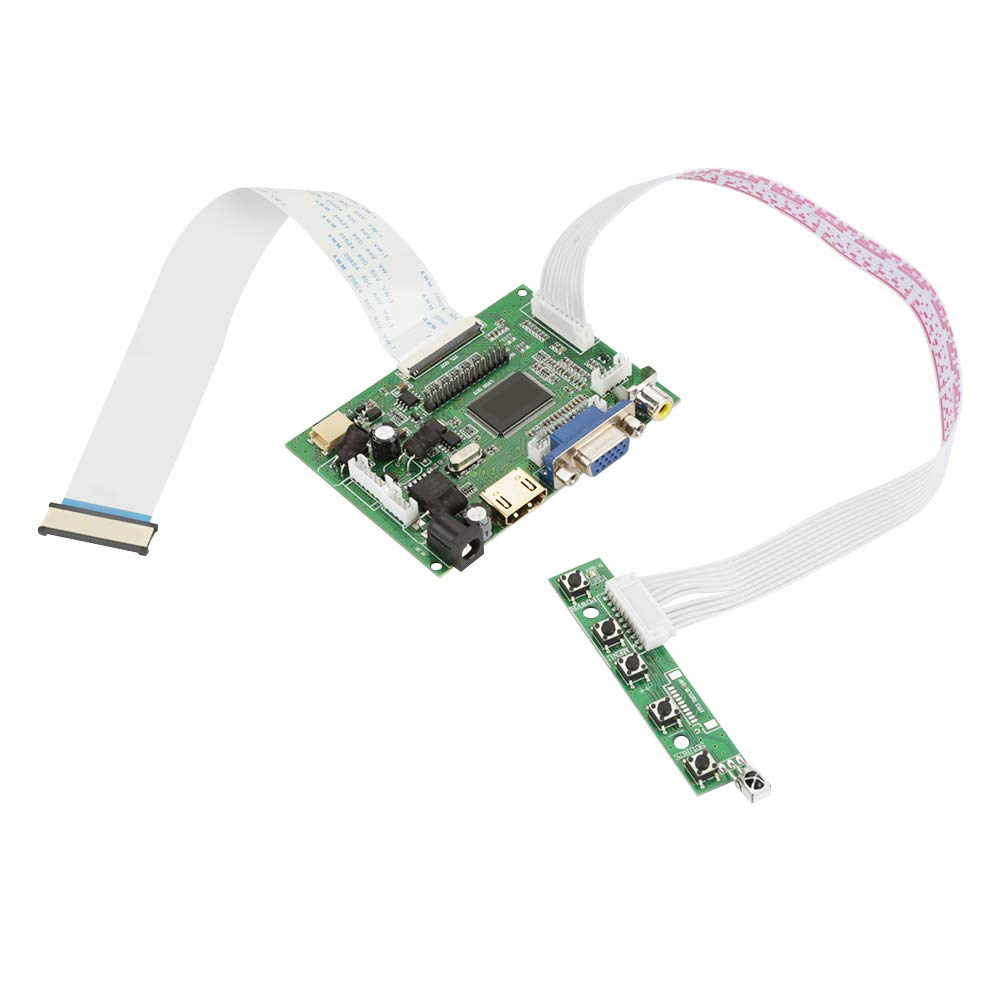

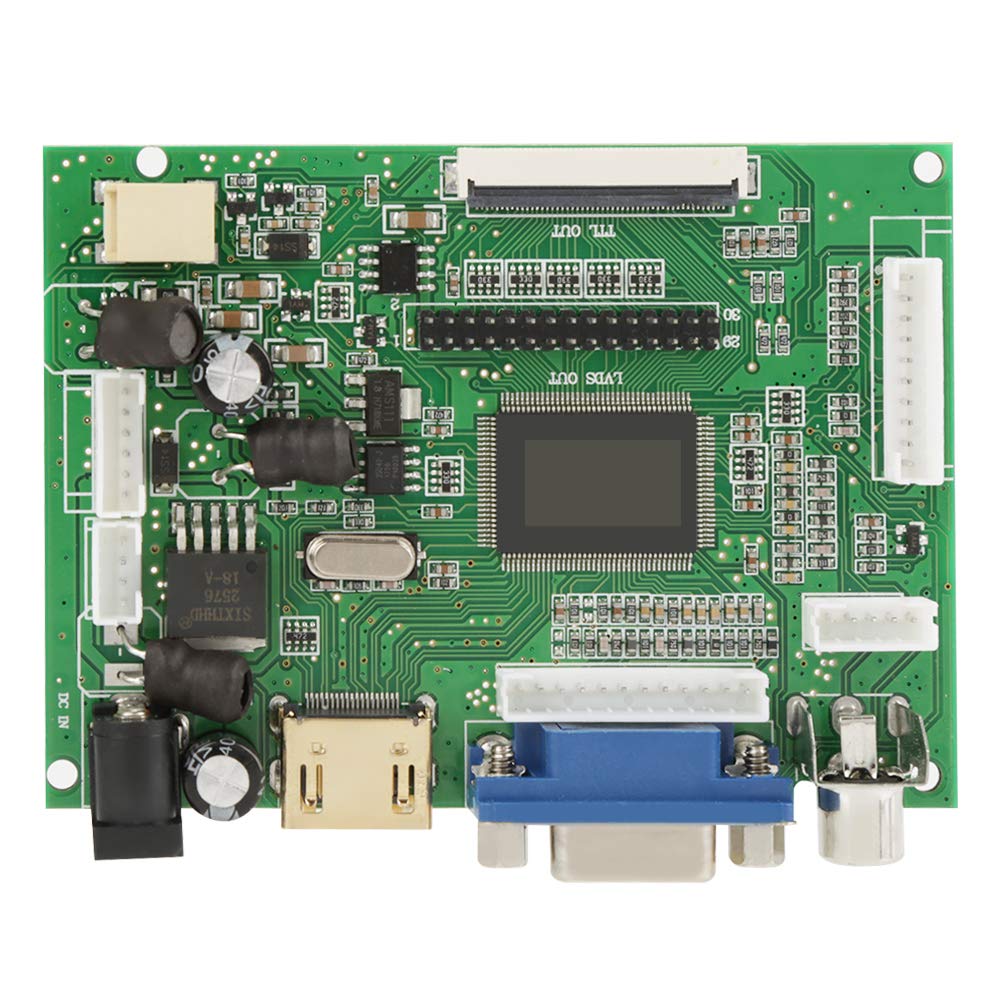

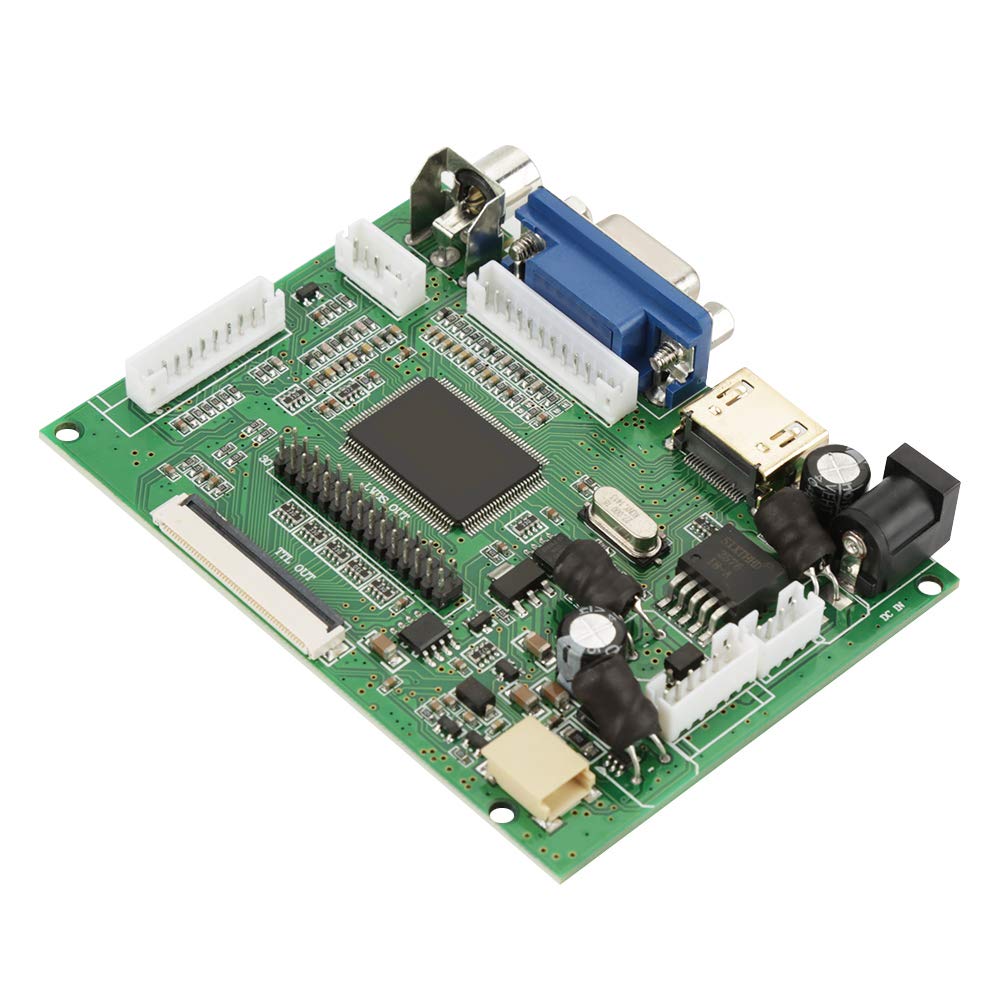

Garosa HDMI VGA 2AV Reversing Camera Driver Board for 7inch AT070TN92 800x480 LCD Display with Motor Controller Card and AV Input Support

• The standard backlight 6PIN interface, can be an external high-voltage board
• 1 way VGA input, 2-way AV input, 1-way reversing input
• 1-way HDMI input, and the IC supports HDMI1.2
• Support wide voltage input, and can normally work between 9V-24V
• The driver board integrated LCD screen LED backlight drive board

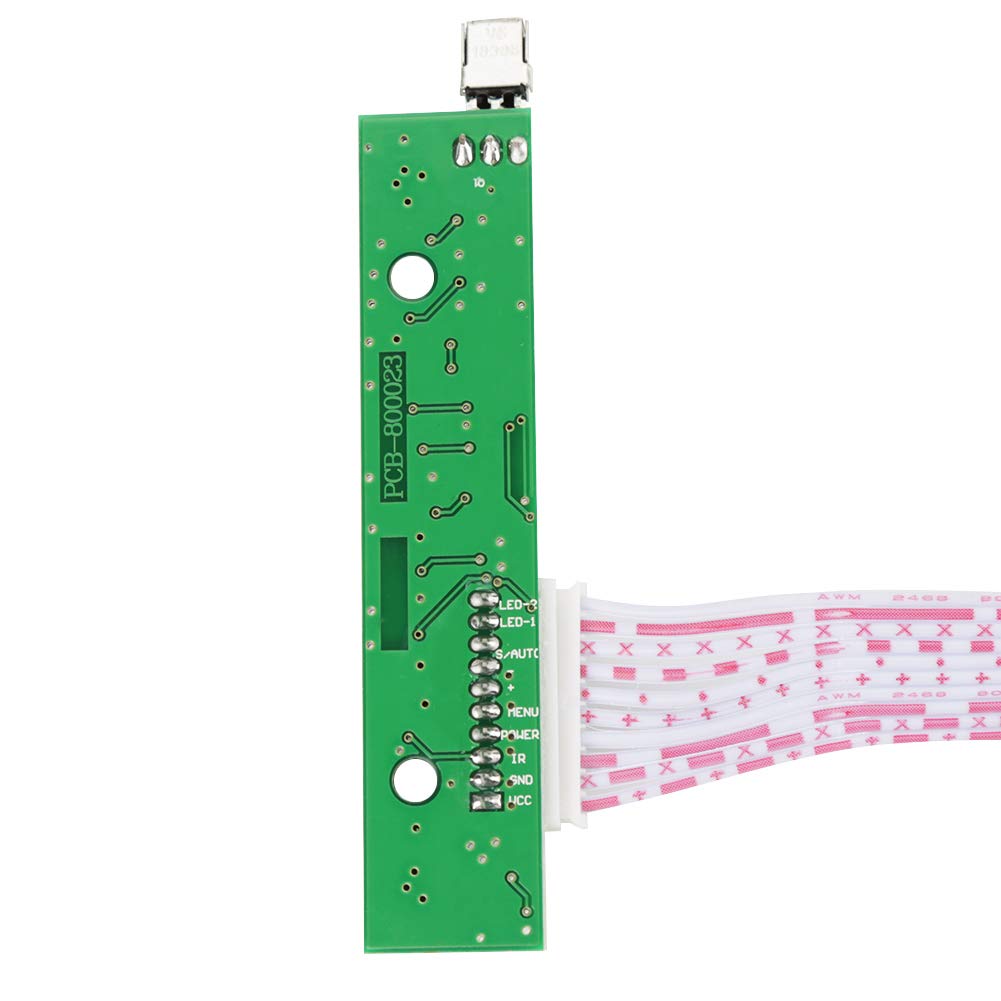

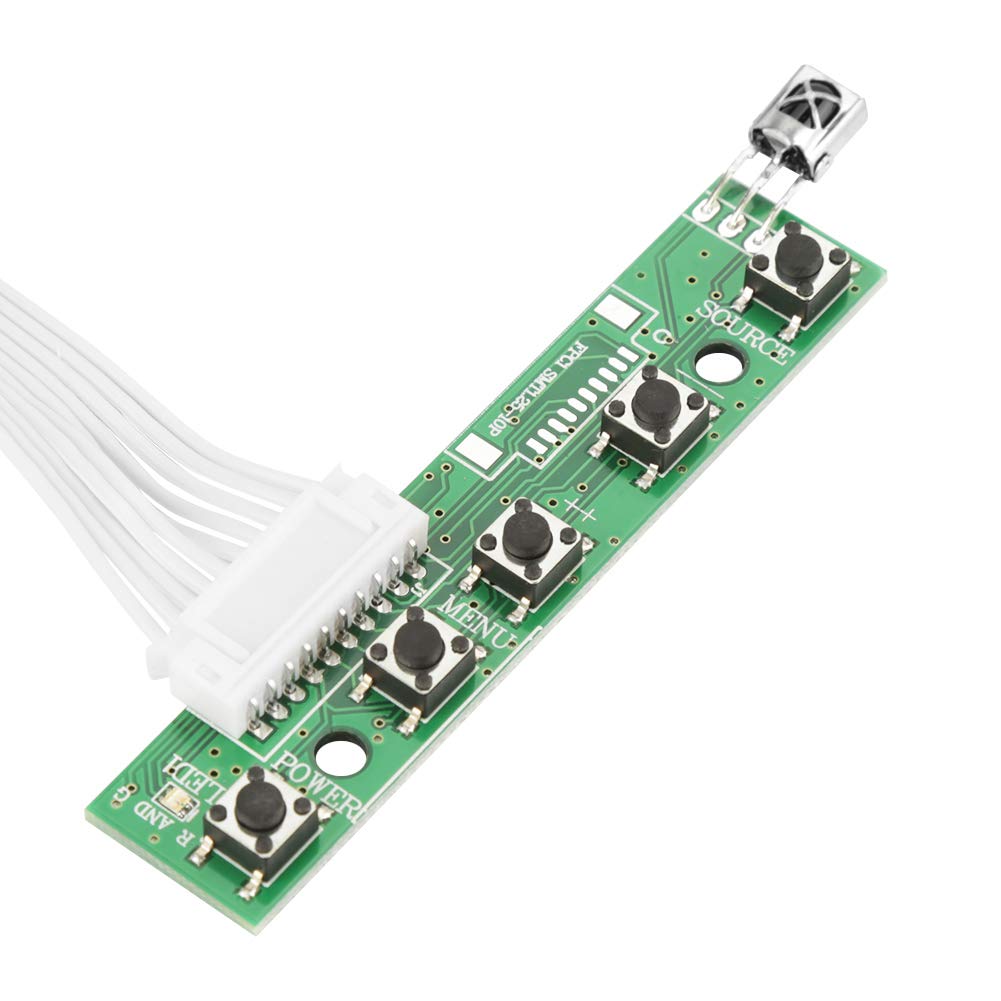

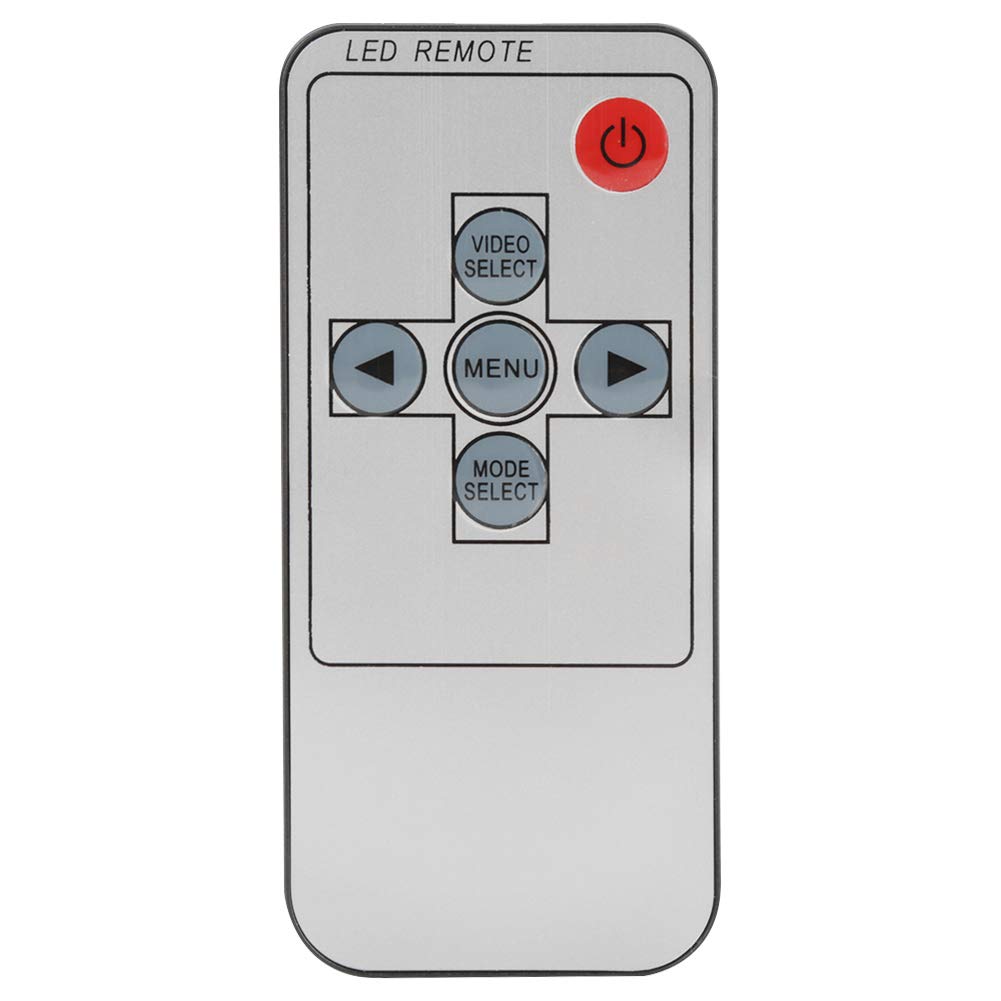

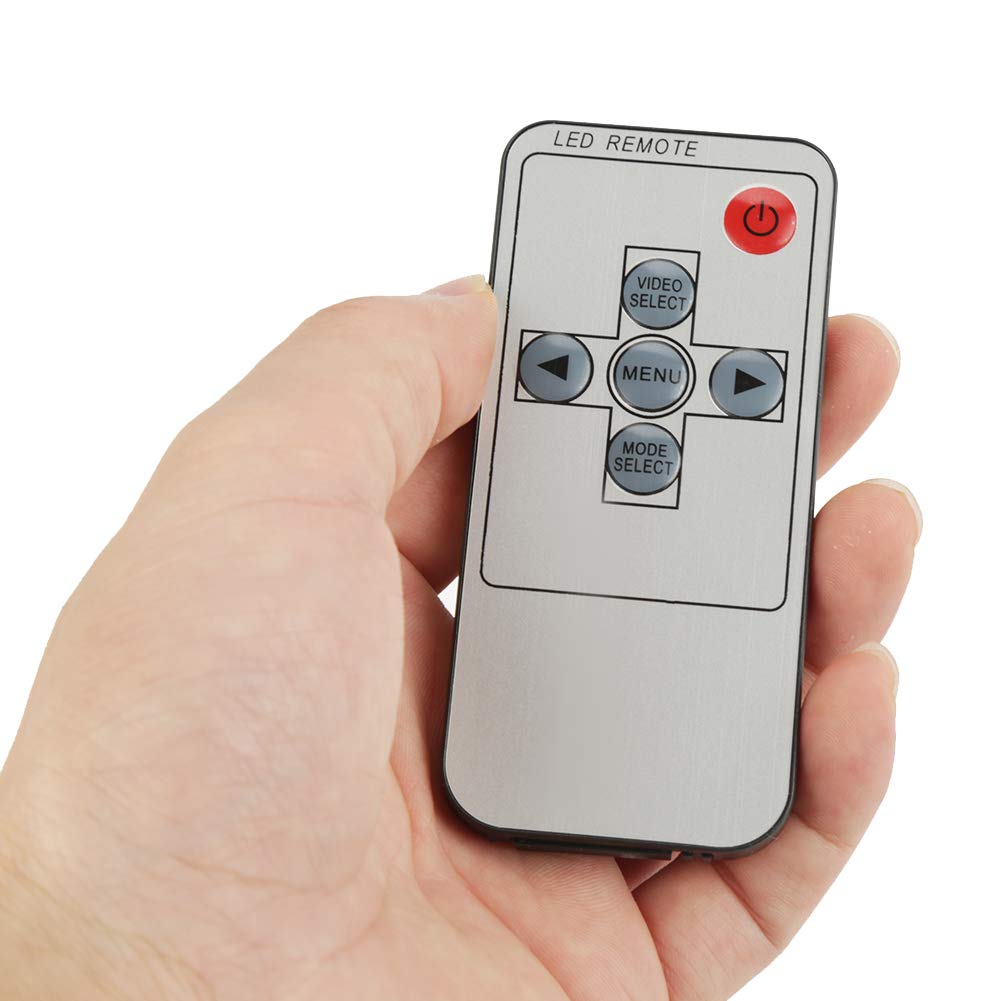

Features: The standard LVDS output, can support single 6, single 8, double 6, double 8 standard LVDS LCD screen, but only support the screen power supply for the 3.3V LCD screen The standard keypad interface, and supports two-color LED indicator Support TTL output,Can support AT070TN92,AT065TN14,AT080TN52, AT090TN12, AT090TN10, AT070TN90, AT070TN93, AT070TN94, etc., universal 50PIN interface TTL LCD screen With the LCD screen adapter board, can support the following LCD screen: EJ070NA01-1024X600 resolution, EJ080NA04B-1024X768 resolution, ZJ070NA01, model of the universal 40PIN high score LCD screen With the LCD screen adapter board, you can also support 4.3,5,6,7 inch, 40PIN common screen, the definition see AT0543TN24V, 1 The drive board maximum output display resolution, 1920X1080 over, 1440X900 display resolution, the need to look at the work of the IC, increase the heat sink to reduce the IC's operating temperature) The VGA part of the IC can be directly input YPBPR signal, the need to achieve through software programs The driver board can increase the remote control function, need to achieve through the software program Support reversing control, and display in AV2, the reverse voltage support within 50V voltage input Specifications: Type: HDMI VGA 2AV Reversing Driver Board Input voltage: 9V-24V Weight: 79g Package includes: 1 x Reversing Driver Board with cable 1 x remote control
