HDMI to SDI Converter, HDMI to Tow SDI Converter, HDMI In 2 Ports SDI Out Converter, Audio Embedder Supports HDMI 1.3 1080P, 3G/ HD-SDI Auto Format Detection(HDMI Type A）

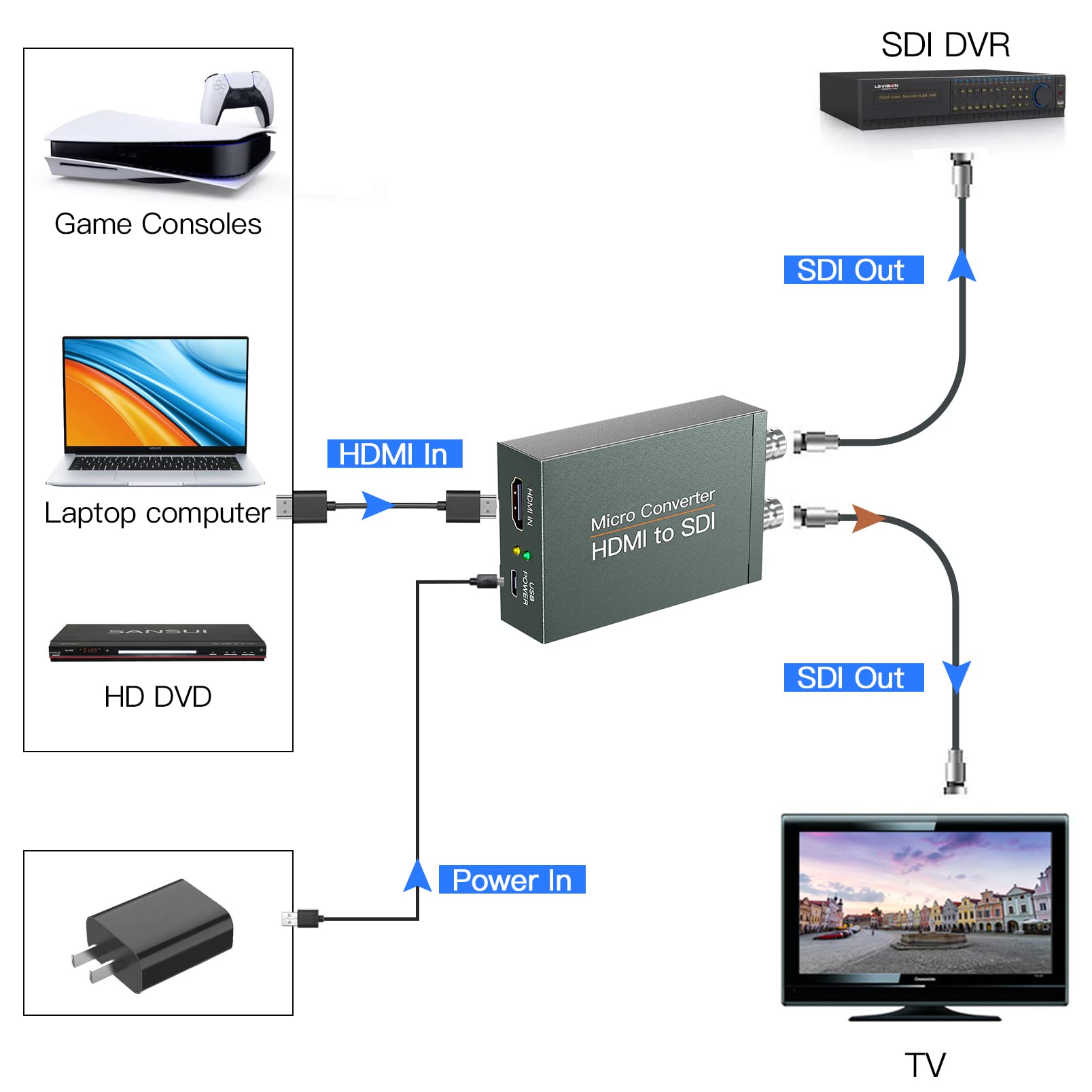

• 【HDMI to SDI Converter】This HDMI in SDI out converter converts high definition 1080P HDMI signal into SDI signals. It only works one direction, can not be reversed use as SDI to HDMI.
• 【Full HD 1080P Resolution】The input HDMI resolutions: 480P, 576P, 720P@50/ 60Hz, 1080i@50/ 60Hz, 1080P@24/ 25/ 30/ 50/ 60Hz and more. SDI output resolutions: 720P@50/ 60Hz, 1080P@24/ 25/ 30Hz for HD-SDI signal, 1080P@50/60Hz for 3G-SDI signal.
• 【2 Ports SDI Output】Supports dual SDI output and display simultaneously.
• 【Automatic Detection】Auto detection of SD or HD, 3G-SDI, automatically matches the HDMI video input.
• 【Long Transmission Distance】Supports SDI output distance up to 100 meters for 3G-SDI , 200 meters for HD-SDI and 300 meters for SD-SDI.

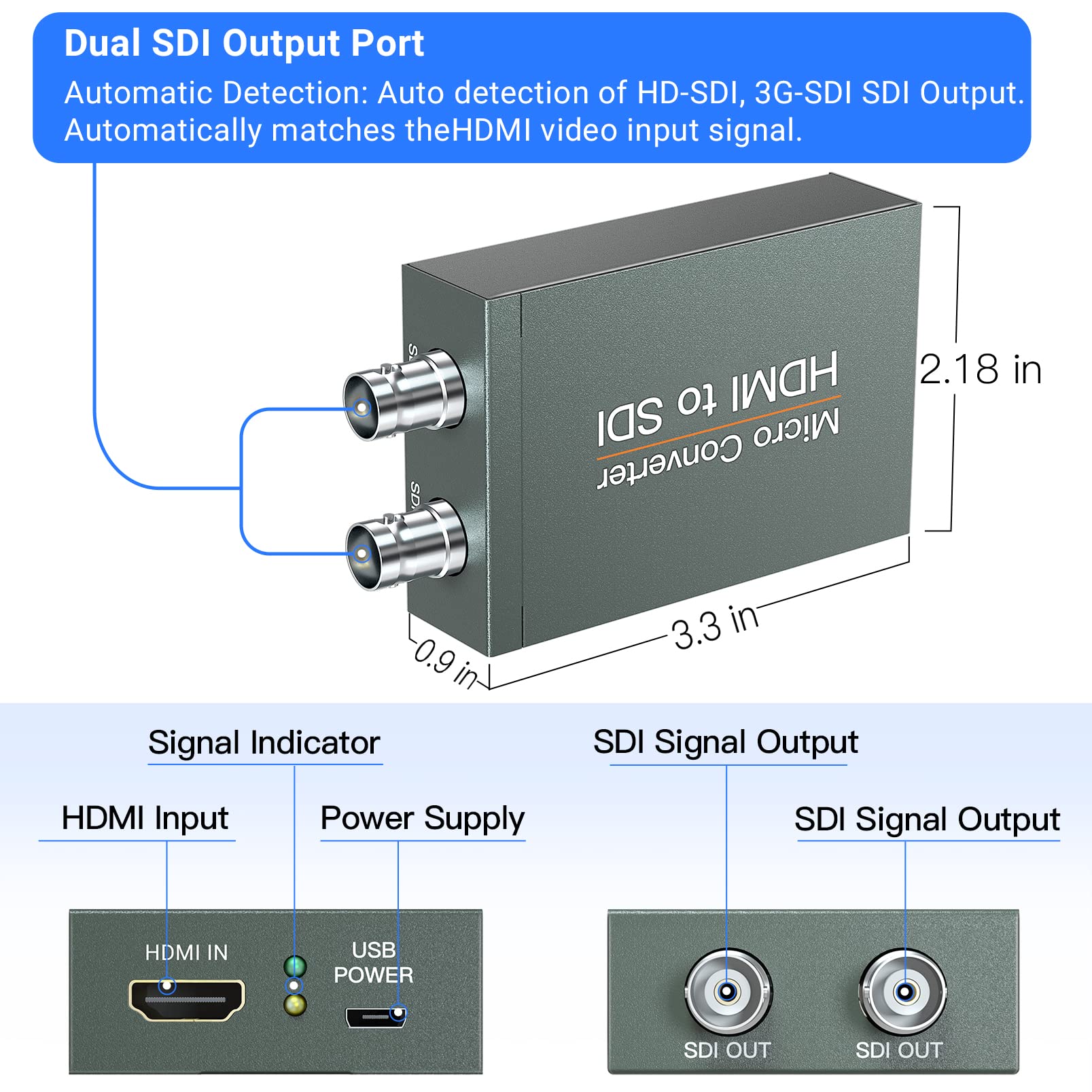

Note： 1. This HDMI to SDI converter only supports SDI signal, does not support RF, CVBS, AHD, TVI, CVI. 2. This HDMI in SDI out converter can not support 4k HDMI input. 3. Only works one direction, can not be reversed used as SDI to HDMI. HDMI to SDI Converter--Audio Embedder & Auto Format Detection This HDMI to SDI Converter converts HDMI signal into SDI signals. With 2 ports SDI output, it allows you to display HDMI signal on 2 SDI displays simultaneously. Specifications: 1. Input Port: HDMI 2. Output Port: 2 x SDI(BNC male connectors) 3. HDMI Input Resolutions: 480P, 576P,720P@50/ 60Hz, 1080p@24/ 25/ 30/ 50/ 60Hz, 800 x 600P@60Hz,1024 x 768P@60Hz 1280 x 800P@60Hz,1280 x 960P@60Hz,1360 x 768P@60Hz 1400 x 1050P@60Hz,1440 x 900P@60Hz,1600 x 1200P@60Hz, 1680 x 1050P@60Hz 4. SDI Output Resolutions: 720P@50/ 60Hz, 1080P@24/ 25/ 30/ 50/ 60Hz(SD-SDI/ HD-SDI/ 3G-SDI） 5 SDI data transfer rates: 270Mb/s, 1.485Gb/s, 2.97Gb/s 6. Dimension: 3.3 x 2.2 x 0.9inces/ 83 x 55 x 24mm 7. Weight: 165g Features: 1. Supports 2 ports SDI output simultaneously 2. Embedded audio and image synchronization output 3. Supports HDMI 1.3, 1920*1080 4. Built-in ESD protection circuitry can effectively prevent electrostatic damage 5. Auto detection of SD or HD, 3G-SDI Packing List: 1 x HDMI to SDI Converter 1 x Power Adapter 1 x User Manual
