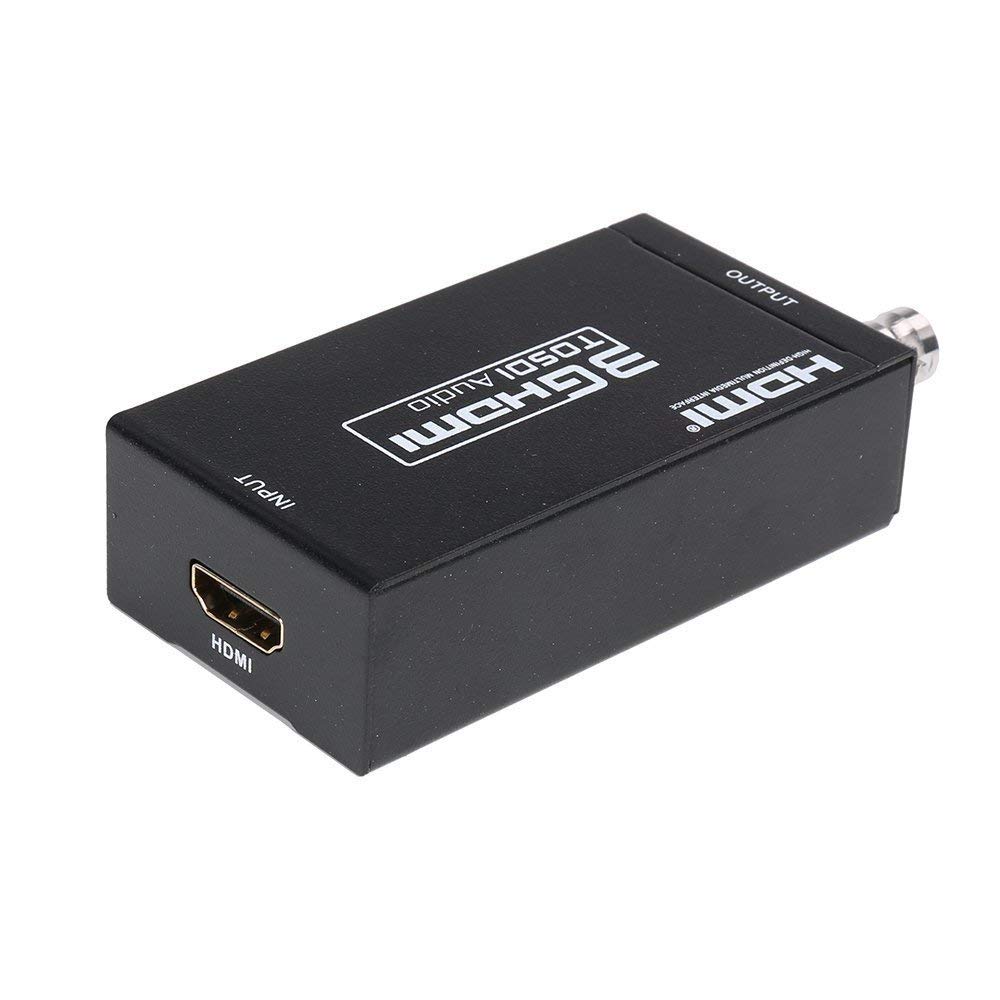

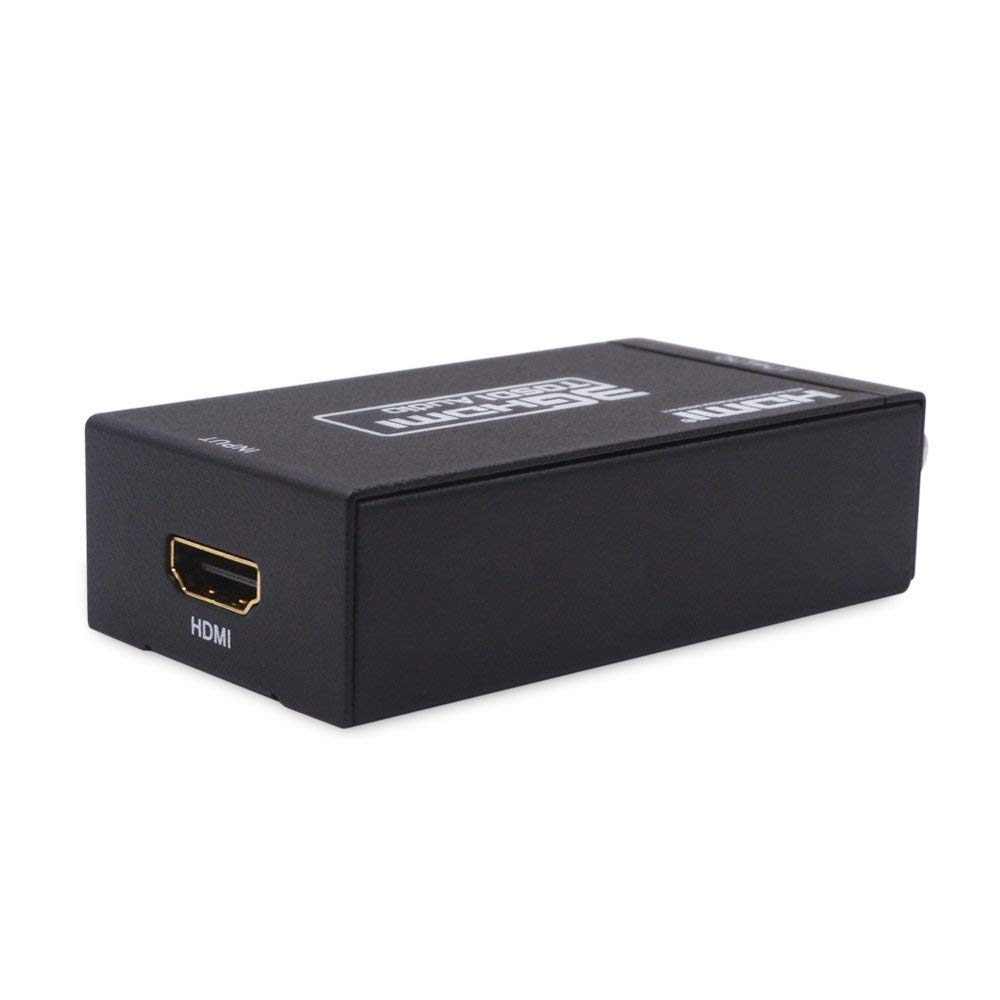

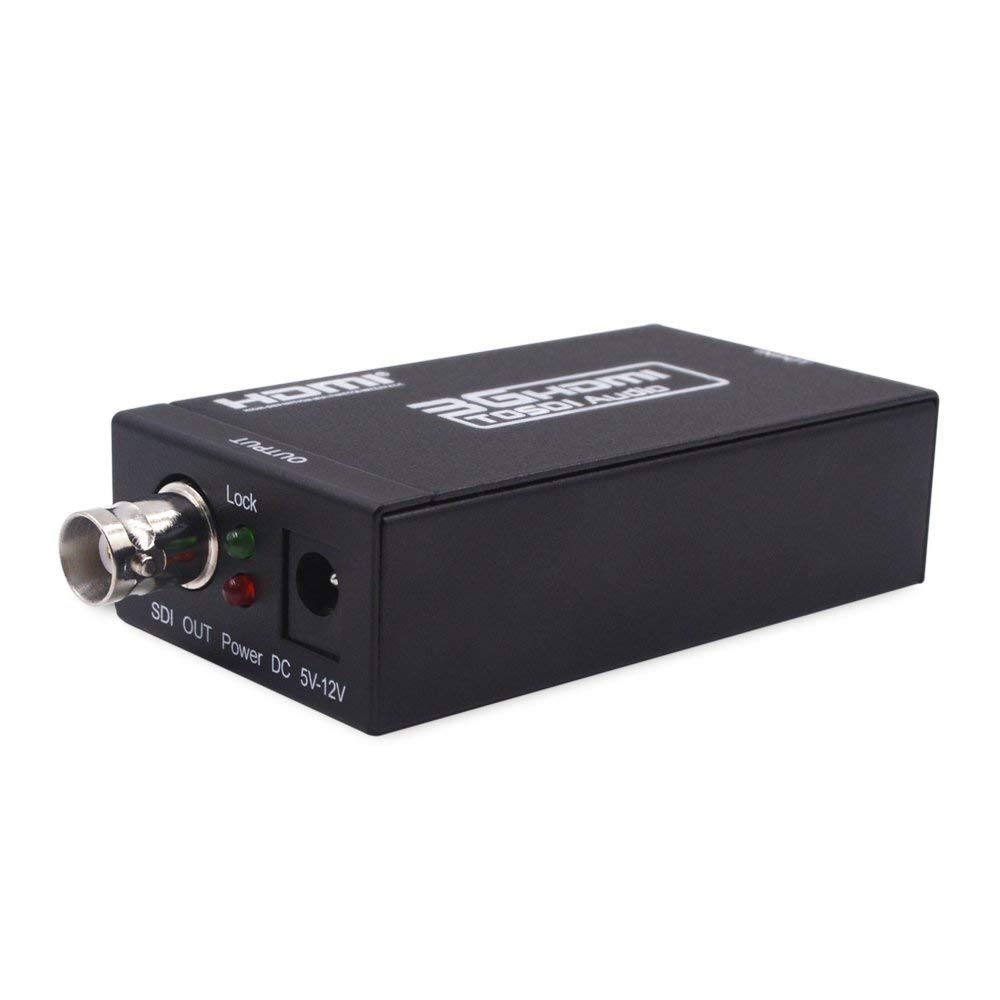

MICROWARE HDMI to SDI Converter Adapter, Supports 1080P for Camera, Home Theater (HDMI to SDI)

• Show HDMI source on SDI display. SDI interface compatible with bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s.
• HDMI input timings supported: 480i@59.94, 576i, 720p@50/59.94/60, 1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60.
• 480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s). 720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s)
• 1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)
• Supports SDI output distance 100 meters (3G-SDI) for maxium, 200 meters (HD-SDI) for maxium.

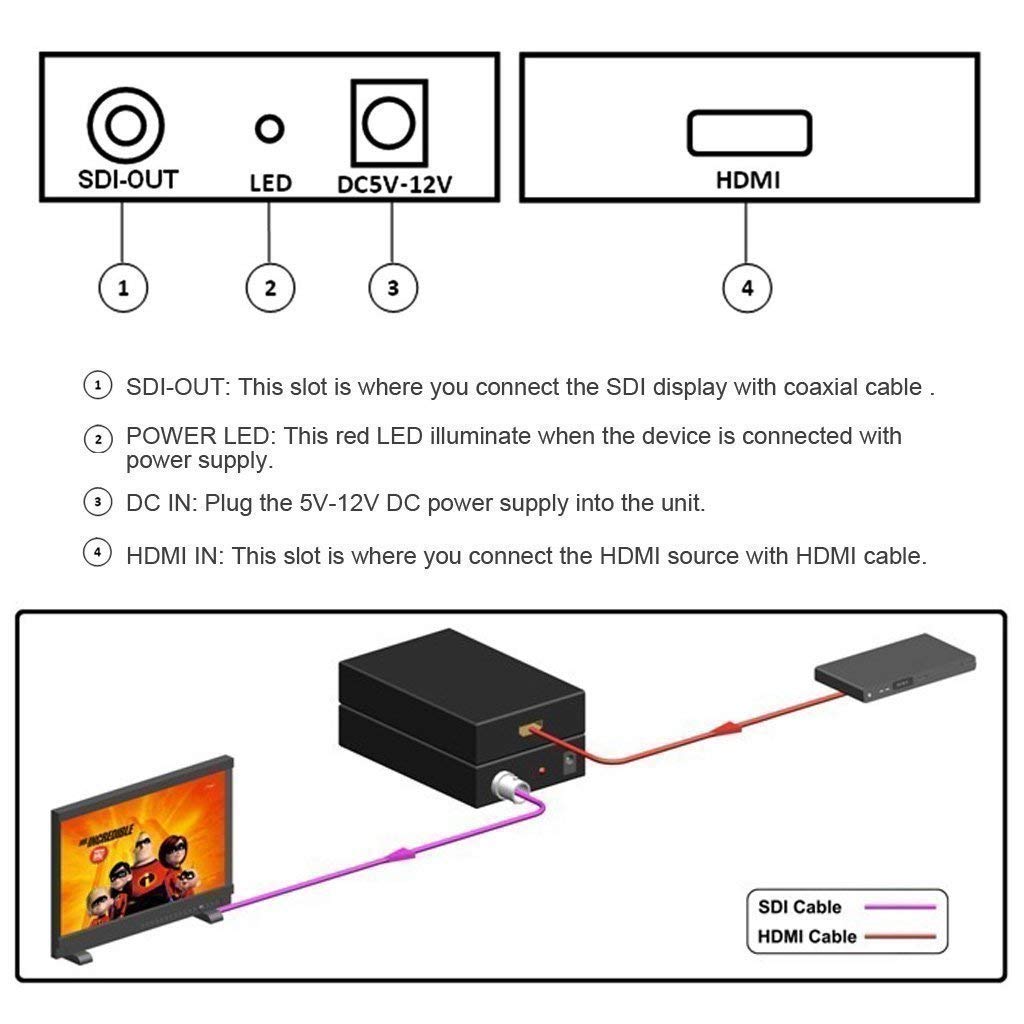

The 3G HDMI to SDI Converter enables HDMI signals to be shown on SDI display, ensuring high bit rates of 2.970 Gbit/s, without compromising any high resolution signal/any loss. For professionals this means that it is now easier to convert your high HDMI signal with audio to SDI for long distance transmission and display your work on SDI display. Specifications: 1. Input Port: 1 x HDMI 2. Output port: 1x SDI(SDI/HD-SD/3G-SDI) 3. SDI Transmission Rate: 2.970 Gbit/s and 2.970/1.001 Gbit/s 4. In/Output Resolution: 480i, 576i, 720p@50/59.94,60 ,1080i@50/59.94/60 1080p@23.97/24/25/29.97/30/50/59.94/60 5. Power Supply: DC 5V -12V 6. ESD Protection Human body model: ±8kV (air-gap discharge) ,±4kV (contact discharge) 7. Dimension: 80mm x 41mm x 25 mm 8. Power Consumption (Max):5W Package Included: 1x HDMI to SDI Converter 1x DC Power Adaptor 1x User Manual Note: Do Not support Broadcast Standard Applications
