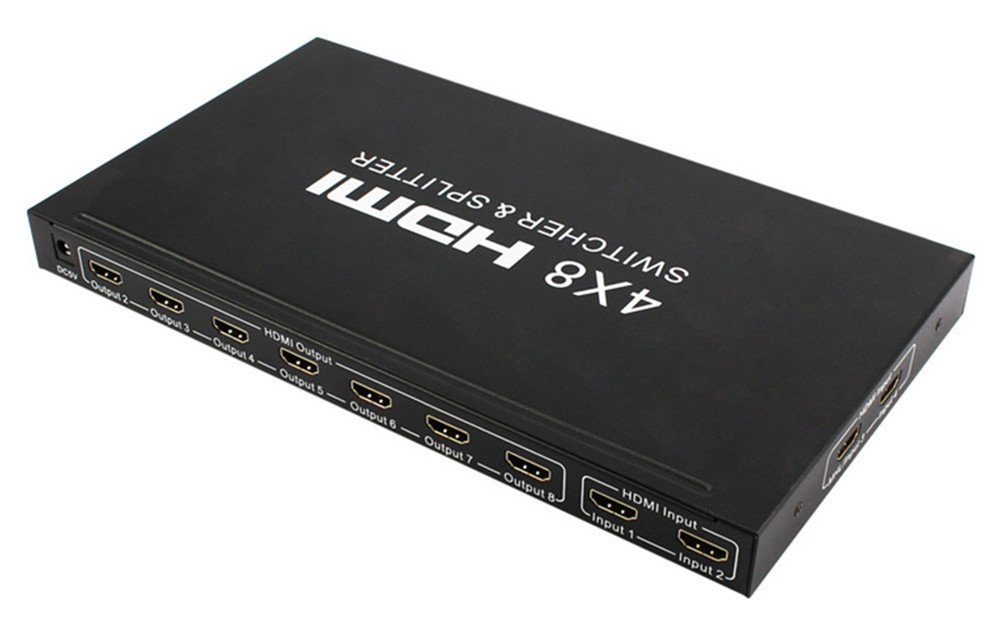

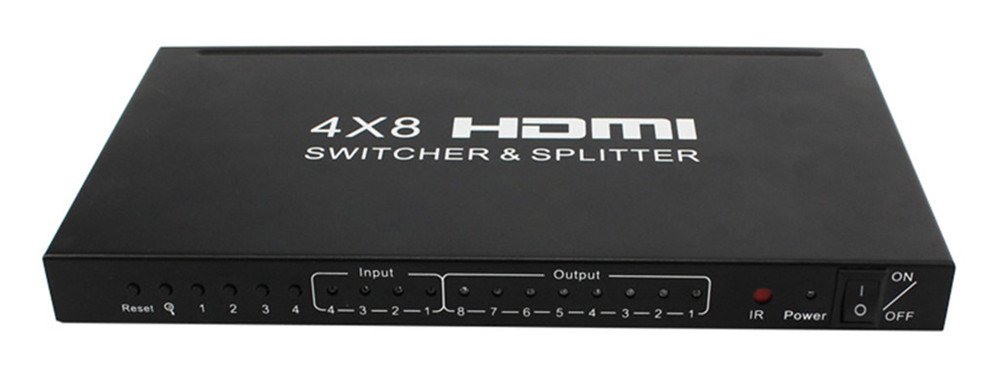

HDMI Switch 4x8 With Remote Control HDMI Switcher Splitter Converter Adapter Support 4K*2K 3D 1080P

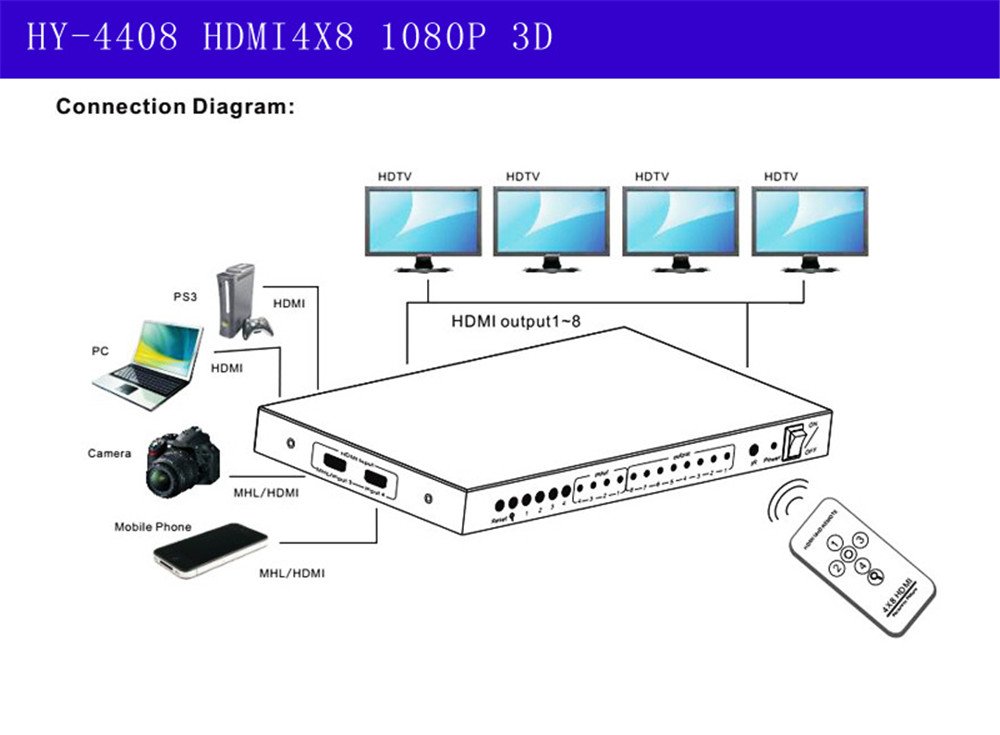

• 1.Tips: This 4X8 is a dispenser, not a matrix. The function is to output 4 different signals 1, signal 2, signal 3, signal 4, and then can output 8 identical signals, for example, can output 8 signals 1, or 8 signals 2, or 8 signals 3, or 8 signals 4, can not output different signals at the same time, for example: can not simultaneously output signal 1, signal 2, signal 3, signal 4, if you do not understand, please contact our customer service, thank you.

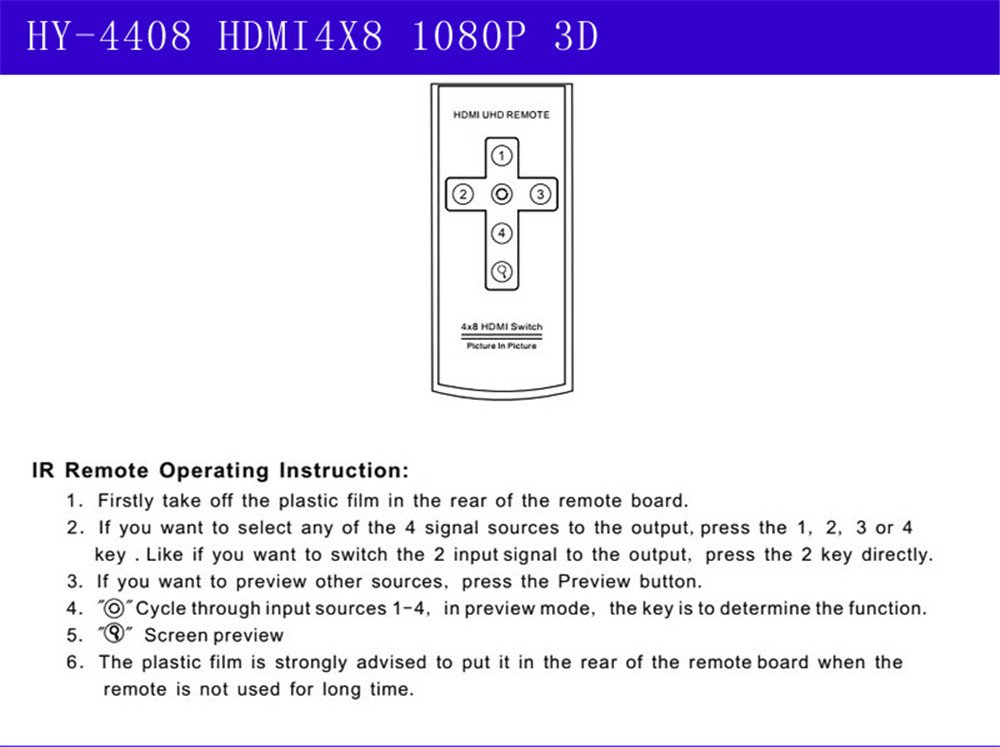

• 2.Supports screen preview.Supports fast switching.Tips: Support for outputting 8 identical signal pictures, and not outputting 8 different signal pictures. Not a matrix.
• 3.Compliant with MHL2.0 and HDMI 1.4b specification.
• 4. Supports 8 HDMI output port.Output 8 same signal sources. Not output 8 different signal sources.

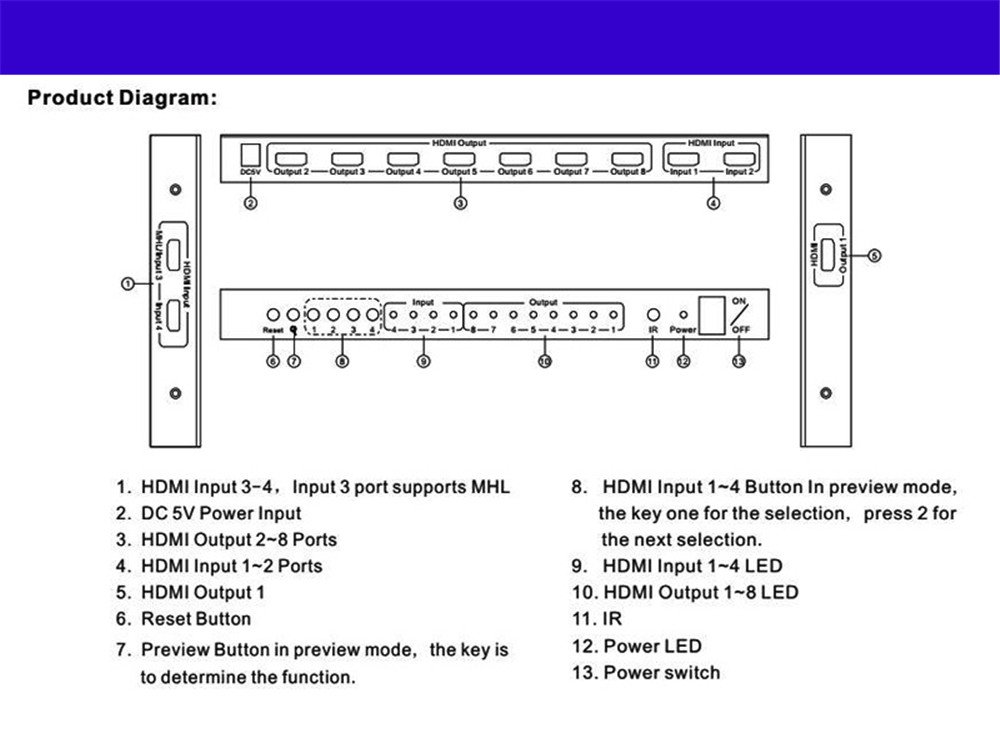

• 5.Supports 1 MHL and 3 HDMI input ports with dual mode capability.With British regulation power supply。This equipment is only a switcher and distributor, not a matrix, please pay attention when purchasing.

Range:24/25/30fps/4Kx2K HDMI resolution:24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p Support video color format:24bit/deep color 30bit, 36bit Vertical Frequency Range:1080p@60Hz; 4Kx2K@25Hz Support audio format:DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby- AC3/DSD Max bandwidth:340MHz Max band rate:10.2Gbps Input/ Output TMDS signal:0. 5~ 1. 5Volts p- p( TTL) Input/ Output DDC signal:5Volts p- p ( TTL) 1080P Input cable distance:≤15m AWG26 HDMI standard cable 1080P Output cable distance:≤20m AWG26 HDMI standard cable 4KX2K Input cable distance:≤10m AWG24 HDMI standard cable 4KX2K Output cable distance:≤15m AWG24 HDMI standard cable Max working current:2.5A Operating Temperaturer:(-15 to +55℃) Operating Humidity range:5 to 90% RH(No Condensation) Dimension( L x W x H):275x157x25(mm) 1.Supports deep color 30bit,36bit. 2.Supports Blue-Ray 24/50/60fps/HD-DVD/xvYCC. 3.Digital audio format, as DTS-HD/Dolby- trueHD/LPCM7.1/DTS/Dolby-AC3/DSD. 4.Supports signal retiming. 5.Supports Equalizer TMDS Output: 25MHz–340MHz TMDS clock. 6.Supports up to 340 MHZ TMDS clock rate( 4Kx2K) for HDMI input. 7.Supports EDID RAM. 8.Supports 1080P input up to 15 metres AWG26 HDMI standard cable length, output up to 20 metres AWG26 cable length. 9.Inputs can be switched with the IR remote control,also can be controlled by button. 10.Extend the transmission distance and improve transmission signal. 11.Compatible with DVI through a HDMI to DVI adapter. 12.Supports hot plug-and-play. 13.LED indicate signal and power mode. 14.No loss of quality.
