HONGLEI GELRHONR HDTV Adapter Signals Terminal Breakout Connector, Gold Plated HDTV Male to 20 Pin Solderless Terminal Breakout Board with Breakout Plastic Cover -Black

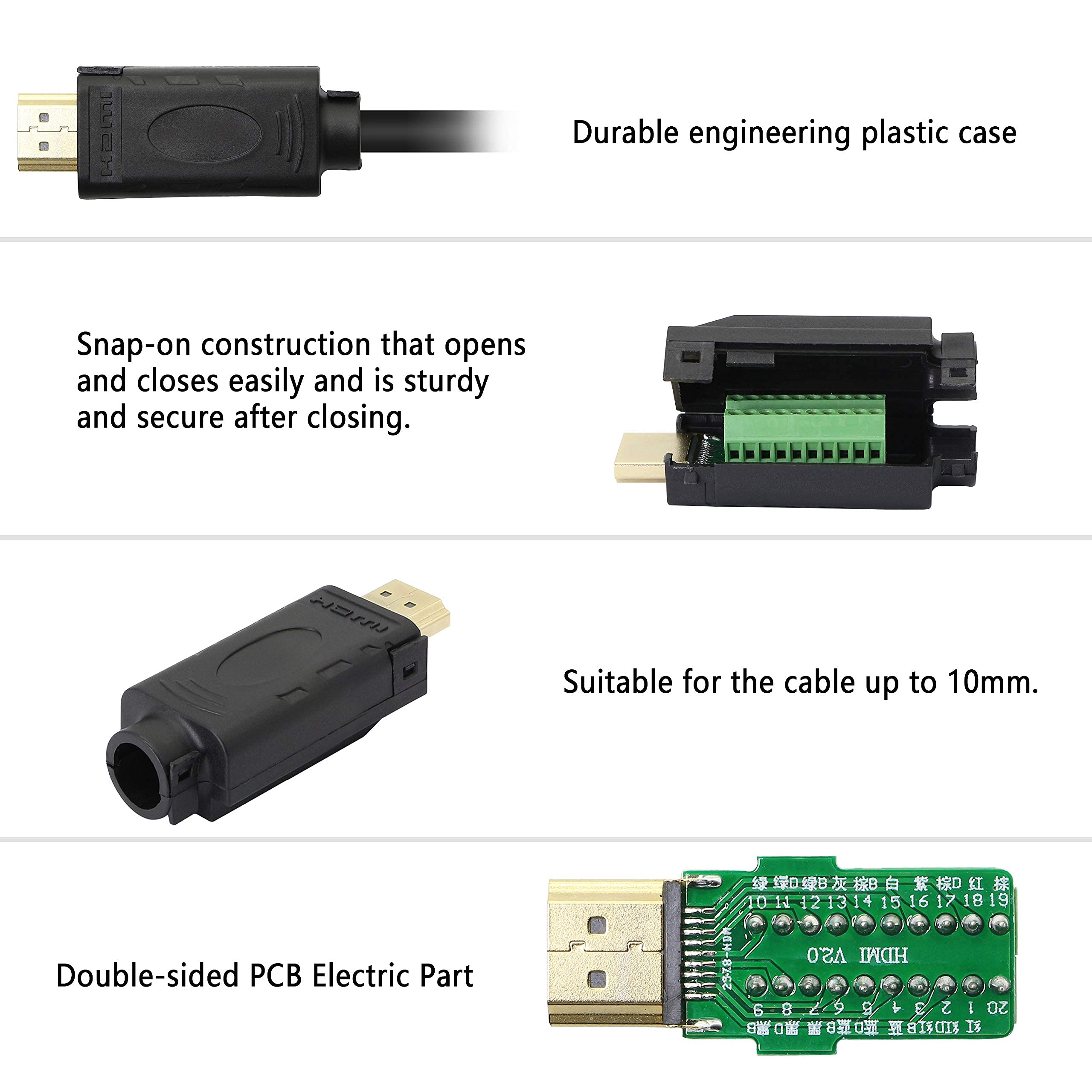

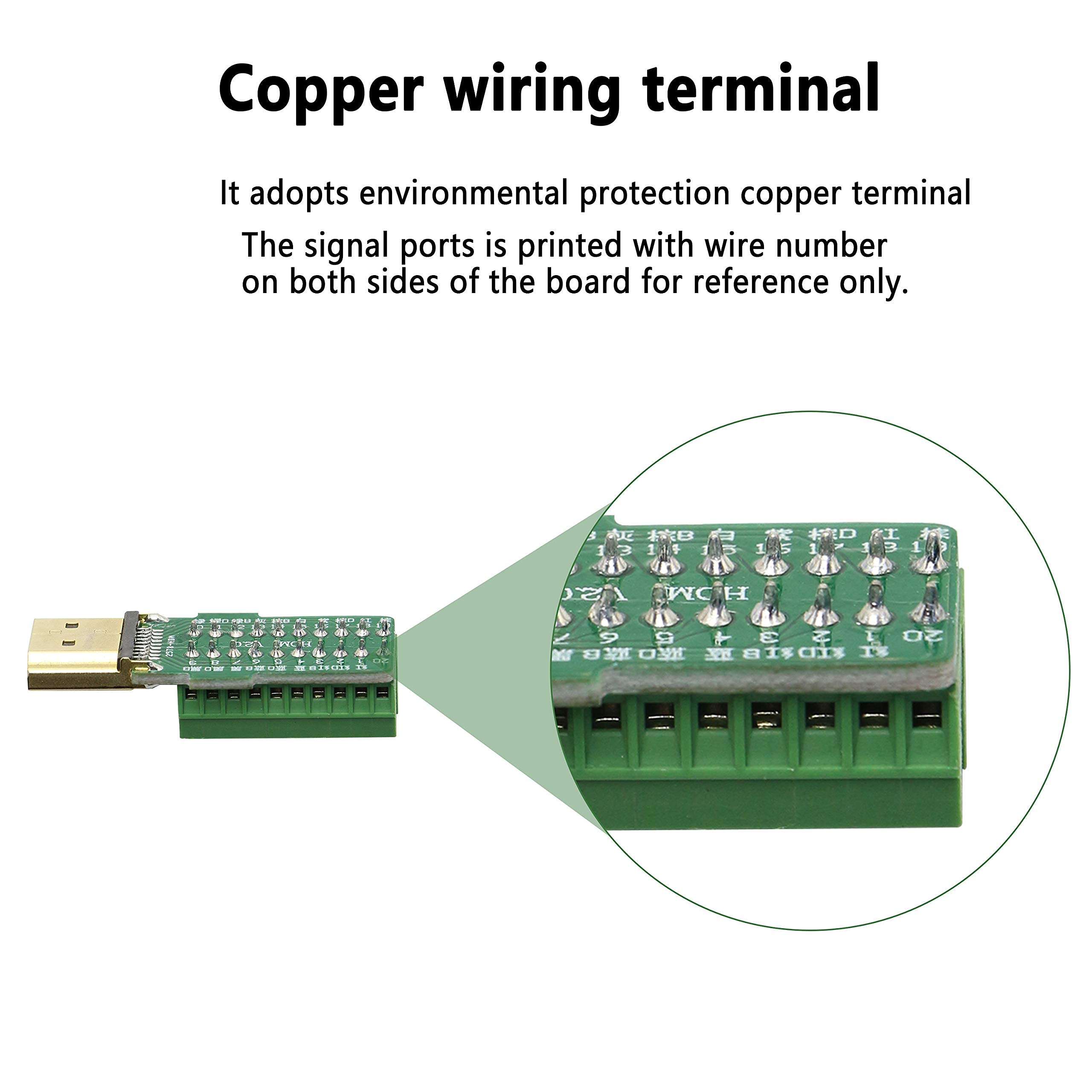

• ✪ HDTV Solderless Signals Terminal: No Soldering Needed! All Signal Ports Are Printed With Wire Number On Both Sides Of The Board For Quick Wiring, Which Is Really Nice Because We Sometimes Forgetting The Sequence
• ✪ HDTV Adapter Signals Terminal Is Equipped With A Crimping Ring Of Tail Pipe. Make Sure That The Cable Is Pulled In Use Without Causing Dropped Wires Or Poor Contact. Suitable For The Cable Up To 10mm.
• ✪ The Breakout Board Comes Already Installed In A Plastic Hood Enclosure With A Openable Cover. For A Wire Holder For Fixing Cable And Avoiding Twisting. Snap-On Construction That Opens And Closes Easily And Is Sturdy And Secure After Closing.

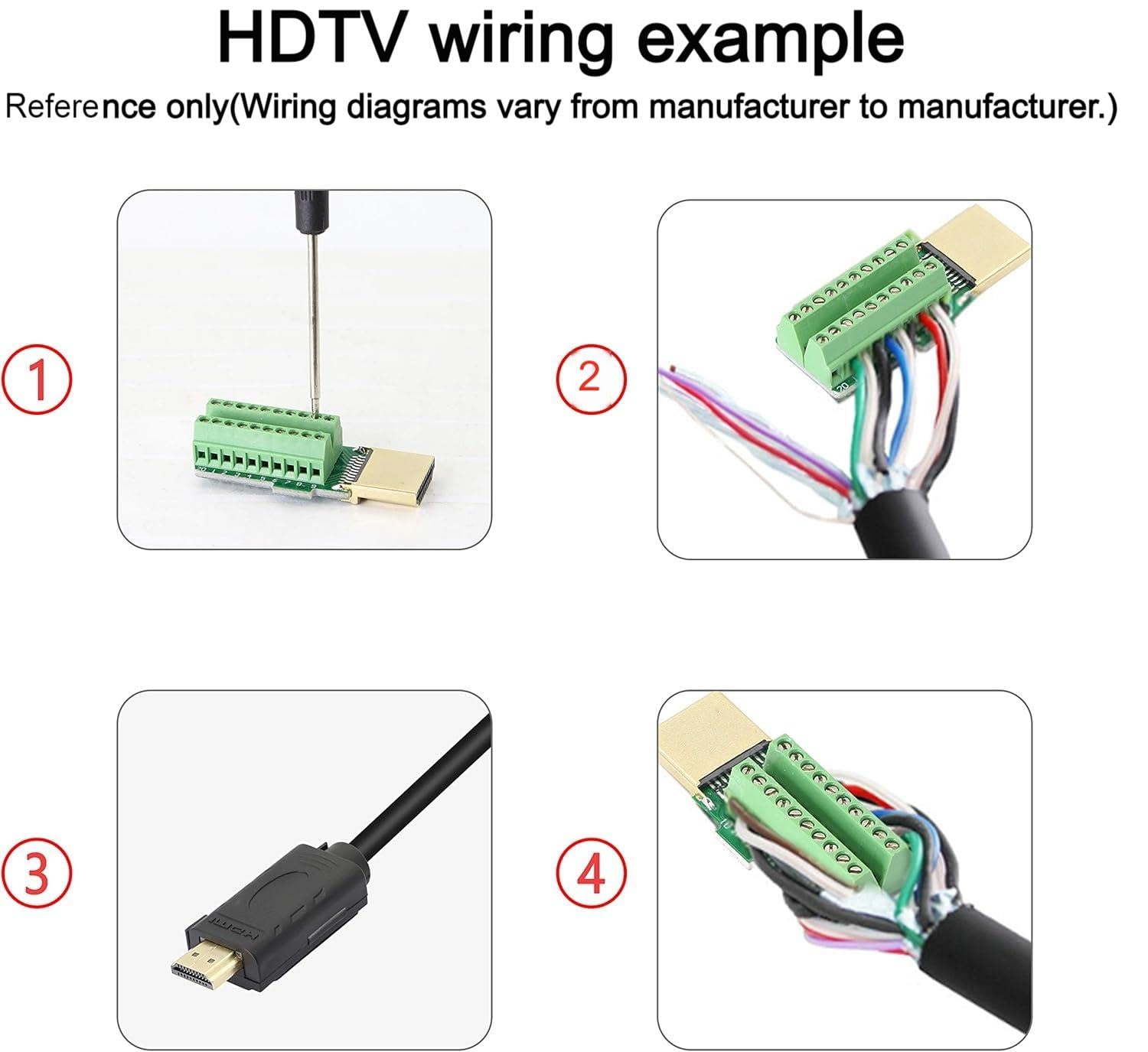

• ✪ Compact Design And Reliable Connection, Solderless Type, Adopt Environmentally Friendly Insulated Terminal Block. Requires Only A Screwdriver And A Wire Stripper To Terminate HDTV Cables, Slide In Your Stranded Or Solid-Core Wire, And Re-Tighten.

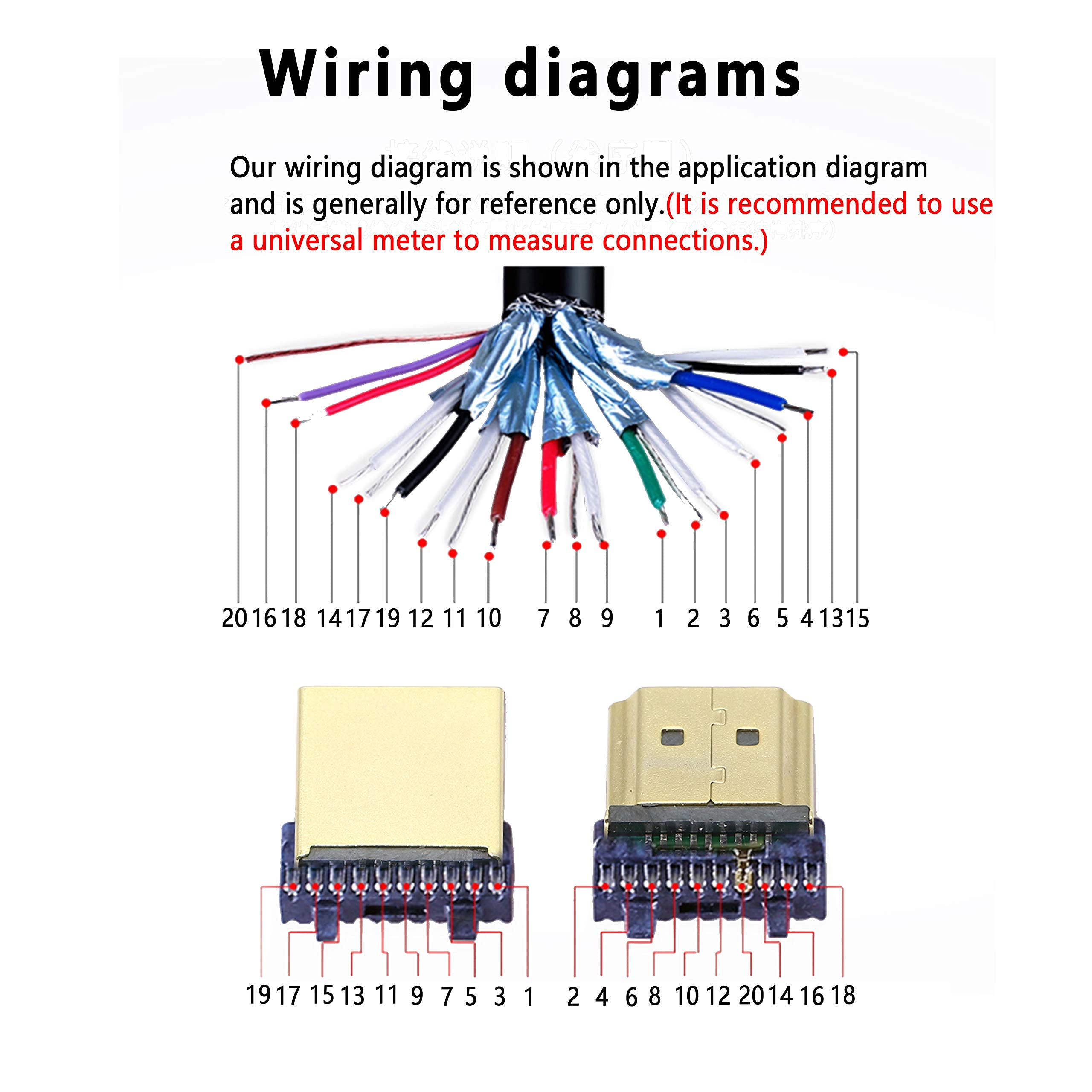

• ✪ Little Tips: Due To The Different Manufacturers, So The Most HDTV Have Varying Wiring Plans. The Actual Wiring Could Be Different Depending On Your Equipment. (You Can Use The Multimeter Test To Connect This HDTV Solderless Soldering Head) If Only One End Needs To Be Changed, Please Apply The Same Wiring Structure That Was In Use

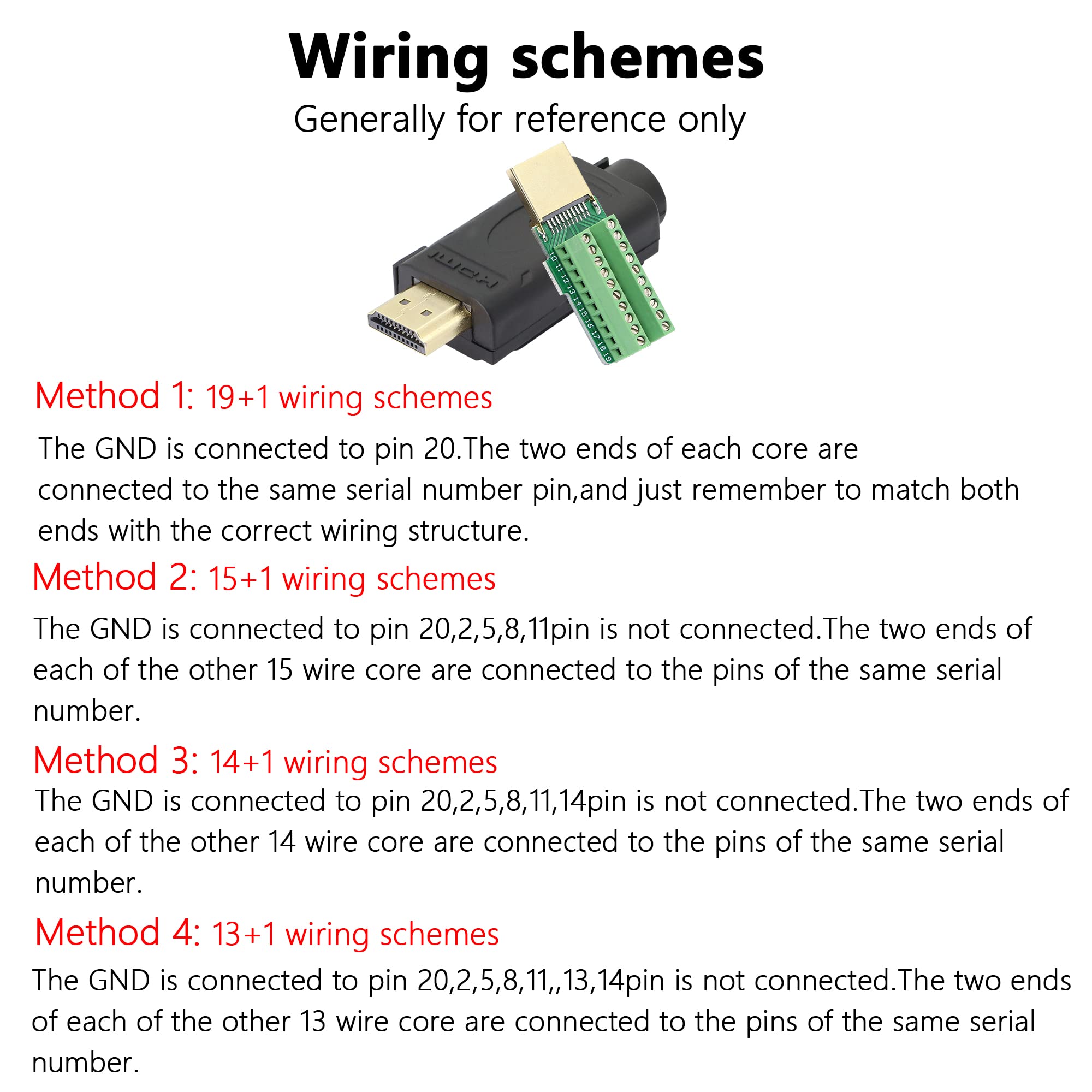

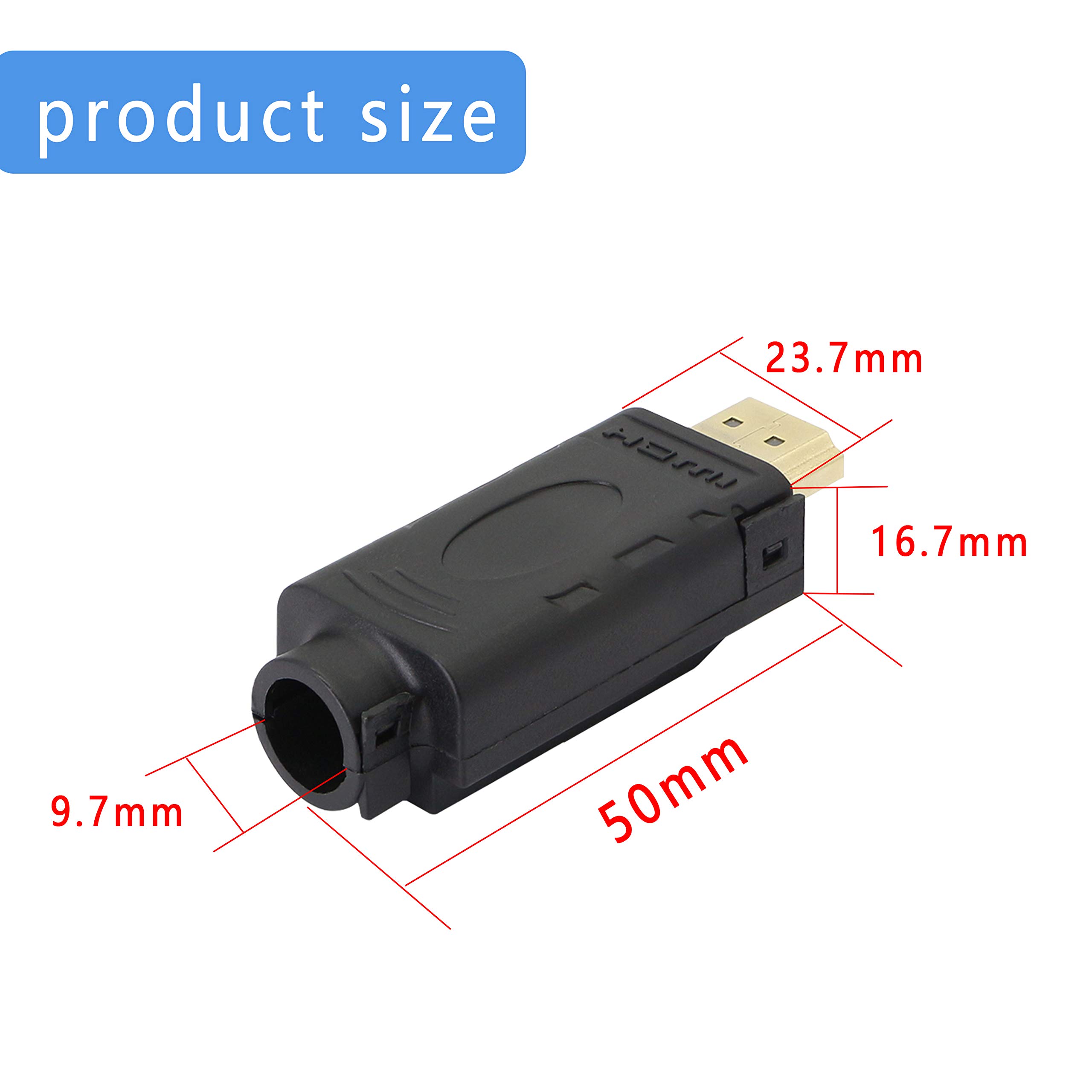

HDTV Solderless Signals Terminal, Gelrhonr Gold Plated HDTV Free Welding Connector Breakout Board with Screwdriver Specification: Compatible with HDTV 2.0, (HDTV 2.0 (24AWG) 19 1 core (5P 4C ADB)；1.4 and 1.3. Type: HDTV Male Plug Terminals Connector Interface Type: HDTV male Color: black Size:Suitable cable outer diameter: Less than 10mm Number of core: 19 Number of pin: 19+1 This product uses a cable: HDTV engineering line Feature: Fine workmanship and durable. Weld-free mode, simple wiring. Supports a group of HDTV signal transmission. Need to use with the width less 2MM flathead screwdriver. Package Includes: 1*HDTV Solderless Signals Terminal with case Wiring schemesGenerally for reference only Method 1: 19+1 wiring schemes The GND is connected to pin 20.The two ends of each core are connected to the same serial number pin,and just remember to match both ends with the correct wiring structure. Method 2: 15+1 wiring schemes The GND is connected to pin 20,2,5,8,11pin is not connected.The two ends of each of the other 15 wire core are connected to the pins of the same serial number. Method 3: 14+1 wiring schemes The GND is connected to pin 20,2,5,8,11,14pin is not connected.The two ends of each of the other 14 wire core are connected to the pins of the same serial number. Method 4: 13+1 wiring schemes The GND is connected to pin 20,2,5,8,11,,13,14pin is not connected.The two ends of each of the other 13 wire core are connected to the pins of the same serial number
