HDMI Matrix Switcher 4X4 4Kx2K 4 Input 4 Output Splitter Matrix 4x4 Support IR Control 4K HDMI 1.4v Matrix Switcher Box Full HD 1080P 3D

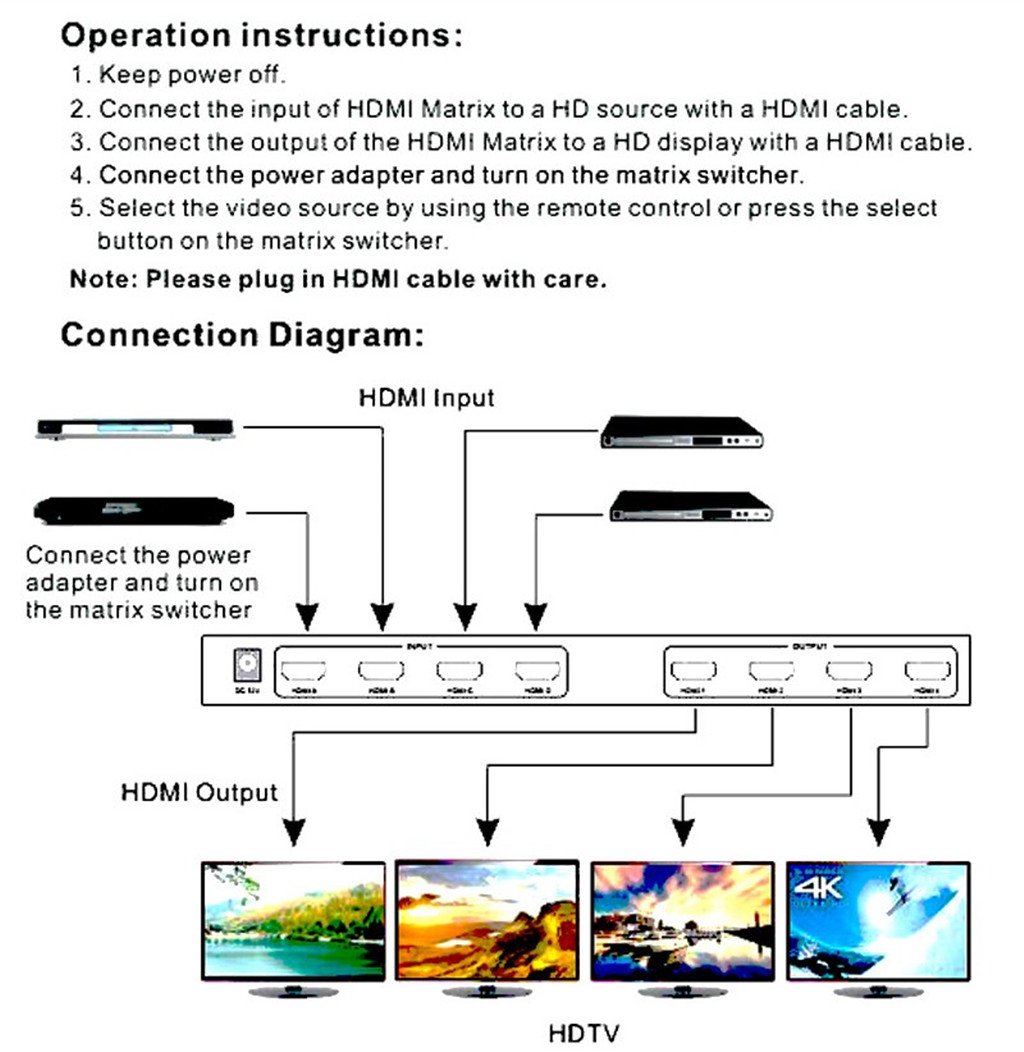

• 1.Through the HDMI cable to the high-definition signal source (HDMI interface) or through the annex to the MHL-HDMI cable to mobile devices (MHL interface) and the matrix input port (only for MHL / HDMI IN1 dual-mode input interface ).
• 2.Through the HDMI cable, each HDMI signal source and the matrix input connected.Through the HDMI cable, the matrix output and HDMI display device connected.
• 3.This 4X4 device supports 4K30HZ. If you use PS4, PS5 and other 4K60ZH devices, please manually set it to 4K30HZ, so that it can be used normally.
• 4. Through the remote control signal free switch。The matrix with the 5V power supply connected。With British regulation power supply。
• 5.Dear buyer, this 4X4 matrix distributor can input 4 different signals and output 4 different signals. If you don't know the use or have questions, please contact our customer service and purchase, we will help you to buy. Solve, if you encounter any problems in use, please contact our customer service first, thank you.e, please contact our customer service first, thank you.

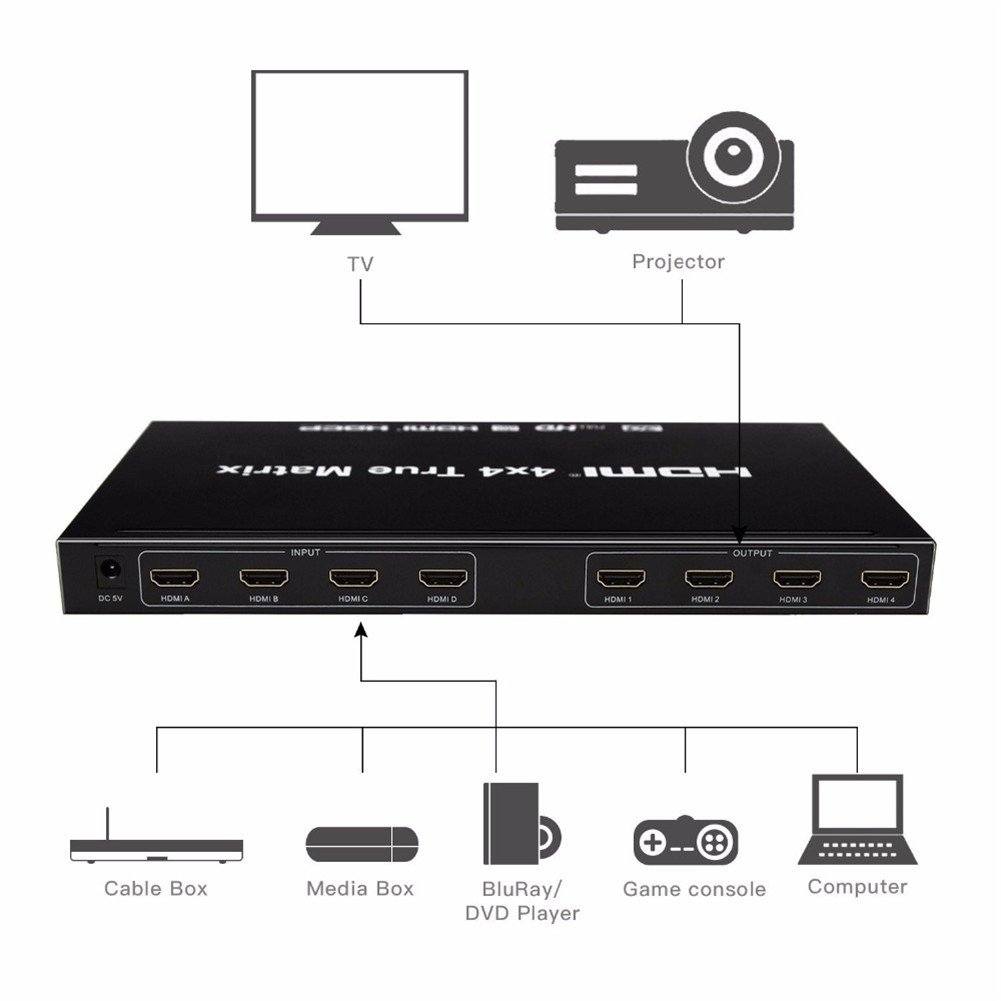

The 4K 4x4 HDMI Switch allows to access to multiple HDMI sources. It allows 4 HDMI devices to be switched easily to 1 to 4 compatible monitor or projector through HDMI. The Product supports resolutions up to 4Kx2K 24/25/30Hz. It also supports EDID RAM. The Product can also be placed at the end of a long HDMI cable to regenerate the HDMI signal. Our devices offer solutions for noise,space and security concerns,data center control,information distribution,conference room presentation,school and corporate training environments. Support 4 HDMI signal input, 4 HDMI signal output, input and output can be arbitrarily switched. Support the highest resolution of 1080P @ 60Hz 2K 4K Support 36bit dark display Support 3D video technology Support for high-definition digital audio such as: Dolby TrueHD, DTS-HD Master Audio DC 12V 2A power supply (also supports 5 ~ 12V wide range of power supply) Operating temperature range: -45 ° C to 85 ° C Operating humidity range: 5% to 90% RH Video amplifier circuit bandwidth: 2.5Gbs / 250MHz Video signal input: 0.5-1.0V p-p Display Data Channel Signal Input: 5V p-p (TTL) Maximum single link range: 1920 * 1440,1080p Video format support VGA: 640 * 480,800 * 600,1024 * 768,1280 * 1024,1600 * 1280,1920 * 1080,1920 * 1440 3840X2160 Video format support DTV / HDTV: 480i / 576i / 480p / 576p / 720p / 1080i / 1080p Video signal output: HDMI 1.4b + HDCP1.3 / 1.4 Product Type: HY-MT40404-A-I Host Size: 275X155X25MM Host weight: 1000g Color box size: 375X185X48MM Full set of weight: 1375g 1,12V voltage power adapter X1 2, manual X1 3, remote control X1 4, host X1
