4X4 Matrix Selector, 4K HDMI Matrix 4 Inputs 4 Outputs HdMI Matrix 2.0 Ports 4x4 Support 4K@60Hz 4K Dolby Vision HDR HDCP 2.2 Remote Control Support

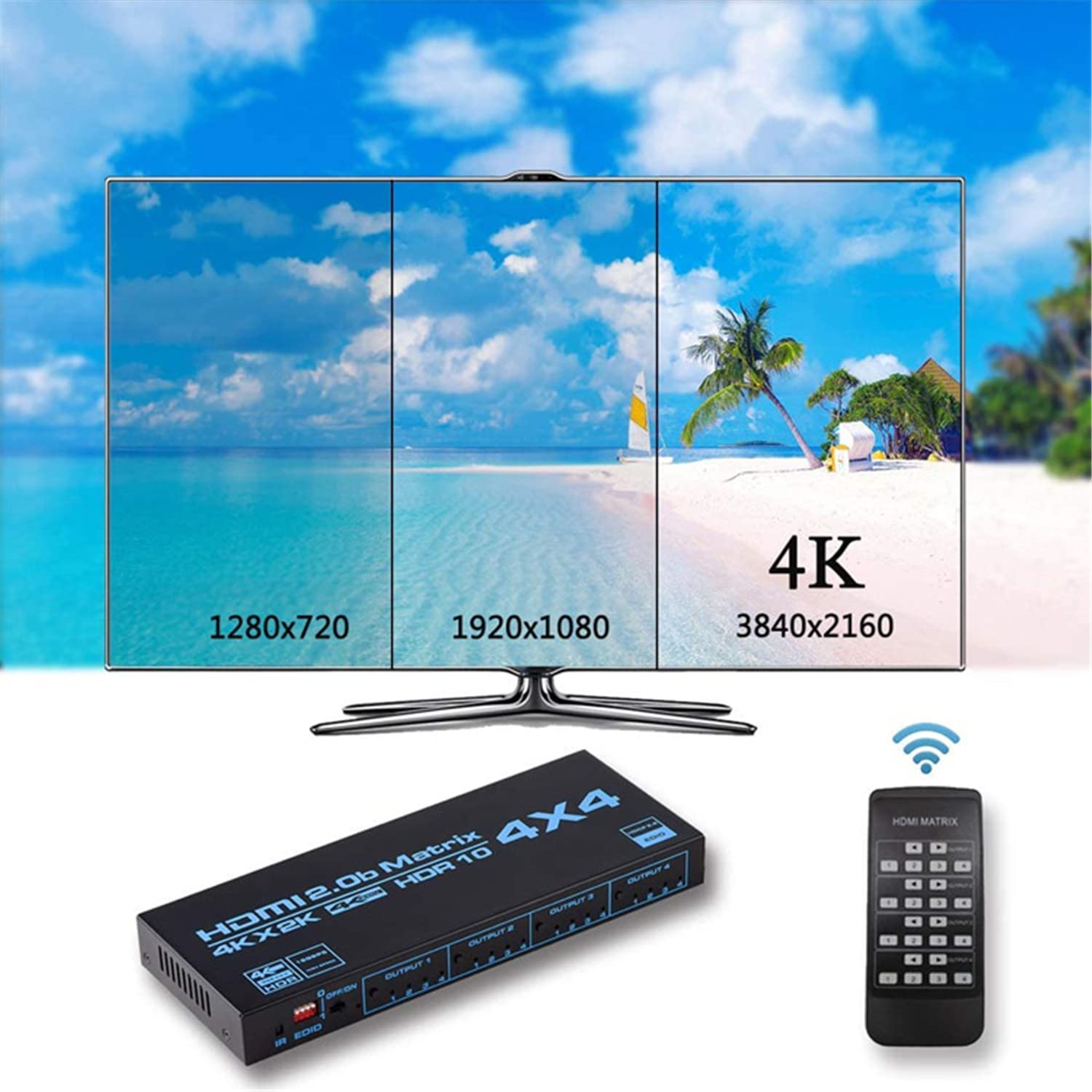

• * Matrix function: Four HDMI output ports independently select one of four HDMI inputs to achieve a different display.
• * Distribution Function: Assign any HDMI input to a synchronous HDMI signal output 1/2/3/4 to get the same display.

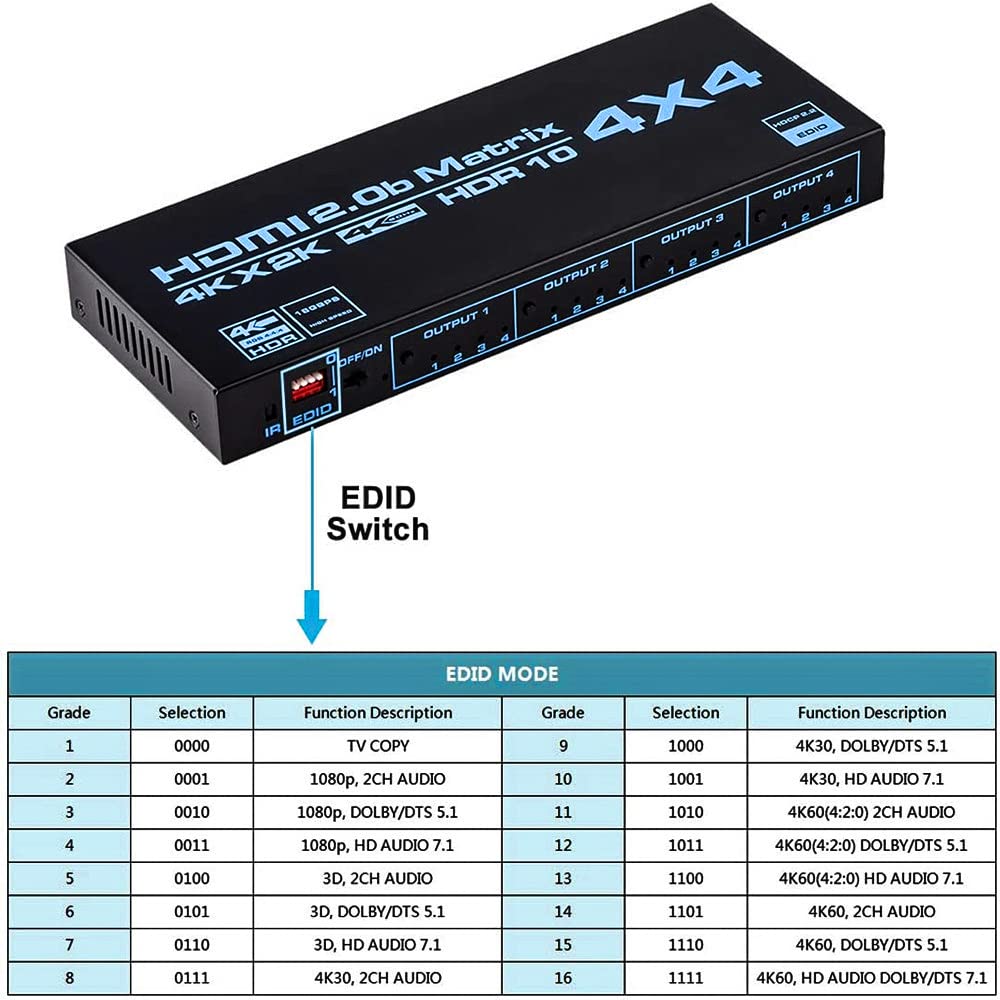

• * Support ultra-clear 4K*2K@60Hz(YUV444/RGB888), not only 4Kx2k@24/25/30Hz; support 3D, according to actual needs, rotate the EDID switch to select the corresponding 3D video and audio format.Automatic recognition The highest resolution of the output device, actively reducing the resolution, perfectly matching 1080P power amplifier and projection.
• * Support HDMI version: support HDMI2.0b, backward compatible with HDMI1.0, HDMI1.3, HDMI1.4; HDCP version support: HDCP2.2 backward compatible with HDCP1.4; Audio support: support PCM, DTS, AC-3, Dolby Panorama (HDMI port support only) and HD Audio.
• * Support lossless output, that is, separate audio does not affect HDMI output, input and output are exactly the same,>Support 480/576/720/1080/4Kx2K@24/25/30/60Hz video resolution.

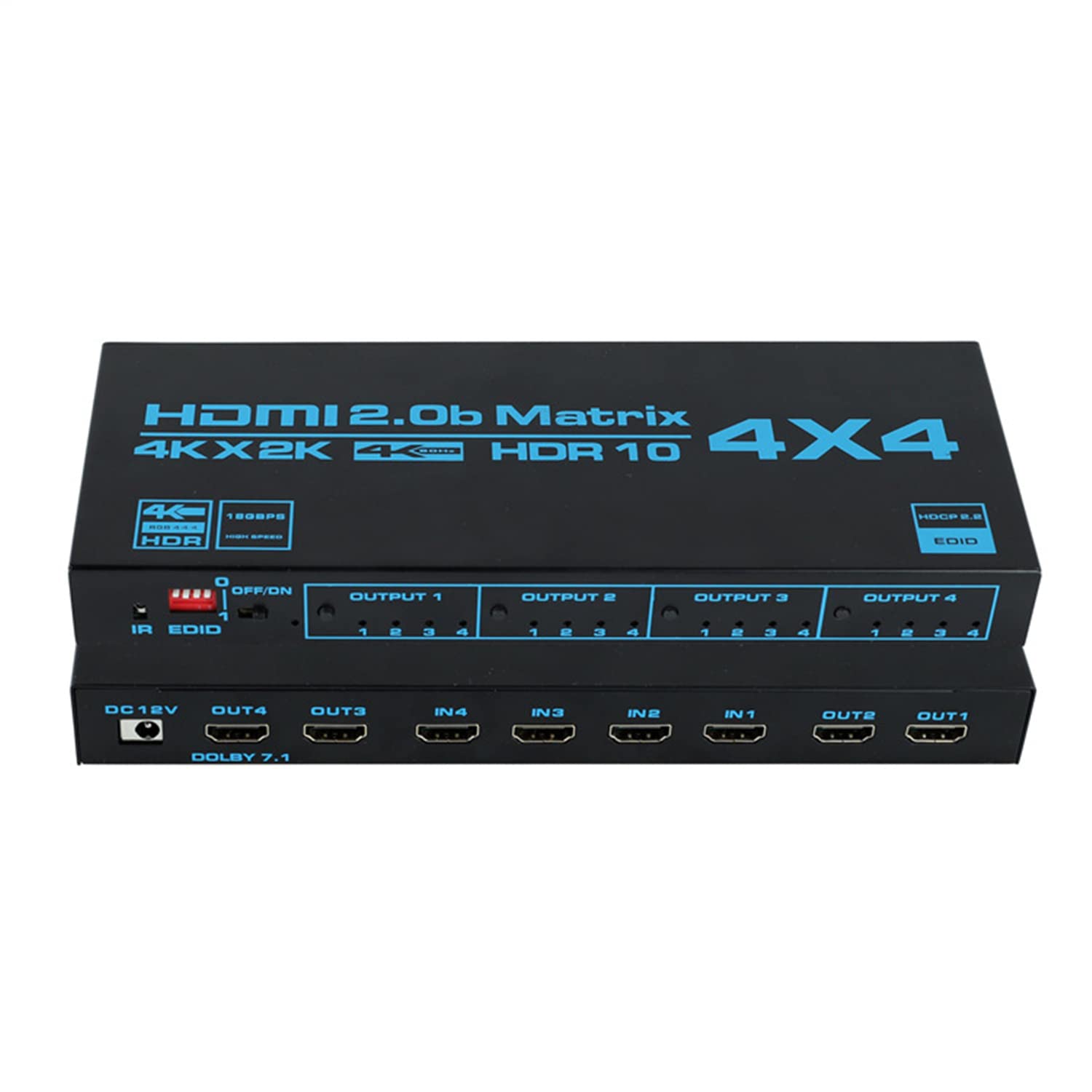

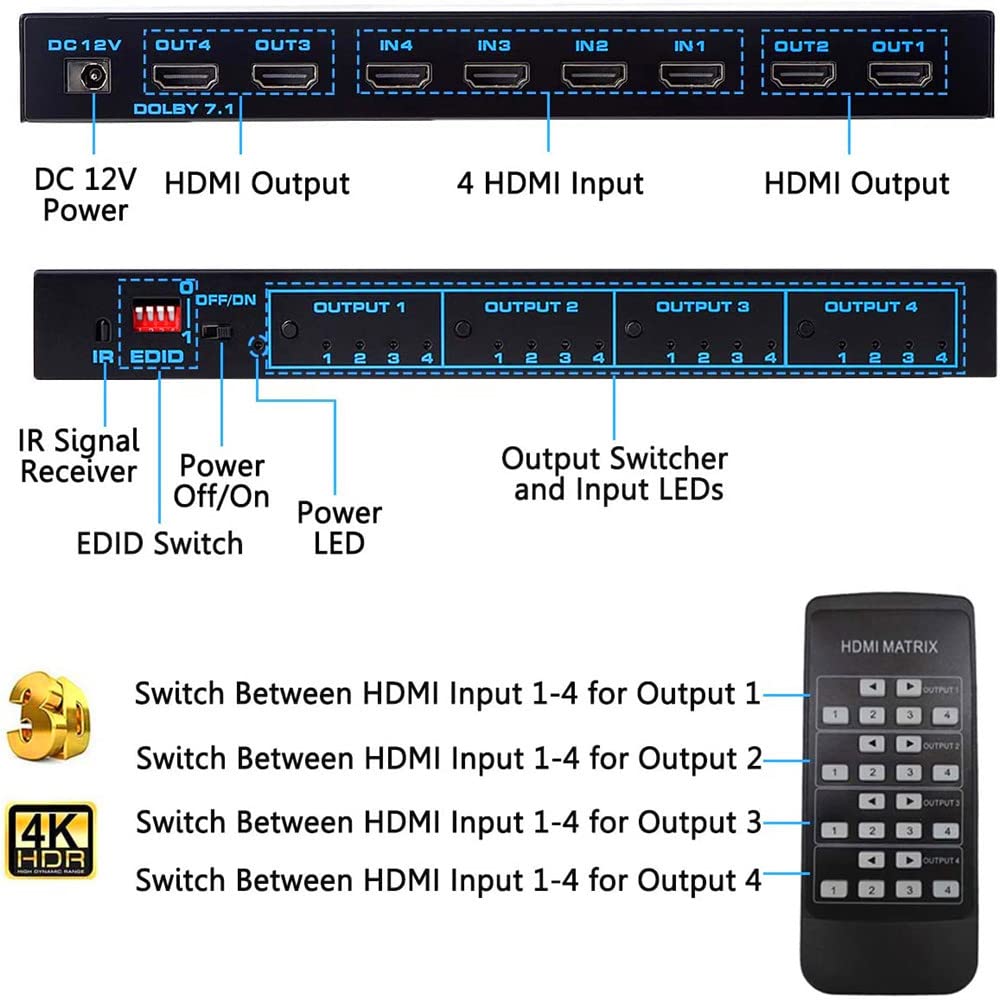

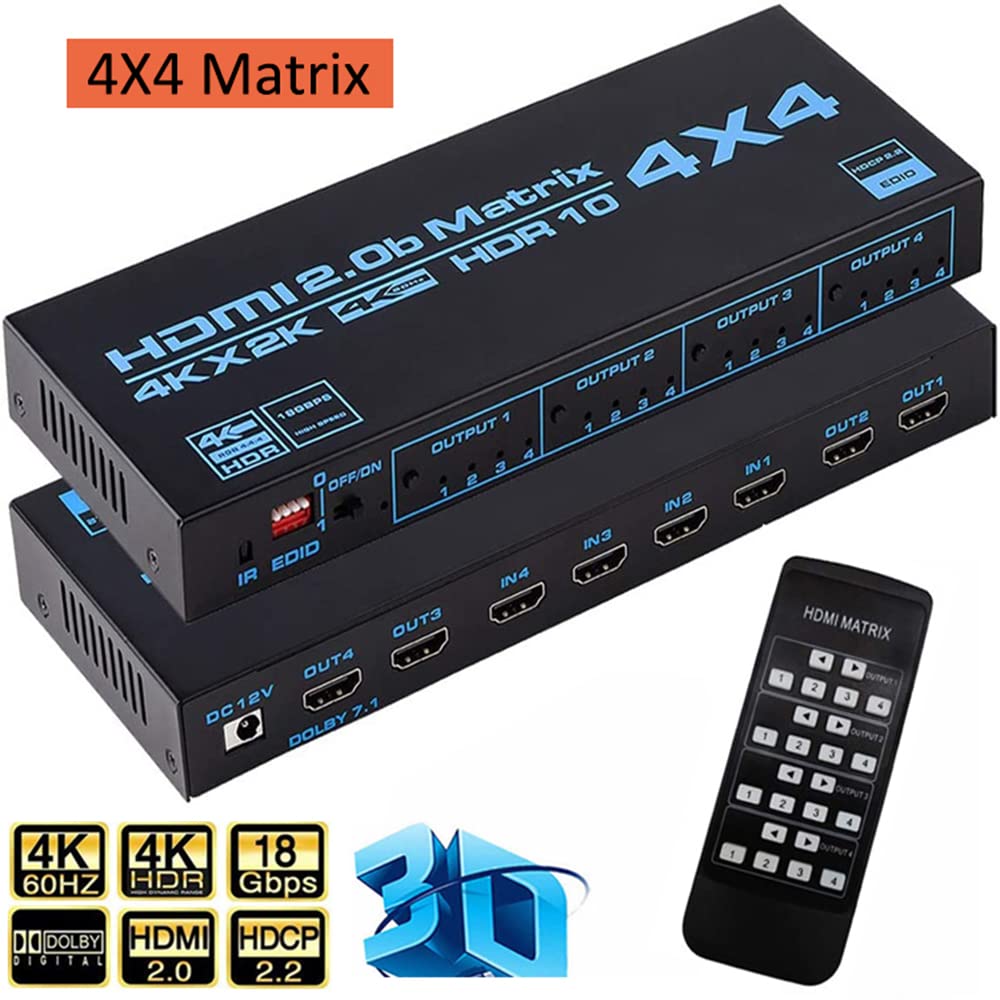

4x4 HDMI Matrix Switch, 4K HDMI Matrix Switch 4 Input 4 Output Splitter Box with EDID Extractor and IR Remote Control The 4-in-4 out HDMI Matrix Switch makes it easy to switch or divide four HDMI devices to four HDMI-enabled monitors or projectors. It is suitable for home theater, villa, conference room, shopping mall, video wall, school and corporate training environments, etc. Specifications - Product type : 4x4 HDMI matrix - Interface Type: 4 HDMI inputs, 4 HDMI outputs - Colour: black. - Power supply: DC 12V - Dimensions (L x W x H): 230 x 90 x 25 mm. Features - Support HDMI 2.0b HDCP 2.2 - Supports 3D video format - Supports highest resolution up to 3840*2160/60Hz YUV4:4:4 - Supports 18Gbps data rate and tmds clock up to 600Mhz - Support for 8/10/12/24-bit deep color - 4 HDMI inputs switched and divided into 4 HDMI displays - Input Cable Distance: <8m AWG26 Standard HDMI2.0b Cable - Output cable distance: <8m AWG26 HDMI 2.0b standard cable Package includes: 1 x HDMI Matrix 4X4. 1 x 12 V power adapter. 1 x IR Remote Control 1 x user manual. Note: Button and LED Instruction: 1. LED instruction: IN1-IN2 IN3-IN4 indicator is the corresponding input sources of OUT1 or OUT2 or OUT3 or OUT4. 2. Button operation: OUT1 or OUT2 or OUT3 or OUT4 is used to output the corresponding input source from OUT1 or OUT2 or OUT3 or OUT4
