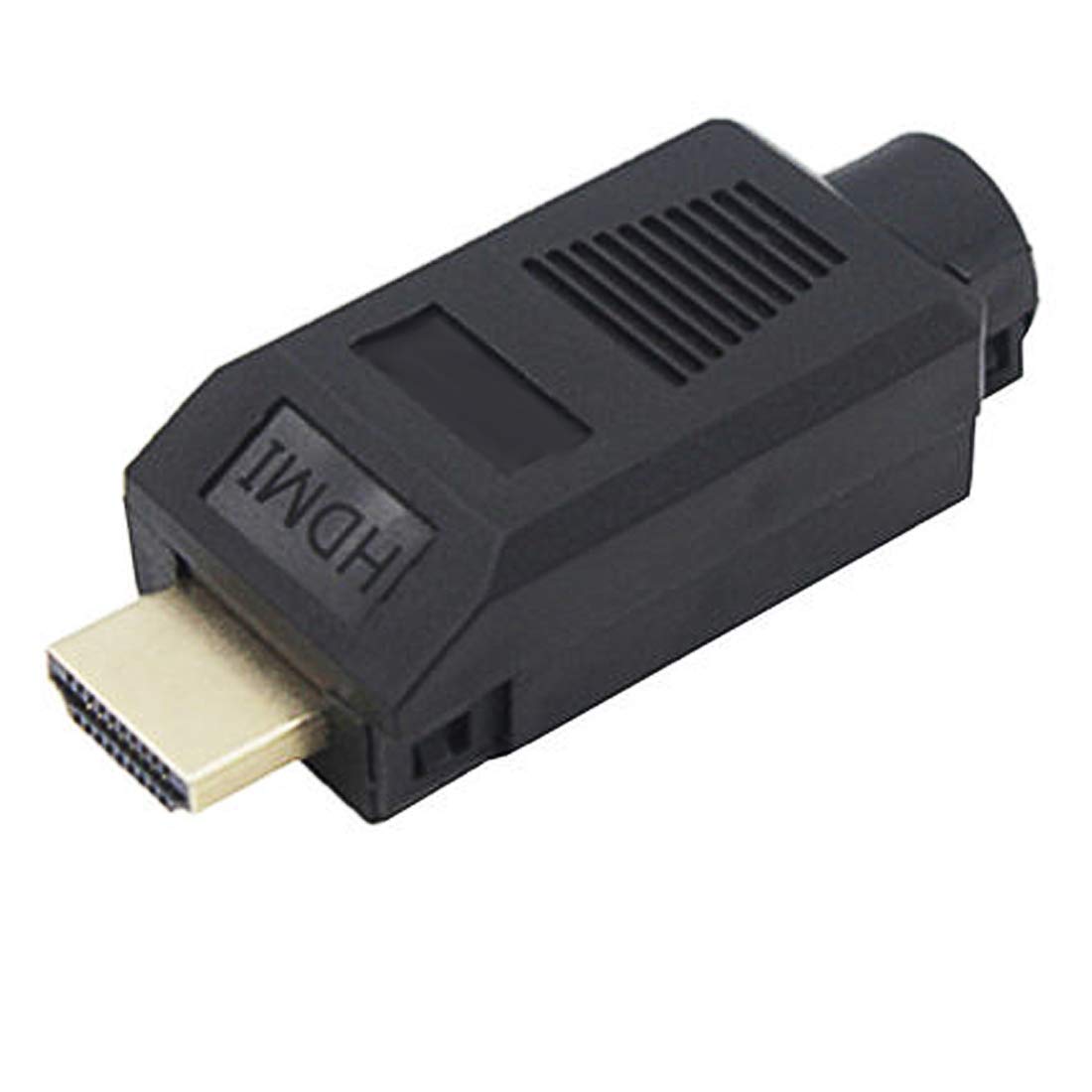

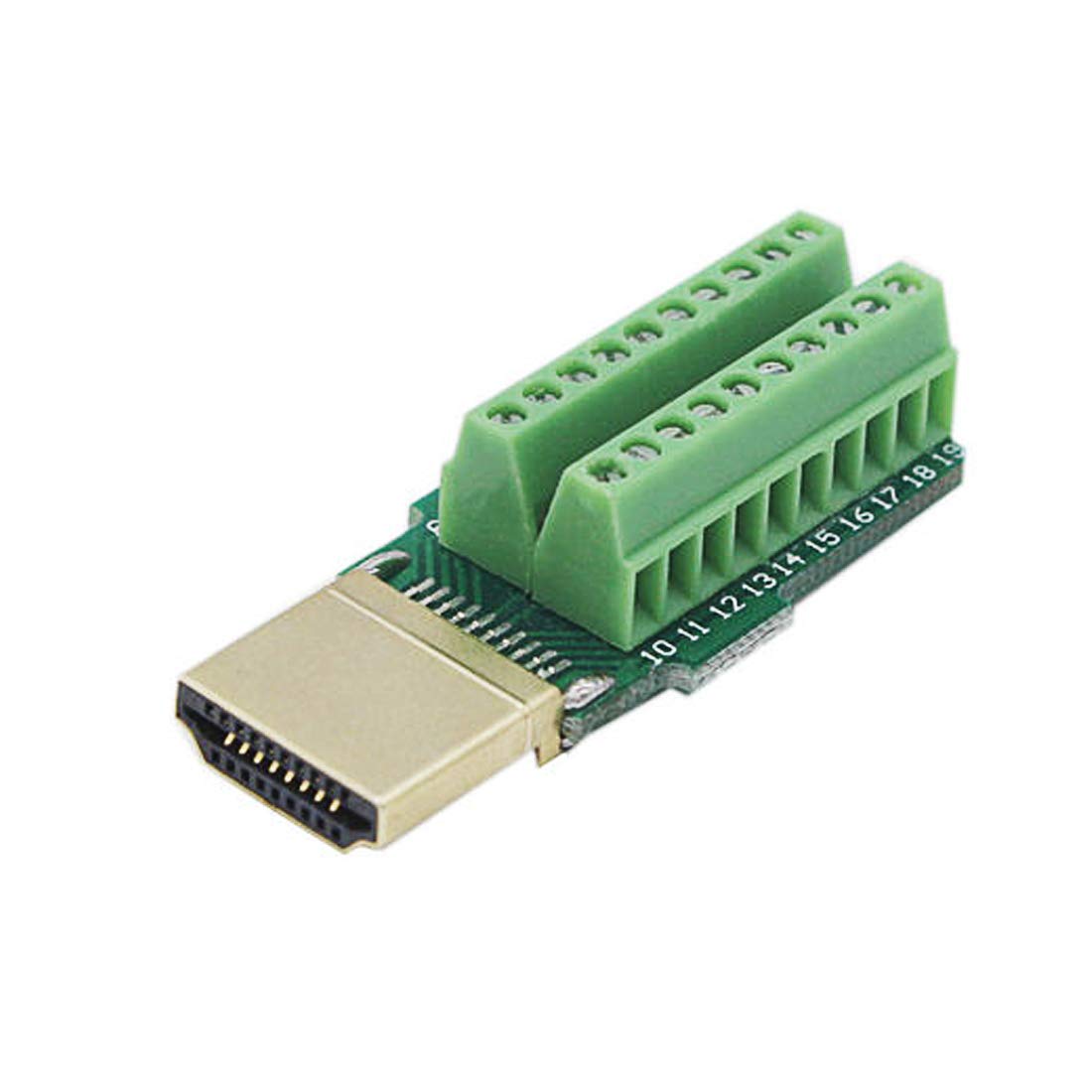

HDMI Male Connector Solderless Adapter Plug to Terminal Block Breakout Free Welding Connector with Plastic Cover

• Product Name :HDMI Adapter Solderless Free Welding Adaptor，Maximum HDMI cable diameter 0.43 Inch, compatible with common HDMI cable.

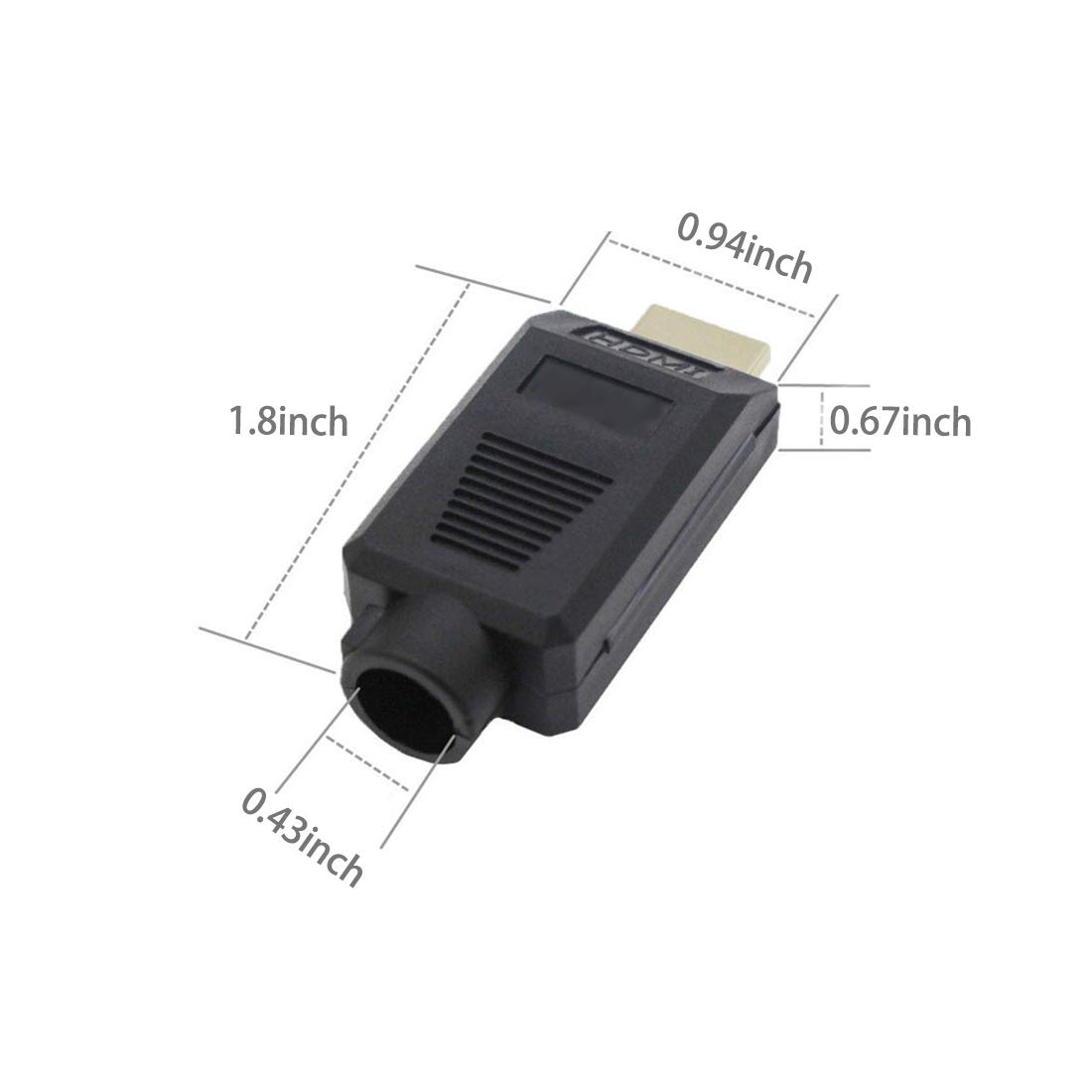

• Size:1.8 inch*0.95inch*0.67inch(L*W*H)
• HDMI Adapter Fully assembled, free welding for DIY，Also suitable for HDMI panels on home improvement projects, buried in the wall， compatible with HDMI 2.0, （ HDMI 2.0 (24AWG) 19+1 core (5P+4C+ADB)；1.4 and 1.3.

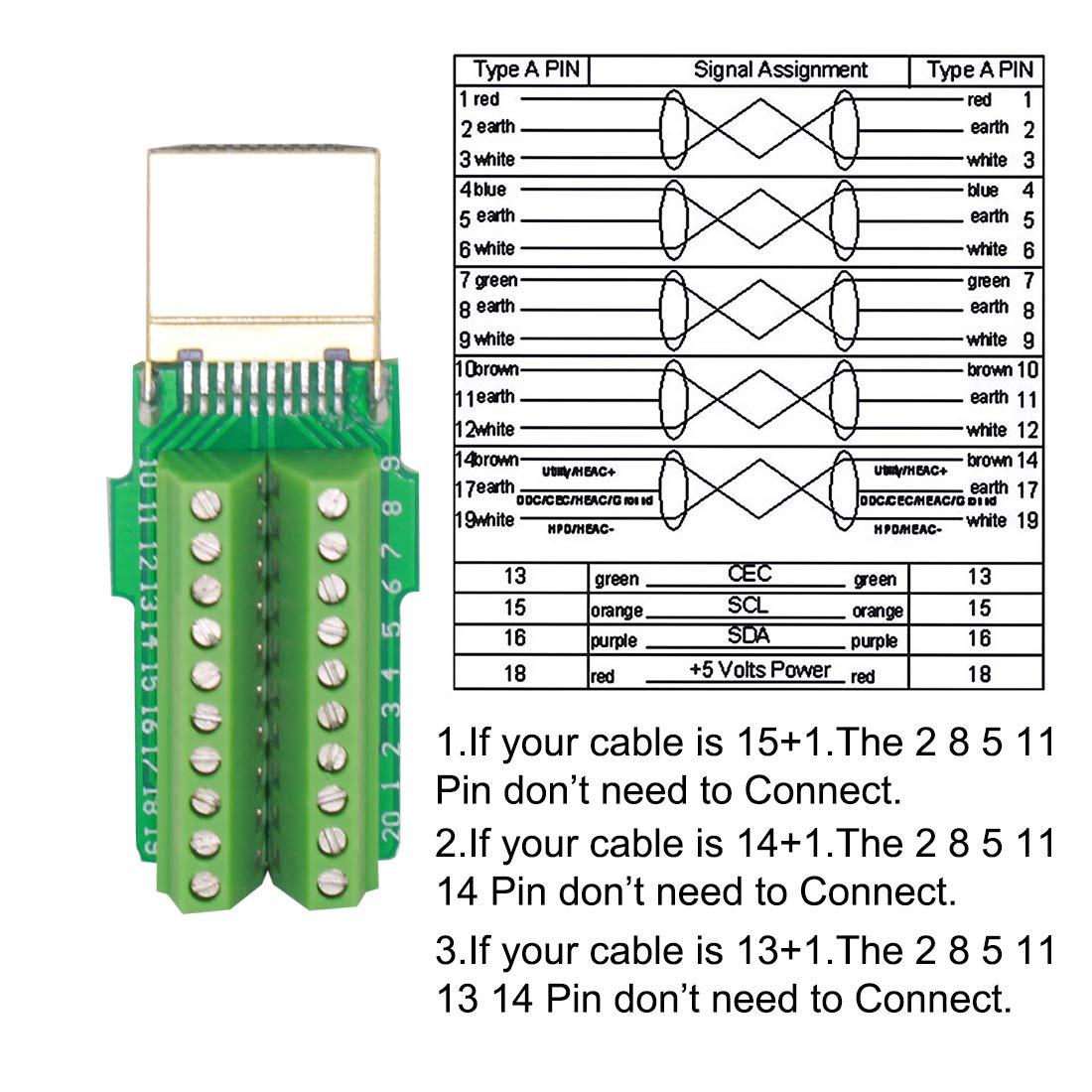

• Notice：Most HDMI have varying wiring plans. Due to the different manufacturers, the wiring plans is different, so you need to ask the seller of this line. If only one end needs to be changed, please apply the same wiring structure that was in use. While wire colors from different sources may vary, just remember to match both ends with the correct wiring structure.
• Package : 1 x HDMI Adapter 1x Screwdriver

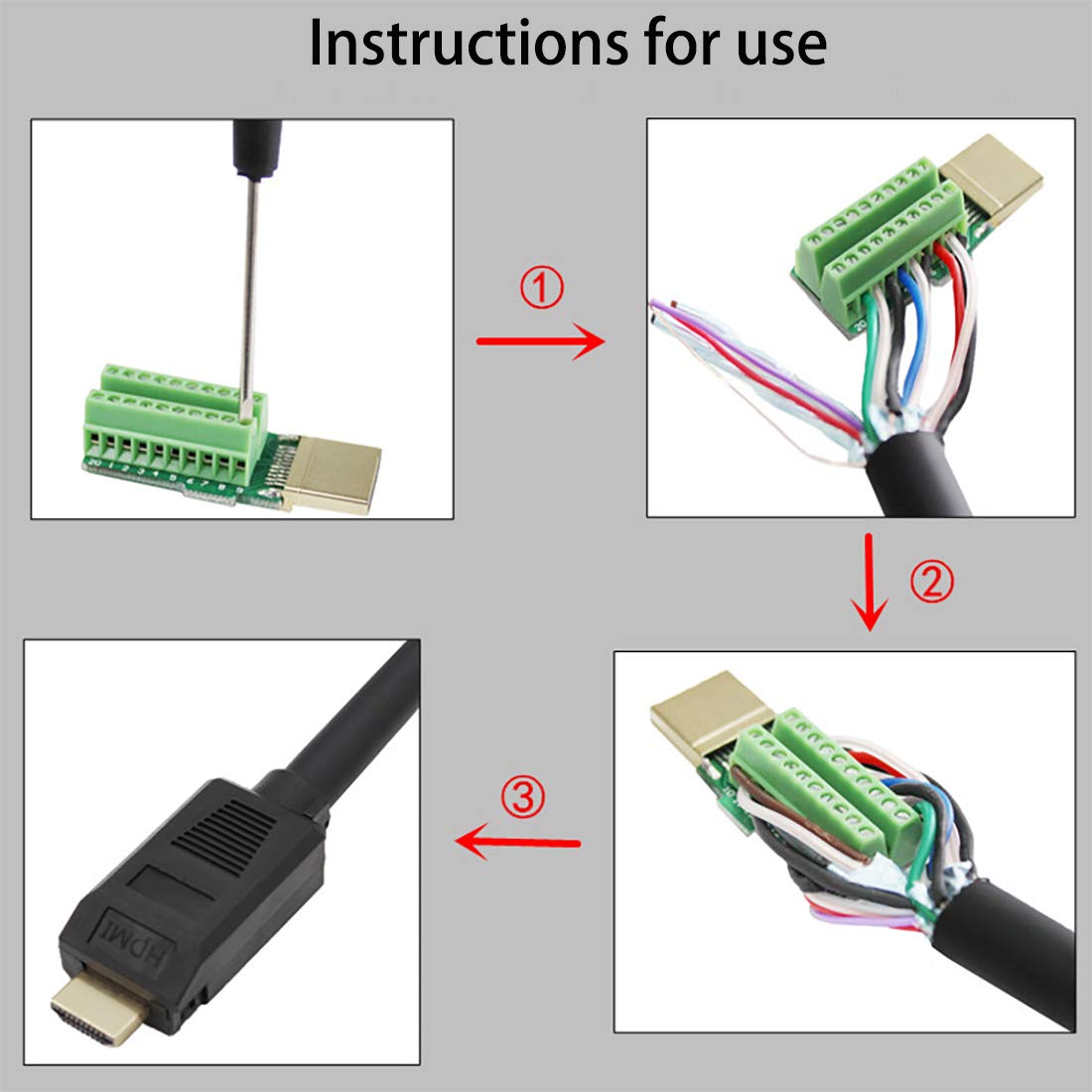

This was amazingly easy to install. The instructions made it easy. Use shrink wrap on the cable first. Use a female/female connector to plug both ends together and a continuity device [even a simple one made from a battery, bulb and two wires.] Go down the screws and loosen all. Then go down screw-by-screw finding the wire that completes each circuit. It gets easier as each wire is inserted and tightened. Cut each wire to the appropriate length, strip, insert and tighten. Notice： The connection method requires professional knowledge, and beginners should be careful to purchase. Most HDMI have varying wiring plans. Due to the different manufacturers, the wiring plans is different, so you need to ask the seller of this line. If only one end needs to be changed, please apply the same wiring structure that was in use. While wire colors from different sources may vary, just remember to match both ends with the correct wiring structure.
