HDMI KVM extender 60M over cat5/6 ethernet cable 1080P USB KVM HDMI Extende Audio Video Converter For PC Ps5 Loptop HDTV (60M)

• 1* The length of HDMI cable is fixed and unchangeable after it is produced. Because the HDMI connector can only be soldered or terminated by the professional workers in factory, the users can not reduce or increase by themselves, however CAT-5E/6 cables are available everywhere and can be processed easily by the user or installer.
• 2*Because the head of the long HDMI cable is big, using it must in hidden method, what is more, it is not easy to bend the HDMI cable and to pull it through the in-wall tube or tray. However,CAT-5e/6 cables do not have such problems.

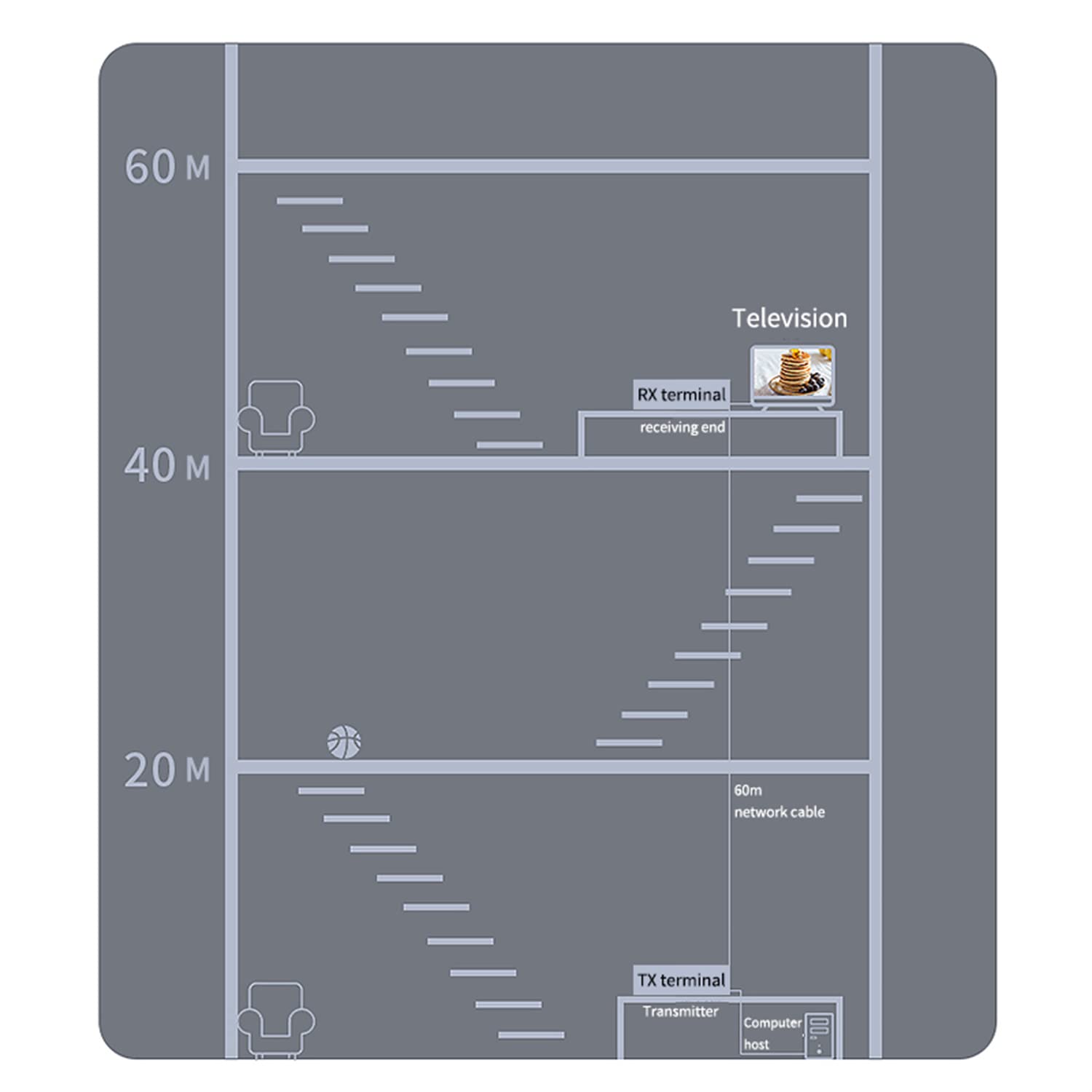

• 3* With this extender, the transmission distance can be up to 60 meters while using CAT-5e/6 cables, for the general HDMI cables, they must be customized when the length is over 10 meters.

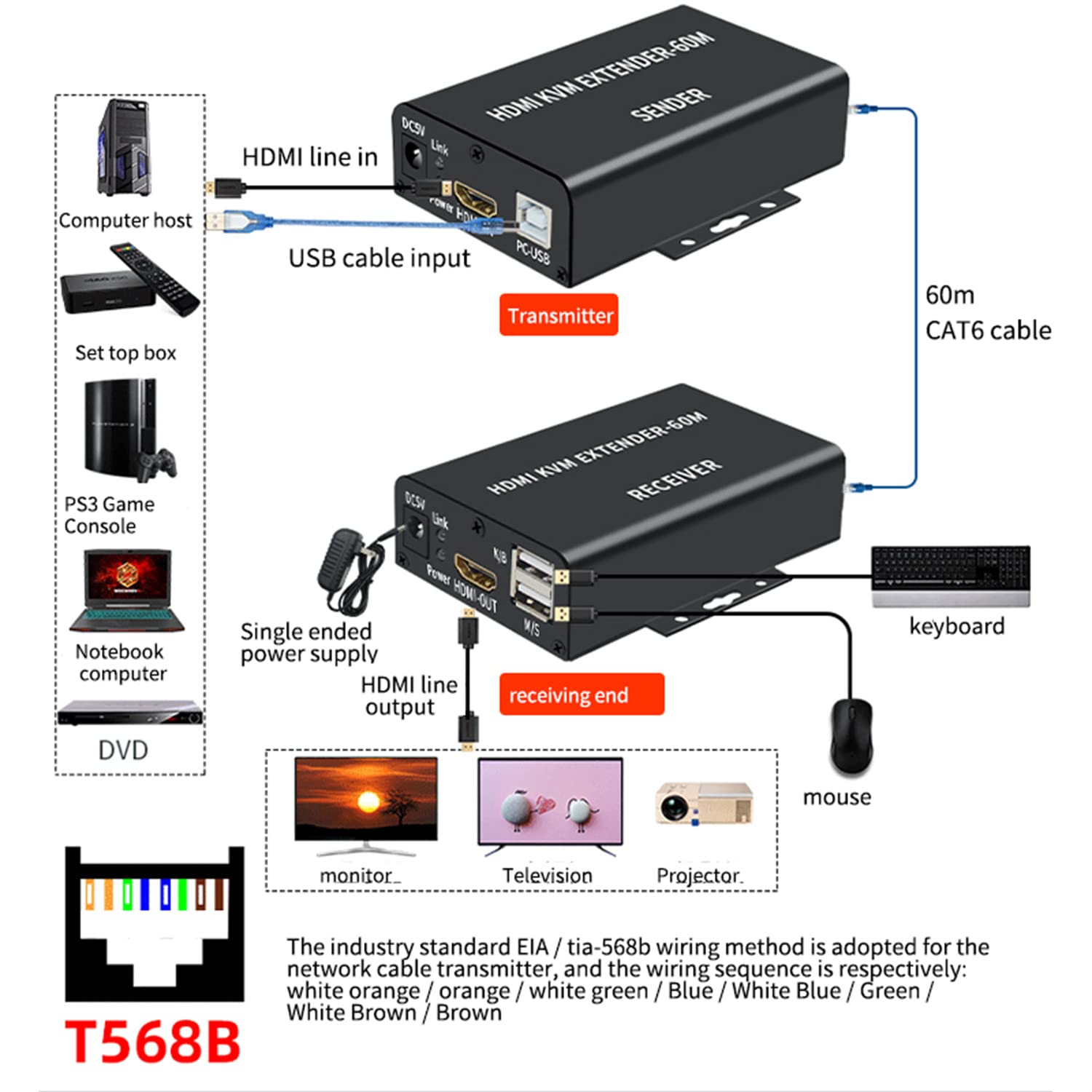

• 4*One pair as a full functional module, no need of setting.*CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission.*CAT-5e/6 follow the standard of IEEE-568B,*Transmission distance can be up to 30/45/60/120 meters for 1080p while using CAT-5e/6 cable.
• 5*If the wireless keyboard and mouse are not supported, please change the brand or the wired keyboard and mouse. Wired keyboards and mice are strongly recommended. Some brands of wireless keyboards and mice have built-in protocols that may lead to incompatibility.

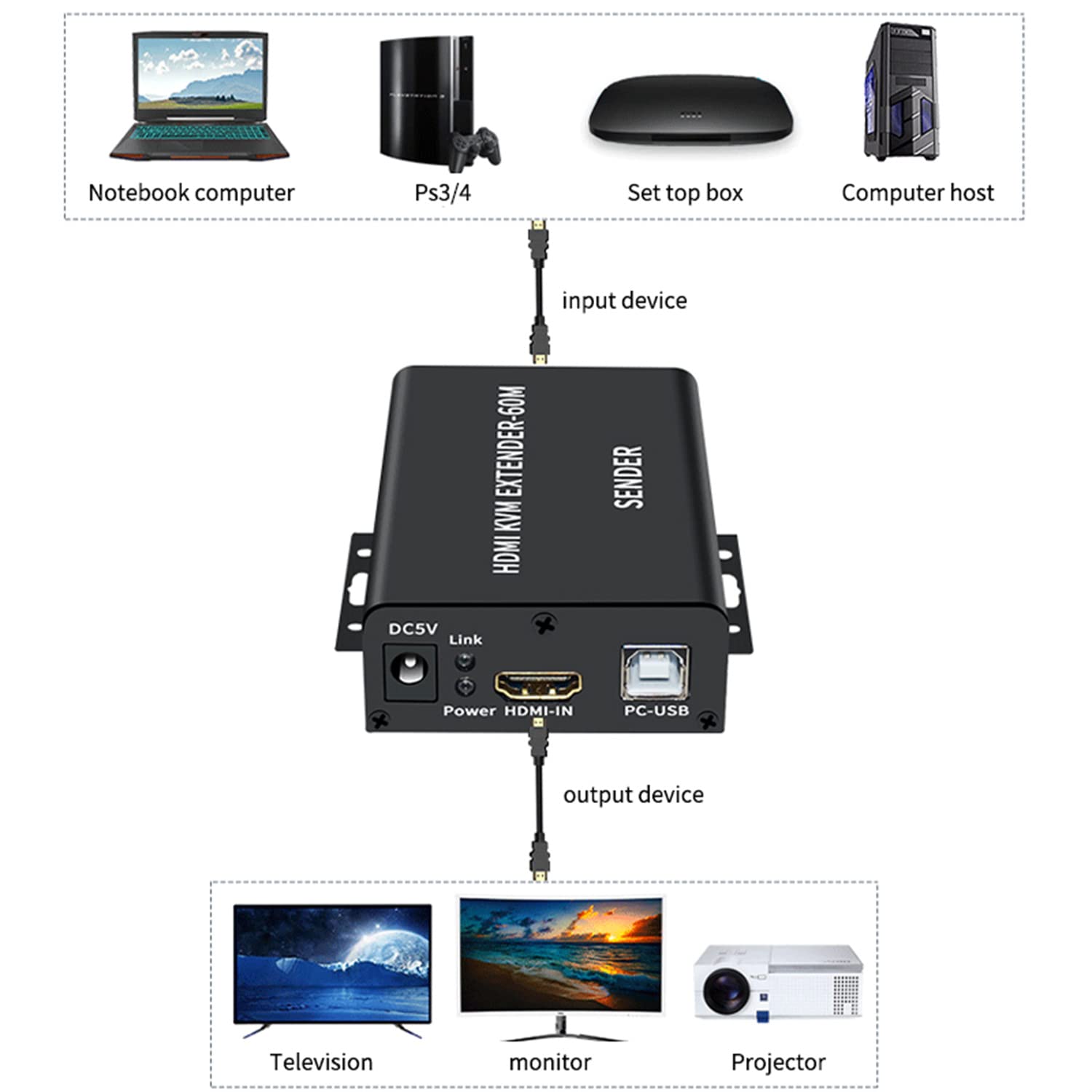

INTRODUCTION: *The Extender over CAT-5E/6 uses one piece of CAT-5e/6 cable to extend the HDTV display up to 30/45/60/120 meters for 1080p, It not only breaks the limitation of the HDMI cable transmission length, but also CAT-5e/6 has more flexibility and convenience in cable construction. *It is equipped with HDMI (high definition multimedia interface) connectors and is capable of supporting DVI (digital visual interface) equipment when used with an HDMI to DVI adapter, providing greater flexibility and options when integrating several home theater components. *It offers solutions for residential consumers: HDTV retail and show site, HDTV,STB,DVD and projector factories, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments. PARAMETERS LIST: Input DDC signal : 5volts p-p(ttl) Maximum single link range :1920*1080, 1080p Output video : HDMI Mouse/Keyboard Interface : USB DTV/HDTV : 1080p/1080i/720p/576p/480p/576i/480i HKE60 : 60meters Interlaced(50&60hz) : 480i 576i 1080i Progressive(50&60hz) : 480p 576p 720p 1080p Power consumption : 5wattd(max) Operating temperature : 0 to+70℃ Operating humidity : 10%to85%RH(no condensation) Storage temperature : -10℃to+80℃ Storage humidity : 5%to95%RH(no condensation) External power supply : DC5V @1A package: 1* transmitter 1* receiver 1*DC5V power Plug 1* One USB A-B cable
