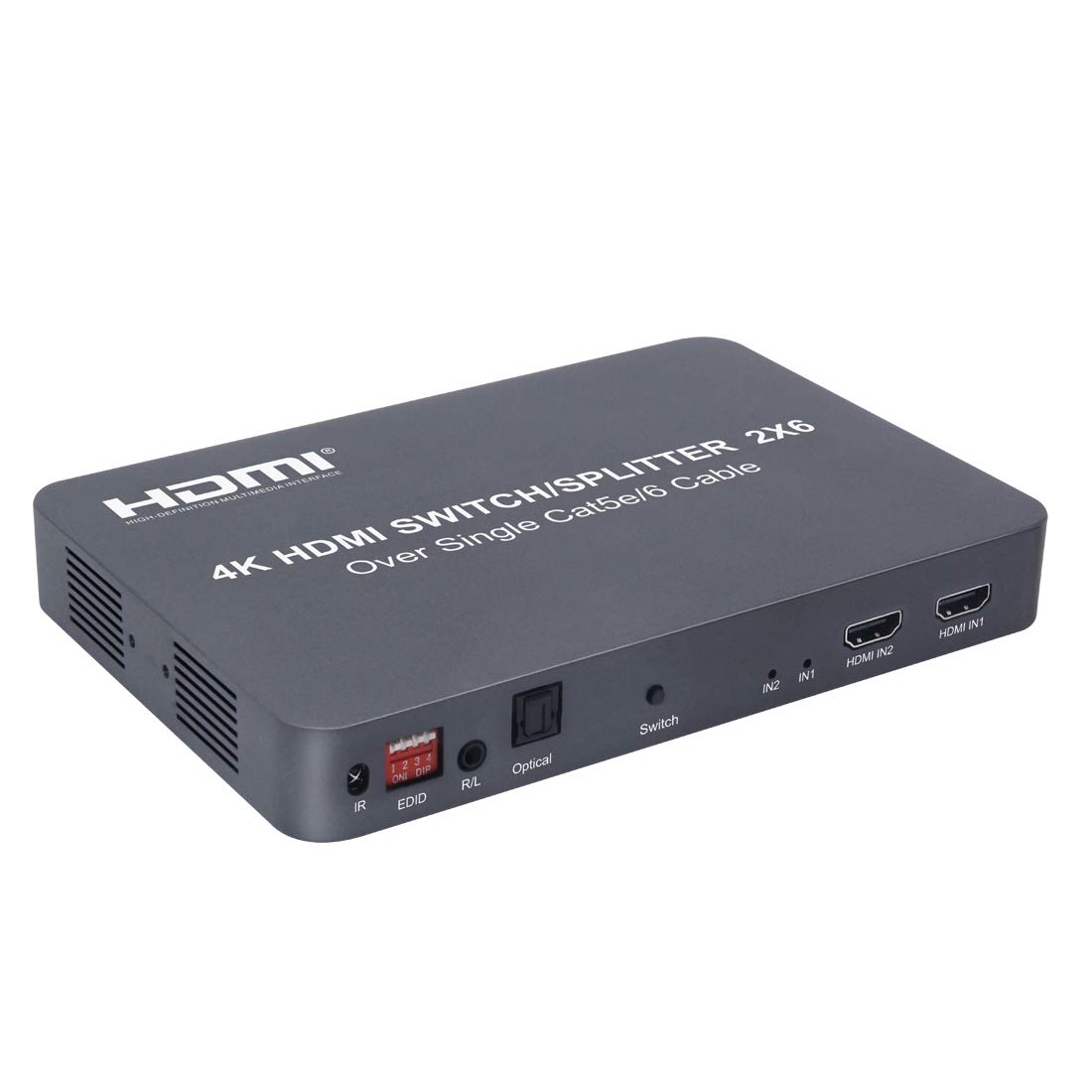

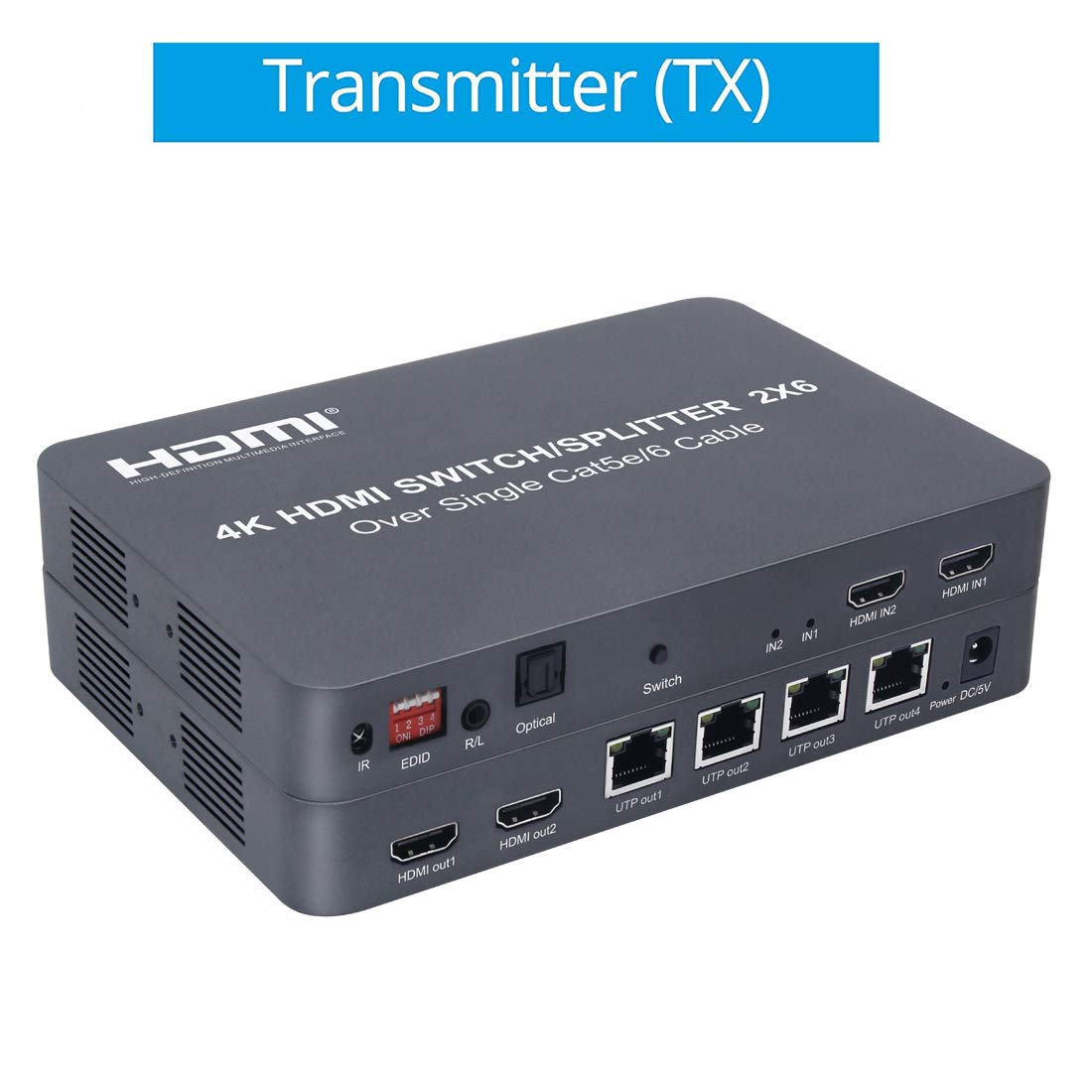

HDMI Extender - 2X6 HDMI Switcher/Splitter Extender Optical SPDIF + 3.5mm jack Audio Extractor 4K@30HZ 1080P 120M By Ethernet RJ45 CAT5e CAT6

• 1. 2 x 6 HDMI Switcher/Splitter Extender, which switches between two input source devices and distributes the signal to six displays simultaneously. (6 displays simultaneously display the same screen)

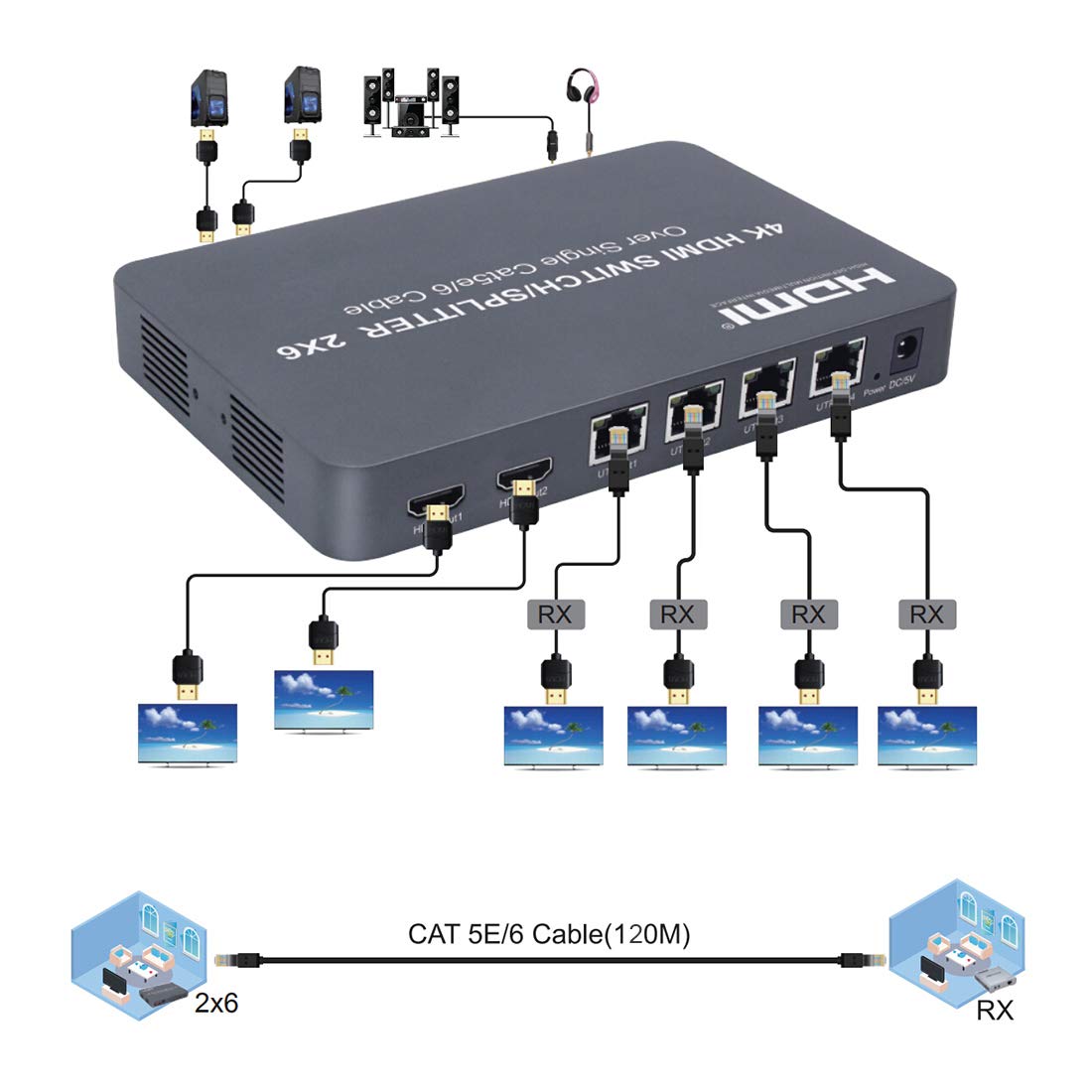

• 2. 2 x 6 HDMI Switcher/Splitter extender with 4 RJ45 ports can be extended to a maximum distance of 120 meters via cat5e or cat6 cable (recommended) (requires RX receiver to work with).
• 3. Support for outputting additional audio through the Optical SPDIF and 3.5mm audio jacks.
• 4. High resolution - up to 4k@30Hz/1080p/1080i/720p/576p/576i/480p/480i formats.
• 5. Widely used in video conferencing, monitoring centers, multimedia teaching, home theater, etc., efficient and fast transmission of video to meet the needs of your various occasions.

Product parameters: HDMI version: HDMI 1.4/HDCP 1.4 HDMI input resolution: 4K@30HZ/1080p/1080i/720p/576p/576i/480p/480i HDMI output resolution: 4K@30HZ/1080p/1080i/720p/576p/576i/480p/480i Support video format: 24/30/36 dark colors Support audio format: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD HDMI input port: 2 HDMI output port: 2 RJ45 port: 4 Audio interface: Optical SPDIF and 3.5mm jack Maximum bandwidth transmission: 340MHz Maximum transfer rate: 3.4Gbps x10 Input cable length: AWG26 HDMI 1.4 standard cable up to 10 meters Output cable length: cat5e/cat6 standard cable up to 120 meters package: 1 X Transmitter ( TX ) 4 X Receiver ( RX ) 1 X remote control ( without battery ) 1 X User Manual
