VSDISPLAY for 15.6" LP156WF1 B156HW02 17.3" LP173WF1 N173HGE-L21 1920x1080 LCD Display Controller Board DVI VGA Audio Input

• 【LCD Controller Board】 Work for 1920x1080 WLED 40 Pin LVDs LCD Screen,Video input: VGA DVI ,Audio Output: Speaker Connector,Please use in insulated environment.
• 【Input Power Supply】12V DC more than 2A ,Port size :5.5x2.1mm, pls prepare powe adapter by yourself. ( If the screen restart again ,then pls try with larger current ,like 12V DC 3A /4A )
• 【Compatible Screen models】B156HW01 V.0 B156HW01 V.4 B156HW01 V.7 LP156WF1 (Except LP156WF1-TPB1 ) LP156WF2 N156HGE-L11
• 【Compatible parts】Speaker: Speaker 8ohm 2W 70x33x15mm 4Pin PH2.0 connection; Case:Controller Board Case Acrylic Material White Case For M.NT68676 Protect Case
• 【Plug and play】 Connecting for the cables and ports according to link picture details ,Power on ,Keyboard LED light become green,Then enter intoVGA/DVI signal cable ,with correct resolution 1920x1080 ,the screen can work well.

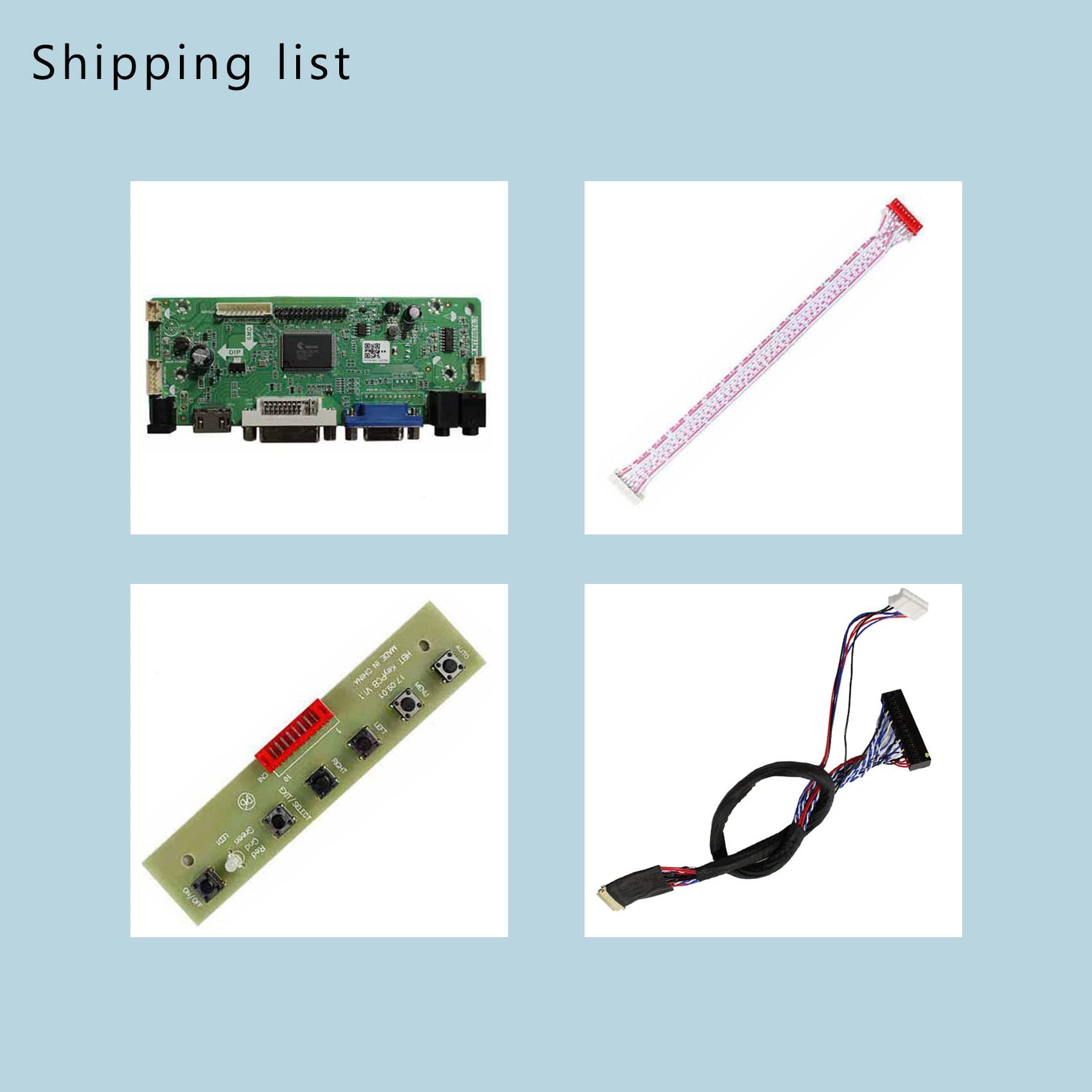

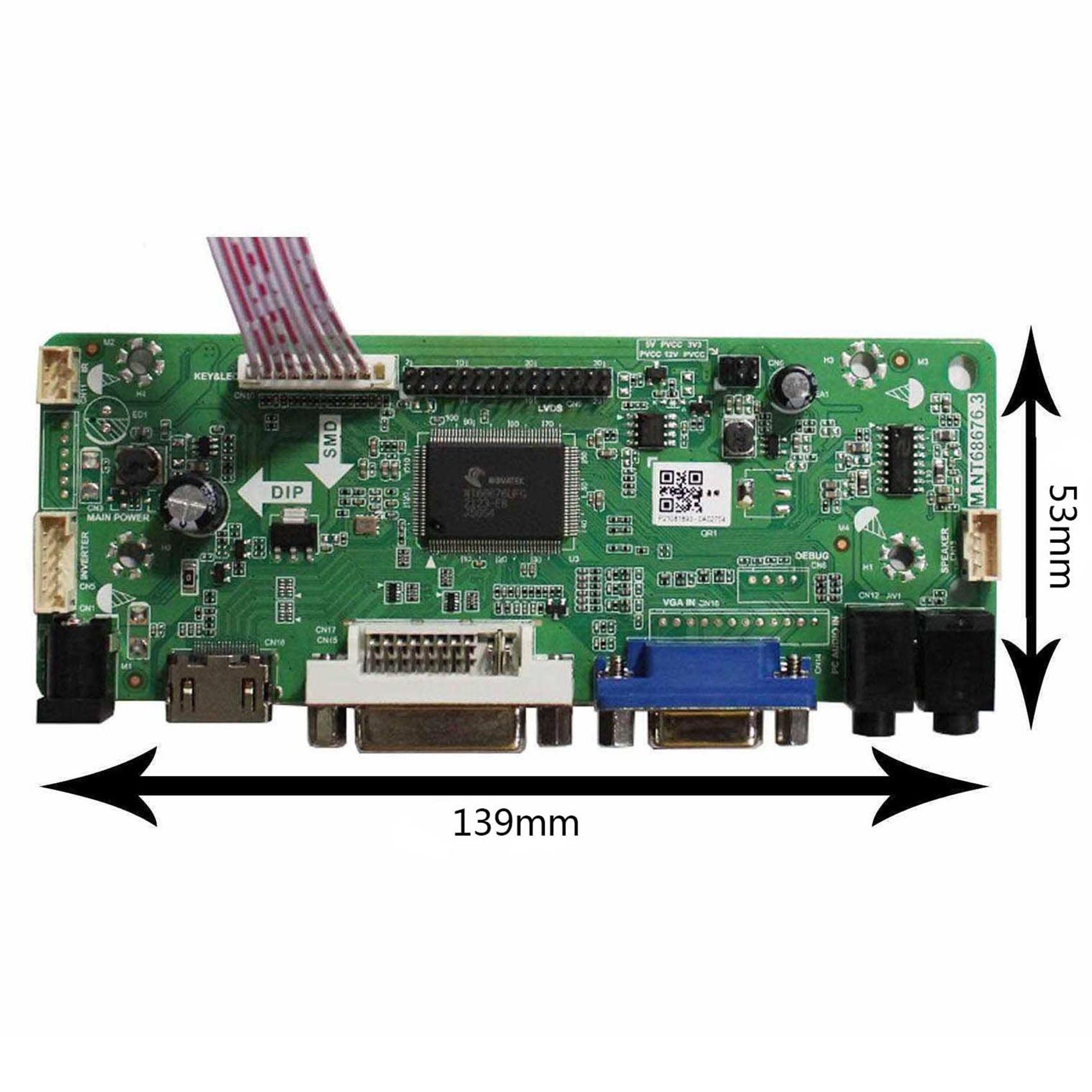

LCD Controller Board: DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen Input Power Adapter:12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <1W Video Input: DVI VGA Audio Input: Audio Output: Speaker Connector OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size:139mm x 53mm x 17mm Compatible Work With: 15.6inch 1920x1080: B156HW01 V.0 B156HW01 V.4 B156HW01 V.7 LP156WF1 N156HGE-L11 17.3inch 1920x1080 LP173WF1 N173HGE-L21 N173HGE-L11 LP173WF1 HSD173UHW1 B173HW01 Packing list : 1× VGA DVI LCD Controller Board M.NT68676 1× 40Pin Signal Cable 1× Keyboard With Cable
