winwill HDMI Adapter signals Terminal Breakout Plastic/Metal Cover Terminal Breakout Board Connector
About this item
- HDMI adapter Solderless adapter,Maximum HDMI cable diameter 11mm/0.43in, compatible with common HDMI cable
- Metal case is durable,come with 5mm 7mm 9mm 10mm protective dust-proof cover
- HDMI Adapter Fully assembled, it suitable for HDMI panels on home improvement projects, buried in the wall, compatible with HDMI 2.0, ( HDMI 2.0 (24AWG) 19+1 core (5P+4C+ADB);1.4 and 1.3

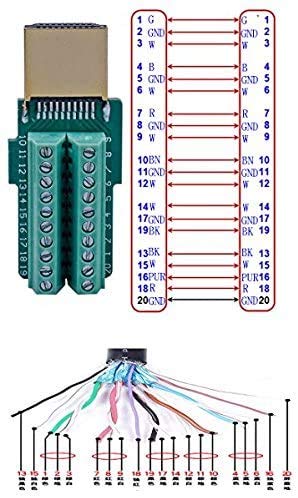

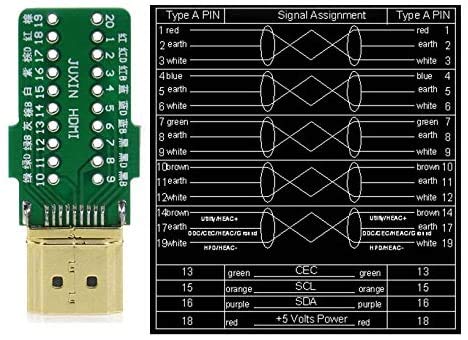

- Note:Most HDMI have varying wiring plans. Due to the different manufacturers, the wiring plans is different, If only one end needs to be changed, please apply the same wiring structure that was in use. While wire colors from different sources may vary, just remember to match both ends with the correct wiring structure.If you don't know how to use it, please send your cable to us. we will mark how to wire it

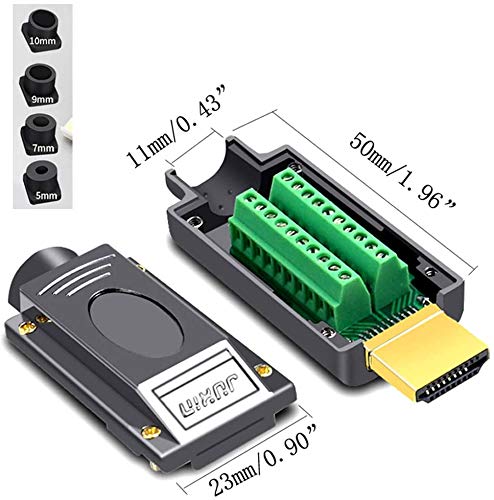

- Size:50mm*23mm*17mm/1.96*0.9*0.67"
Product description

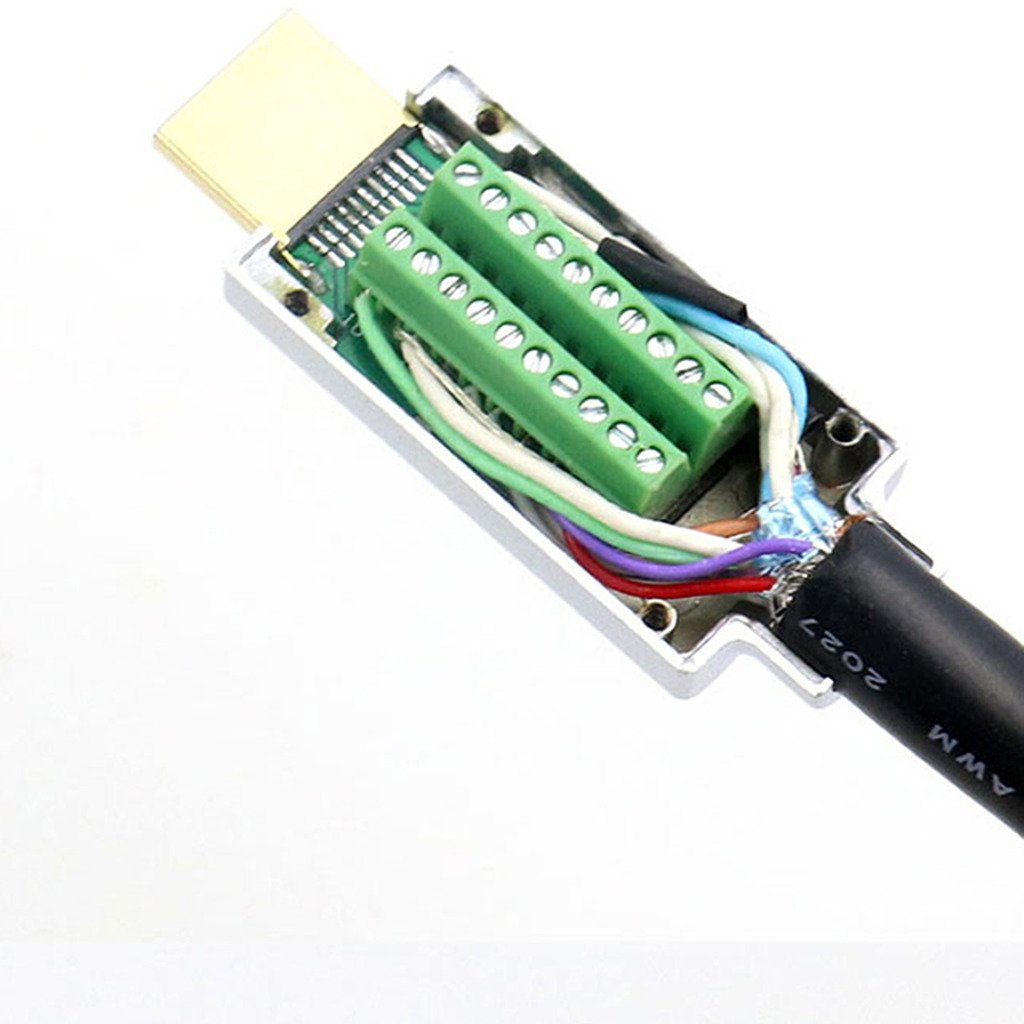

How to use: Strip the wires on the severed hdmi head (connector) and plug that end into the Female to Female coupler. Next connect the coupler into this New HDMI plug. Using a multimeter, set your meter to OHMS. Now take one of the test leads from your meter and touch any wire on the severed connector, then while you are holding that lead to the wire on the severed connector, touch the other test lead to the terminal block pins until you find continuty. Voila, you have found where that wire should go so place that same color wire from the HDMI cable you are repairing into that spot. Repeat this process until All wires are connected into the block. test to make sure it works and you are done
