VSDISPLAY LVDs Controller Board 40pin for 17.3" 1600x900 B173RW01 LP173WD1 TL N173FGE-L23 LTN173KT02 WLED LCD Screen

• Work for 1600x900 WLED 40 Pin LVDs LCD Screen,Please use in insulated environment.
• Video input: VGA DVI Audio,Audio Output: Speaker Connector ( 8ohm 2W 4Pin PH2.0 connection); Case:Controller Board Case Acrylic Material White Case For M.NT68676 Protect Case
• Input Power Supply:12V DC more than 2A ,Port size :5.5x2.1mm, pls prepare powe adapter by yourself.
• Compatible Screen models:17.3 inch LP173WD1 B173RW01 LTN173KT01-A01 N173FGE-L21 N17306-L02 LTN173KT02 LTN173KT03-301 CLAA173UA01A
• Before purchase , Pls confirm your machine display model firstly, which mark at the back side of the panel label,need to open the rear case to check.

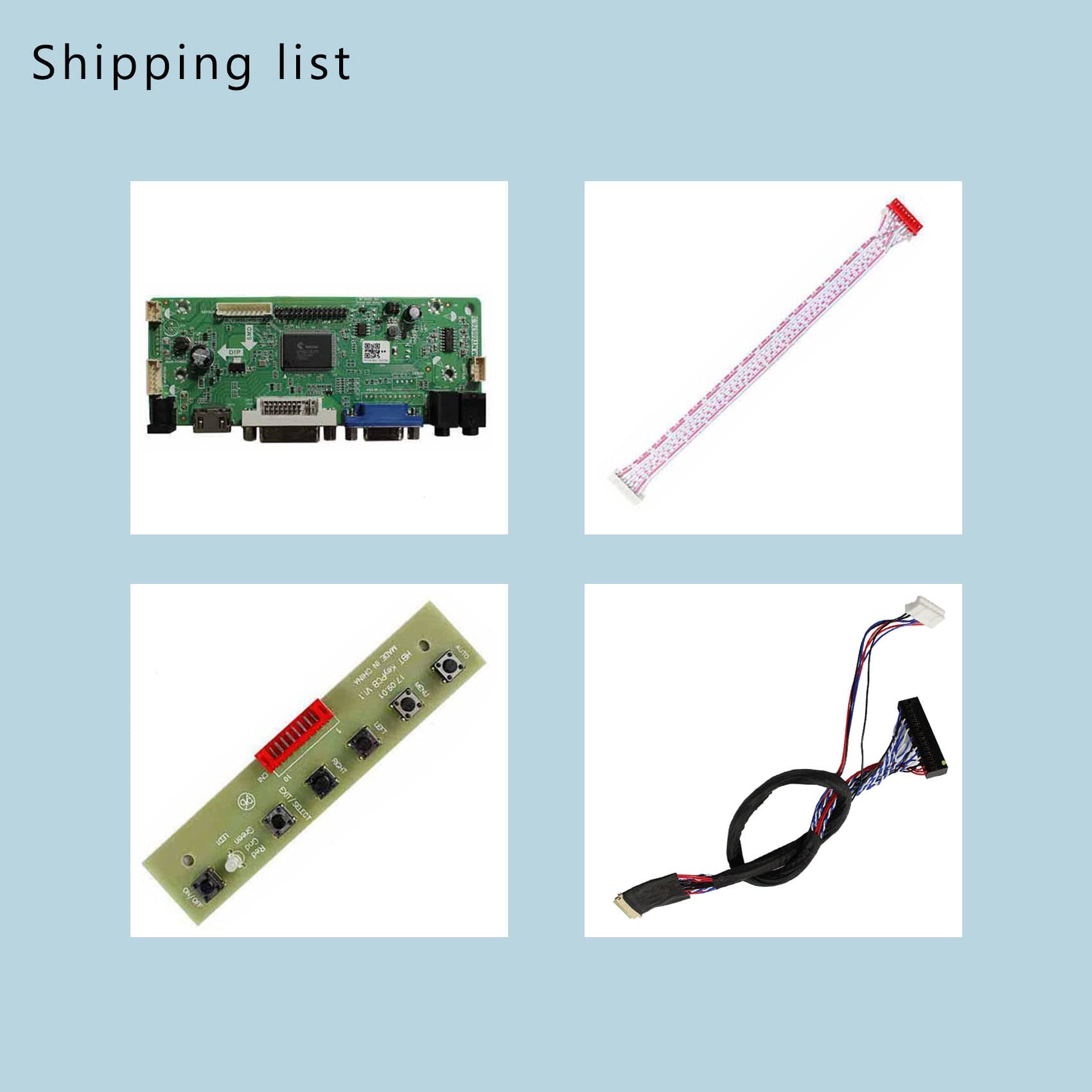

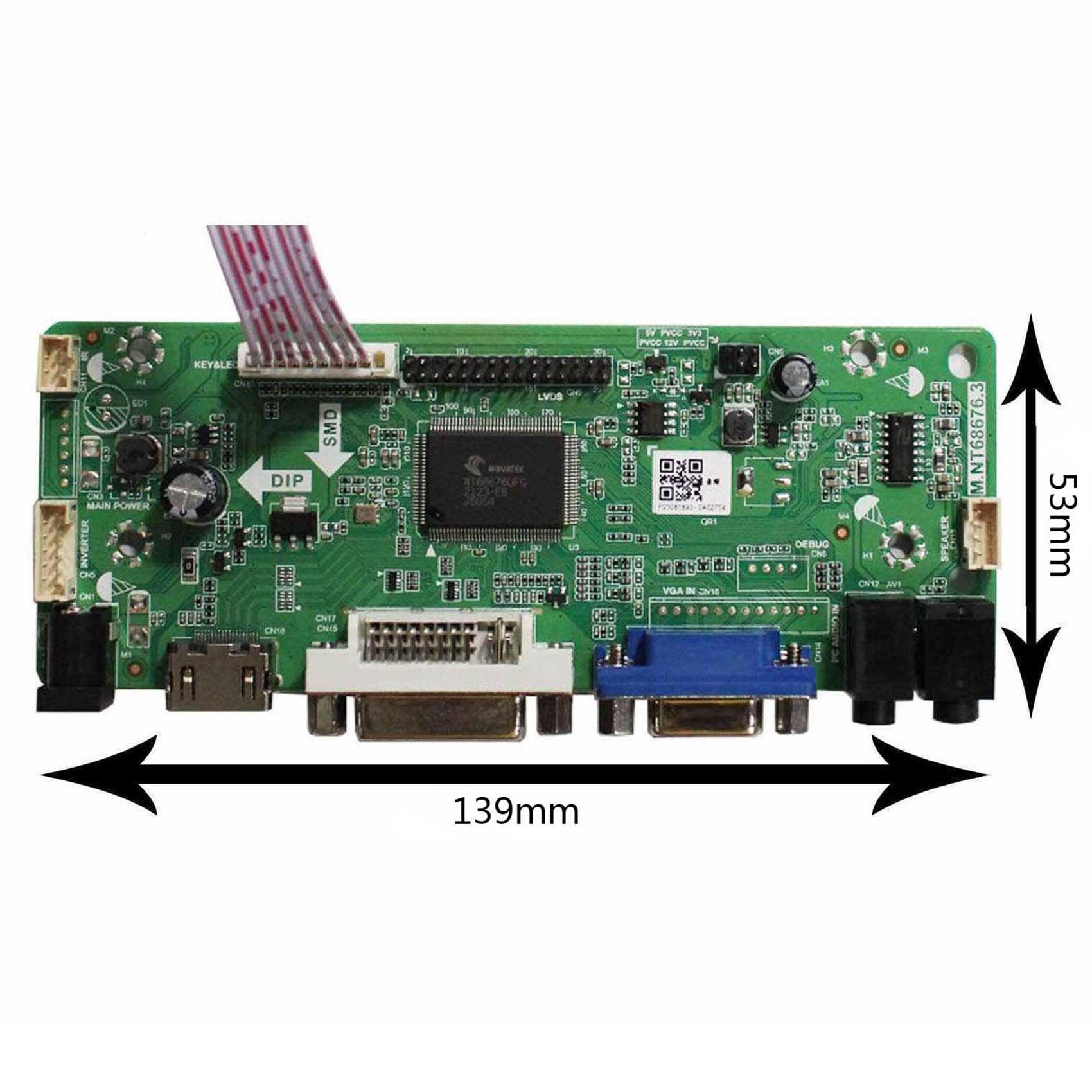

LCD Controller Board: DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen Input Power Adapter:12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <1W Video Input: DVI VGA Audio Input: Audio Output: Speaker Connector OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size:125mm x 58mm x 17mm Compatible Work With: 14inch 1600x900: B140RTN01.0 B140RW01 V.0 N140FGE-L31 LP140WD2 B140RTN02 N140O6 B140RW02 N140FGE-L31 17.3inch 1600x900: LP173WD1 B173RW01 LTN173KT01-A01 N173FGE-L21 N17306-L02 LTN173KT02 LTN173KT03-301 Packing list : 1× VGA DVI LCD Controller Board M.NT68676 1× 40Pin Signal Cable 1× Keyboard With Cable
