VSDISPLAY USB Controller Board for 15.6" 1366x768 40Pin N156B6-L0B LTN156HT02 LTN156HT05 B156XTN02.1 BT156GW02 B156XTN03 LVDs LCD Screen

• Work for 1366x768 WLED 40Pin LVDs LCD Screen ,Please use in insulated environment.
• 【Compatible Screen model】14" LTN140AT02 LTN140AT07 LP140WH1 BT140XW02 HT140WXB HSD140PHW1 N140B6 B140XW01 B140XW02 B140XW03 LP140WH1 LP140WH3 LP140WH4 15.6" LTN156AT17 LTN156AT02 LTN156AT24 LP156WH2 LP156WH4 BT156GW02 N156B6 B156XTN03 B156XW02 B156XW04 B156XTN02.1

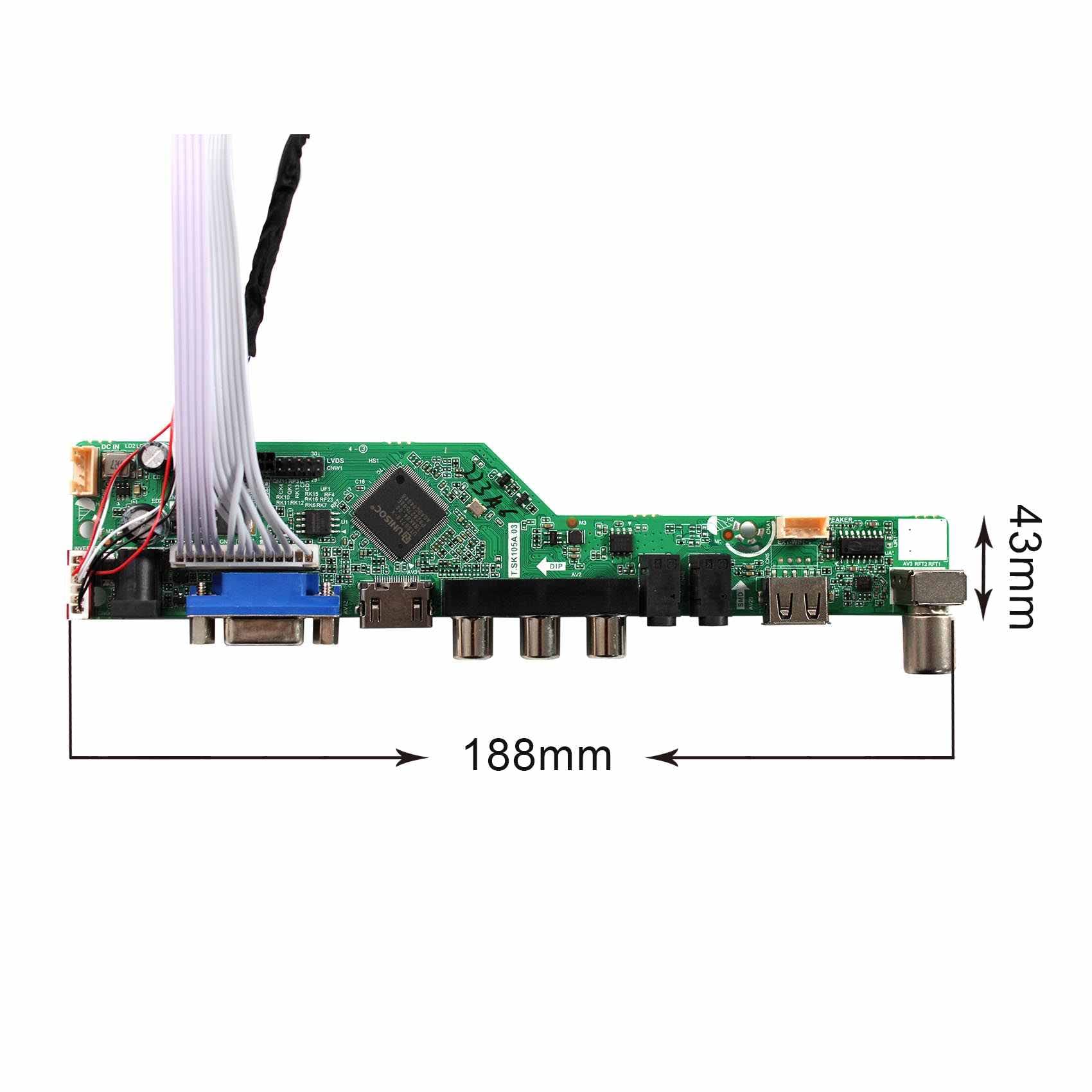

• 【LCD Controller Board 】 Video input:VGA USB ,Audio Output: Speaker Connector (8ohm 2W 70x33x15mm 4Pin PH2.0 connection).
• 【Input Power Supply】12V DC more than 3A (power adapter not included in package ,should be prepared by yourself) .
• 【Important】Please send us a message if the display is incorrect or your LCD screen's resolution is not 1366x768. It can be solved by upgrading or changing the LVDS card in the facotry menu.Also ,This board can't recognize the signal automatically ,Pls switch the input signal into mode via the remote control.

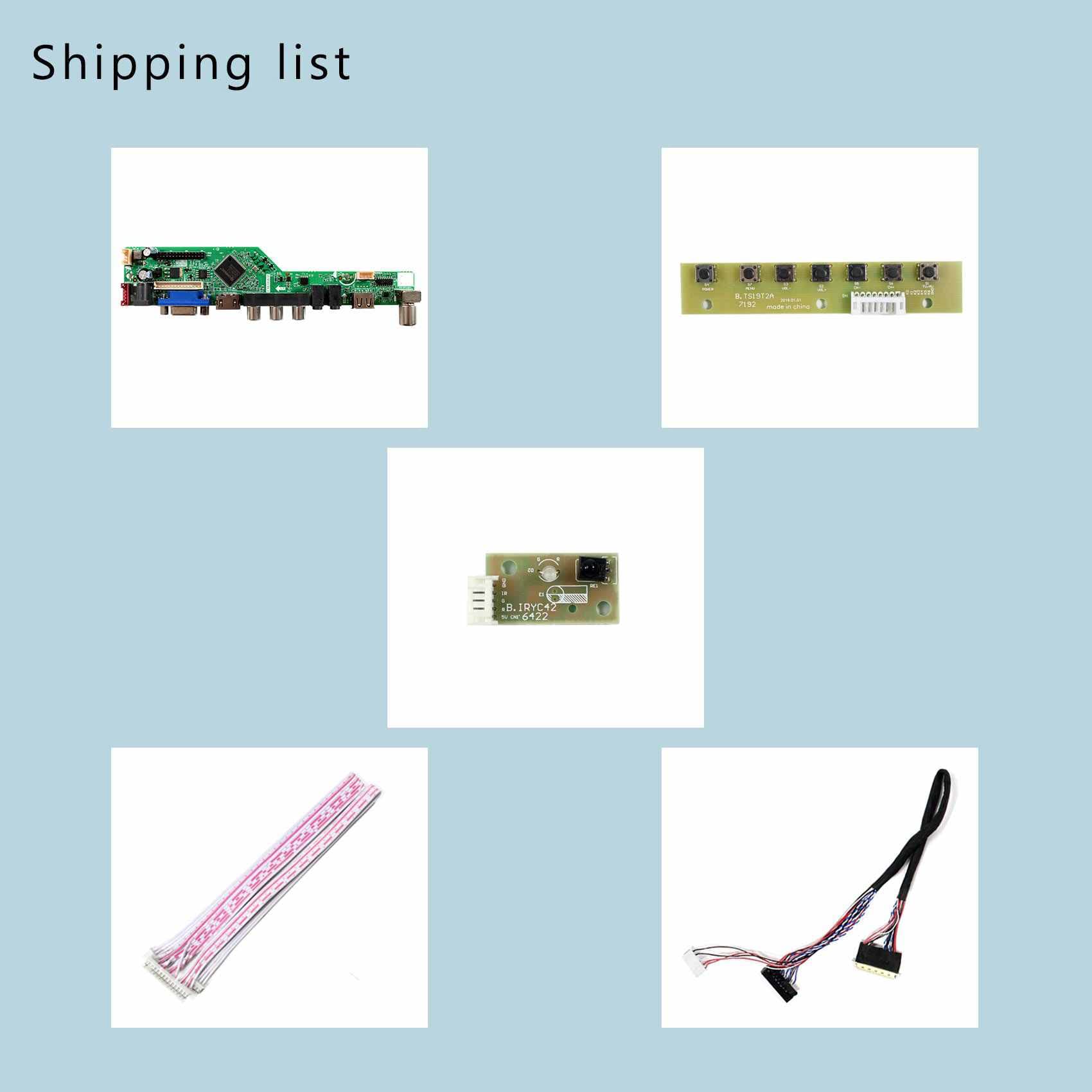

Adjust for: 14 inch 1366 x 768: LTN140AT02 LTN140AT07 LP140WH1 BT140XW02 HT140WXB HSD140PHW1 N140B6 B140XW01 B140XW02 B140XW03 LP140WH1 LP140WH3 LP140WH4 15.6 inch 1366 x 768: LTN156AT17 LTN156AT02 LTN156AT24 LP156WH2 LP156WH4 BT156GW02 N156B6 B156XTN03 B156XW02 B156XW04 B156XTN02.1 Package contents: 1 × HDMI VGA AV USB LCD Controller Card 1 × 40Pin signal cable 1 × keyboard with cable Note: 1.The power supply device is NOT included 2.If you don't know how to connect the screen, please feel free to contact us
