VSDISPLAY 12.3 inch HSD123KPW2-D10 1920x720 IPS LCD Screen and HD-MI USB SD Card Controller Board

• 【720P FHD IPS Wide Screen】IPS screen delivers 178° full view angle.High Brightness 850nit, 1000:1 contrast ratio, offer the accurate and vivid image. Special wide screen proportion.
• 【LCD Controller Board】 Video input:HD-MI USB SD,Audio Output : Speaker Earphone (8ohm 2W 70x33x15mm 4Pin PH2.0 connection)
• Power Supply:12V DC more than 2A ,Port size :5.5x2.1mm, pls prepare power adapter by yourself.

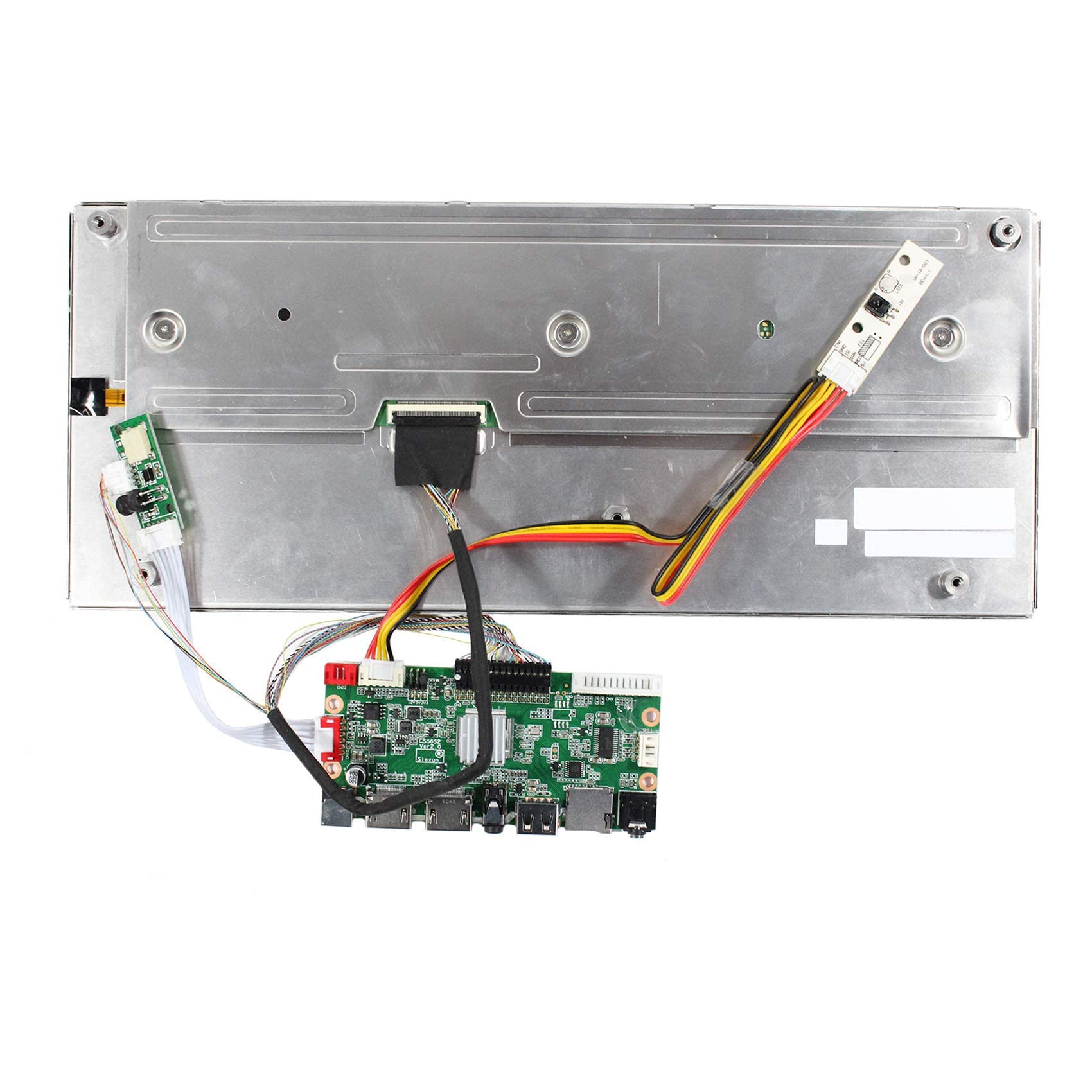

• 【Plug and play】connecting the cables and ports according to link picture details ,Power on ,keyboard LED light will become green .Then enter into signal ,with correct resolution :1920x720,the screen can work well .
• Any problem,Pls provide some connecting pictures, we will solve in 12 hours.

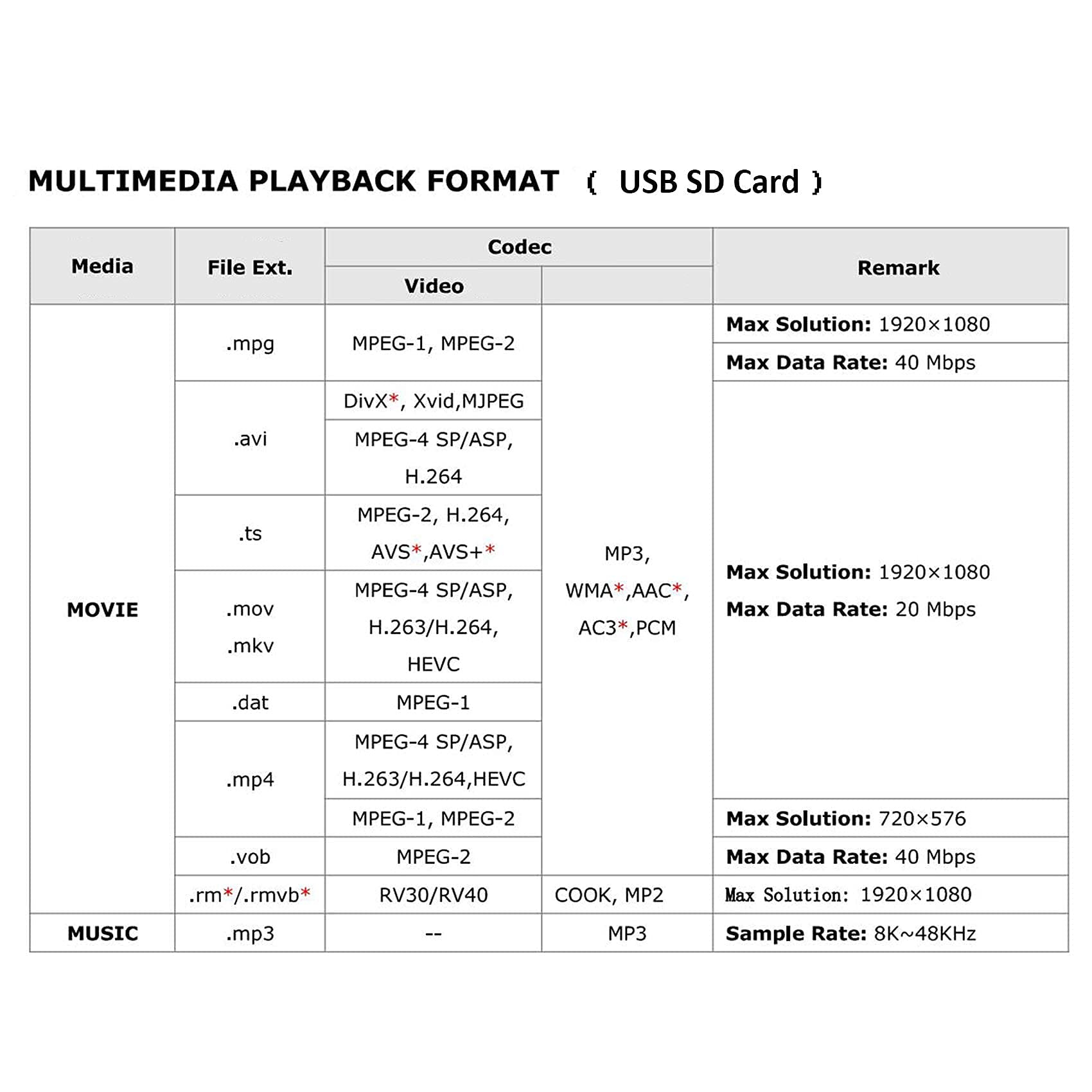

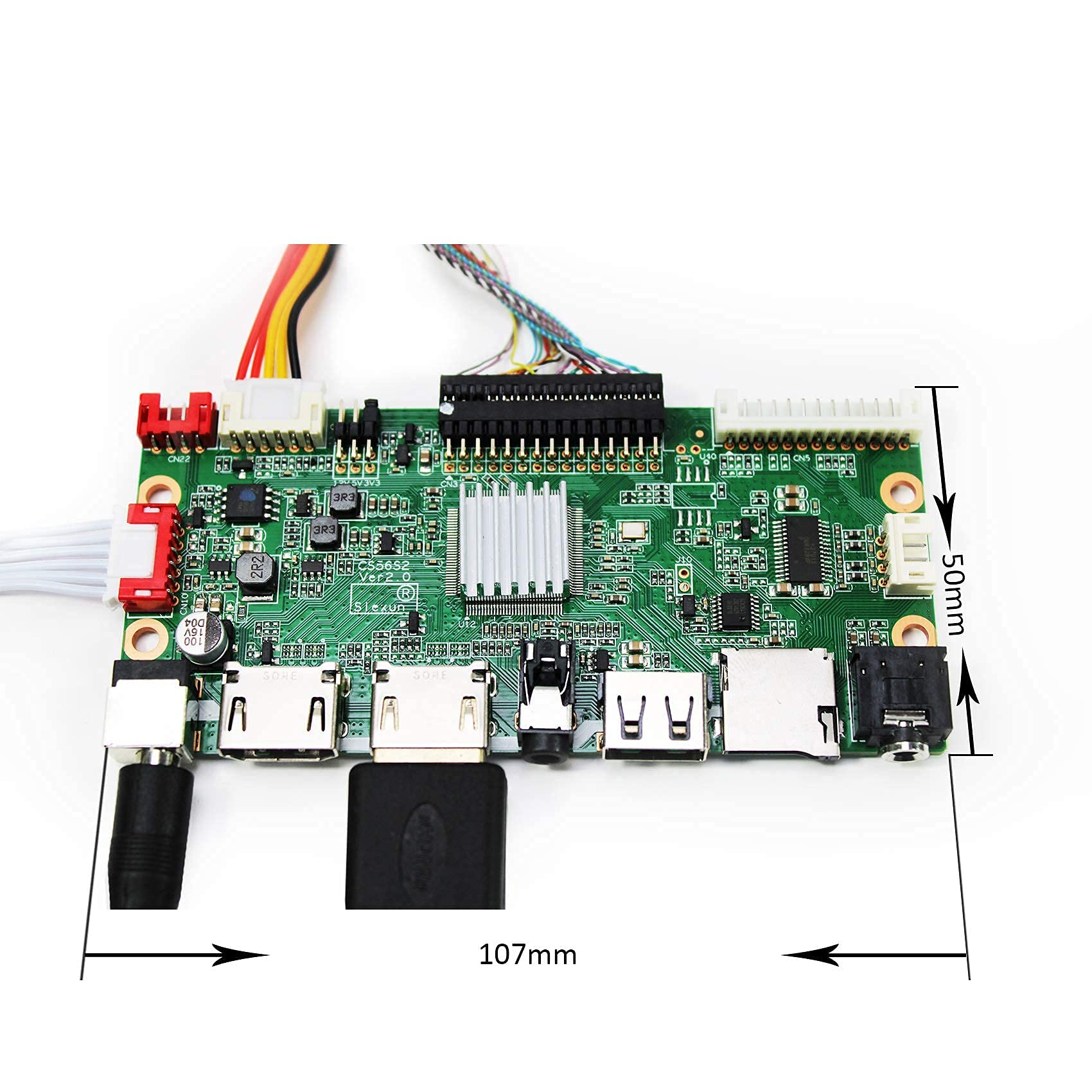

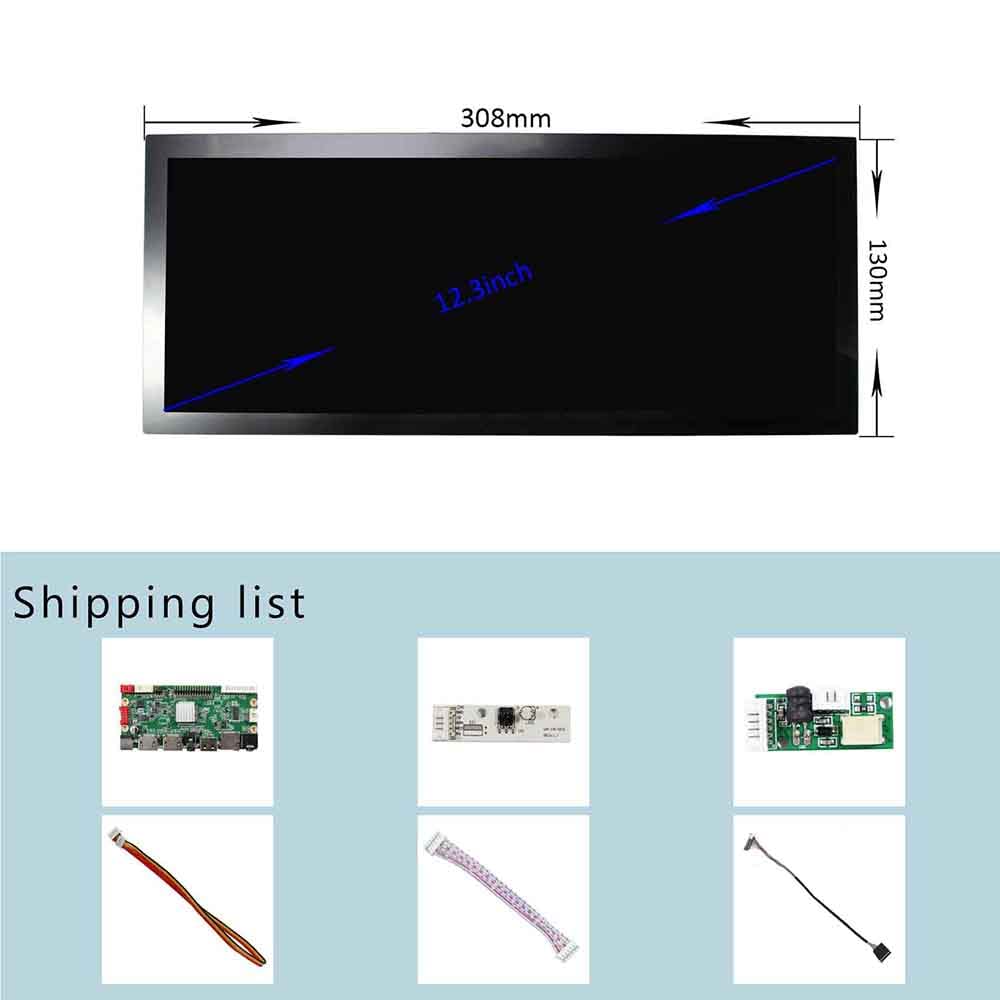

LCD Controller Board: HDMI USB SD AV LCD Controller Card for 12.3" LVDS LCD Display Input Power Adapter: DC 12V over 2A Standby when signal is not entered. Standby model <0.3 W. MP4 multimedia support. OSD: Support menu contrast brightness Audio Input: HDMI, USB, SD, AV Audio Output: Headphones Button panel: Power menu up and down. Language: English Board dimensions: 107 x 50 x 15 mm. 12.3" HSD123KPW2-D10 1920X720 LCD Display: IPS Pro display mode, normally black, transmission Resolution 1920 RGB) × 720 Outline size: 122.5 × 51.2 × 6.1 inches Display Area: 292.032 × 109.512 (H × V) Brightness: 850 cd/m² (typ.) Contrast Ratio 1000:1 (Typ.) (TM) View angle 85/85/85/85 (typ. )(CR≥10) [left/right/up/down] LVDS signal interface (2 channel, 8 bit), connector, 50 pin. WLED backlight. Input Voltage: 3.3V (Typ.) Package includes: 1 x HDMI USB SD AV LCD Controller Card for 12.3" LCD Display 1 x 12.3 inch 1920 x 720 LCD screen. 1 x Converter Card 1 x Signal Cable 1 x keyboard with cable.
