VSDISPLAY Audio LVDs Controller Board 30pin for M170ETN01.1 WYD170SKD-01 M170QGBN30 01B 01A CD170A54-01 17" 1280x1024 WLED LCD Screen

• 【Compatible Screen model 】17 inch M170ETN01.1 WYD170SKD-01 M170QGBN30-01A M170QGBN30-01B CD170A54-01
• 【LCD Controller Board】Video input: VGA DVI ,Audio Output: Speaker Connector ，Pls ensure that the board is used in an insulated environment to avoid short circuits.
• 【Input Power Supply】12V DC more than 3A (power adapter not included in package ,should be prepared by yourself) .
• 【Compatible parts】Speaker: Speaker 8ohm 2W 70x33x15mm 4Pin PH2.0 connection.

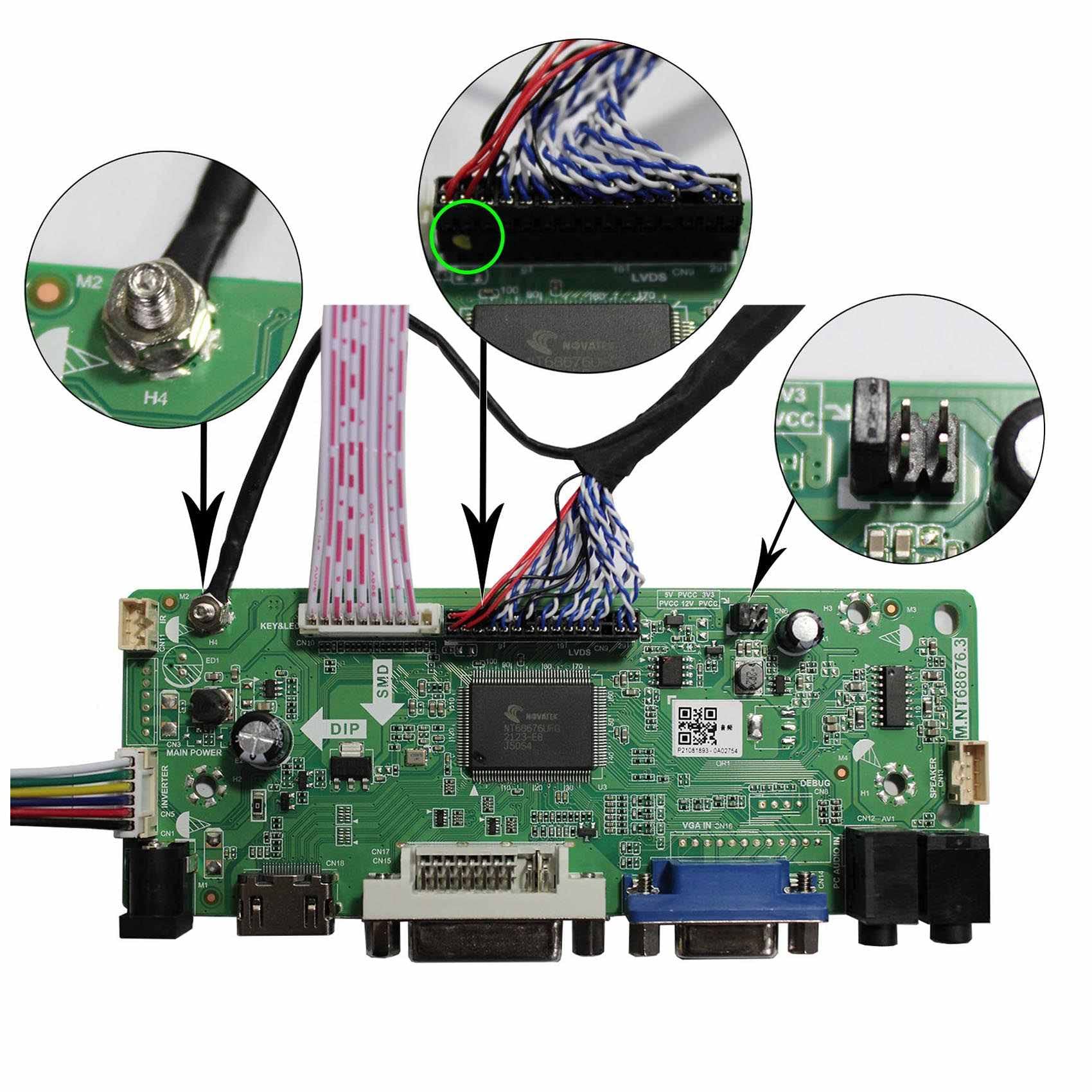

• 【Plug and play】 Connecting the cables and ports according to link picture details (if screen white screen ,or led light flash,that means the cable connecting wrong ) ,Power on ,enterMI/VGA/DVI cable ,Button light become green,the screen can work well. Any problem ,Pls provide your screen model no. and connecting pictures via Amazon message, we will solve in 12 hours.

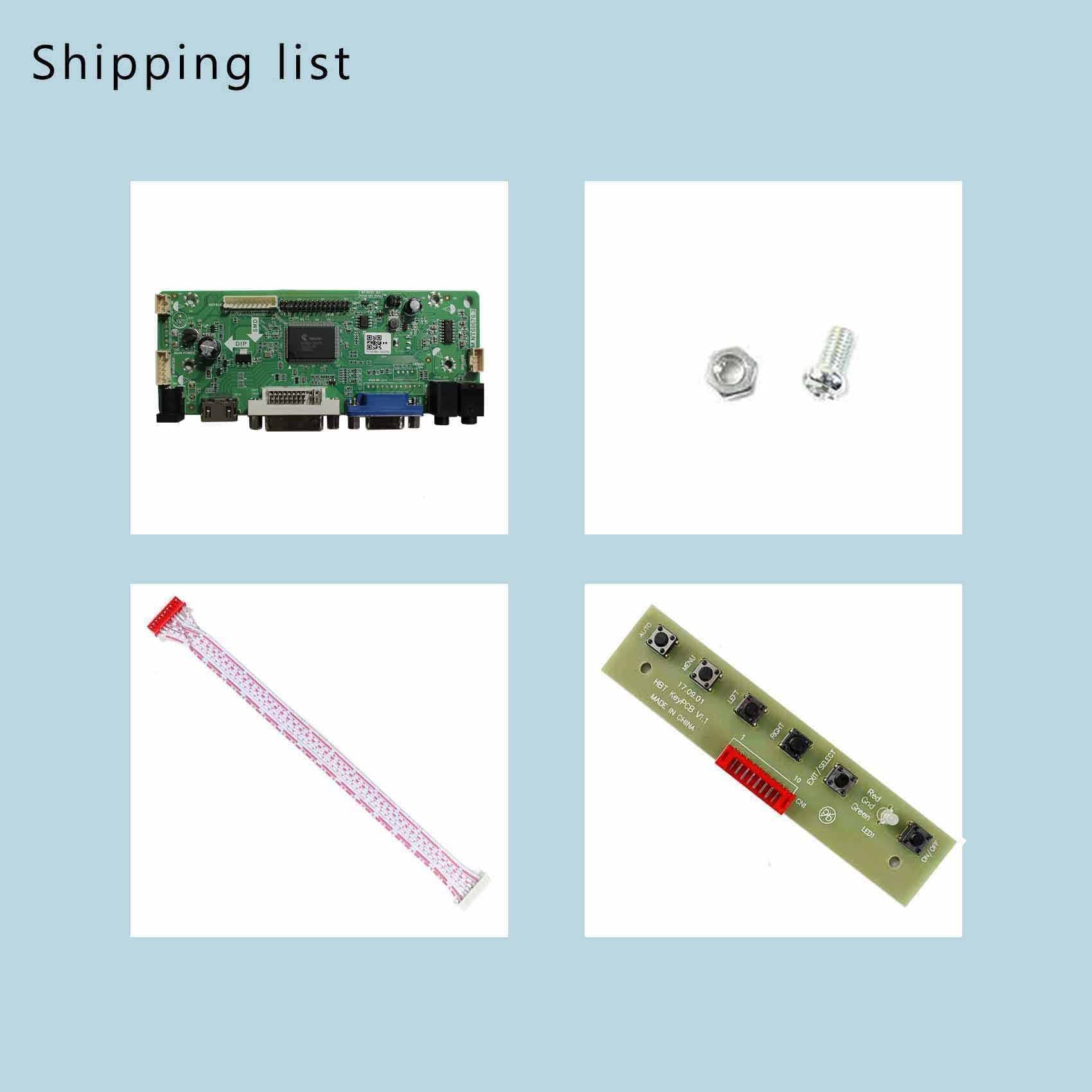

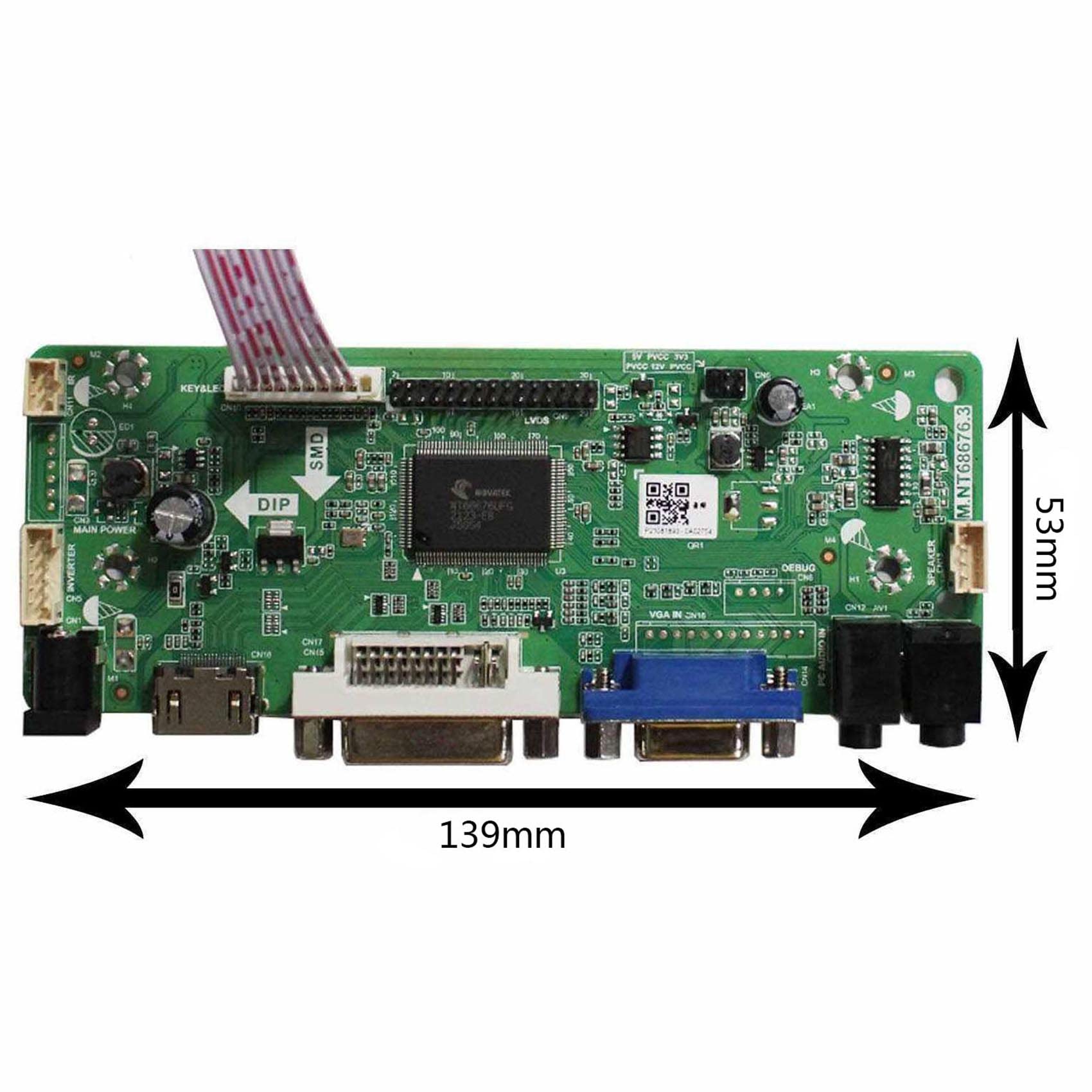

LCD Controller Board: DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen Input Power Adapter: 12Vdc More than 3A. Come In Standby Model When Not Input Signal Standby Model <1W Video Input: DVI VGA Audio Input: Audio Output: Speaker Connector OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size: 139mm x 53mm x 17mm The Controller Board Fit To M170ETN01.1 WYD170SKD-01 M170QGBN30-01A M170QGBN30-01B CD170A54-01 Packing list: 1× VGA DVI LCD Controller Board 68676 1× Screw And Nut For GND Connection 1× Keyboard With Cable
