VSDISPLAY VGA DVI Audio LVDs LCD Controller Board for 17" DV170YGZ-N10 DV170YGM-N10 4:3 1280x960 LCD Screen,Work for New Gen Arcade 1up Cabinet

• 【Compatible Screen models 】 Specialized work for 17" DV170YGZ-N10 DV170YGM-N10 1280X960 LVDs LCD Screen(Before purchasing, Pls confirm your Display model firstly, which mark at the back side of the panel label,need to open the rear case to check)
• 【Important】 The function for this board is to light up the screen. Please use in insulated environment. It widely used to working on DIY Advertising Display Monitor/Street Fighter /Costco Pacman vertical monitor /Mortal Kombat Arcade 1up /Arcade1UP Marvel Super Hero's monitor/new Pac-Man 8-1 Partycade/Raspberry Pi etc..
• 【LCD Controller Board】Video input: VGA DVI ,Audio Output: Speaker Connector , Power Supply:12V DC more than 3A (power adapter not included in package ,should be prepared by yourself) .
• 【Compatible parts】Speaker: Speaker 8ohm 2W 70x33x15mm 4Pin PH2.0 connection.

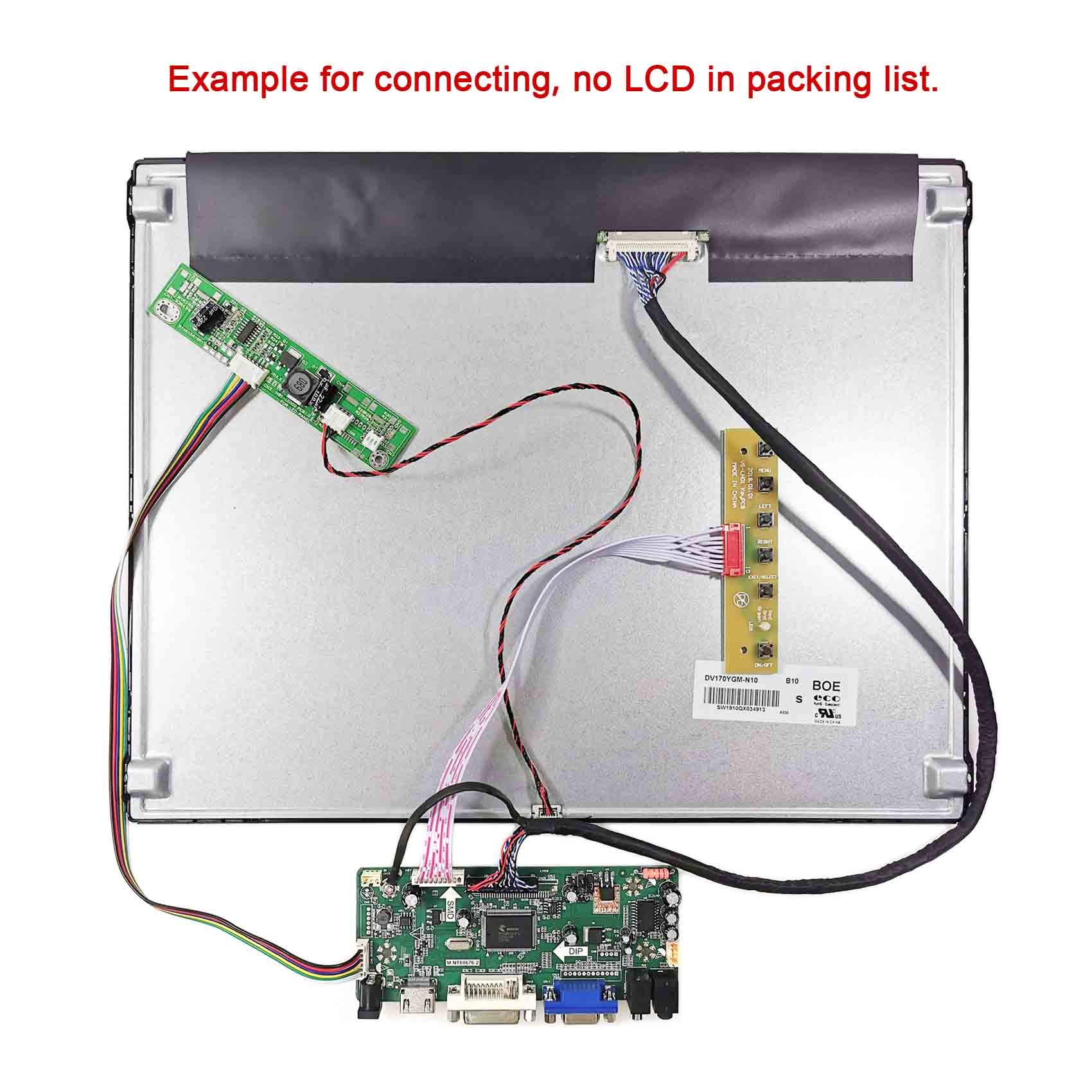

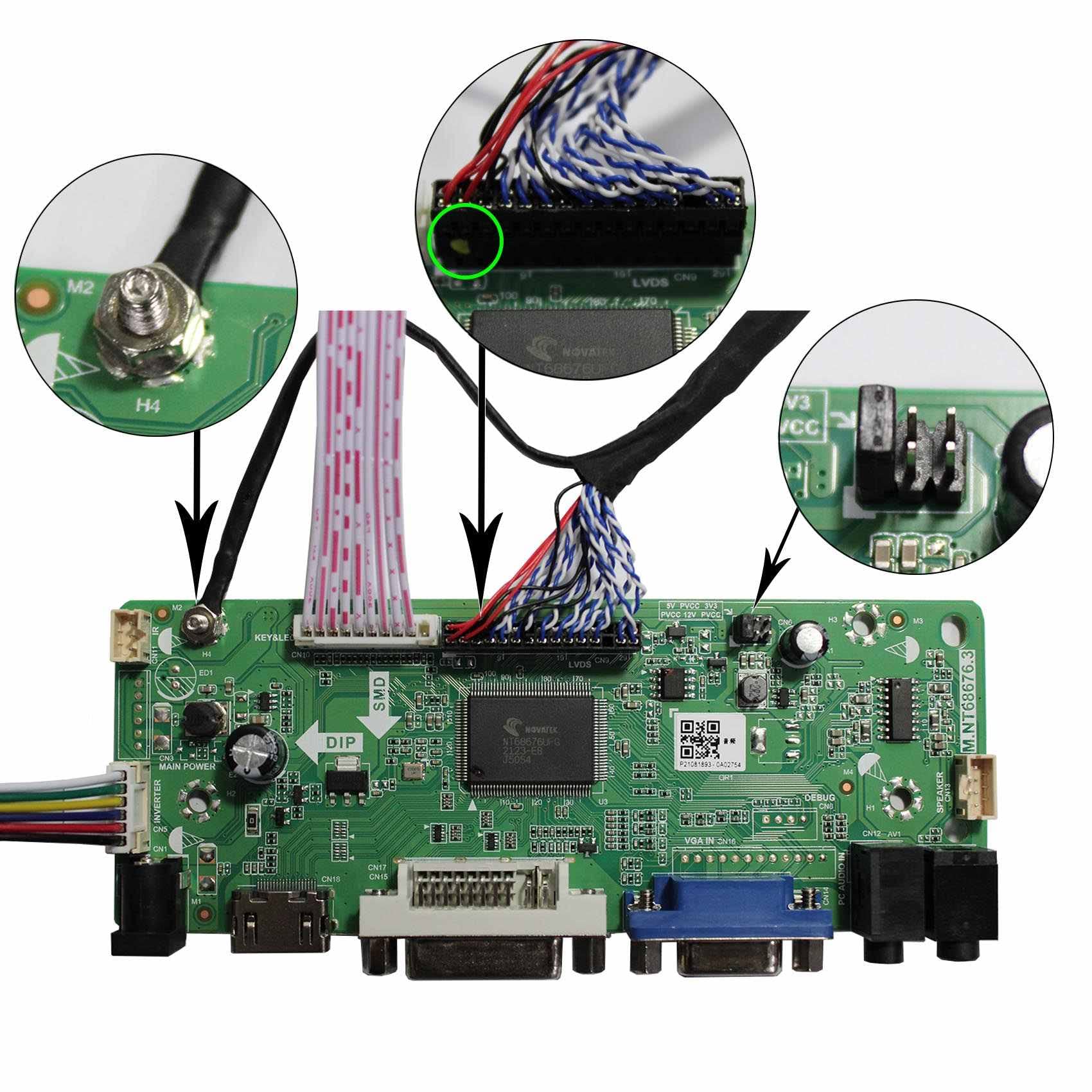

• 【Plug and play】 Connecting the cables and ports according to link picture details (if screen white screen ,or led light flash,that means the signal cable connecting wrong ) ,Power on ,enterMI/VGA/DVI signal cable ,Button light become green,the screen can work well. Any problem ,Pls provide your screen model no. and connecting pictures via Amazon message, we will solve in 12 hours.

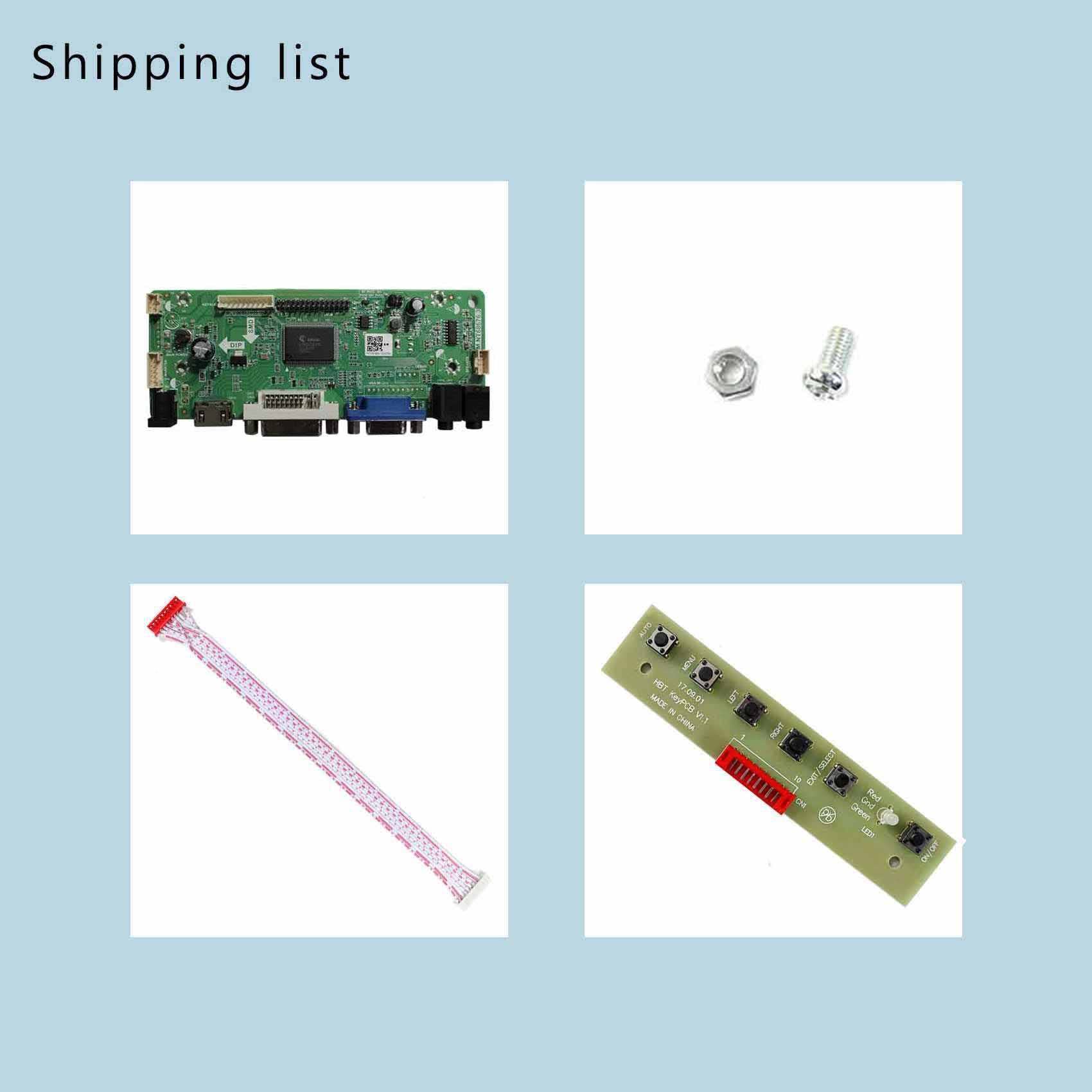

LCD Controller Board: DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen Input Power Adapter: 12Vdc More than 3A.Port size :5.5x2.1mm Come In Standby Model When Not Input Signal Standby Model <1W Video Input: DVI VGA Audio Input: Audio Output: Speaker Connector OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size: 139mm x 53mm x 17mm The Controller Board Fit To Arcade 1up DIY Kit 17inch DV170YGM-N10 Packing list: 1× VGA DVI LCD Controller Board 1× Screw And Nut For GND Connection 1× Keyboard With Cable
