VSDISPLAY LVDs Controller Board 40 Pin for 15.6" 1366x768 LP156WH3 LP156WH4 TL A1 C1 Q1 N1 B156XW02 B156XW04 WLED LCD Screen

• 【LCD Controller Board】 Work for 1366x768 WLED 40Pin LVDs LCD Screen
• 【Input Power Supply】12V DC more than 2A ,Port size :5.5x2.1mm, pls prepare powe adapter by yourself.
• 【Compatible Screen models 】14" BT140XW02 HT140WXB HSD140PHW1 N140B6 B140XW01 B140XW02 B140XW03 LP140WH1 LP140WH3 LP140WH4 ,15.6nch LP156WH2 LP156WH3 LP156WH4 TL BT156GW02 N156B6 B156XTN03 B156XW02 B156XW04

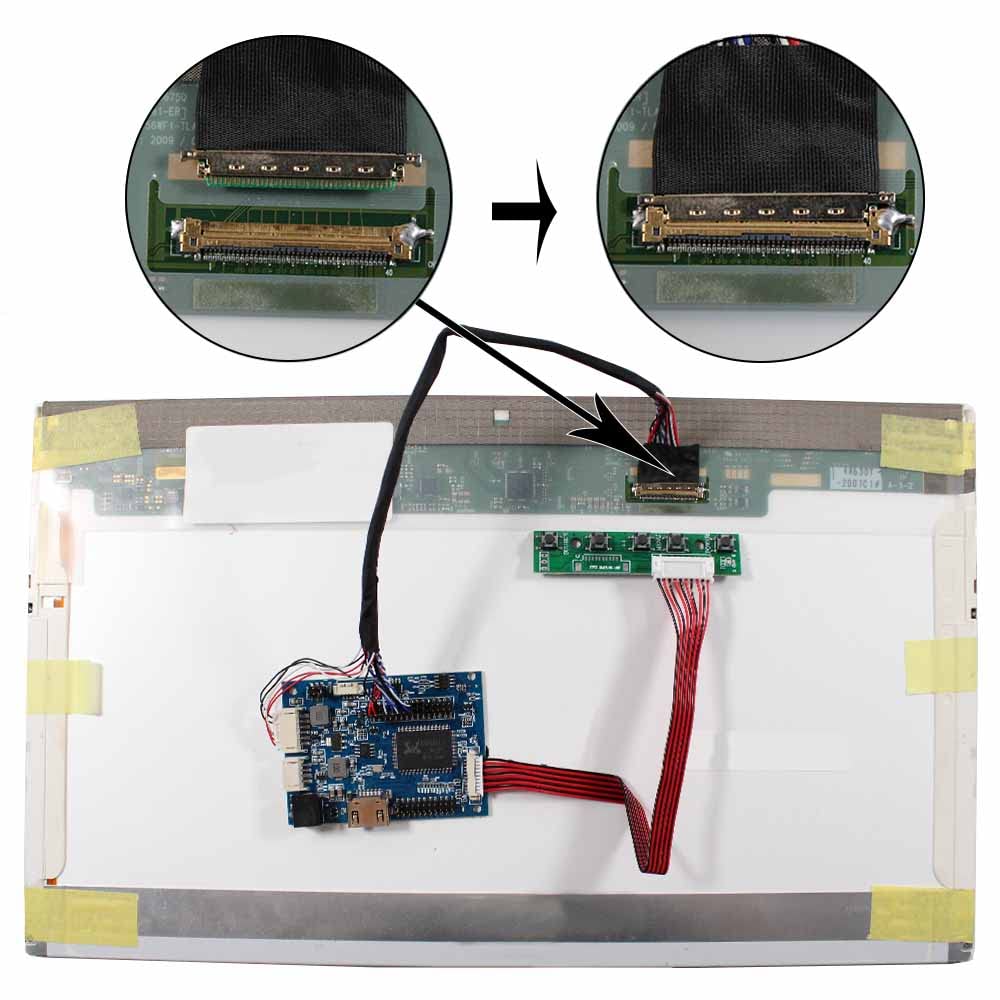

• 【Plug and play】 Connecting for the cables and ports according to link picture details ,Power on ,Button light become green,the screen can work well.
• 【simple Q&A】Black screen :maybe for wrong connecting or no enter into screen; White screen: caused by reverse cable connecting with screen port or wrong resolution;So pls double check the cable connecting ,resolution setting,and resource entering in ;Restarting again :For the current of power supply is too small ,So Pls try with larger current .

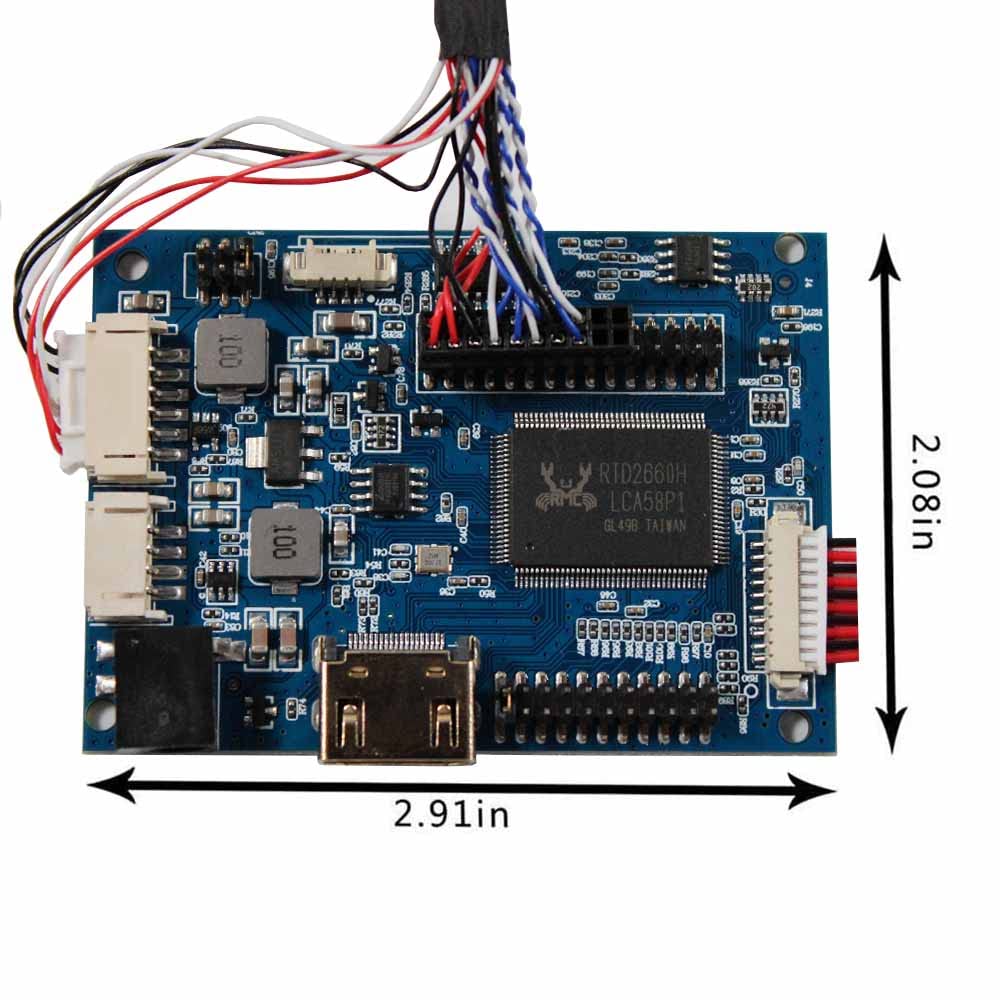

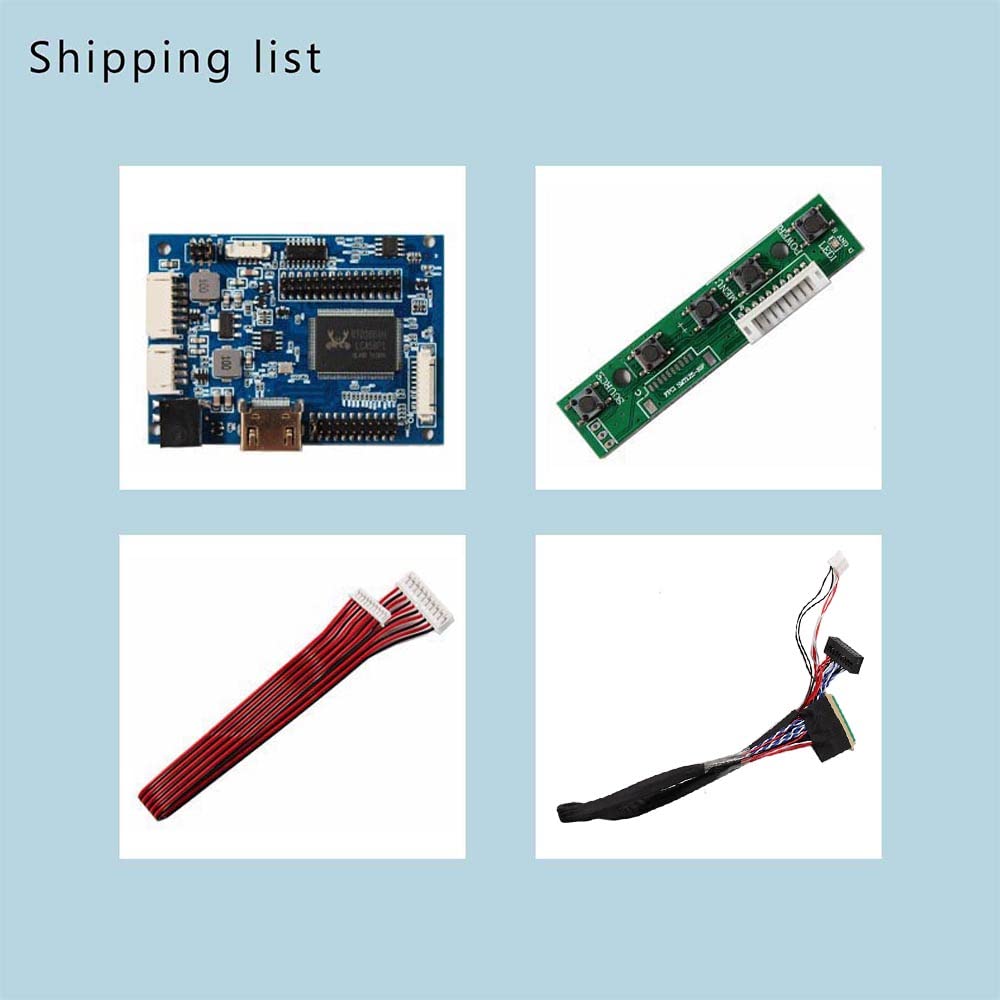

LCD Controller Board: LCD Board Work for LVDS Interface LCD Screen Input Power Adapter:12Vdc More than 2A,Port size :5.5x2.1mm Come In Standby Model When Not Input Signal Standby Model <1W Video Input: OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size:74mm x 53mm x 12mm Compatible Work With: 14nch 1366x768 LTN140AT02 LTN140AT07 LP140WH1 BT140XW02 HT140WXB HSD140PHW1 N140B6 B140XW01 B140XW02 B140XW03 LP140WH1 LP140WH3 LP140WH4 15.6inch 1366*768: LTN156AT17 LTN156AT02 LTN156AT24 LP156WH2 LP156WH4 BT156GW02 N156B6 B156XTN03 B156XW02 B156XW04 B156XTN02.1 Packing list : 1× LCD Controller Board 1× 40Pin Cable 1× Keyboard With Cable
