HD 18MM Top Lens Third Brake Light Rear View Parking Camera IR Night Vision for Van Fiat Ducato X250 X290 2006-2020/Peugeot Boxter 2006-2020/Citroen Jumper 2006-2020

• Top Mount Brake Lamp Reversing Rear View Camera for Van Fiat Ducato X250 X290 2006-2020/Peugeot Boxter 2006-2020/Citroen Jumper 2006-2020
• Wide Visual angle lens: 170 Degree Visible Range Works Great with The Blind Spot

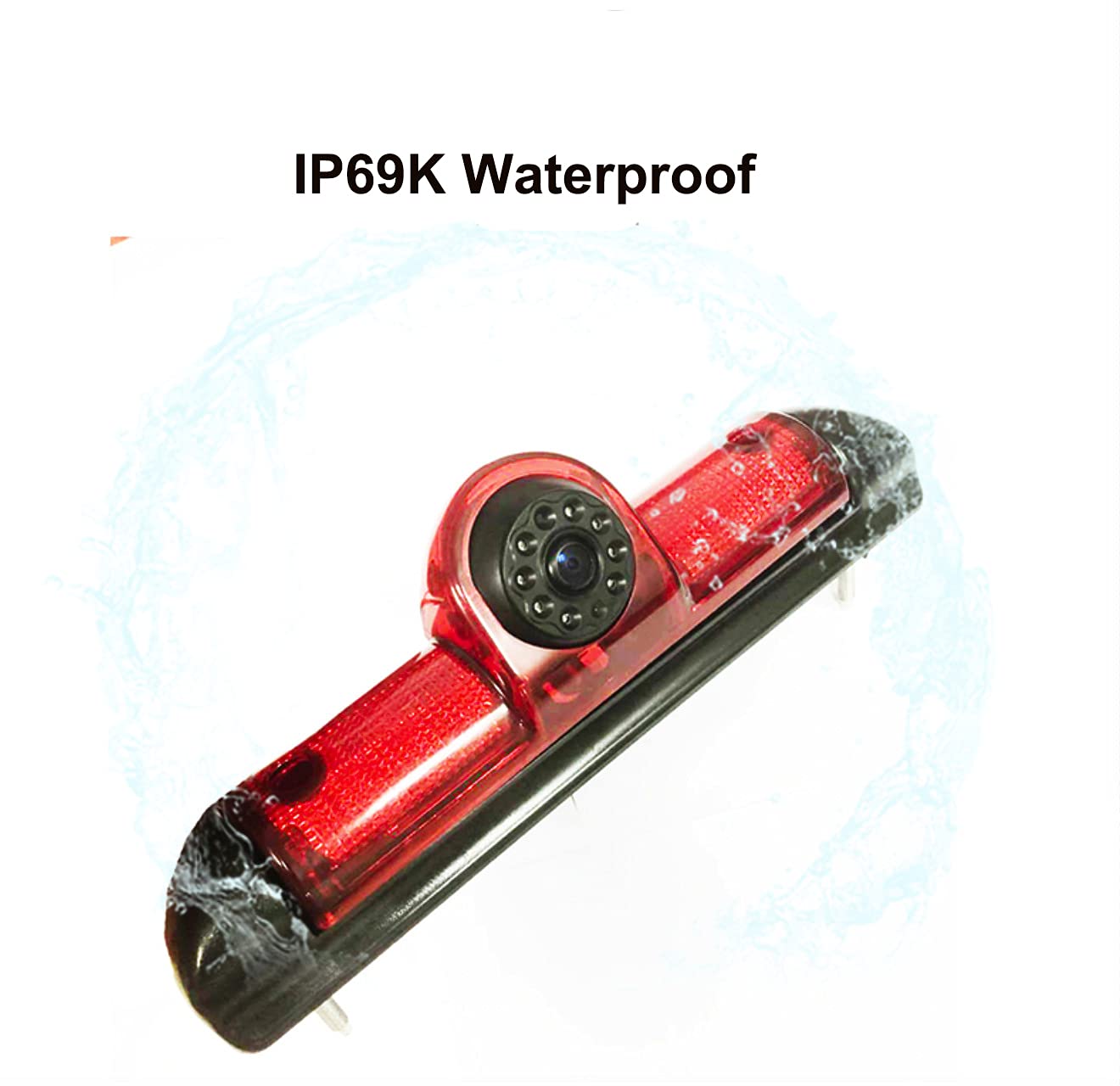

• Made of high quality and durable material.With good waterproof function.Shockproof IP67 waterproof level, product quality is more stable.
• Waterproof ip68, wide view angle 170 degree
• Easy to install: you take the outer cover of your 3rd brake light and use the special Peugeot Boxer Fiat Ducato Citroen Jumper rear view camera. The connection cable is guided into the vehicle interior, where the supplied 10 m cable is connected with anti-vibration screw connector.
• 7inch Clip-on camera is easy install which clip on your exist rear mirror (If you car doesn't install rear mirror ,please chose stand monitor)
• 7 inch HD Monitor with 2 channels and the rearview image appears onto the screen automatically when you are parking car.
• We provided a professional instruction in package, Warranty 1 year provide tech support and replacement service

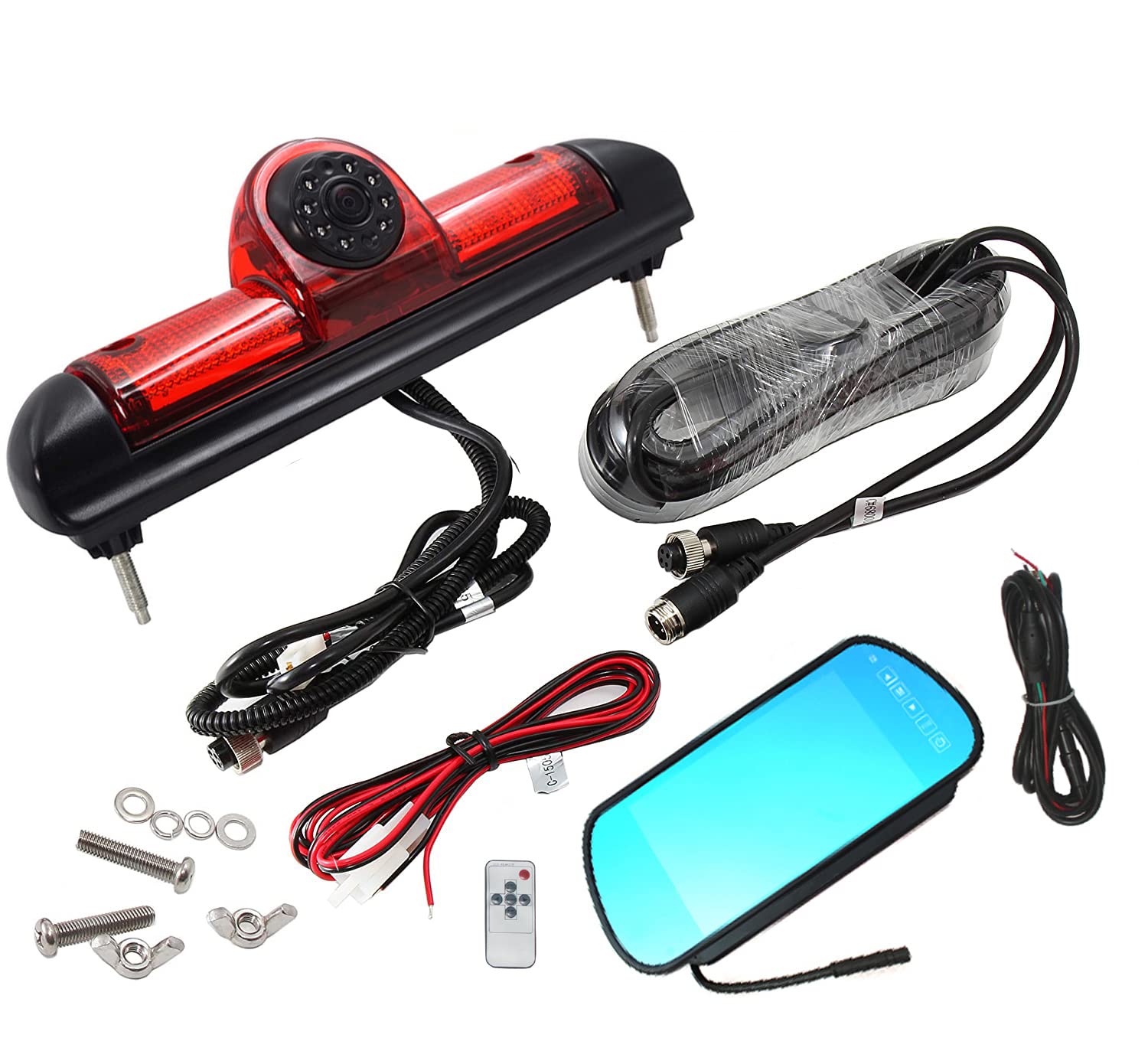

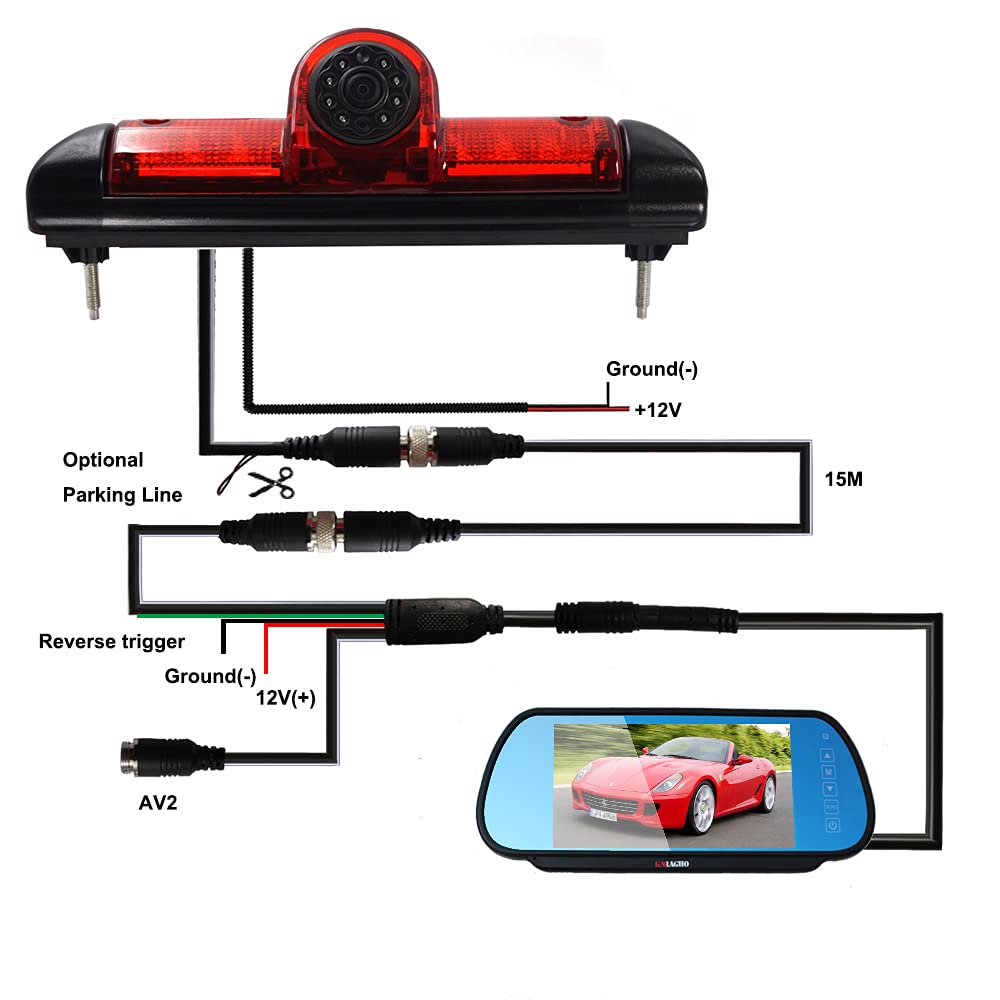

Top Mount Brake Lamp Reversing Rear View Camera for Van Fiat Ducato X250 X290 2006-2020/Peugeot Boxter 2006-2020/Citroen Jumper 2006-2020 This product could fit for all below models as expected: Fiat Ducato X250 from 2006-now Peugeot Boxter from 2006-now Citroen Jumper from 2006-now Backup camera is designed to completely replace the van’s third brake light. When installed, this backup camera looks factory-fitted, as though it came with the van originally. Camera Specification: Image sensor :1/3 Color CMOS Resolution :756(H) X 504(V) TV line :600TV lines TV System :NTSC Waterproof rating: IP68 Lens:2.5mm Min illumination :0Lux (LED ON) Viewing angle:140 ~ 170 ° Operation Temp. :-20℃~+70℃ White Balance :Auto 7'' On-Dash Monitor Specification: Monitor size :7 inch(800 X 480) Contrast :16:9/4:3 TV System :PAL/NTSC Video input :AV1/AV2 Power : DC12V-24V Brightness :400cd/㎡ Installation way: Clip on your exist rear mirror (If you car doesn't install rear mirror ,please chose stand monitor) Package included: 1 X Rear mirror monitor 1 X Backup Camera 1 X 10M Extension Cable 1 X Power Cable 1 X Manual FQA 1. How to wire it ? It is very easy for wiring. Backup camera wiring: The camera is 4PIN plug ,please connect it directly to AV input wiring of monitor power cable. AV2 input of power cable is fo backup channel. Rear view monitor wiring : Red wire for power source, green wire for reverse, black for ground. 2. Is it ok if I want this rear view camera to always be on ? Yes, if you want the camera to always be on, you can connect it to a constant 12V/24V power source such as accessory socket (cigarette lighter)that is on all the time, or if you only want it when you reverse you can connect it to the reverse taillights.
