HD 1080P Backup Reversing Camera 9" DVR Monitor System,4 x IR Night Vision Car Front Rear Side View Camera Kit+ 9 inch IPS LCD 4-Split Screen for 12V-24V RV Bus Truck Trailer

• 4 Backup Camera System wIth Car DVR Monitor : 9 inch Large Monitor with 4 x IR Reverse Backup Camera Hard wired version Camera system, come with 32GB SD Memory for Video Record,guarantees safe and 360° View clear image Avoid Blind spot

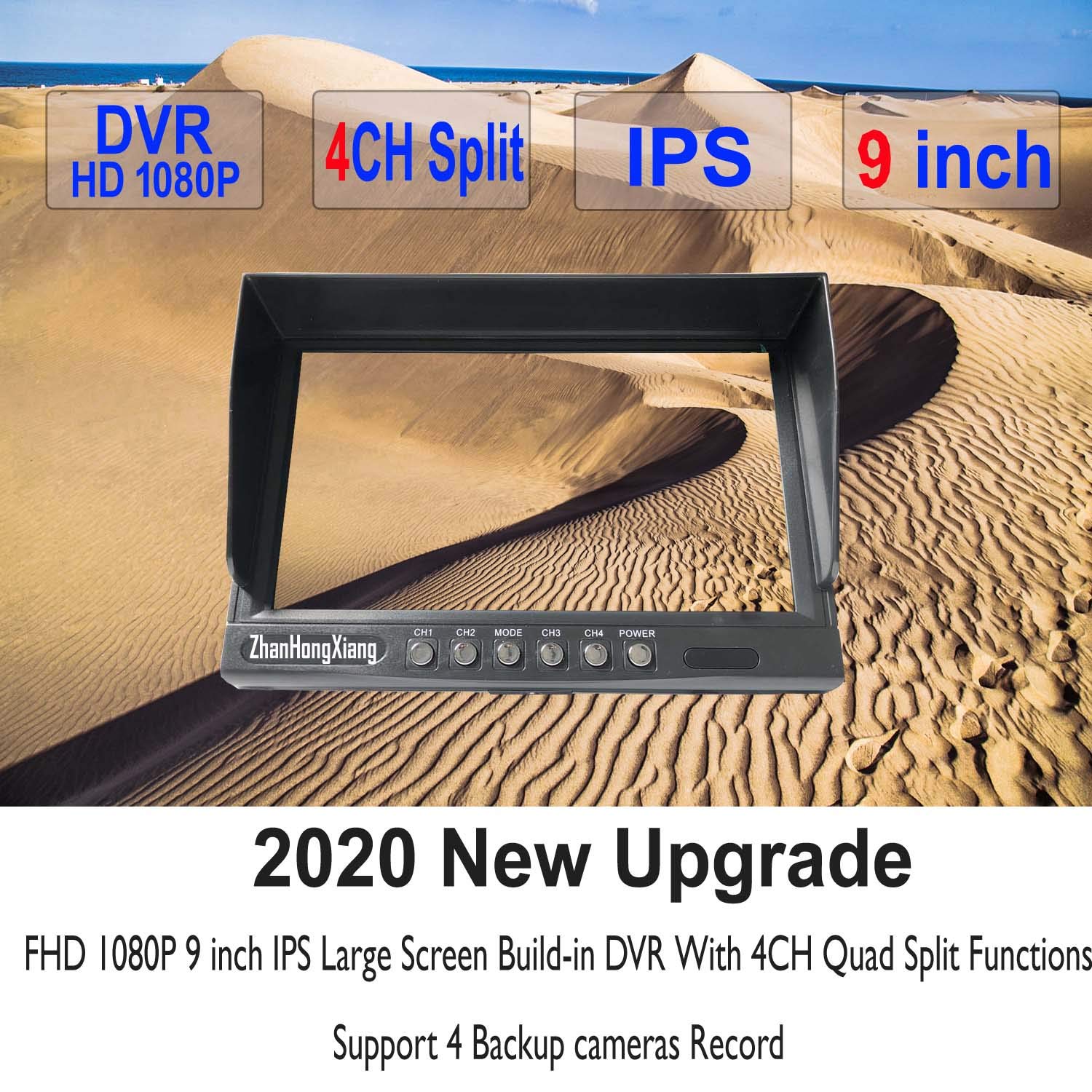

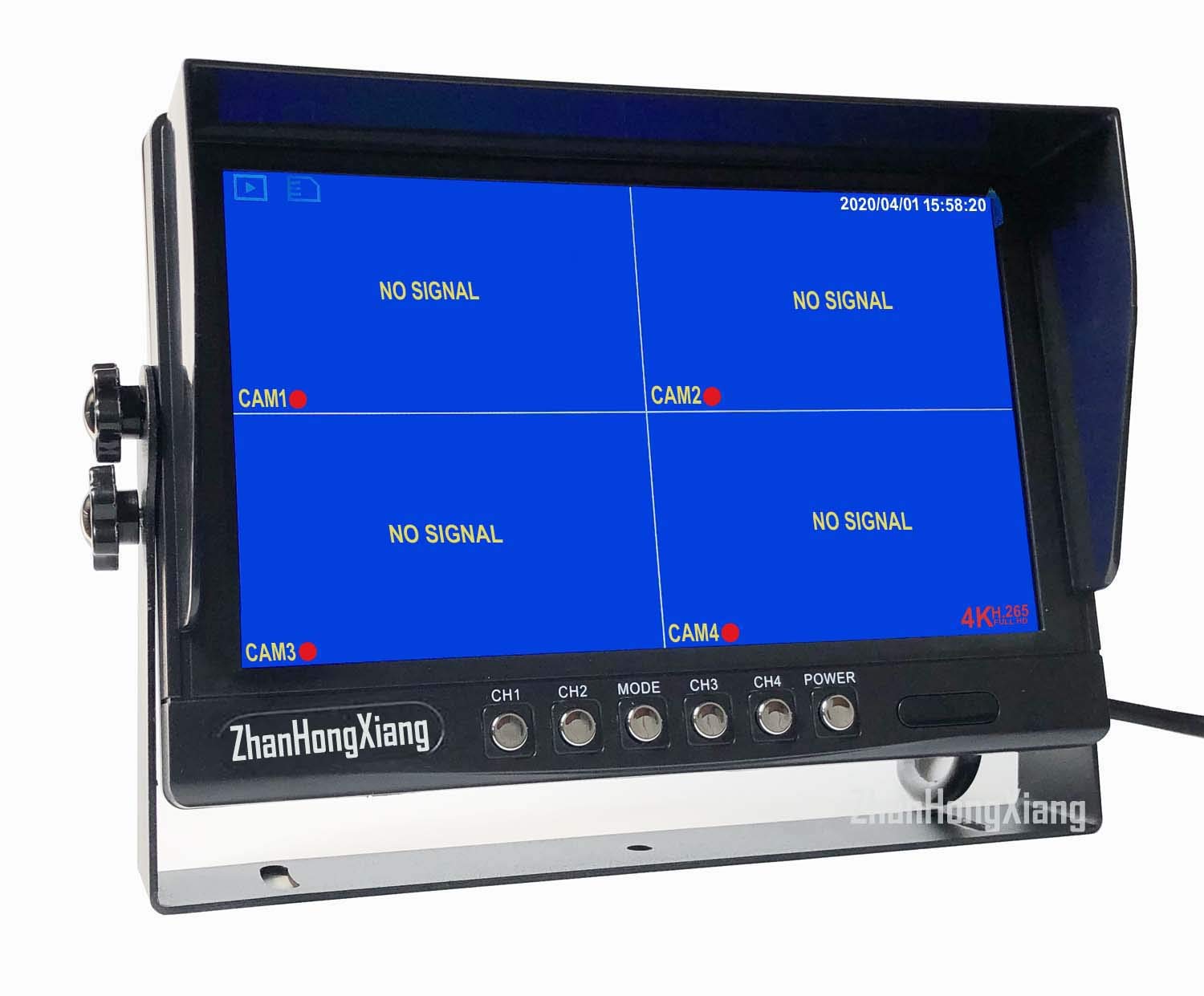

• 4Pin 9 inch IPS monitor Build-in DVR , 4 channels video input ,Quad Split Screen Display,It can display Full images/3 images/4 images,Grid Line Can be turn on/off,Image can be adjust for mirror or none mirror or flip with Upside Down

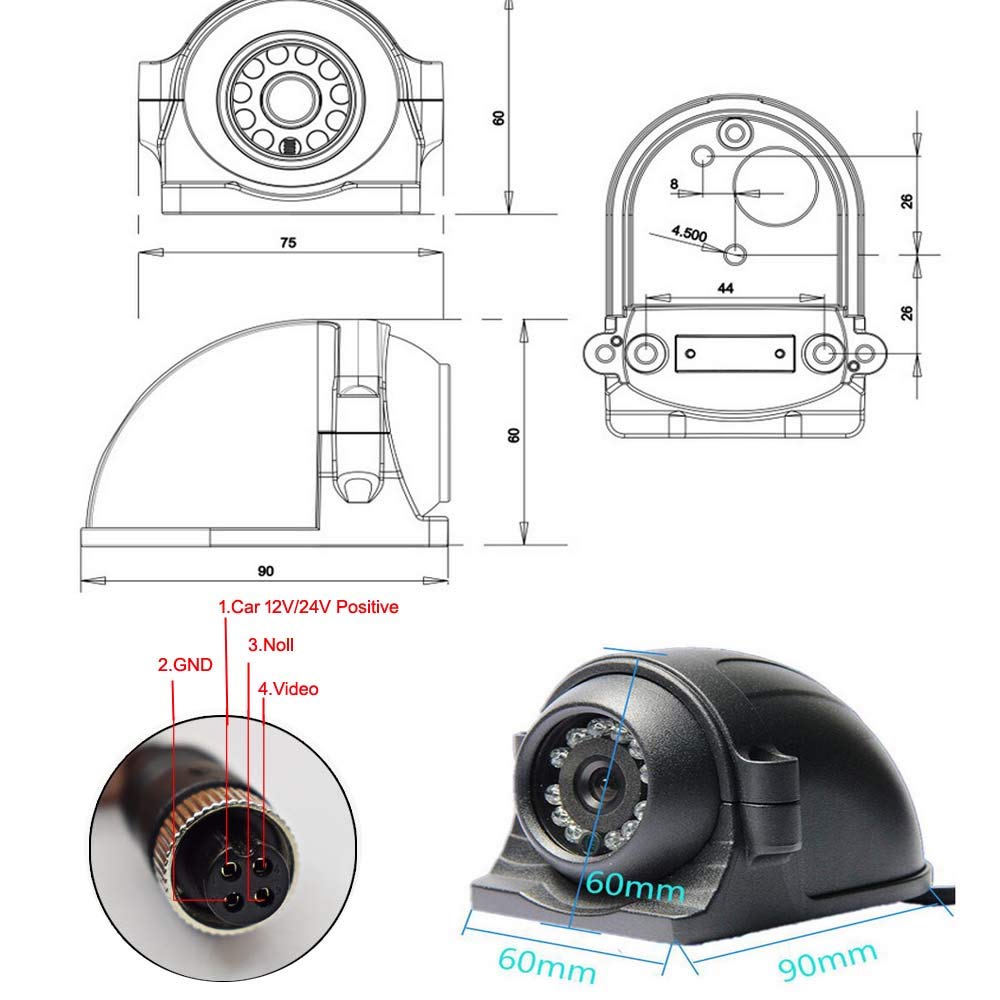

• FHD 1080P 2.0 Megapixel Rear Camera IP68 Waterproof with 4 Pin Connector( Shockproof), 2x 18 LED IR Night Vison Car HD Color Backup Camera and 2x 12 LED IR side view Camera , 100% Not Wash Out AHD 1080P Sensor HD Rear View Camera, and 2.8mm lens (120° horizontal wide view angle )

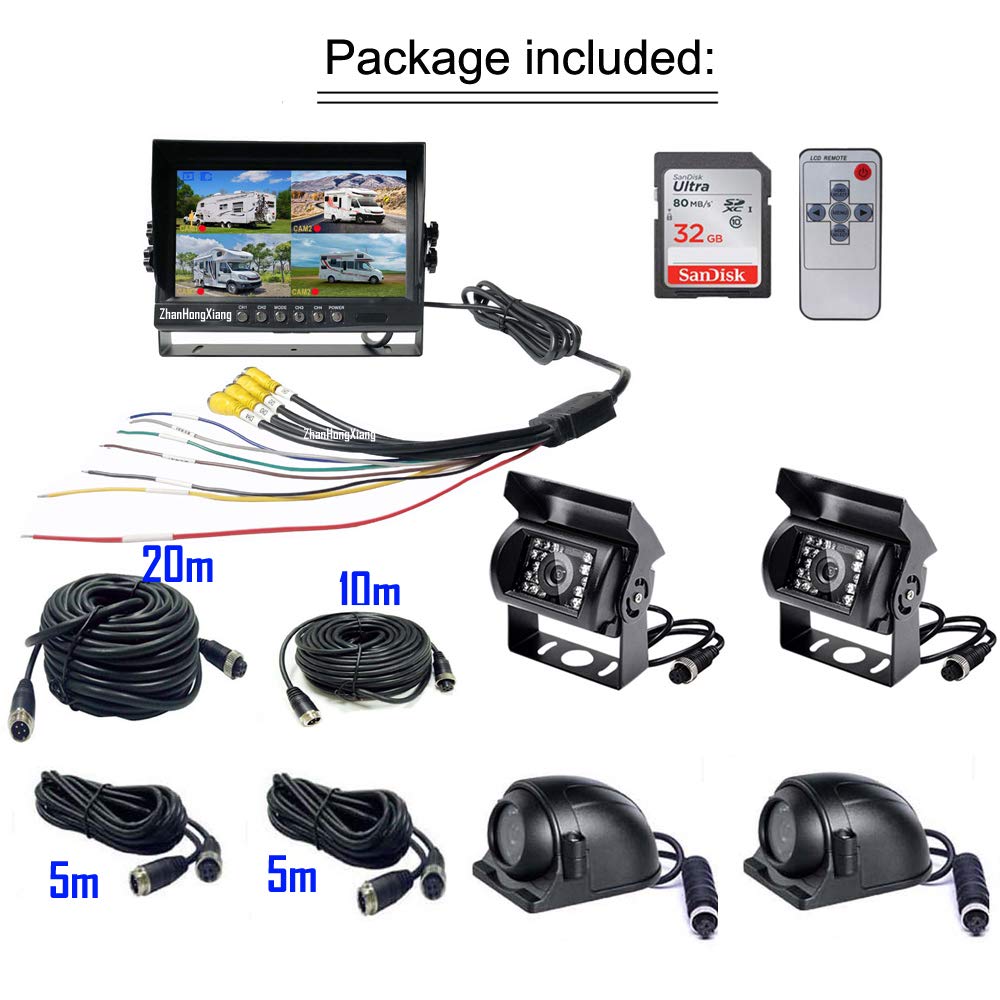

• The Backup Camera System come with four Backup camera,and 5m10m 20m 4-Pin Extension cable Best for Long Truck Trailer RV Bus Motorhome Schoolbus Camper Lorry 5th wheel and All other heavy Vehicle
• There is 3x trigger wire to control each video input priority，can be connect for reversing light,turn left light ,turn right light ,Four cameras can be viewed simultaneously from the Front Rear Side views in one display, Protect your driving safety to away from Danger

Only need to connect the monitor power wire with car electronics system: Red and yellow wire to car Positive/Live, Black wire to GND, Green Blue Grey Brown wire to reversing or other Trigger+ (or No need to connect) Insert the Memory to the card slot and press Mode button to record Simple to installation,Easy to use Easy to mount Best for All Heavy Vehicle such as Box Truck Trailer Bus RV 5th Wheel Camper Pickup Boat School Bus Tractor Motorhome 9" CAR TFT LCD MONITOR Display Size:9 Inch AHD DVR Screen Power requirement:DC 12V-24V Consumption:8W Video:4 channels input ,Quad Split Screen Display Our Split monitor can display 4 video at same time Full images/3 images/4 images adjustable Build in SD DVR Great Loop Recording functions Each camera Record with a separate video Come with 32GB SD Memory Card, Max support 128GB Reverse Grid Lines Can be turn on or off Image Can be adjust for mirror or none Mirror Image Support Flip with Upside Down Suitable for Front view/ rear view/side view 360°clearly View to avoid blind spot Net Weight: Approx. 1000g Lauguage:English,Chinese AHD 1080P IR Backup Camera 100% Not Wash Out AHD 1080P Sensor Mirror image Lens:2.8mm(120 View angle ) Number of pixels:2.0 MP Camera(1920*1080) Minimum illumination:0 LUX Night vision:LED IR Video Output:4Pin Aviation Connector work Temperature:-20°C~+60°C Power Requirement: DC 12V-24V Waterproof:IP 69
