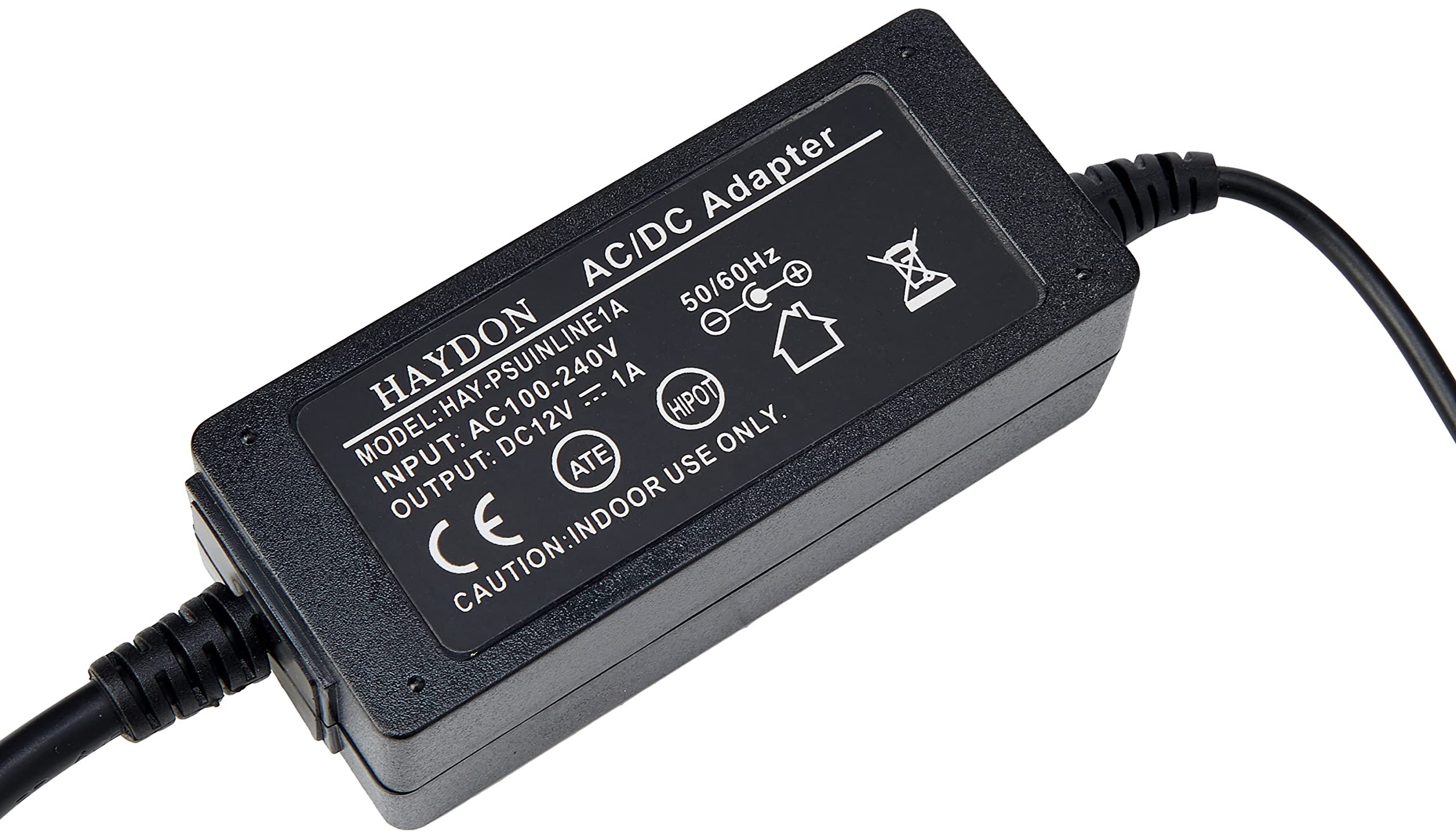

Haydon 12 V 1 A Inline CCTV Power Supply

• 12V 1A Inline power supply
• Ideal for CCTV applications

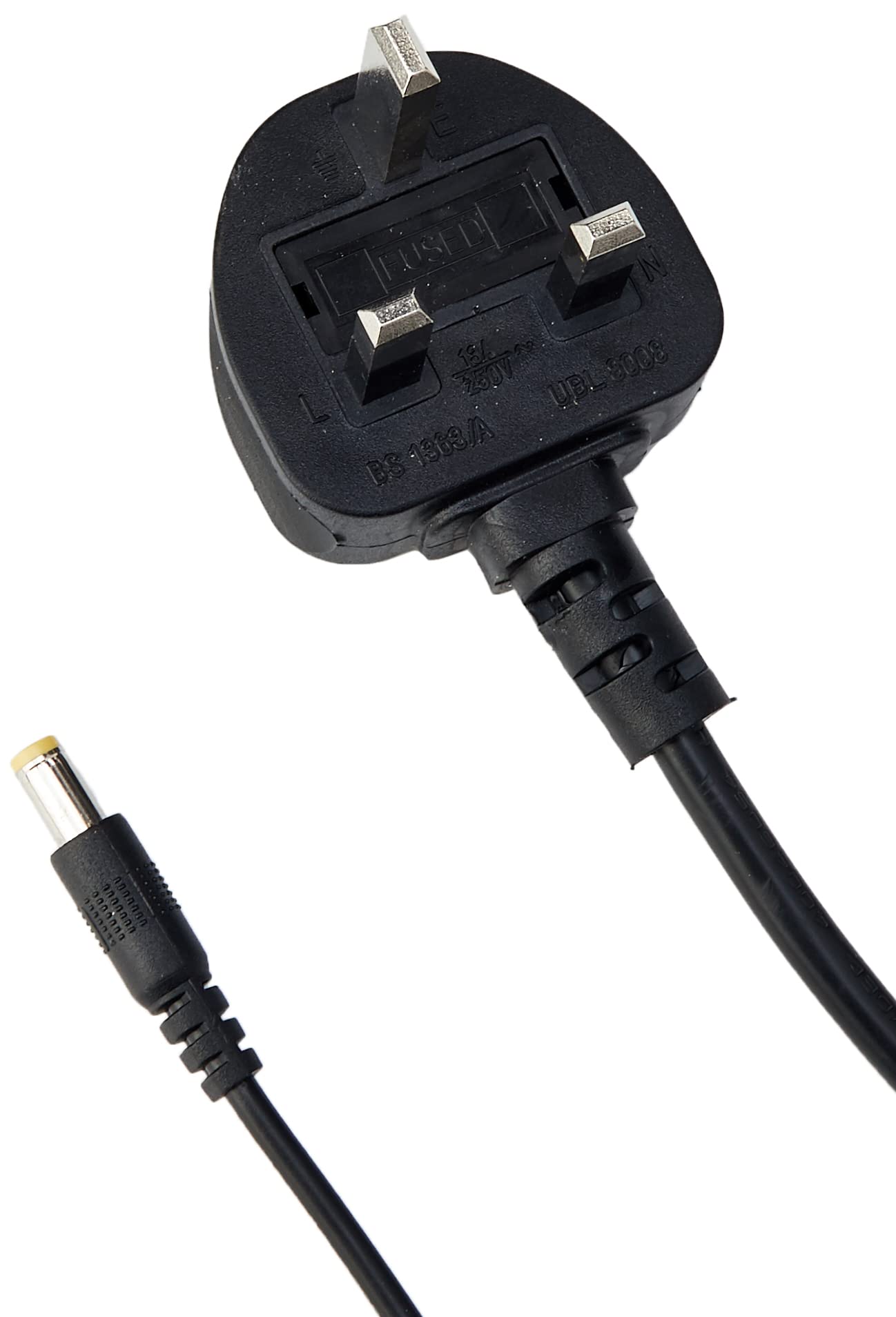

• Comes with 3.6m lead and uk plug

Product Description Haydon's range of multi way metal cased PSUs use the latest technology PTC fuses, eliminating replacing fuses after overvoltage or short circuit occurs. Input Range - 100 ~ 240 vac Input Frequency - 50/60Hz Inrush Current - <20A at 240VAC Input Current 3A Max Leakage Current - <0.25 mA at 50/60 Hz 240VAC Input Rated Output Power - 12 Watts Output Voltage - 12 V4% (11.52V ≤ V outputs ≤ 12.50V) Output Current - 1A Output Load Efficiency - 70% nominal Adjustment Range - Fixed Hold-up Time - 30 ms at full load and 230 VAC nominal line OL Protection - 96% to 104% above peak rating Ripple & Noise - ≤ 200mV at rated Load EMI Test - EN55022 CLASS, EN6100-3-2.3, FCC CLASS B Isolation - AC3.0 KV/1 min (input to output) Safety Approval - UL, C-UL, CE Operating Temp - 0C to 50C ambient derate each output at 4.0% per degree from 50C to 60C Storage Temp - - 40C to 85C Operating Humidity - 5% to 95% (non-condensing) MTBF - 50,000 hours at full load and 25C ambient conditions (demonstrated) Size - 77.5 x 46 x 28mm Cable Length - 3.6m UK Plug & 2.1mm Socket - YES Box Contains 1 x HAY- PSUINLINE1A
