HARFINGTON Dovetail Router Bit 1/2" Shank 1-1/4" Dia Tungsten Carbide 14 Degree Dovetail Joint Joinery Bit for Drawer Cabinet Box Joints Making Woodworking

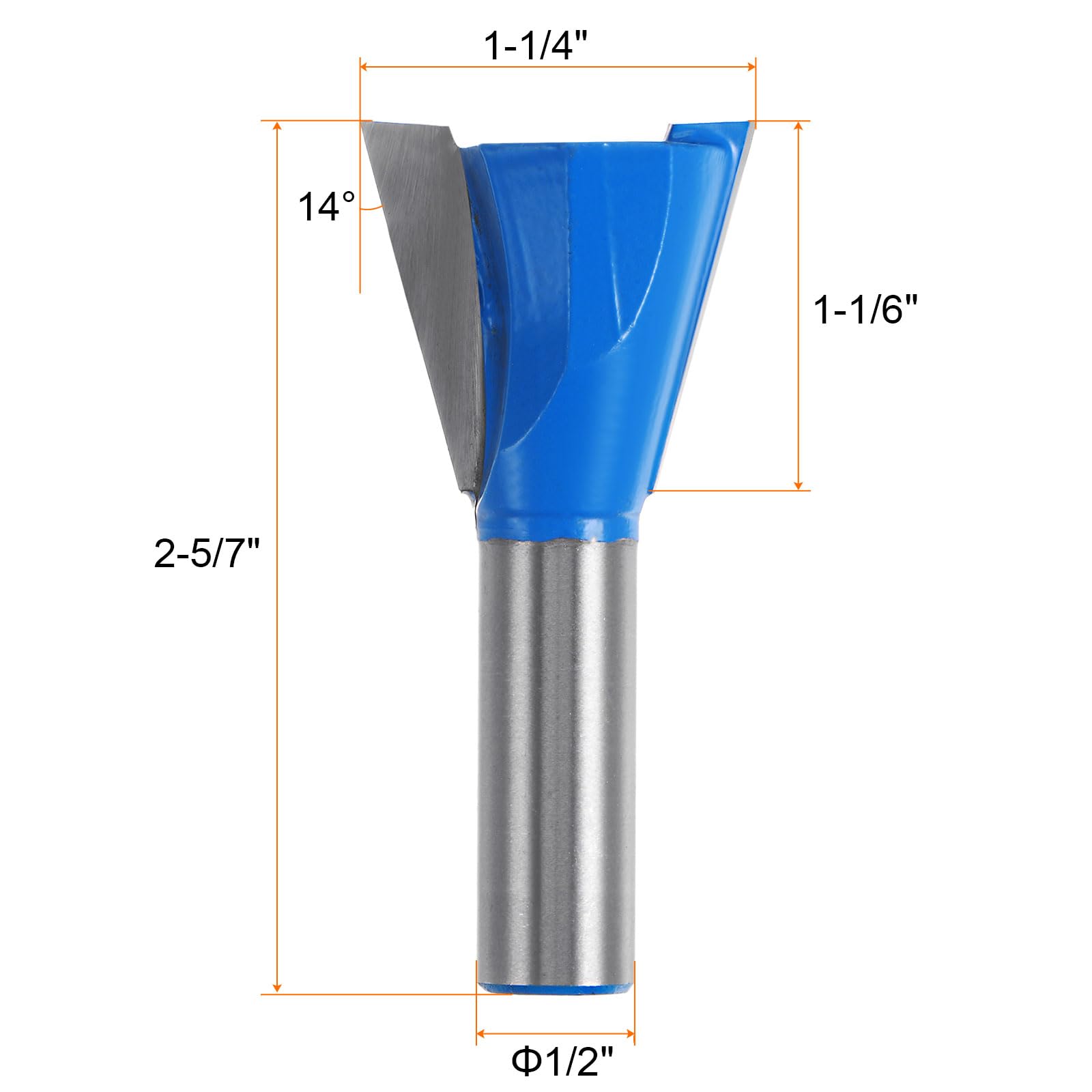

• Size - Cutting diameter: 1-1/4"; shank diameter: 1/2"; cutting depth: 1-1/6"; total length: 2-5/7"; dovetail angle: 14 degree

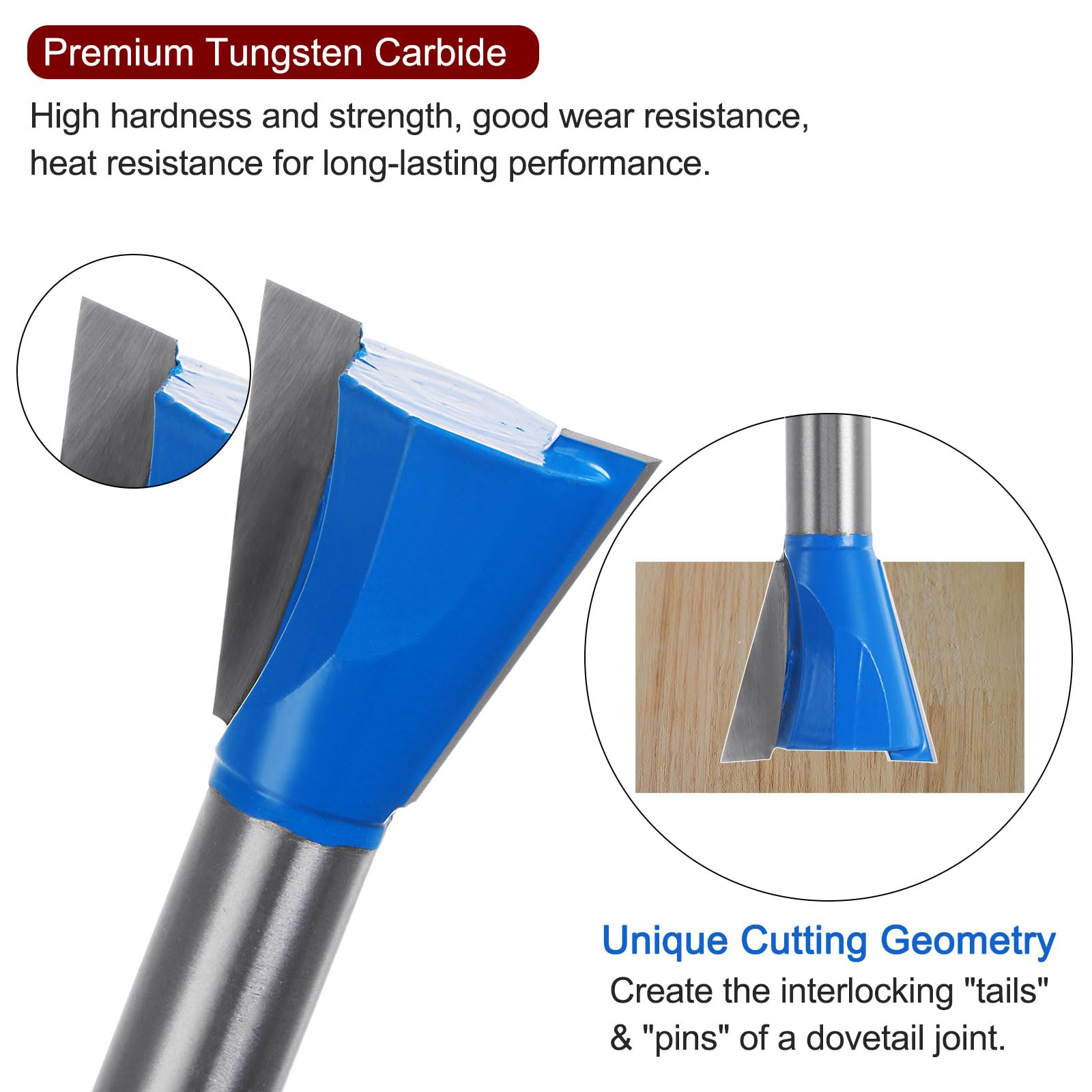

• Material - Made of good tungsten carbide, the router bit provides high hardness and strength, good wear resistance, heat resistance for long-lasting performance. Carbon steel shank offers good strength, durability and sufficient rigidity.

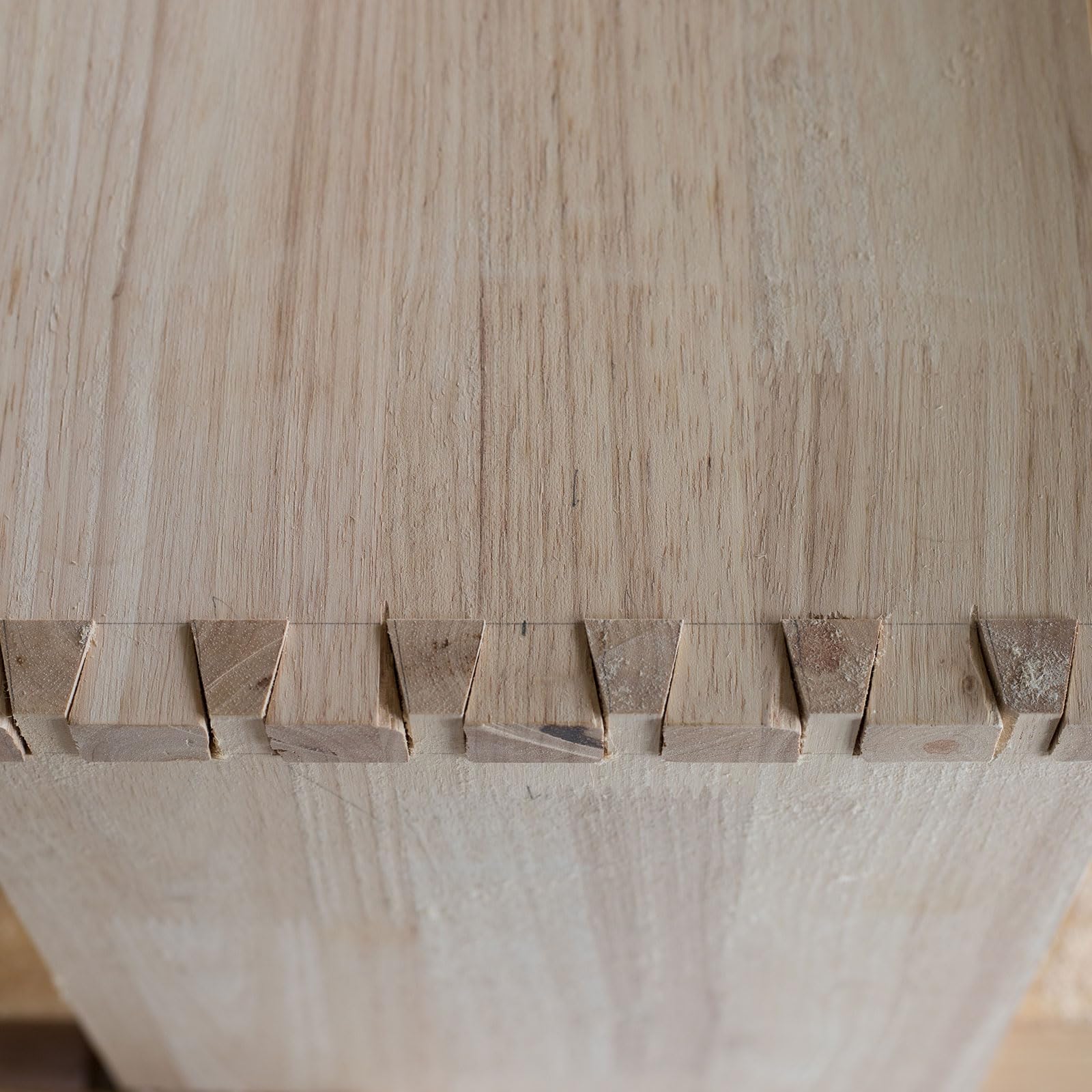

• Feature - Designed to create the interlocking "tails" and "pins" of a dovetail joint, providing strength, durability, and aesthetic appeal. Dovetail router bits feature angled sides and a flat bottom for precise and secure fitting. 2-flute router bits facilitates efficient chip evacuation.
• Applications - Dovetail router bits are used in woodworking applications to create dovetail joints such as drawers, cabinets, boxes, table legs, furniture. Can cut softwood, hardwood, solid wood, plywood, chipboard, MDF. Precisely cut joints for a clean, professional finish.

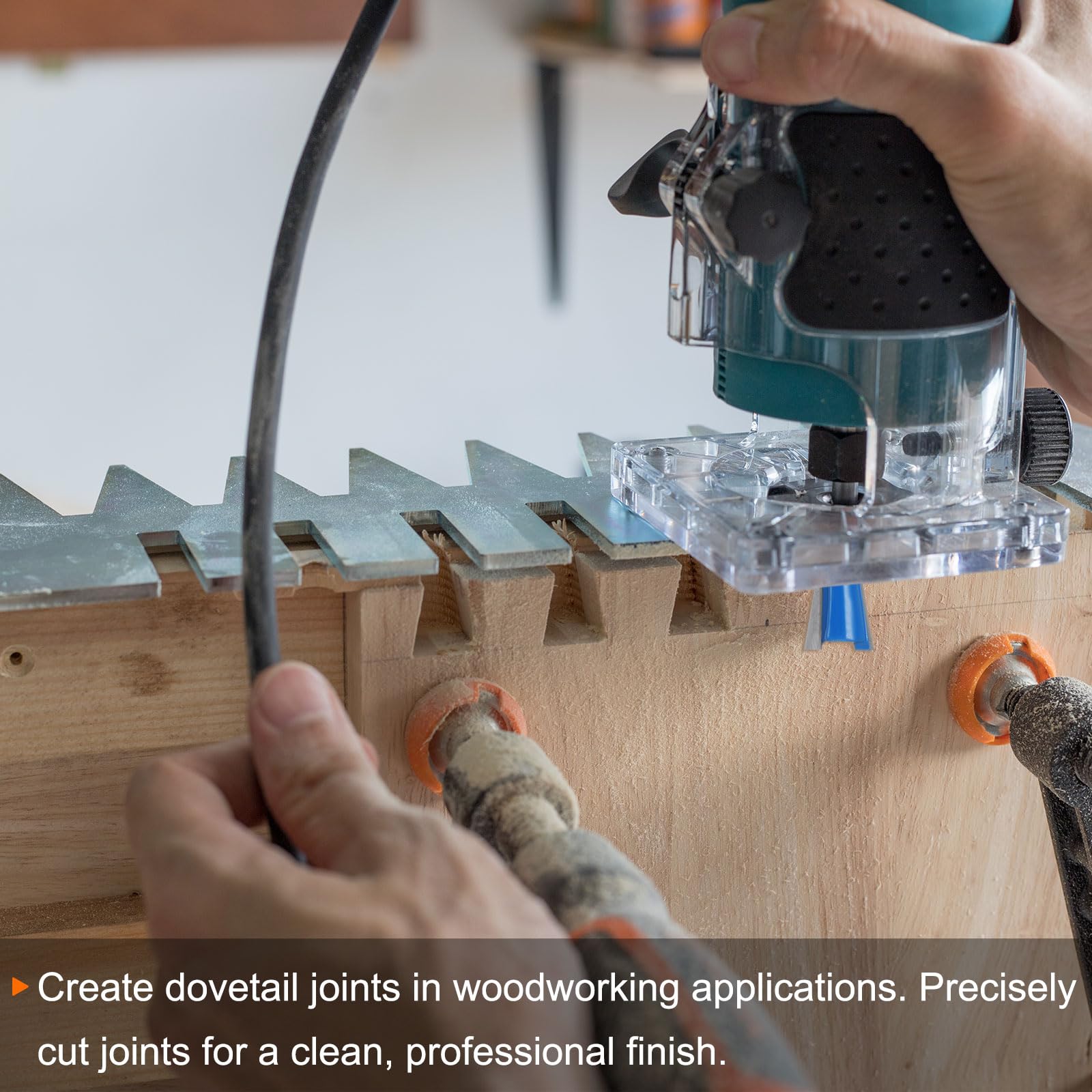

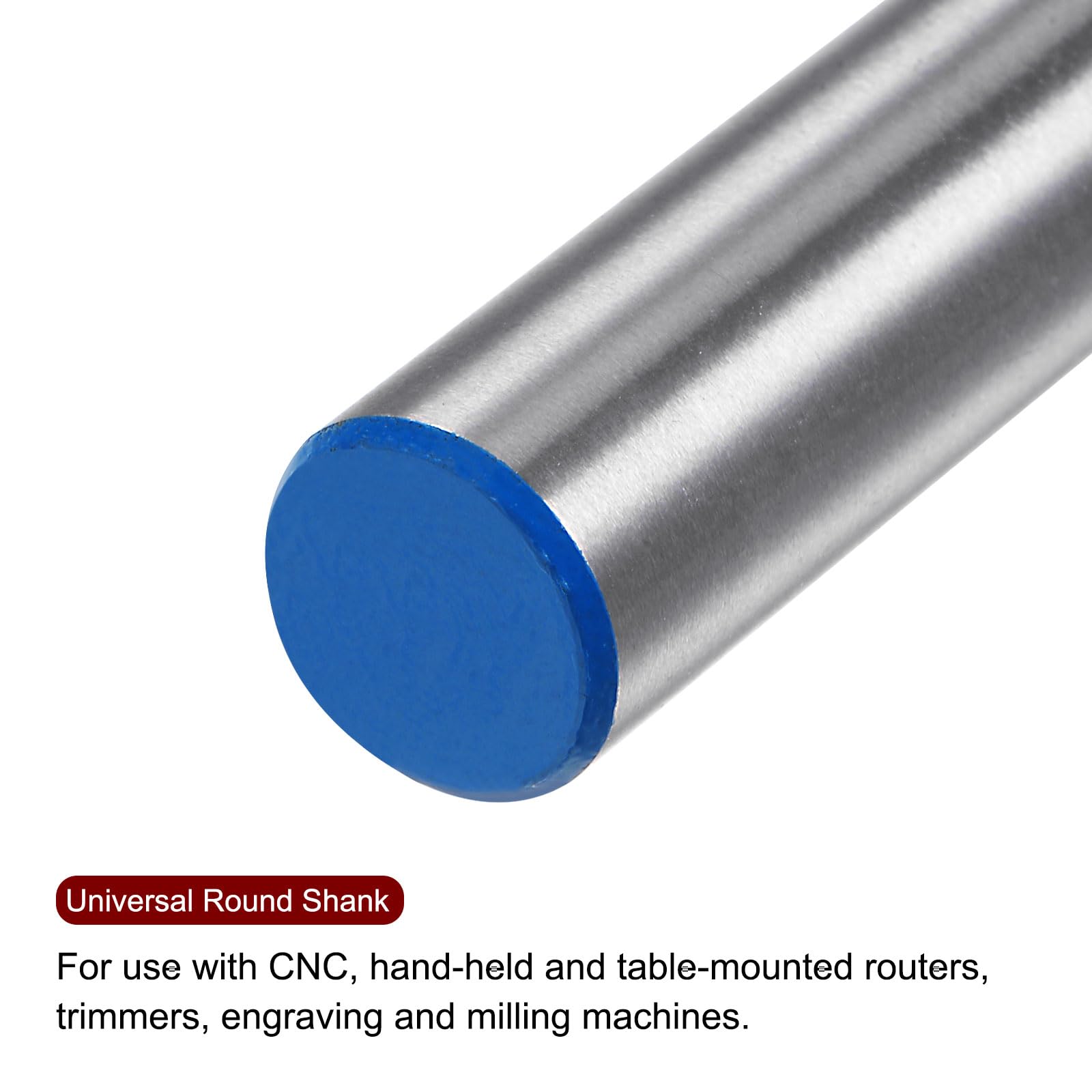

• Note - For use with CNC, hand-held and table-mounted routers, trimmers, engraving and milling machines. Ensure that your workpiece is securely clamped or held in place. Make test cuts on scrap material before working. Maintain a steady and controlled feed rate.

Made of good tungsten carbide, the router bit provides high hardness and strength, good wear resistance, heat resistance for long-lasting performance. Adopts carbon steel shank, which has good strength, durability and sufficient rigidity. The spray painting has a smooth, even surface that resists rust and corrosion. The unique cutting geometry specifically designed to create the interlocking "tails" and "pins" of a dovetail joint, providing strength, durability, and aesthetic appeal. Dovetail router bits feature angled sides and a flat bottom for precise and secure fitting. 2-flute router bits facilitates efficient chip evacuation. Dovetail router bits are used in woodworking applications to create dovetail joints such as drawers, cabinets, boxes, table legs, furniture. Can cut softwood, hardwood, solid wood, plywood, chipboard, MDF. Dovetail router bits precisely cut joints for a clean, professional finish. Do not drill metal and non-ferrous metals. For use with CNC, hand-held and table-mounted routers, trimmers, engraving and milling machines. Ensure that your workpiece is securely clamped or held in place. Make test cuts on scrap material before working. Maintain a steady and controlled feed rate. Note: It may be necessary to make multiple passes. Gradually increase the depth of cut with each pass. It is recommended to follow the wood grain direction when routing dovetail joints. Make sure there are no nails or other metal objects in the wood before drilling. Always wear personal protective equipment.
