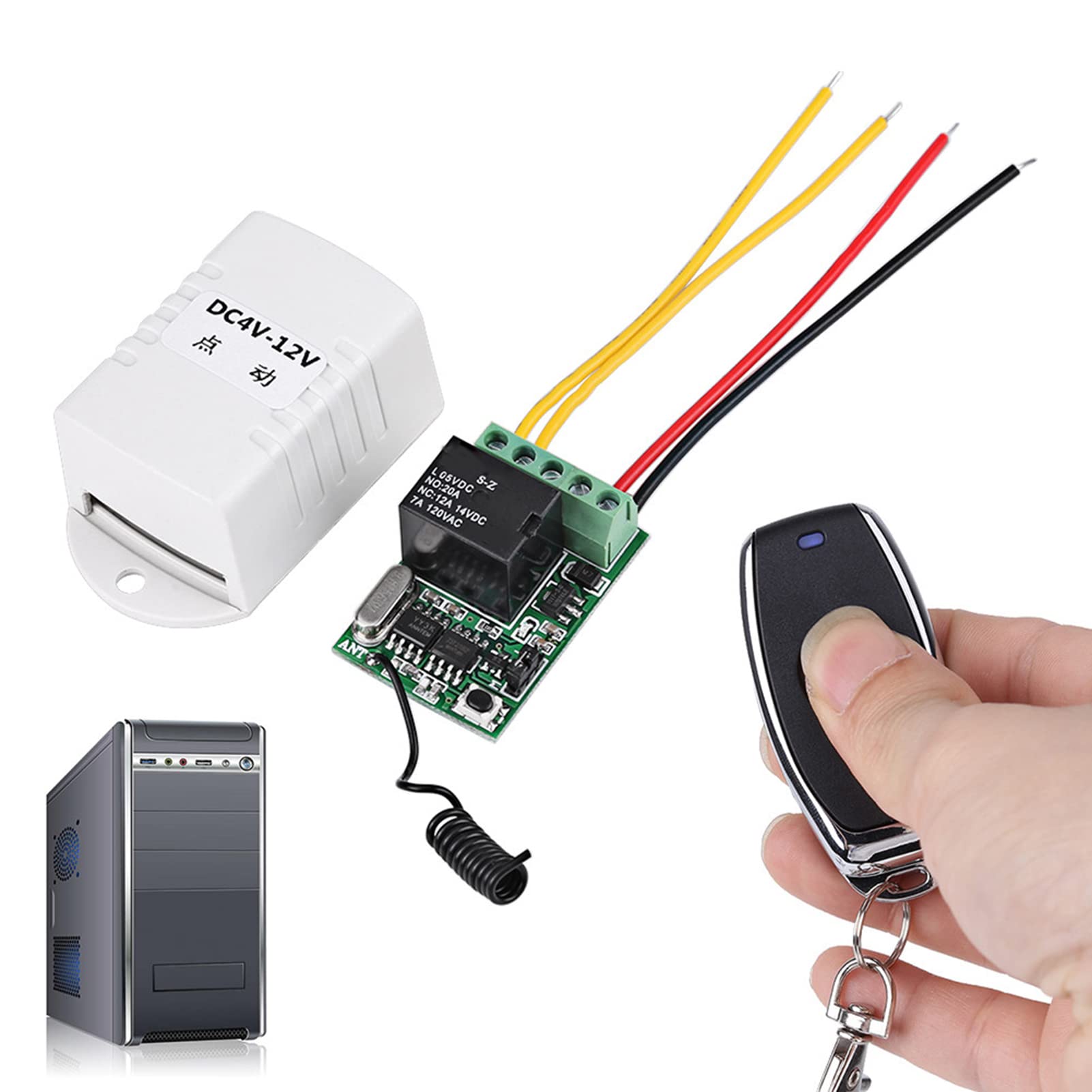

Haosie DC4V 12V Wireless Switch and Receiver Suitable for Computer, Automobile, Household Appliances and Other Power Remote Control Switch Modification

• Widely Compatible: Wireless switch receiver is suitable for computer, automobile, LED light remote control, household appliances remote control modification, industrial controller modification and other types of power remote control switch(please refer to the installation video for specific operations)
• Matching Method: First press the receiver learning button, the LED light will blink slowly to enter the matching state, and then press the wireless switch button, the LED light will blink twice quickly, and then blink slowly, indicating that the matching is successful
• Cancel Matching: Wireless switch and receiver cancel matching method long press the learning key for about 5 seconds until the receiver LED light turns NO into OFF, indicating cancellation of matching
• Strong Signal: The remote switch has a strong signal, high reception sensitivity, and can pass through the floor and door to control the receiver anywhere at a reliable distance
• Customer Satisfaction: If the packaging of the wireless switch and receiver you receive is damaged, please contact us and we are always available to assist you

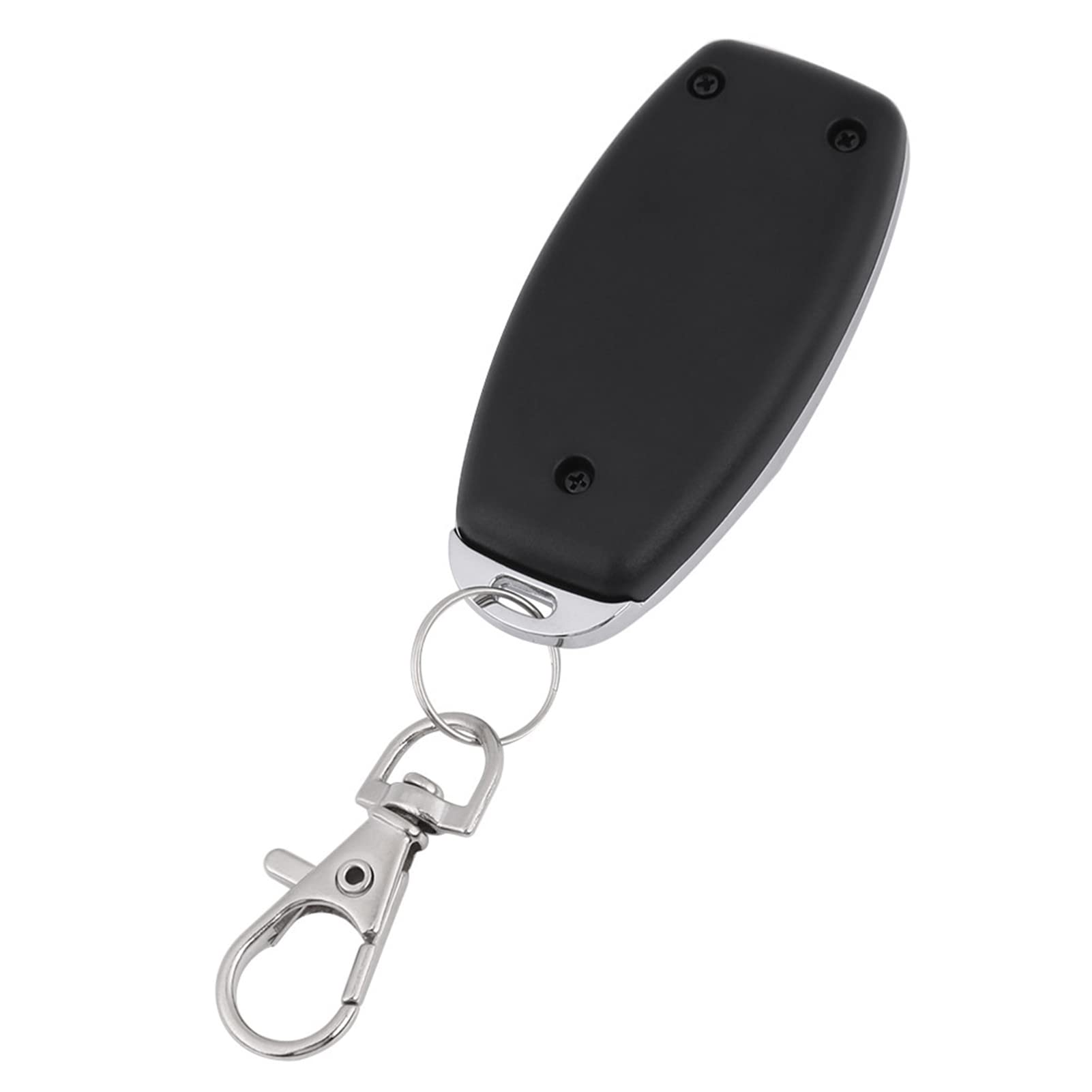

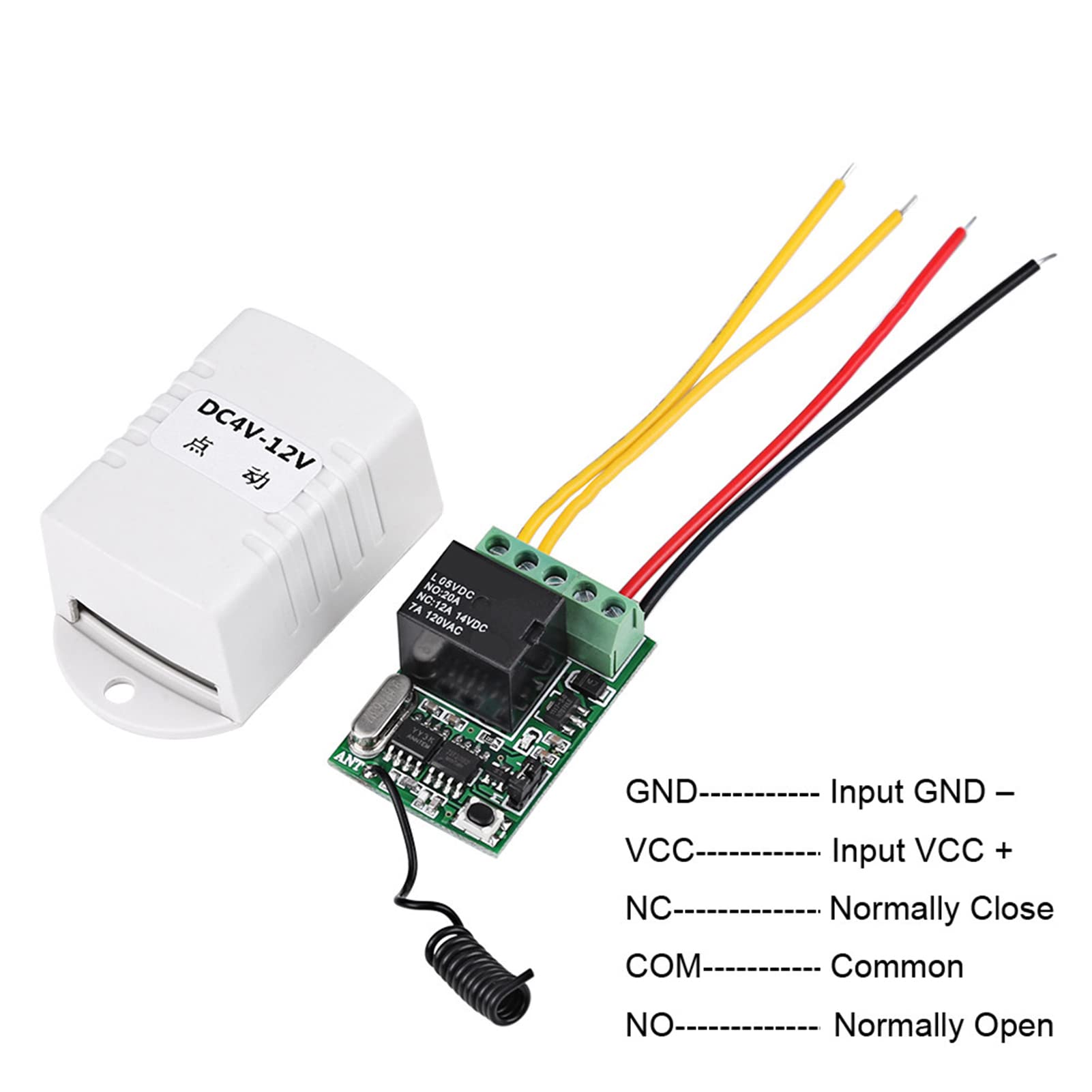

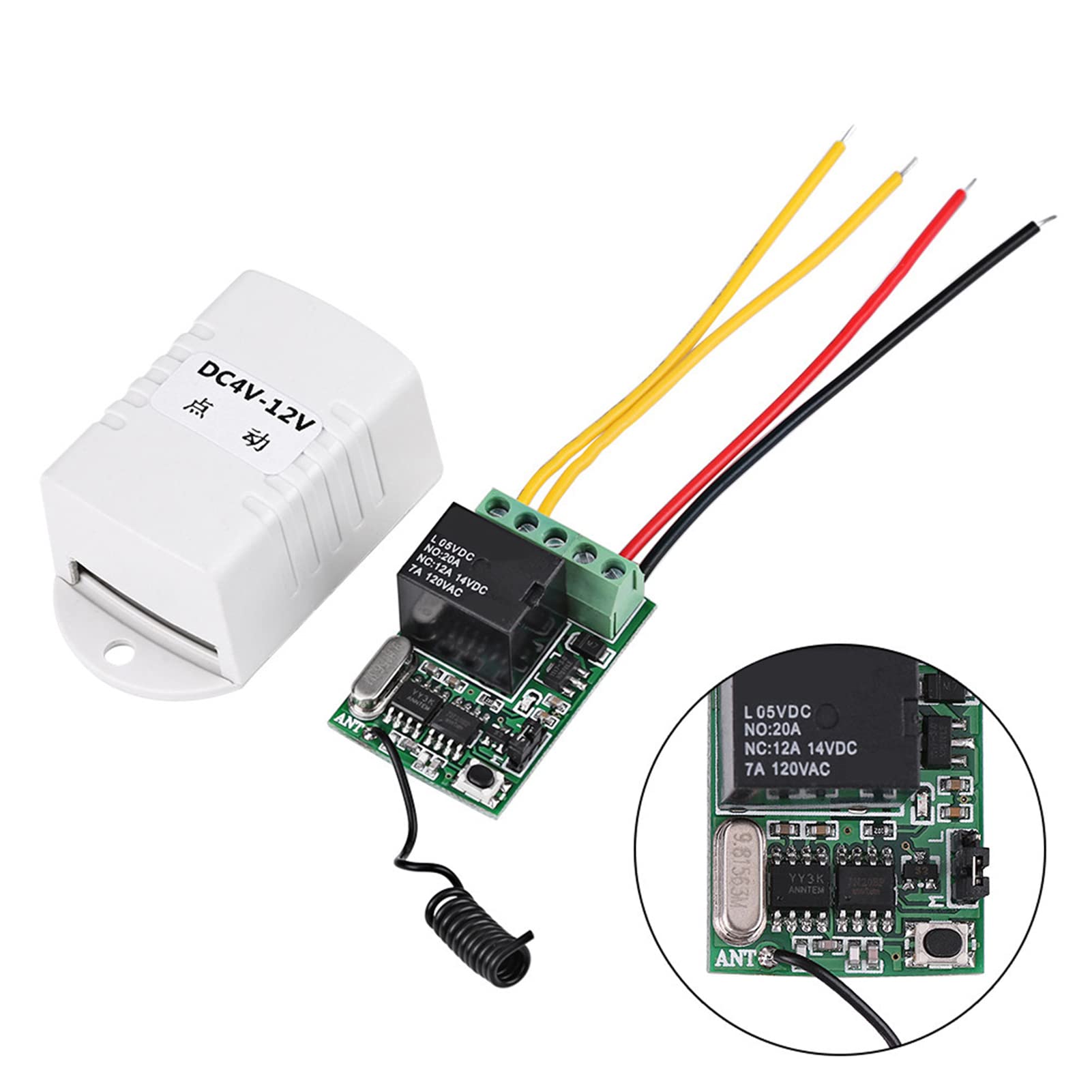

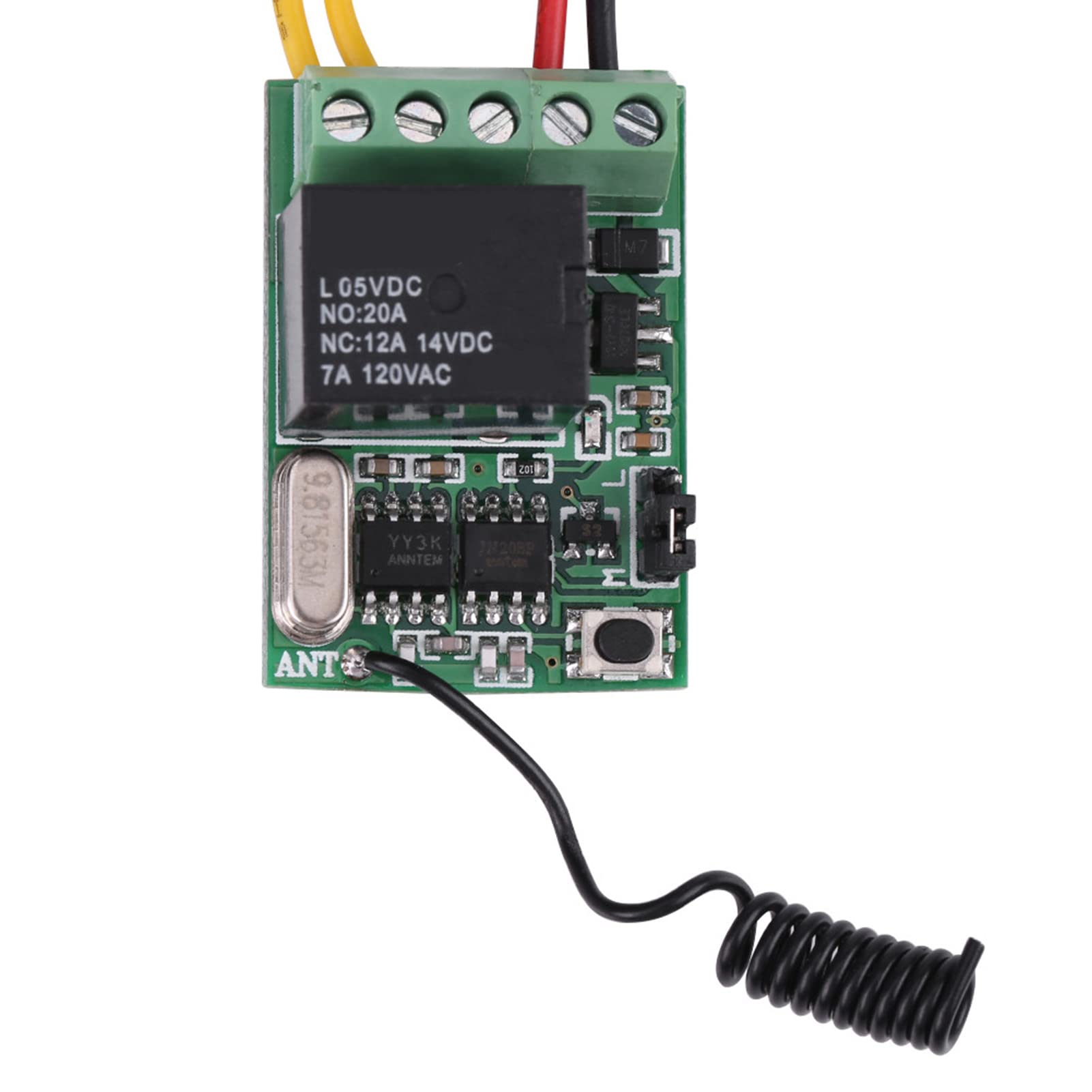

Features: It is a learning encode wireless remote control switch(receiver). It is easy to match the transmitter(remote control). Strong signal which can pass through the floor and door, control receiver from any place within a reliable distance. The volume is small and the performance is stable and reliable, high receive sensitivity. It covers application ranging from like auto door, window, lifting equipment, entrance access, etc. Perfect wireless relay remote control for computer mainframe. Specifications: Working Voltage: DC4V 12V(DC4V 4.5V 5V 6V 7.4V 9V 12V) Standby Current: 7-9mA Working Current: 70-130mA Relay Standard: 20A( 14VDC 12A 120VAC 7A) Max Load: 10A (better load is less than 7A) Learning Encode: Learning Button to add Transmitter Working Mode: Momentary Toggle adjusted by Jumper Compatible: For computer mainframe Size: Approx. 43 x 30 x 22mm / 1.69 x 1.18 x 0.87inch Remote Size: Approx. 60 x 30 x 12mm / 2.36 x 1.18 x 0.47inch Quantity: 1PC Package Weight: 50G Package Included: 1 x Relay Remote Control Switch 1 x Transmitter (Other items in the picture are not included) Momentary----Press and Hold----ON, Release----OFF Toggle----Press one time----ON. Press it again----OFF GND----Input GND - VCC----Input VCC + NC----Normally Close COM----Common NO----Normally Open Clearing Encode: Press the receiver learning button and hold for about 5s until the receiver LED indicator from ON to OFF, it means the encode have been cleared. Learning Encode: Momentary/Toggle Mode: Press the receiver learning button, the receiver LED indicator flash slowly, it means entering into learning state, press the transmitter button, the receiver LED indicator flash fast for 2 times and then flash slowly, it means learning is successful. Press the learning button again to turn off the LED indicator, it means learning is
