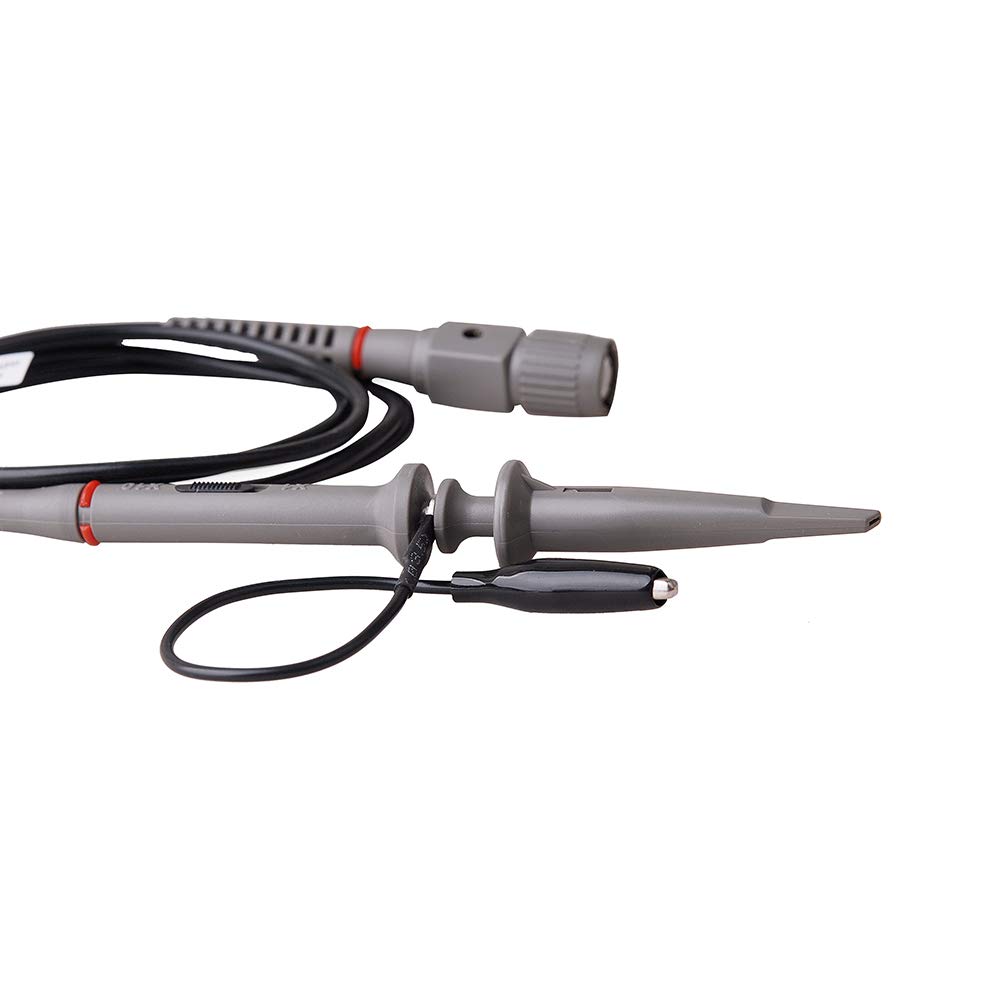

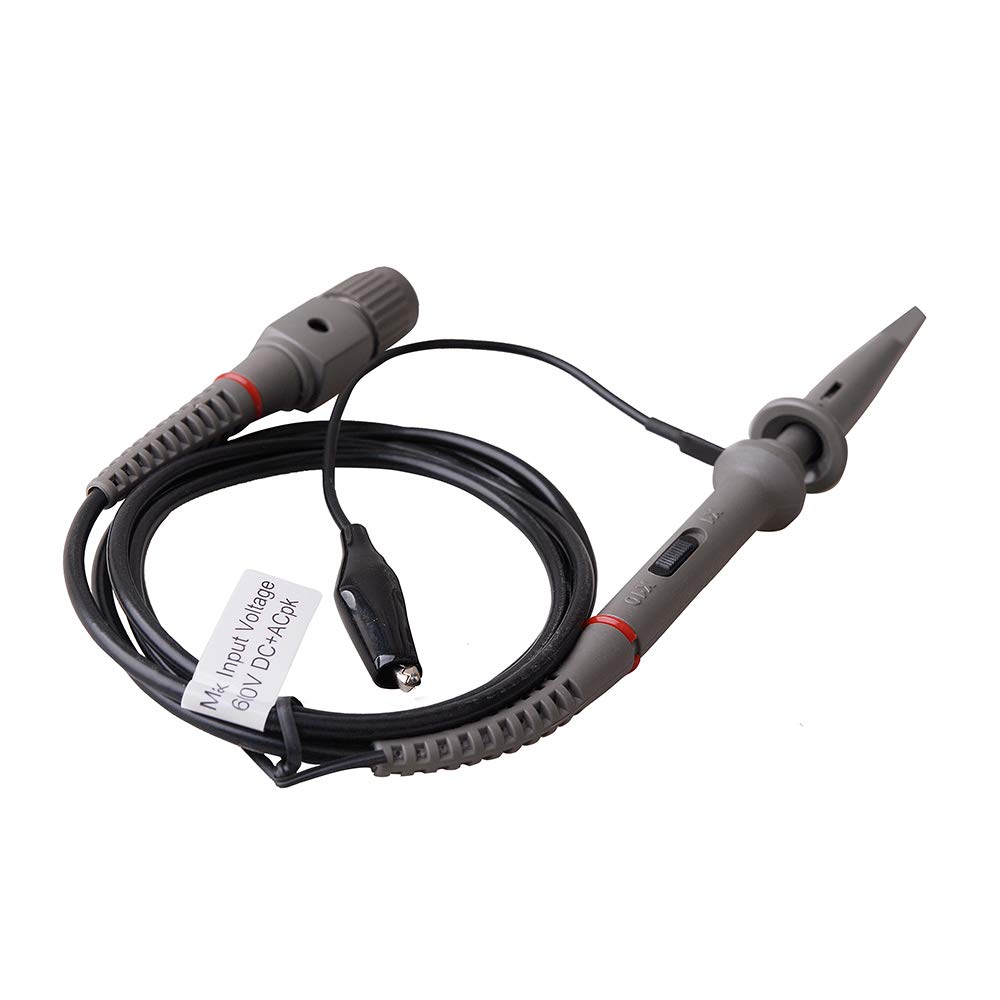

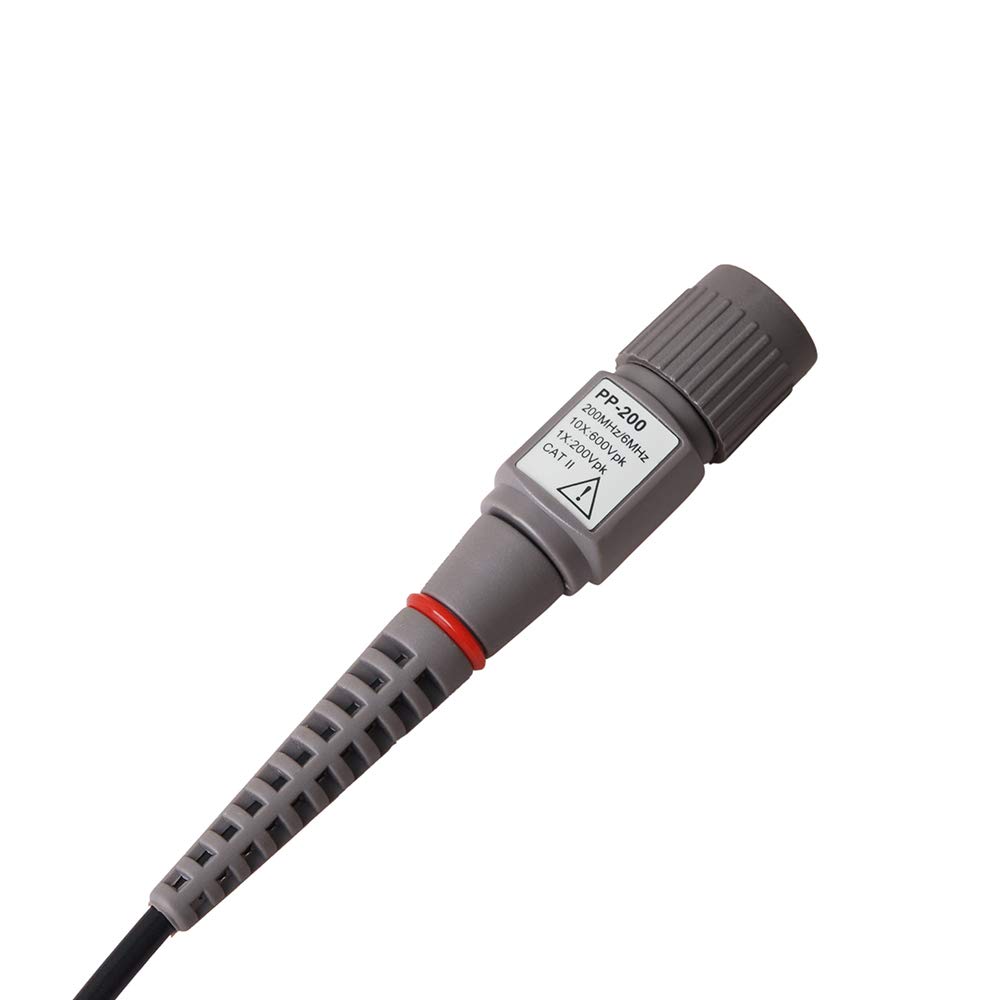

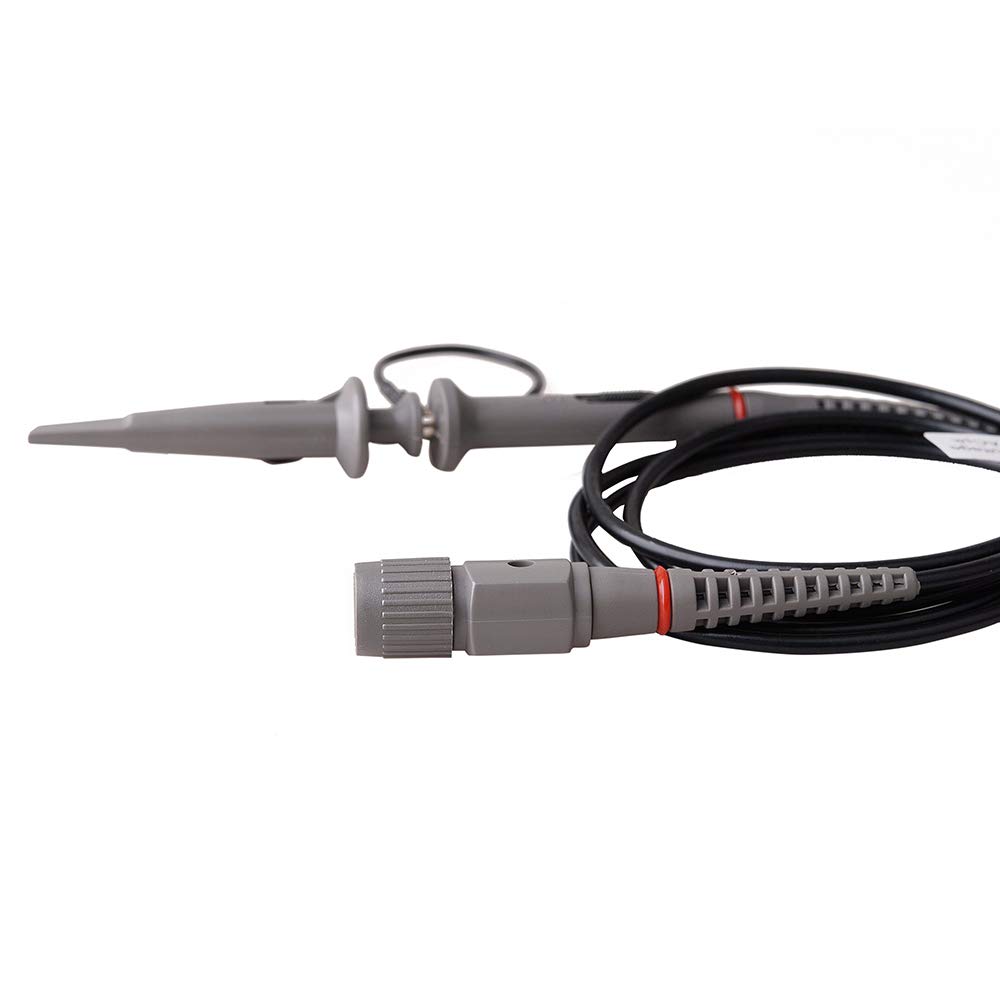

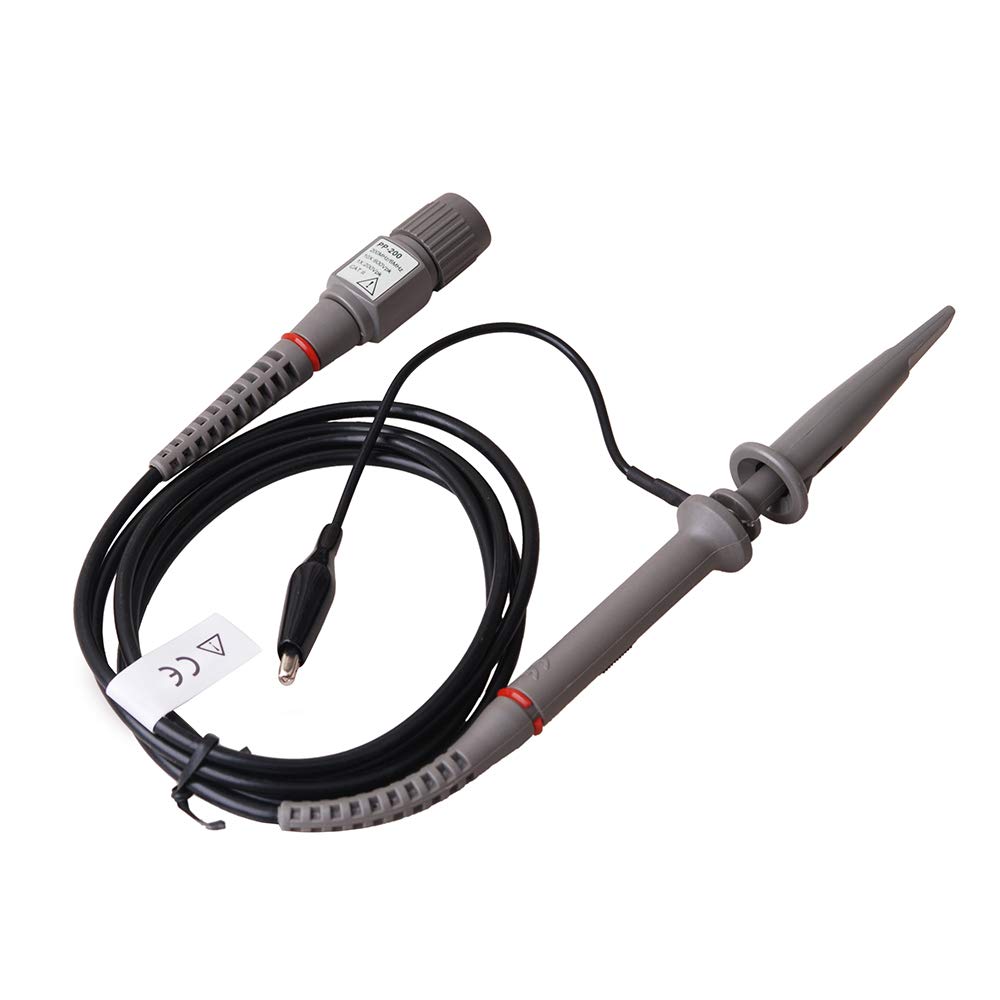

Hantek PP-200 Oscilloscope Probe 1x 10x200MHz Oscilloscope Clip Passive BNC Scope Clip Probe

• Performance & Characteristics
• Attenuation ratio: 1× and 10× optional
• Portable design according with ergonomics
• Integral injection molding makes the usage more flexible and the oscilloscope able to adapt more testing situations
• Safety standards: it has passed the CE Attestation of European Community

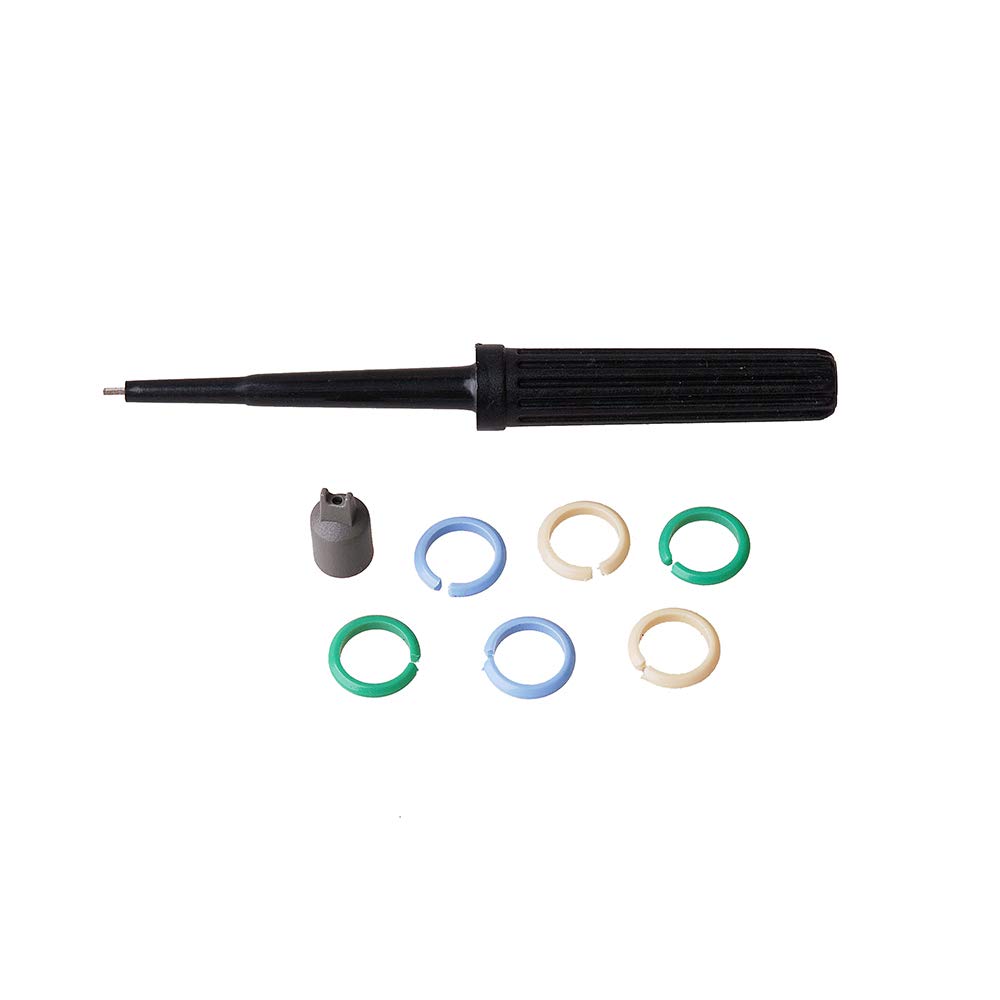

Integral injection molding makes the usage more flexible and the oscilloscope able to adapt more testing situations. Attenuation ratio: 1x and 10x optional. Compatible with domestic and international digital and analog oscilloscopes in relevant frequency. Features: Performance & Characteristics Attenuation ratio: 1× and 10× optional. Portable design according with ergonomics. Integral injection molding makes the usage more flexible and the oscilloscope able to adapt more testing situations. Safety standards: it has passed the CE Attestation of European Community. Specifications: Attenuation:x1 x10 Input resistance:1MΩ: 10MΩ Input capacitance: x1: 85pF-115pF x10: 18.5pF-22.5pF Compensation scope: 15pF-35pF System bandwidth: x1: DC-6MHz x10: DC-200MHz Input voltage: x1:<200V DC +Peak AC x10: <600V DC +Peak AC Weight:55g Cable length:120cm Temperature scope:Operation: -10℃--+50℃ Not Operation: -20℃--+75℃ Humidity: ≤85% (Relative humidity) Application Fields: Compatible with domestic and international digital and analog oscilloscopes in relevant frequency. Measurement in intermediate and low frequency signals. Package Including: Accessories included by PP series passive voltage rapier ● Operation manual ● Adjusting tool: adjusts compensation capacitance to assure the rapier match with oscillograph. ● Contractive-type acuminate hook ● 12cm earth wire with alligator clip ● 3 pairs of colorized cable markers ● Locating sleeve adapts to IC testing.
