HangTon WS28 2 Pin Aviation Circular Metal Connector 50A Dustproof Heavy Duty Industrial Power AC Solar Automotive Outdoor Application

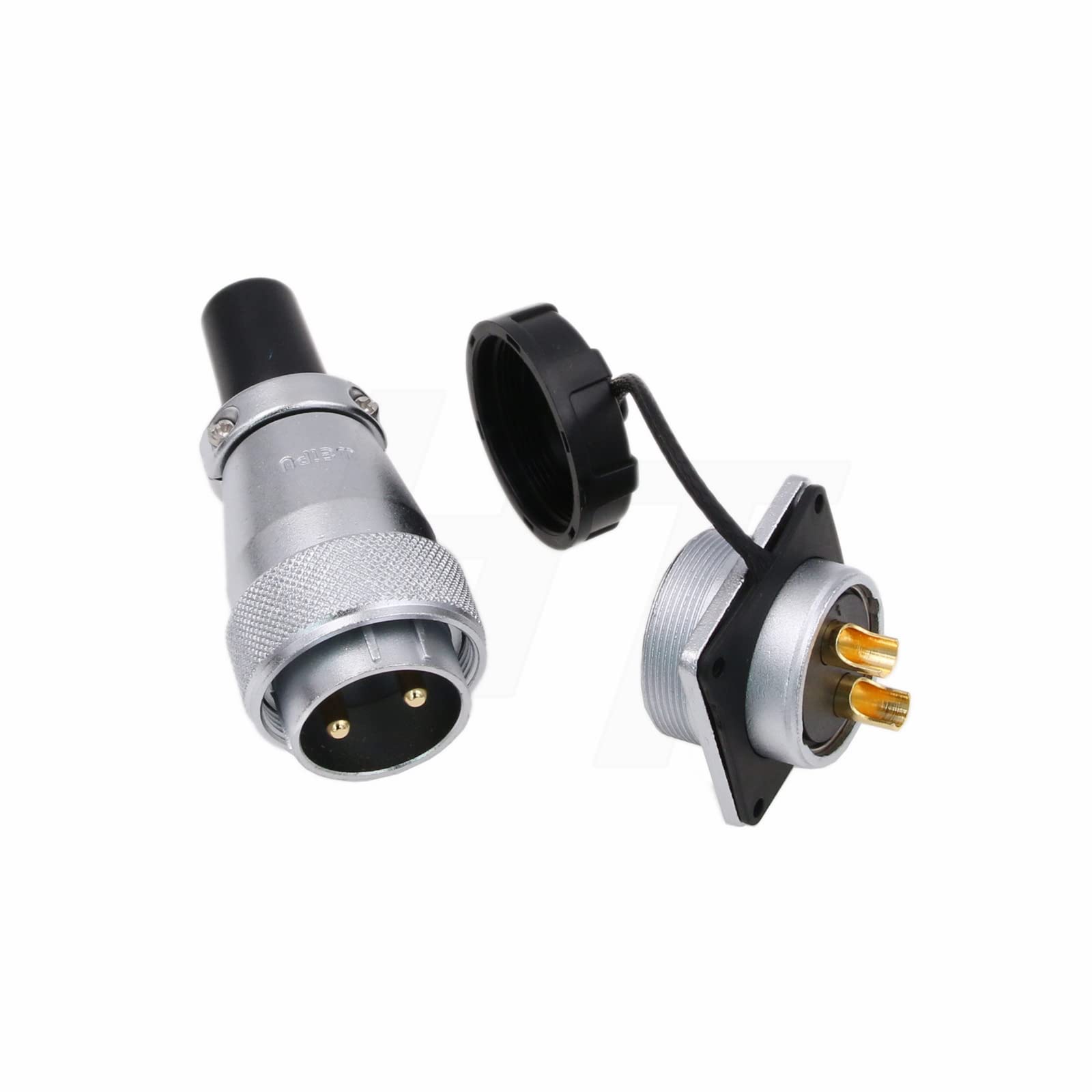

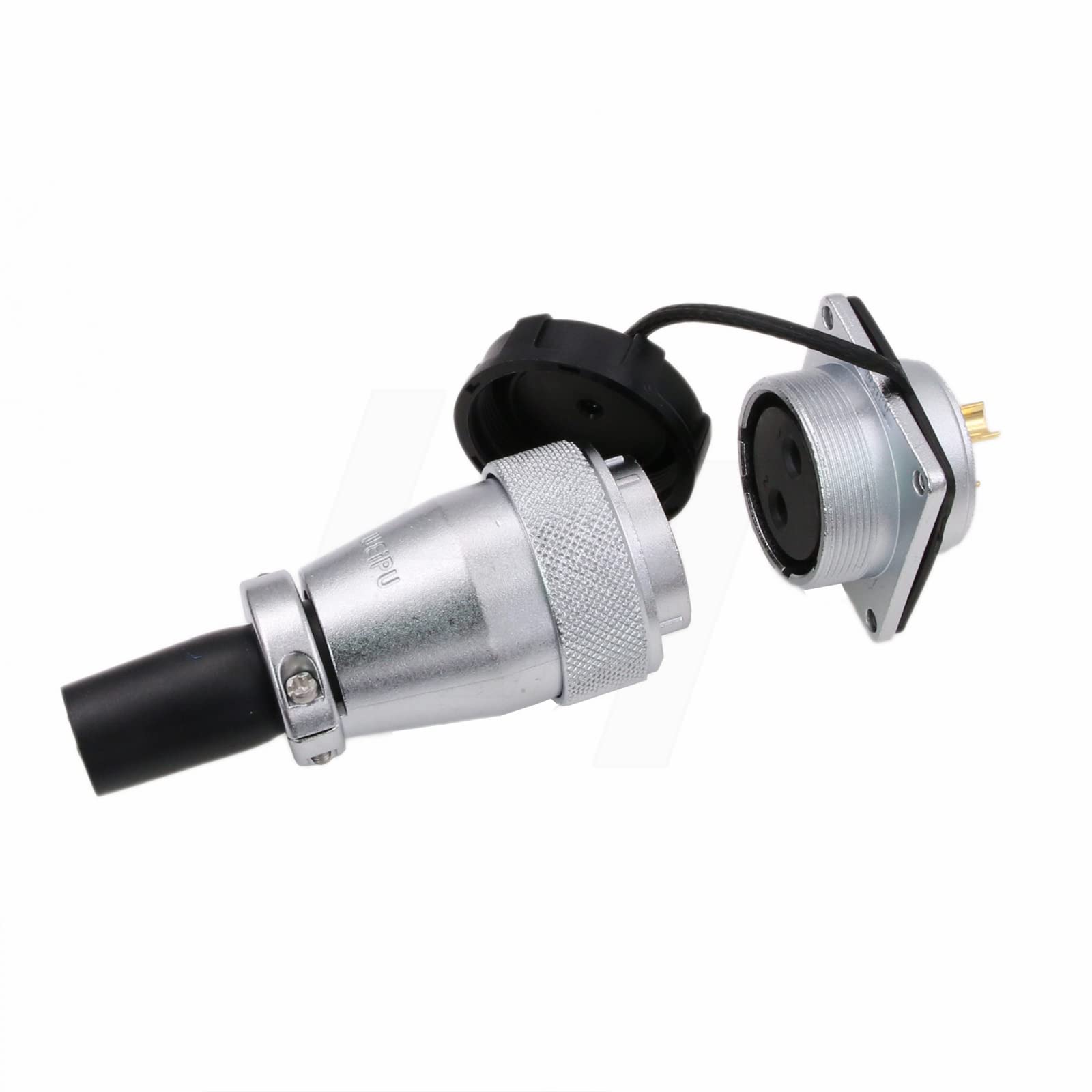

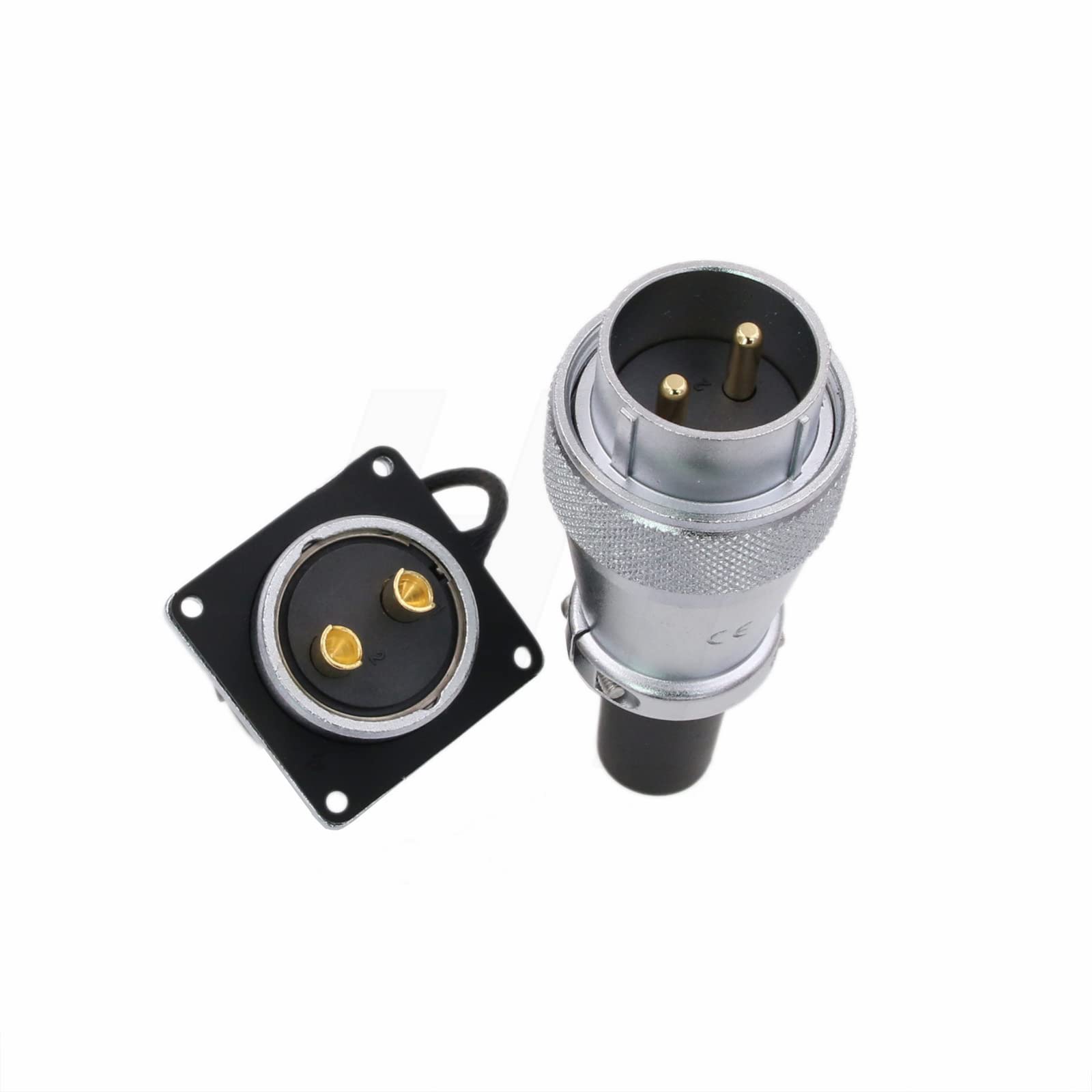

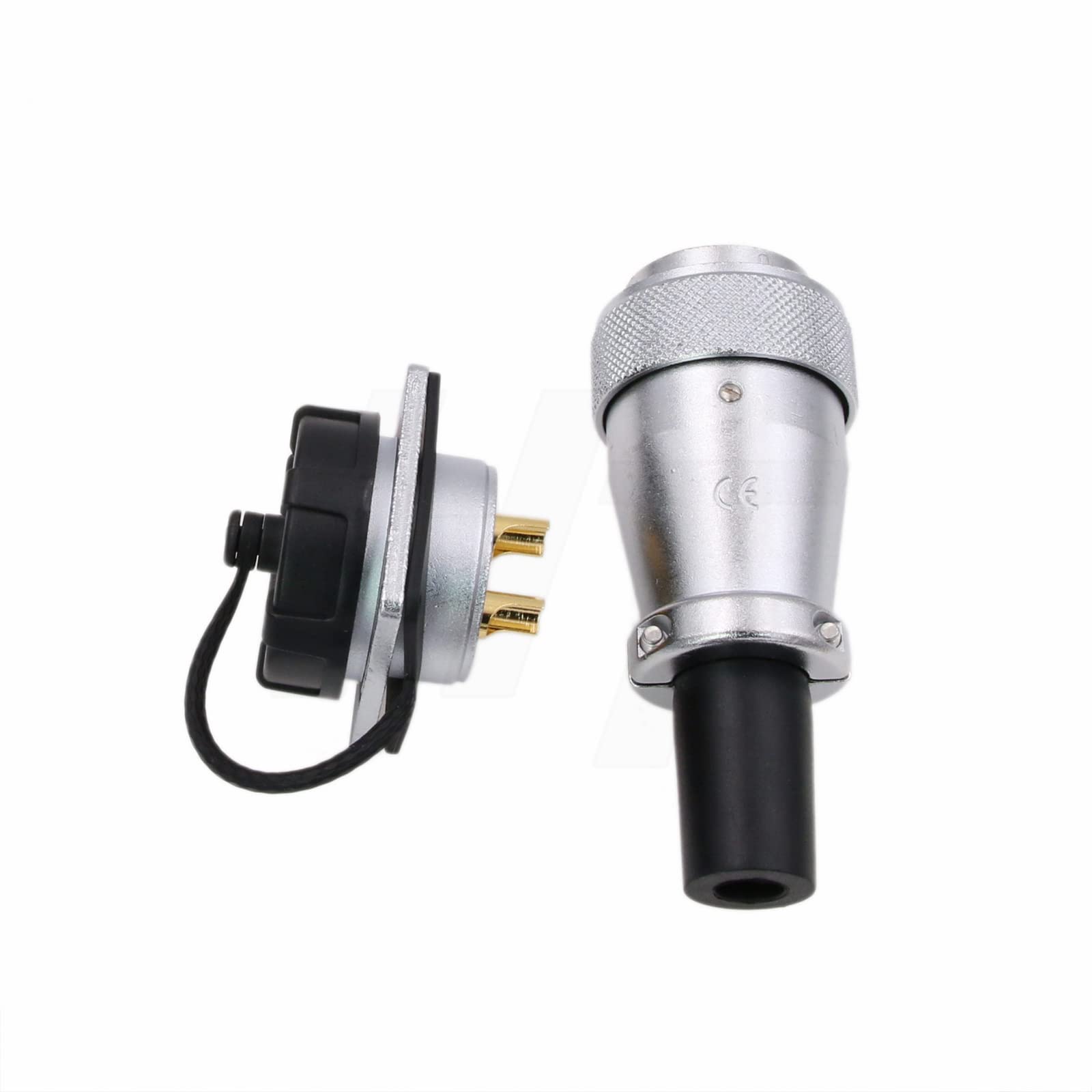

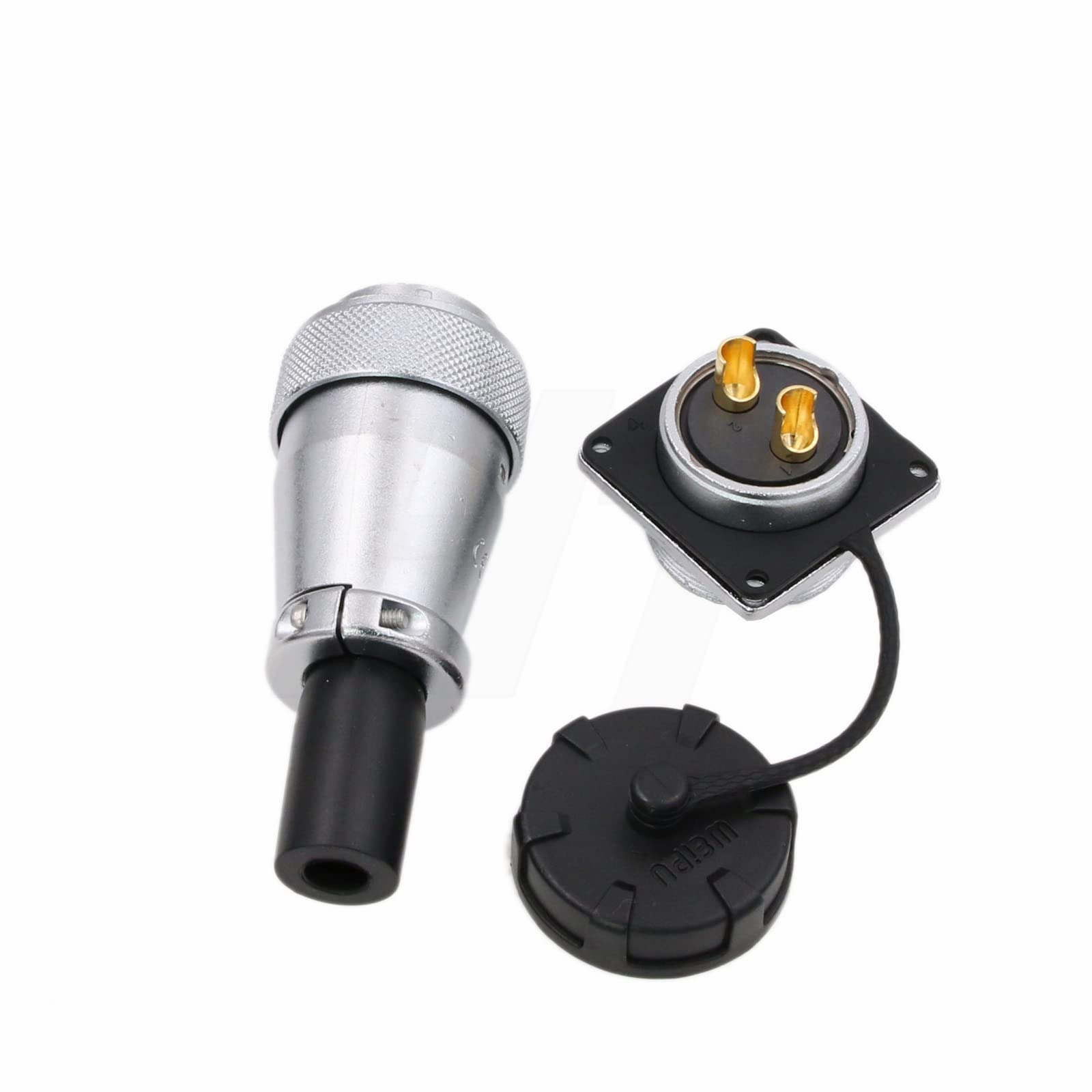

• WEIPU WS28 2 pin aviation circular metal connector, male cable plug and female screw-mount socket, 28mm panel hole cutout diameter
• [Contact Spec] Rated Voltage / Current AC 500V / 50A. Contact Diameter Φ3.5mm. Resistance 0.5mΩ. Wire Size 7AWG or smaller than 10mm². Cable Outer Diameter Range 7mm max
• Power connector for portable power station, industrial machines, solar generator / panel, camper van, automotive, LED, marine, lighting system, indoor outdoor electrical equipment
• Threaded coupling, solder termination type, Zinc alloy with chrome plating shell, gold-plated brass contact. Well made and good quality connector. Connector set includes plug with PVC sleeve, socket, plastic cap and mounting screws
• Reliable solid secure and quick connection. Easy cable assembly. Corrosion resistance, oxidation resistance, dust-proof, explosion-proof, deformation-proof, long service life. Heavy-duty connector for harsh industrial indoor outdoor environment

Specifications: WS28: Panel Hole Cutout Diameter: 28mm Cable Outer Diameter: 7mm max Coupling Type: Threaded, secure and quick connection Shell Material: Zinc alloy with chrome plating. Corrosion resistance, oxidation resistance, long service life Insert Material: Thermoplastic PPS max temperature 260℃ Contact Material: Brass with gold plating Termination: Solder Mating Cycle: >500 times Temperature Range: -40~+85℃ Package Includes: 1 x TQ Male plug with PVC sleeve 1 x Female socket square flange mount 1 x Dustproof Cap 4x screws Features: In the harsh environment the connector can provide safe and reliable connection. WS28 metal aviation connector is ideal for data and power distribution in area of dust-proof, indoor / outdoor applications, such as outdoor electrical tools, industrial power supply, automotive portable power, medical device, communications,automatic equipment, led lighting, LED panels, solar power station, outdoor security cameras, transformer, control box, machines equipment, packing machines and more.
