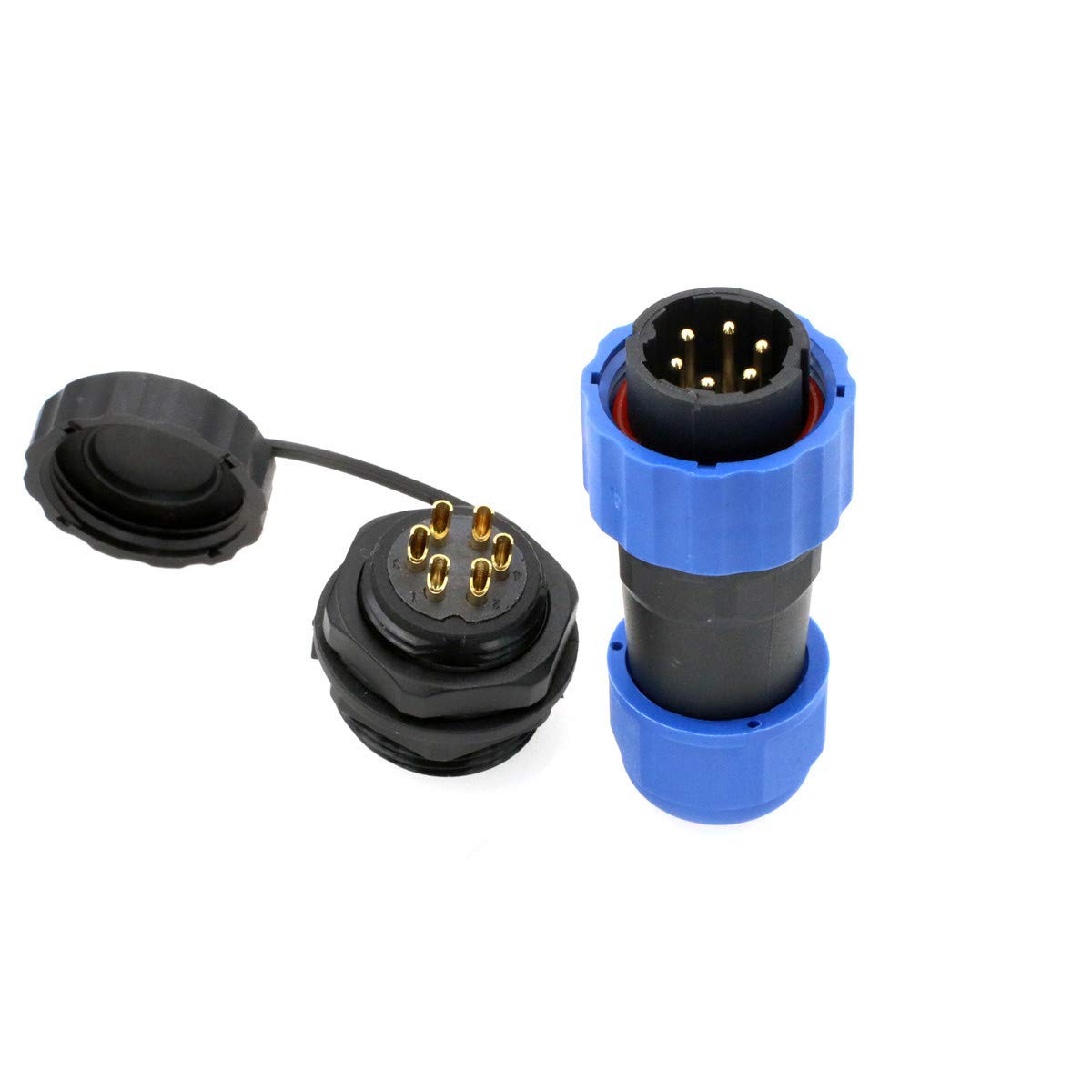

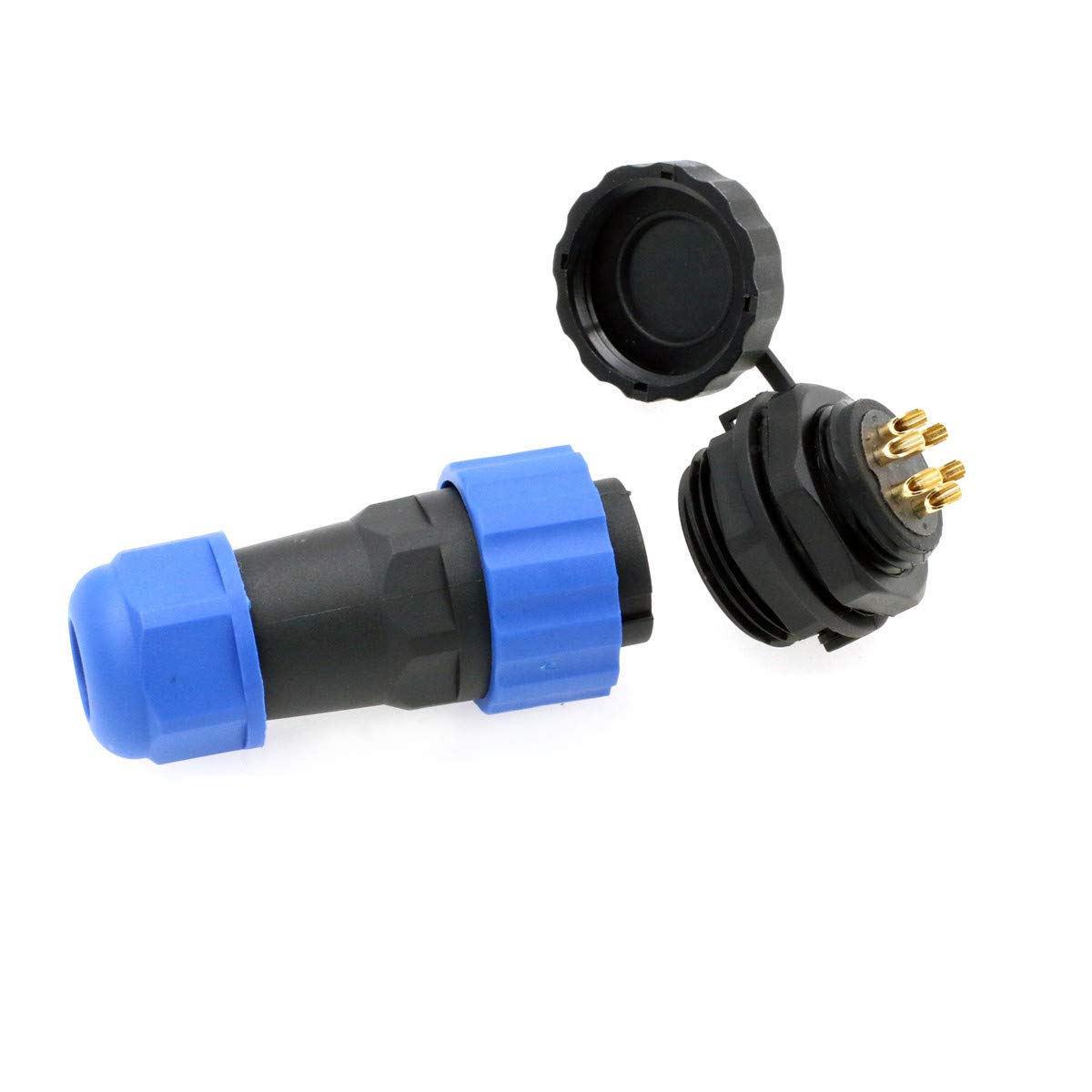

HangTon SD20 Waterproof Aviation Circular Plastic Connector for Outdoor Power System LED Lighting (6 pin, Male Plug and Female Panel Socket)

• Wire outer diameter range 8mm to 12mm. Wire gauge: 1.55mm² / 14AWG max, Contact Diameter: Φ1.8mm
• Rated Voltage/Current : AC 380V/10A, Resistance: 2mΩ
• Protected against solids & liquids, provide a secure and reliable waterproof connection in the harsh environment.
• For indoor and outdoor use. These connectors are widely used in communication electronics, instrumentation, underwater work, high temperature work, aviation field, ship field, construction field, engineering field and other outdoor places.
• Plastic waterproof IP68, tight threaded coupling, panel mount, quick disconnect, solder termination

Features: In the harsh environment can provide a safe and reliable waterproof connection. SD20(Threaded Coupling) connector is ideal for any equipment for watertight, indoor / outdoor applications, such as outdoor electric tools or appliances, medical device, communications, marine equipment, under water equipment, outdoor led lighting, outdoor LED panels, solar energy system, outdoor security cameras, transformer, control box, machines and equipment, packing machines, for data and power. Specifications: SD20: Contact Number: 2-14 Pin IP Rating: IP68 Panel Cutout Diameter: 20mm Cable Outer Diameter Range: 8mm to 12mm Coupling Type: Threaded CouplingTermination: Solder Shell: Thermoplastic Nylon PA66 Plastic, Fire Resistance: V-0 Insulator Material: Thermoplastic PPS max temperature 260℃ Contact Material: Brass with Gold Plating Mating Cycle: >500 times Temperature Range: -25~+85℃Package Includes: 1 x Cable Plug 1 x Socket with Waterproof / Dustproof Cap
