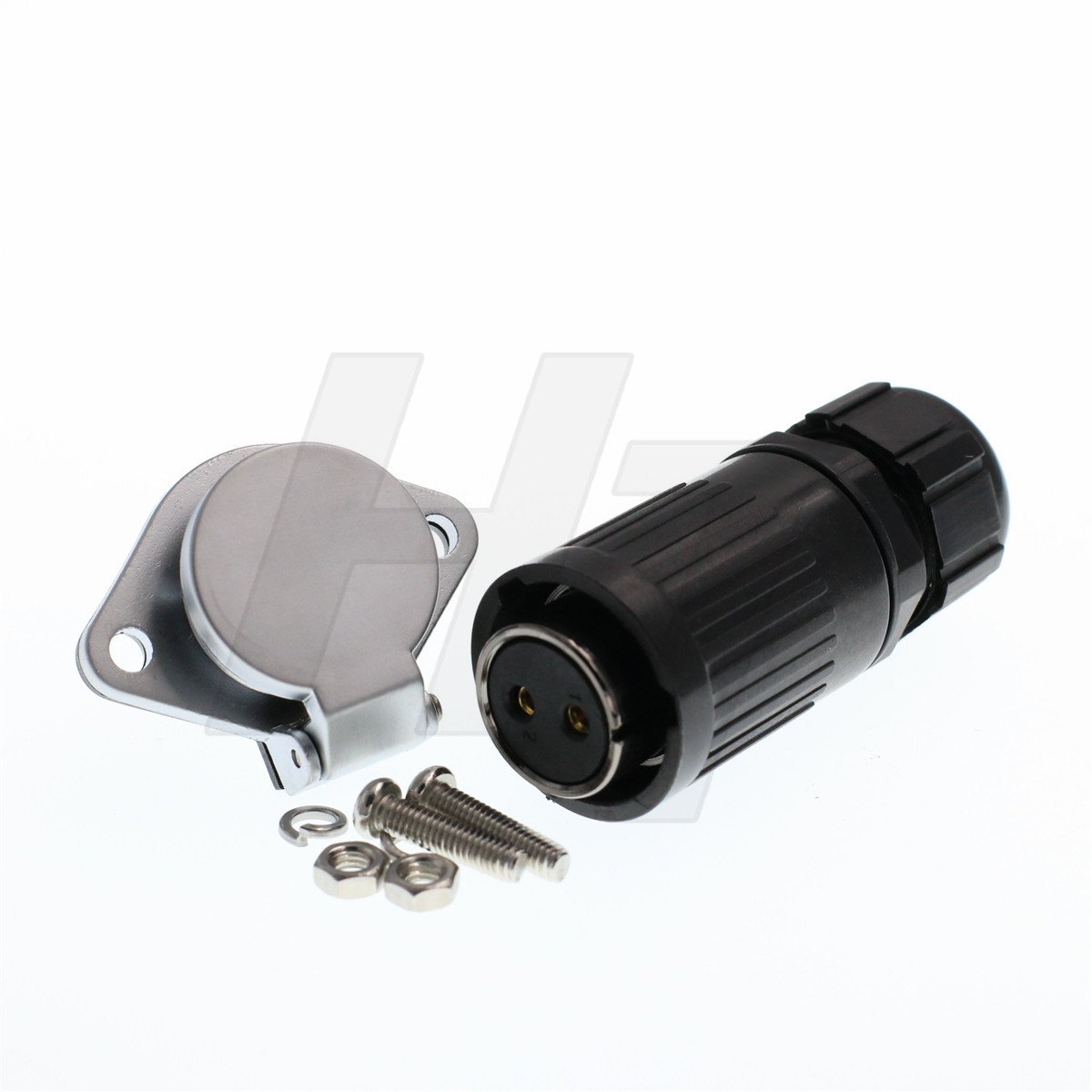

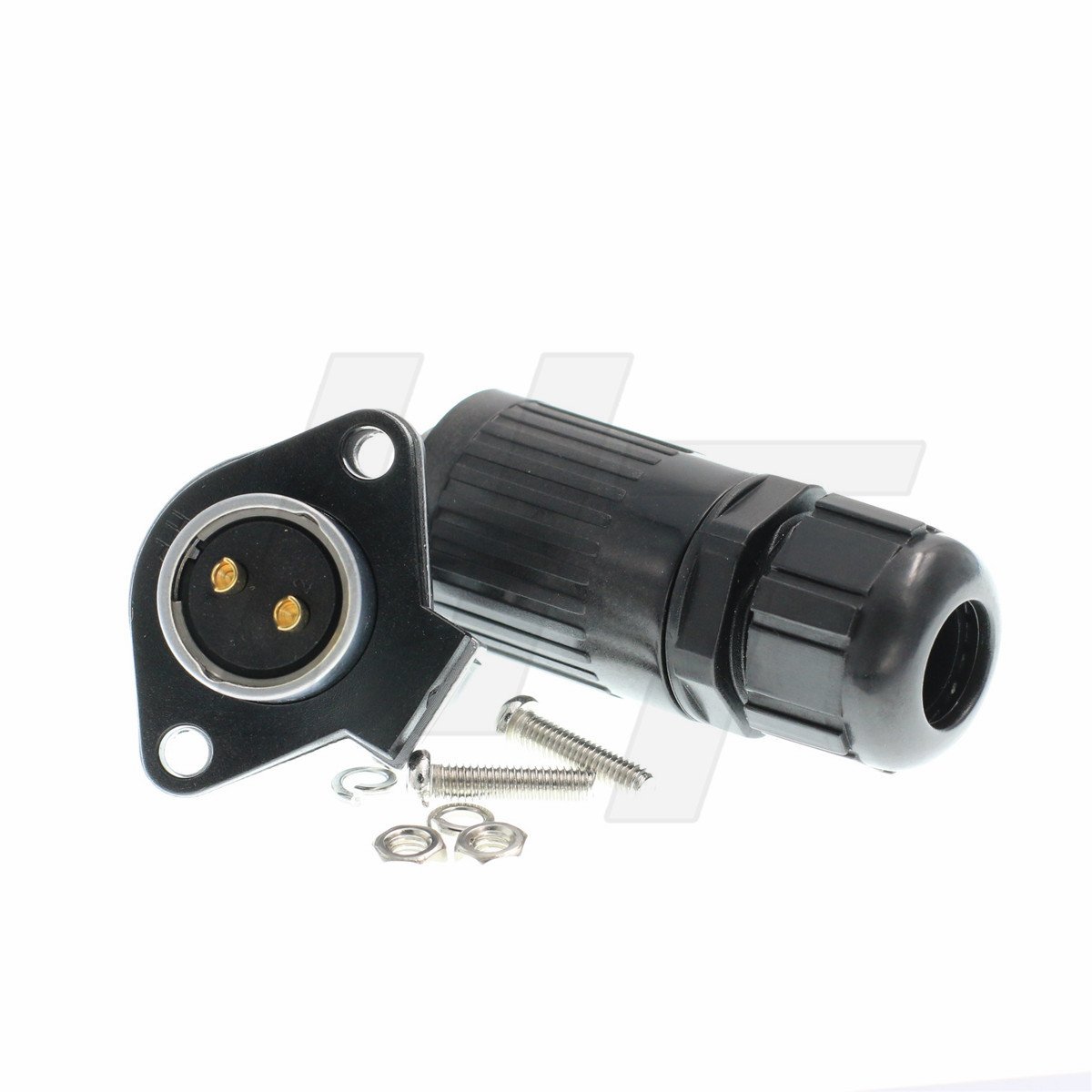

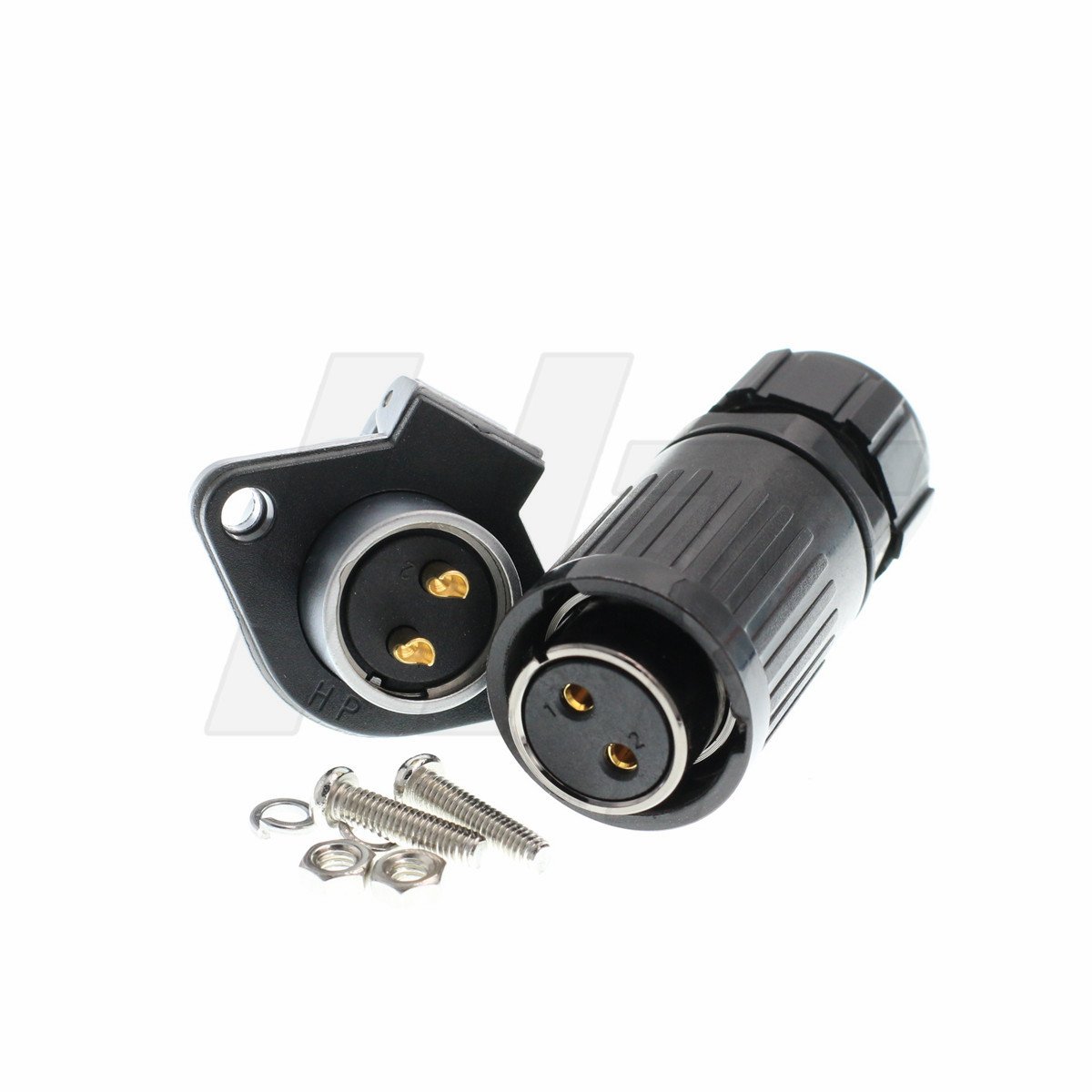

HangTon Connect HP20 2 Pin 30 Amp Waterproof Industrial Plastic Solder Connector (Nylon, Brass, IP67, 8-12mm Cable, 1.63mm Gauge, 500V, 85°C)

• Cable Range: 6-12mm, Wire Size: ≤4.17mm² or 11AWG, Contact Diameter: Φ3
• Rated Voltage/Current: AC 500V/30A, Resistance: 1mΩ
• For machines & automotive & LED & marine equipment, lighting system, indoor & outdoor electrical equipment
• Reliable, watertight, dust-proof, explosion-proof, deformation-proof
• Bayonet coupling, quick disconnect, solder cable plug & socket

Features: In the harsh environment can provide a safe and reliable connection. HP20(Bayonet) connector is ideal for any equipment for watertight, indoor / outdoor applications, such as outdoor electric tools or appliances, medical device, communications, marine or automatic equipment, under water equipment, outdoor led lighting, outdoor LED panels, solar energy system, outdoor security cameras, transformer, control box, machines equipment, packing machines, for data and power distribution. Specifications: HP20: Model: 2 Pin Material: Plastic IP Rating: IP67 Panel Cutout Diameter: 20mm Cable Outer Diameter Range: 8pin ~ 12pin: 4-6mm, 2pin ~ 7pin: 6-12mm Coupling Type: Bayonet Coupling Shell: Thermoplastic Nylon66, Fire Resistance: V-0 Insert Material: Thermoplastic PPS max temperature 260℃ Contact Material: Brass with Gold Plating Termination: Solder Mating Cycle: >500 times Temperature Range: -25~+85℃ Package Includes: 1 x Cable Plug with Female Pins 1 x Chassis Socket with Male Pins 1 x Waterproof / Dustproof Cap
