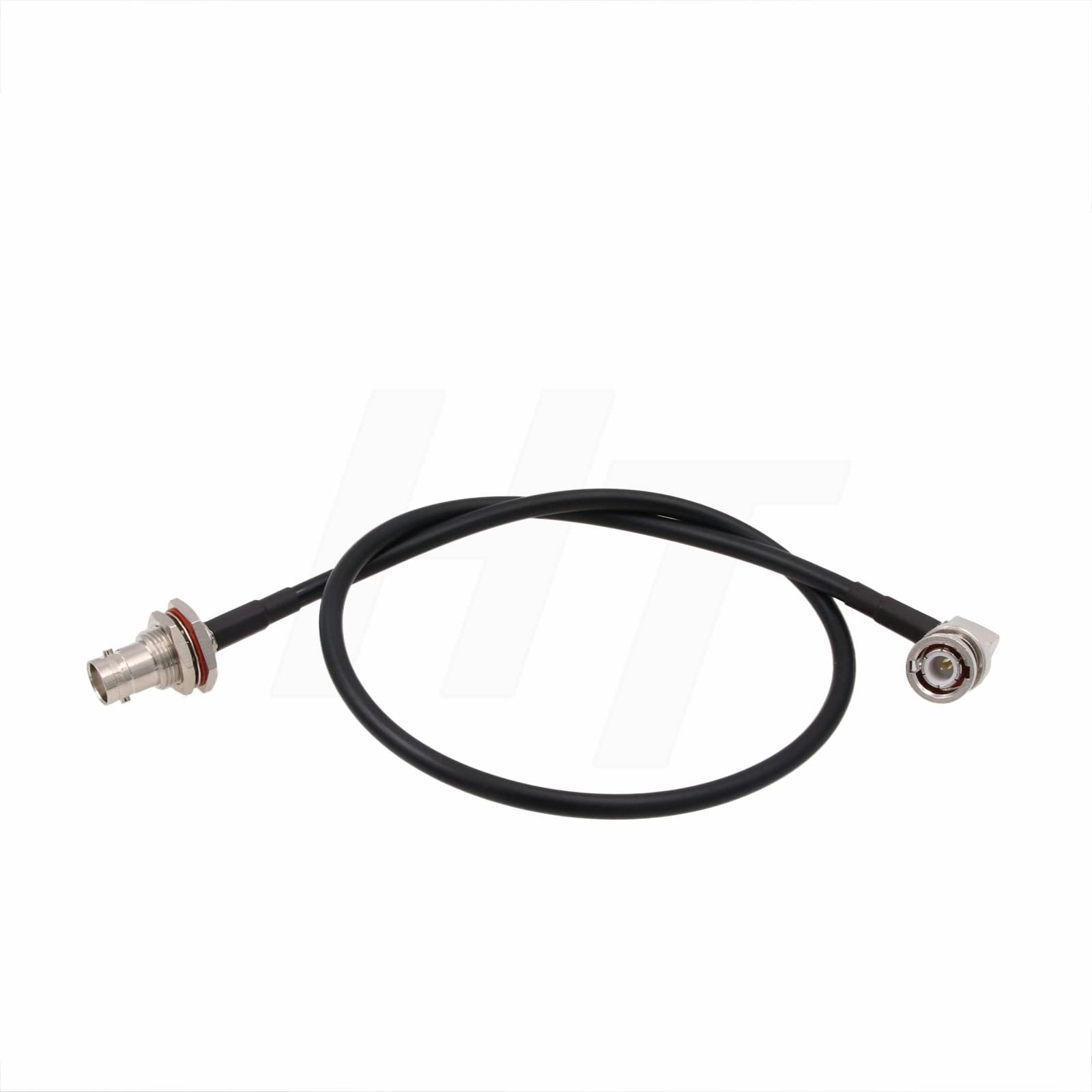

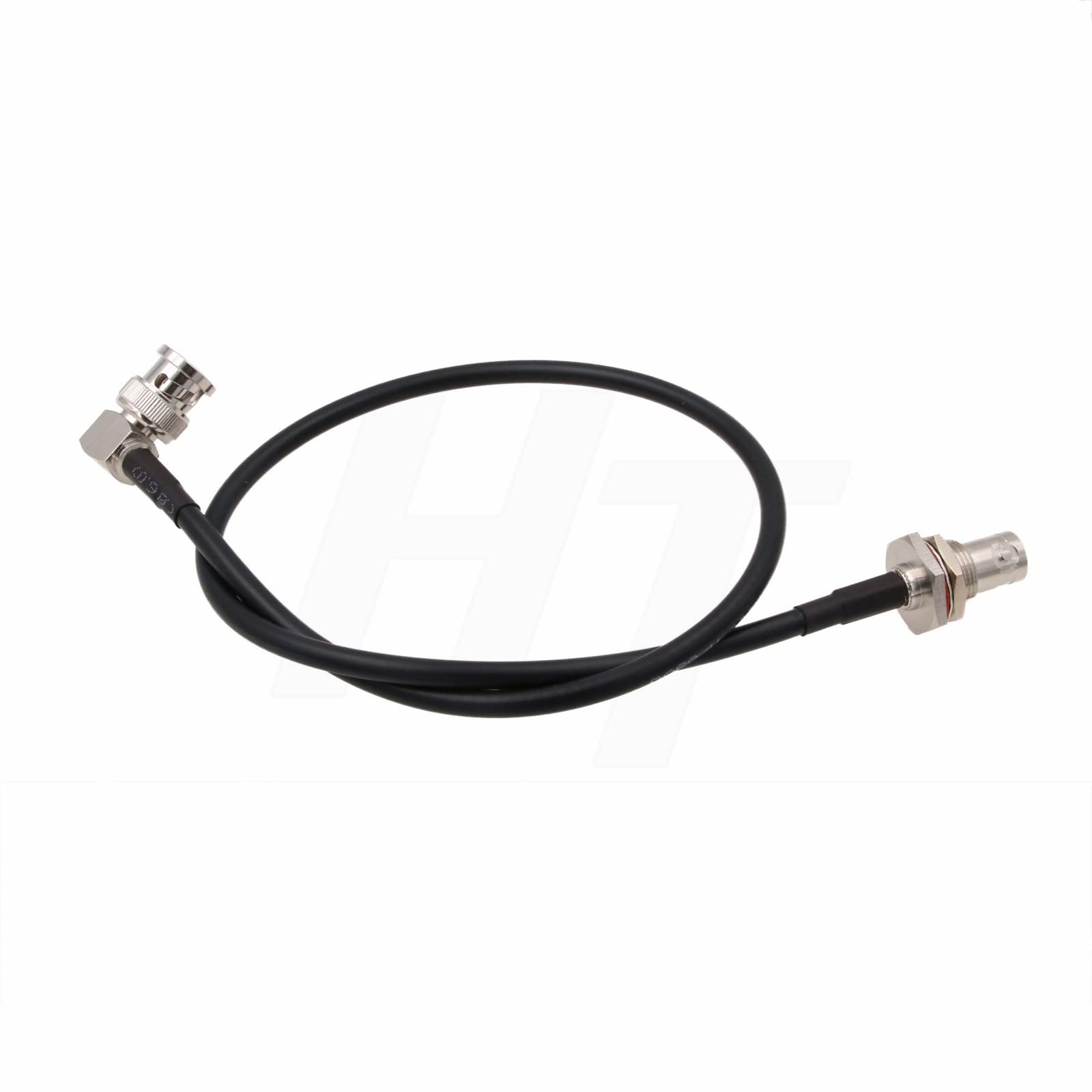

HangTon 6G SDI RF Coax 50 Ohm Cable Right Angle BNC Male to BNC Female Bulkhead Mount, Double Shielded Low Loss RG223 for Camera Monitor Video Antenna GPS Radio (15)

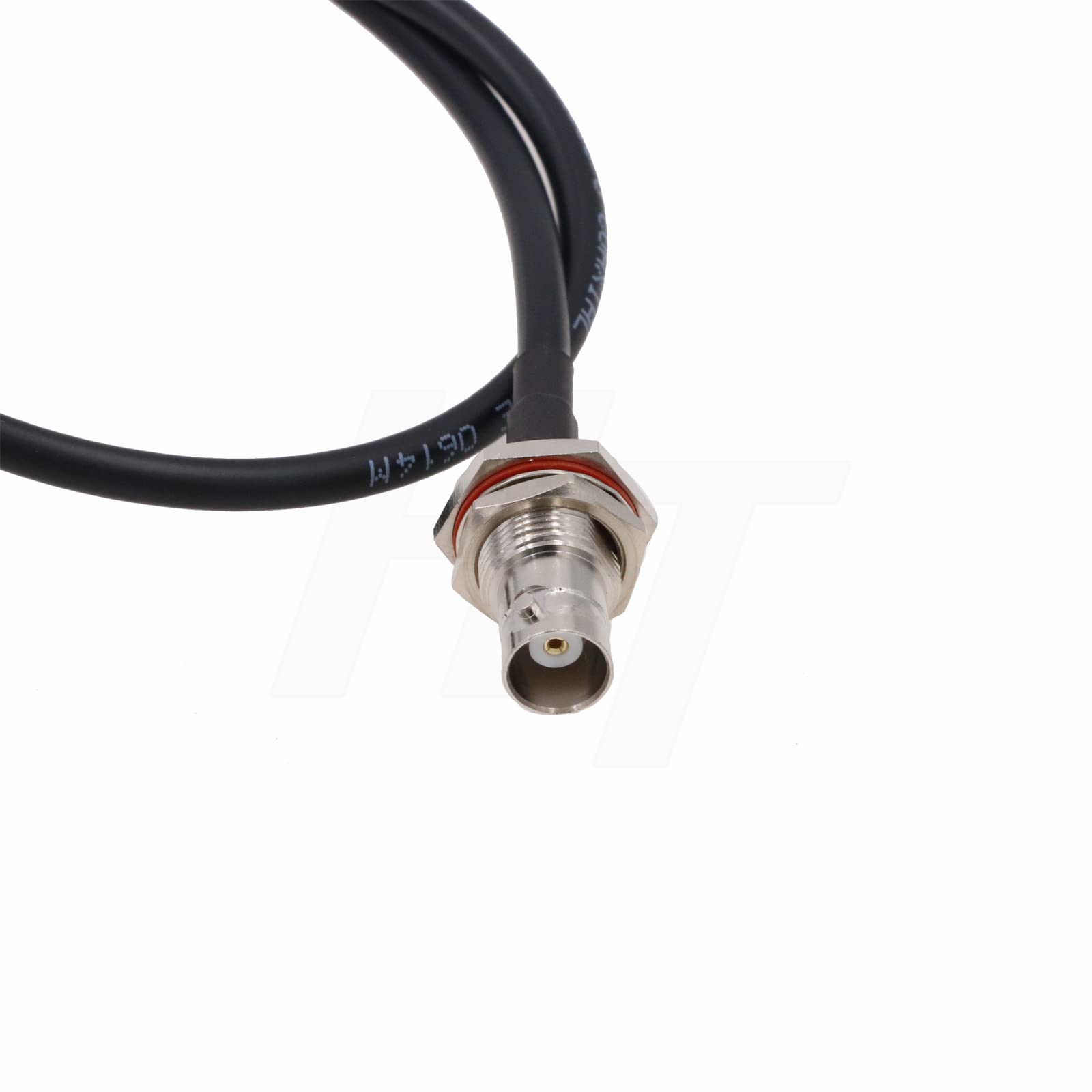

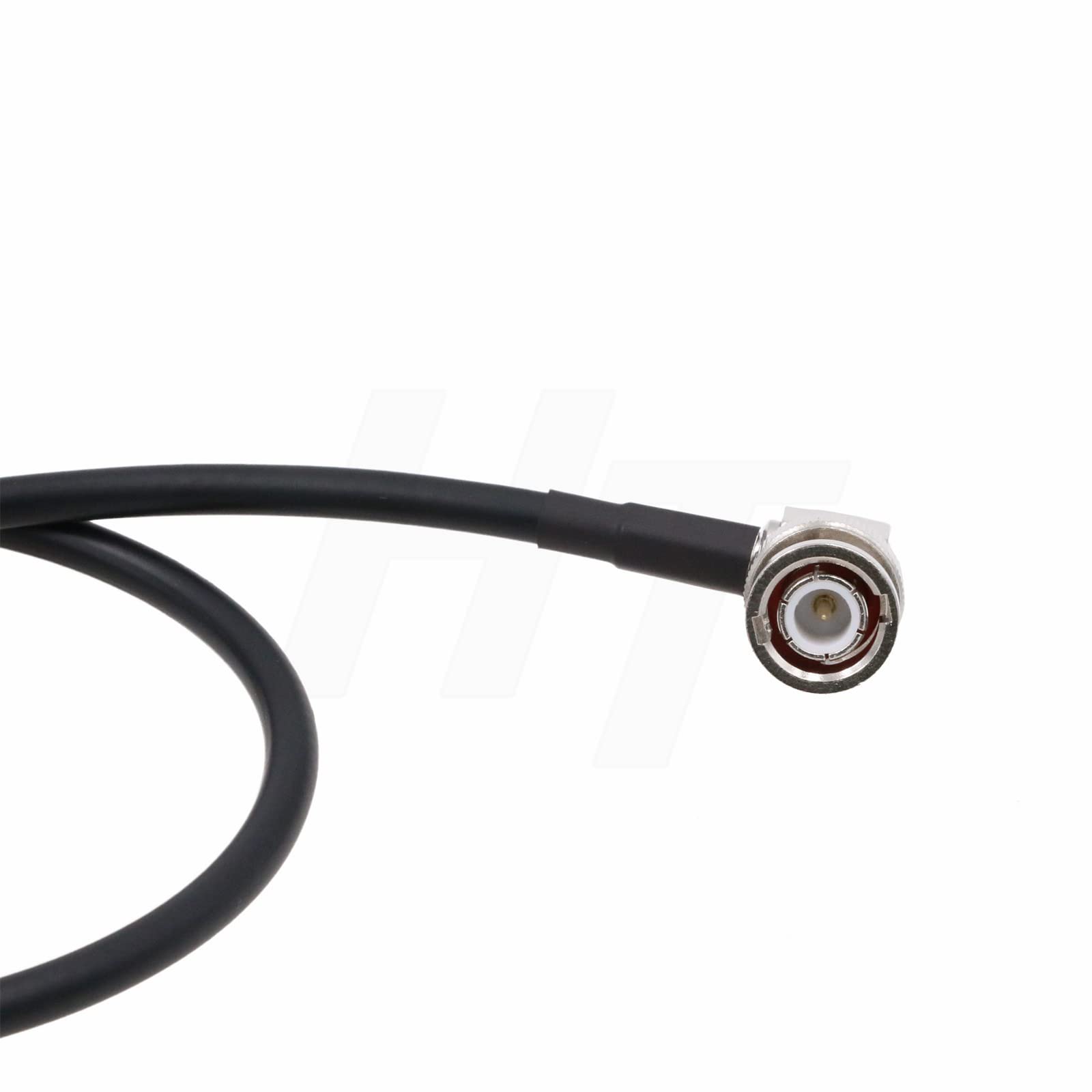

• BNC male right-angle to BNC female bulkhead mount, both connectors are 50 Ohm impedance
• It is a OD 5.3mm RG223 50 ohm RF coaxial cable, low-loss, for high frequency signal transmission. It supports 6G 3G HD SDI video signal. The highest working frequency is 12.4ghz
• Conductor: Silver Covered Copper, Insulation: Solid Low Density Polyethylene (PE), Shield: 2-layer Silver-Covered Copper Braided Conductors(protect against EMI/ RFI interference). Jacket: Black PVC.
• The cable temperature rating is 75C, offers better shielding and lower signal loss than RG58 and RG174.
• RG223 coaxial cable is commonly found in interconnects, phasing harnesses, cable sets, test cables, radio systems, data transmission, broadcast, and computer applications. RG223 cable can be used in CATV-community antenna television, camera, monitor, CCTV-closed-circuit television and DBS-direct broadcasting satellite. It is also appropriate for LAN/WAN or GPS applications which require low signal loss and high shielding performance. RG 223 cable is rated for direct burial applications.

We make custom cables
