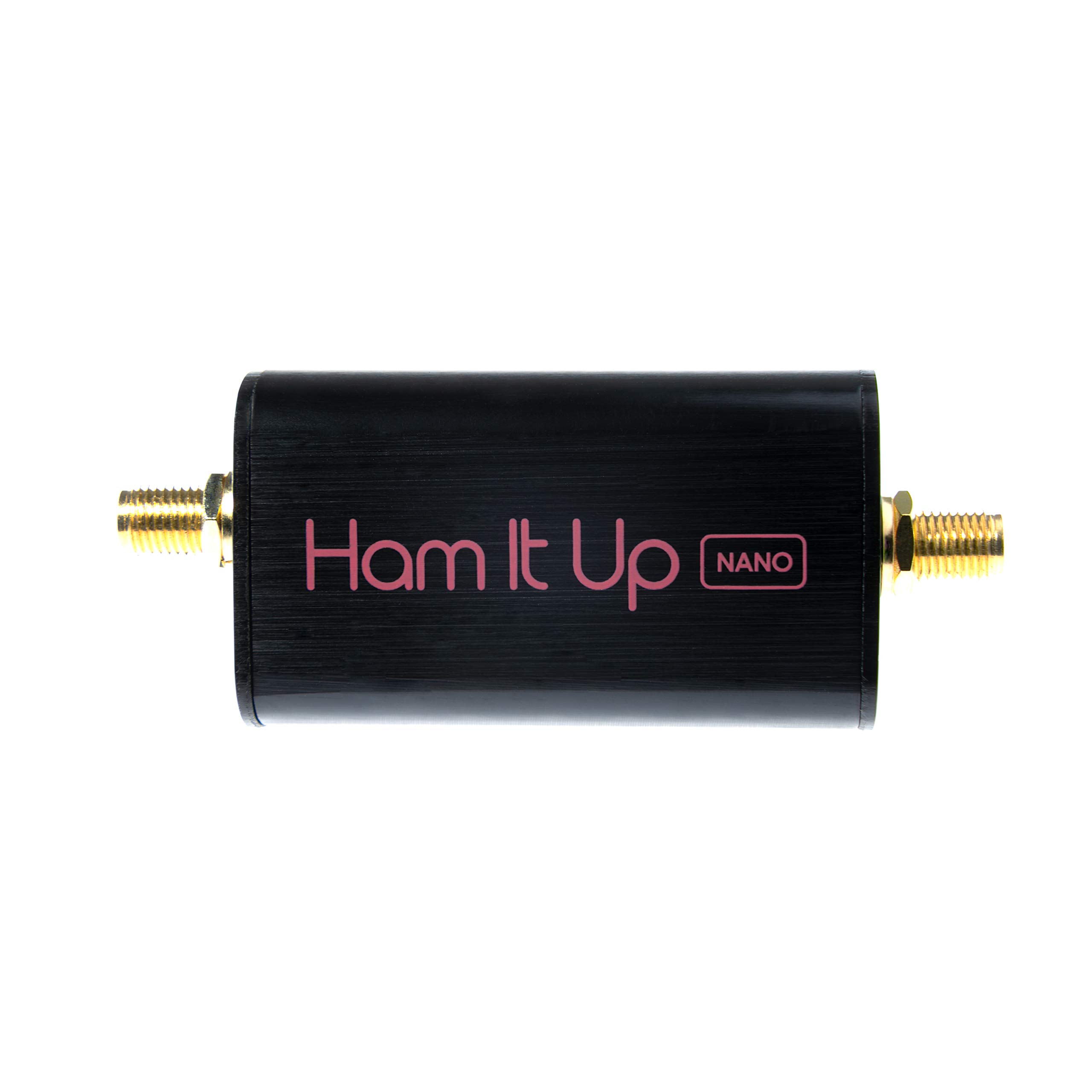

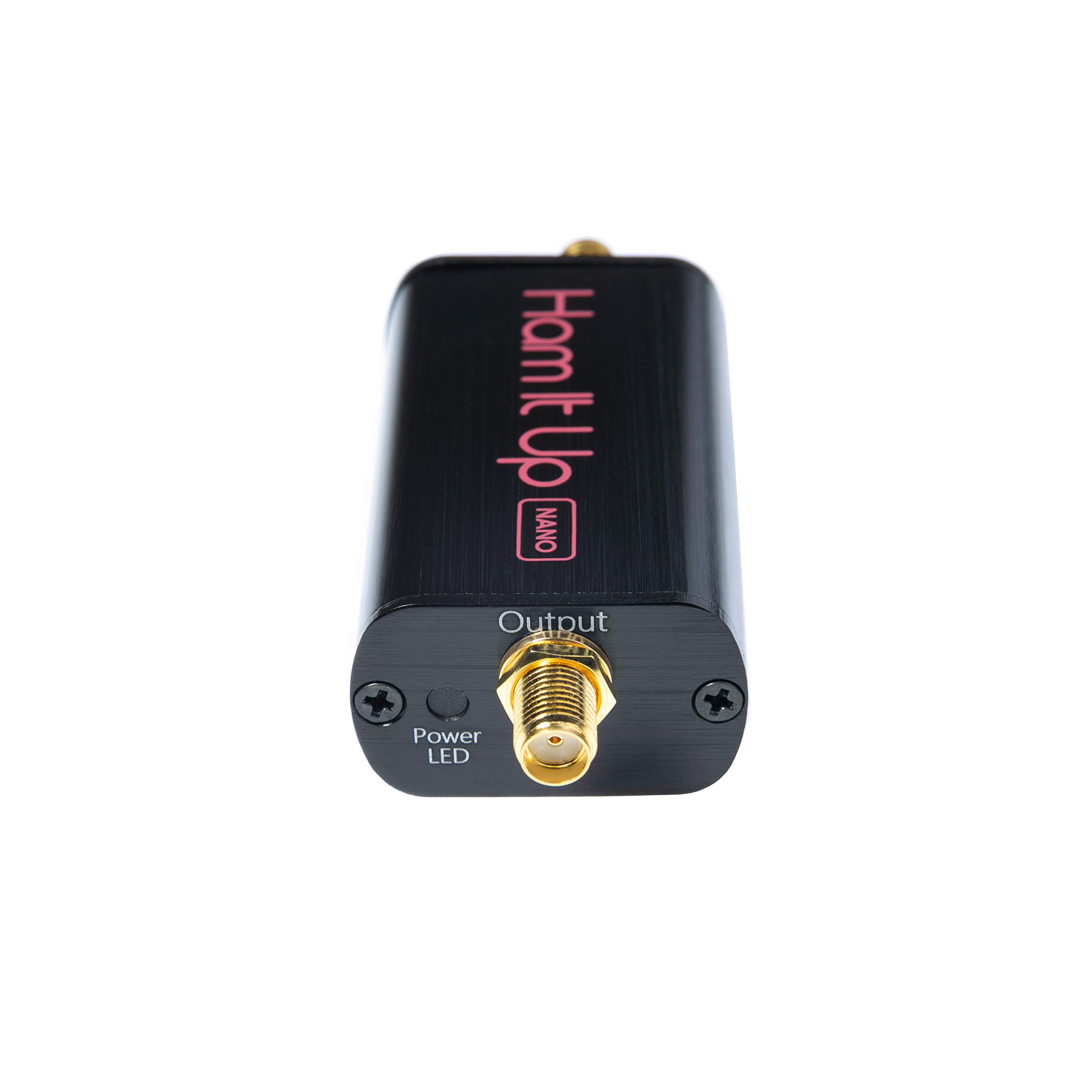

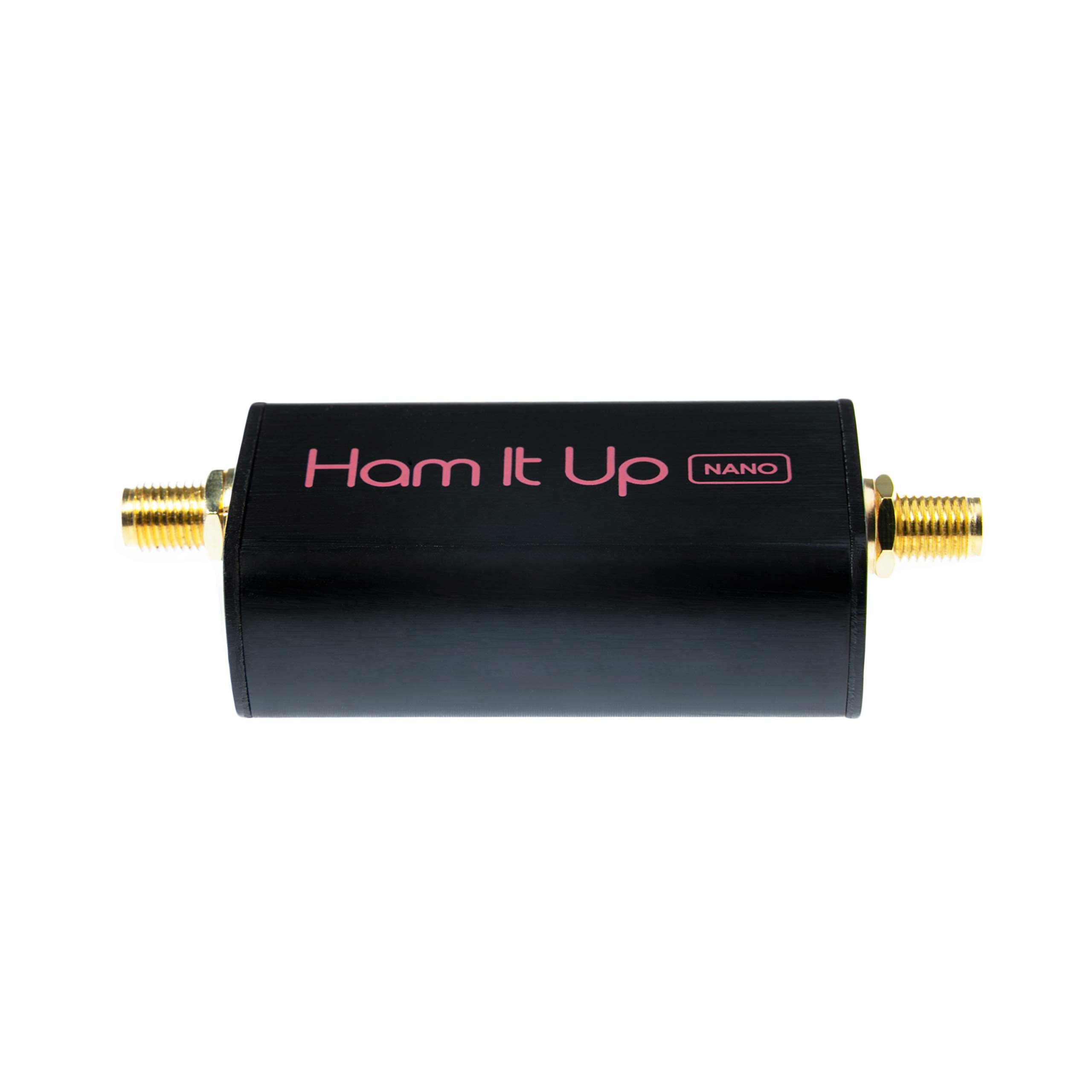

Ham It Up Nano - Tiny HF, MF & LF Upconverter w/TCXO. Extends The Frequency Range of Your Favorite RTL-SDR or Radio Down to 100kHz. Includes aluminum enclosure & accessories. Made in USA!

• Ham It Up Nano is a highly portable HF upconverter for radios and software defined radio devices like our NESDR series (RTL-SDR) and the HackRF
• Wide frequency capability of 100kHz-65MHz, 1PPM accuracy, and bias-tee powerable!
• Small, light-weight module--just 2.0" x 1.2" x 0.75" (50 x 30 x 18mm) and 1.6oz (45g)
• Full 2 year support & service direct through Nooelec
• Product datasheet: http://www.nooelec.com/datasheets/100825

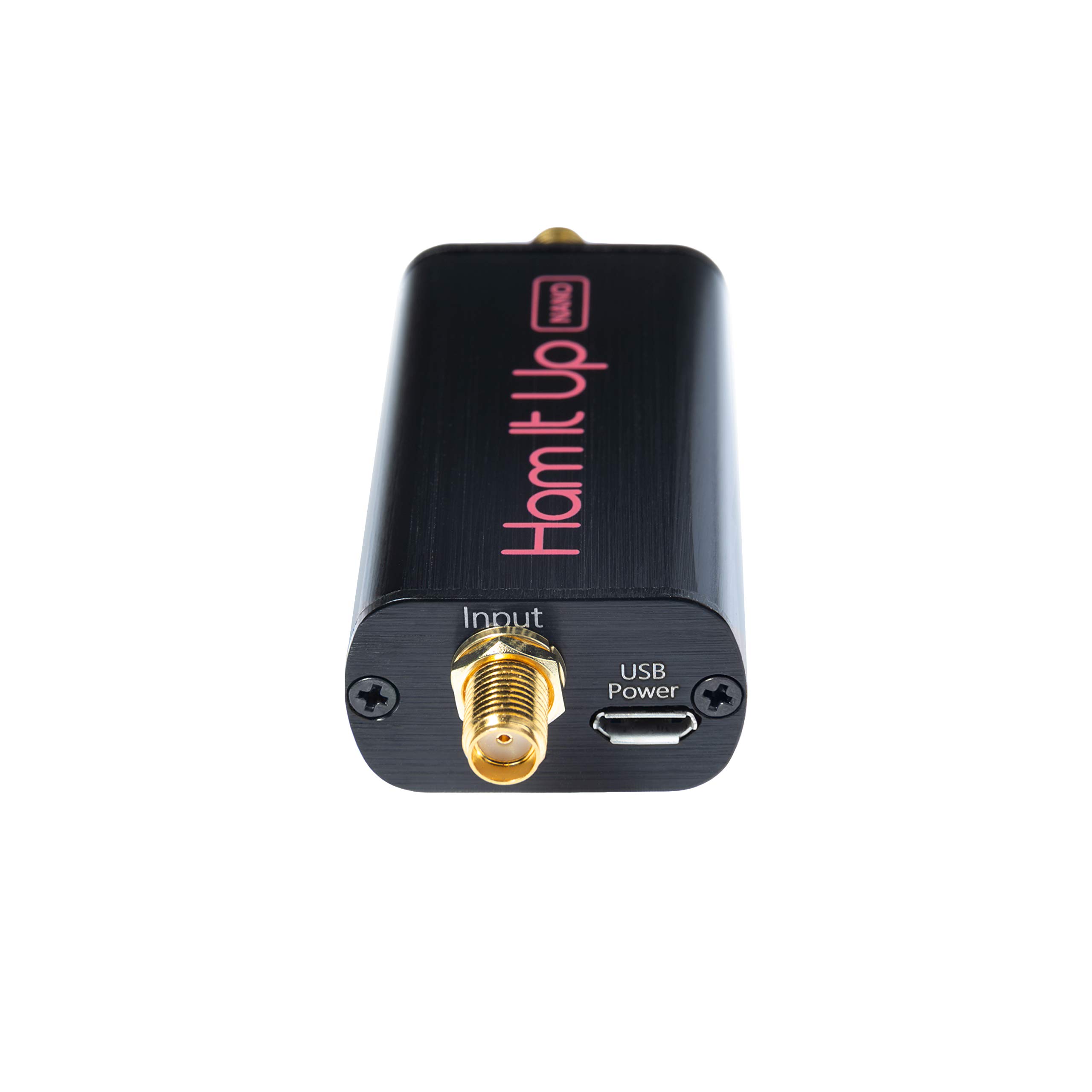

For full product details, please visit the product page at nooelec.com! Proudly designed, fabricated and assembled in the USA and Canada! The Ham It Up Nano is an HF upconverter that will allow you to extend the range of your favorite SDR or radio down to 100kHz. It is compatible with any radio capable of 125MHz-190MHz operation (to utilize the entirety of its 100kHz-65MHz frequency range). It is installed in a black aluminum enclosure and includes a male SMA to male SMA connector and microUSB to DC adapter. It is important to note that some SDRs will have their ESD protection diode tripped when powering this product via USB. You can still use this item with these SDRs, but you will need to install a DC block between this and the SDR. Features: ✅ Small, light-weight module--just 2.0" x 1.2" x 0.75" (50 x 30 x 18mm) and 1.6oz (45g)! ✅ 3 different powering options: bias-tee, microUSB and DC barrel connector ✅ Contains an internal 125MHz low-phase-noise TCXO w/ 1PPM accuracy for improved sensitivity (away from high-traffic RF zones, like broadcast FM) ✅ Double shielded from external RF interference (EMI) with the external aluminum enclosure and an additional internal EMI shield ✅ A maximum input level of +1dBm ✅ Contains 3 filters--input, output and LO filters--configured with ultra-high quality components for excellent sensitivity and selectivity ✅ ESD protection on both the RF input and output to protect your Ham It Up & SDR from stray static discharge ✅ Reverse voltage protection and short circuit protection on the USB power input to protect your Ham It Up from accidental damage ✅ Ultra low-noise linear power regulator with voltage noise under 10 µVRMS! ✅ Side-mount LED power indicator ✅ Sturdy right-angle 50 ohm SMA connectors used for both input and output ✅ High-quality PCB with ENIG finish ✅ Full 2-year support & service!
