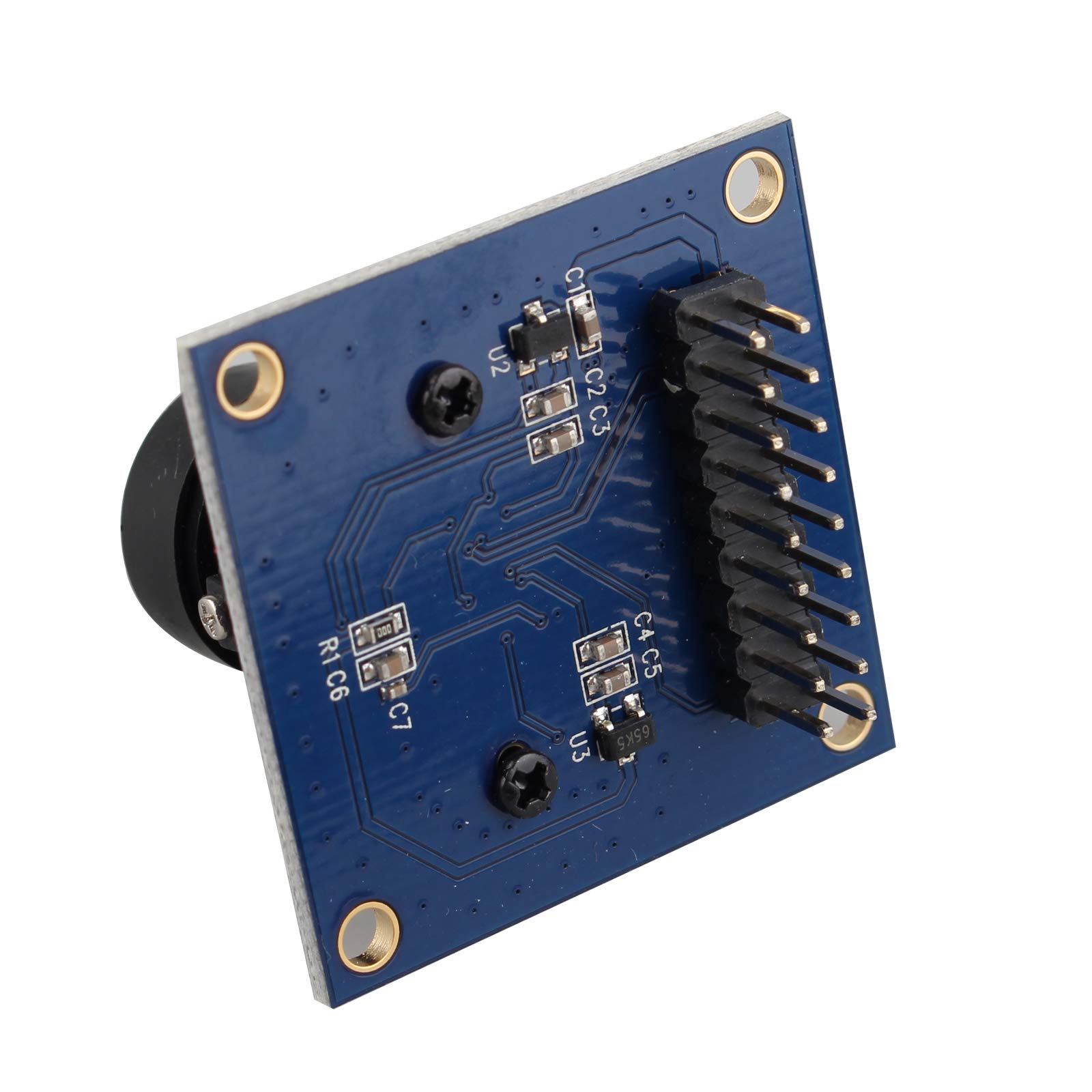

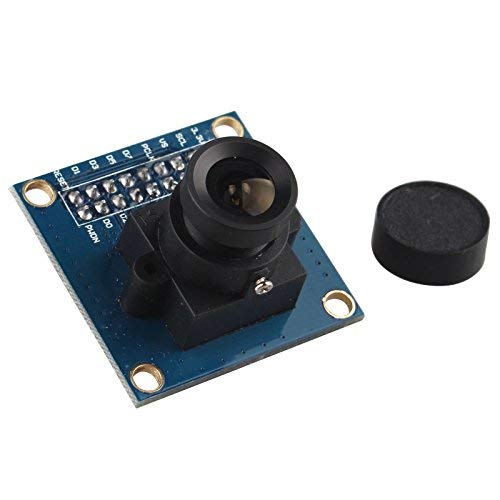

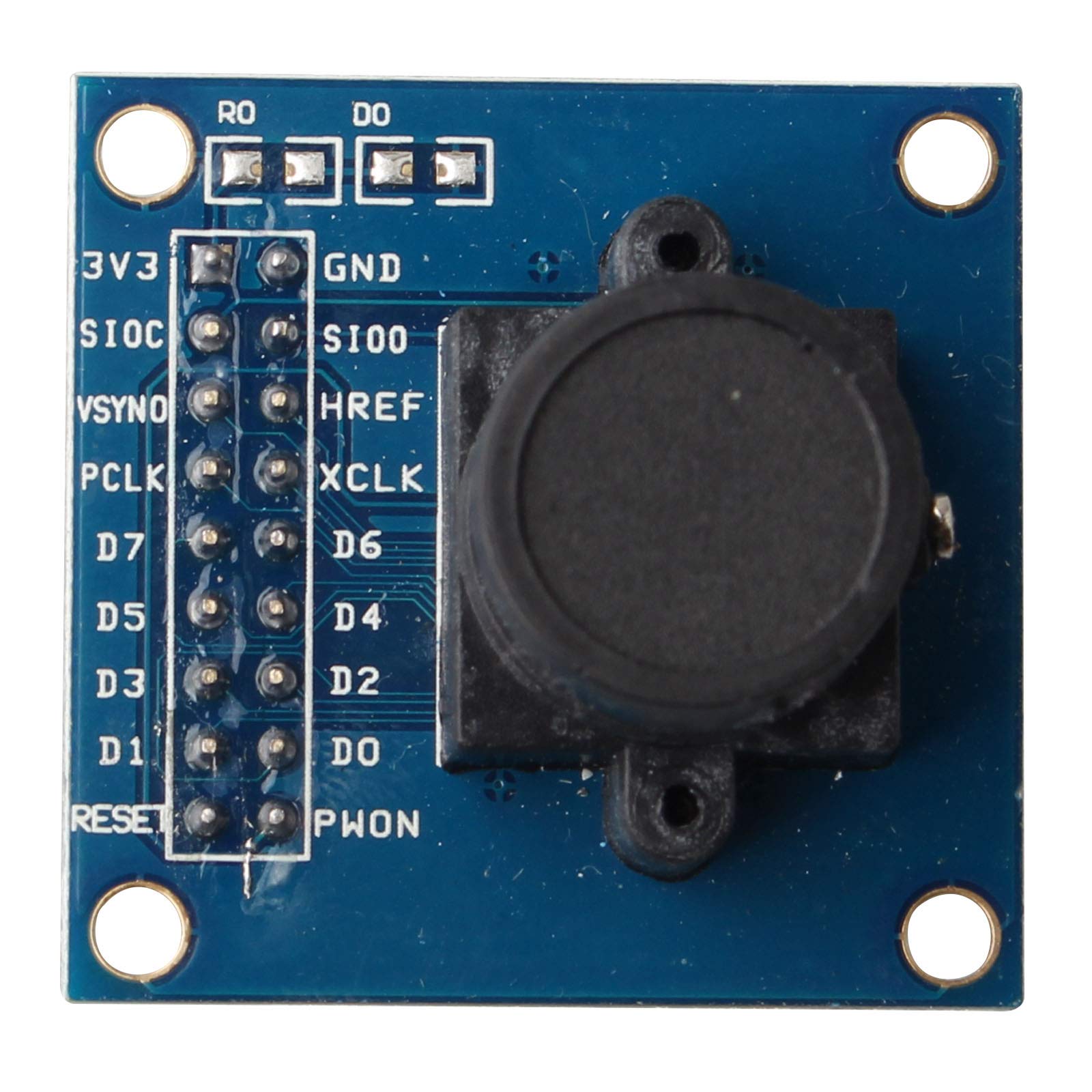

HALJIA VGA OV7670 300KP 0.3 Megapixels CMOS Sensor Camera Module Lens CMOS 640X480 SCCB Compatible W/ I2C Interface Compatible with Arduino

• Low operating voltage for embedded application;
• Standard SCCB interface compatible with I2C interface;
• Raw RGB, RGB (GRB4:2:2, RGB565/555/444),YUV(4:2:2) and; YCbCr (4:2:2)output format; Support VGA, CIF and from CIF to 40 x 30 format;
• Image Quality Control: Color saturation, hue, gamma, sharpness and anti-blooming;
• ISP includes noise reduction and defect correction; Lens shading correction; Color saturation level auto adjust; Edge enhancement level auto adjust; De-noise level auto adjust

Color: Black + blue; Material: Glass fiber + plastic + iron Features Photosensitive Array: 640 x 480; IO Voltage: 2.5V to 3.0V; Operating Power: 60mW/15fpsVGAYUV; Sleeping Mode: <20 uA; Operating Temperature: -30 to 70 deg C.; Output Format: YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data (8 digit); Lens Size: 1/6"; Vision Angle: 25 degree; Max. Frame Rate: 30fps VGA; Sensitivity: 1.3V / (Lux-sec); Signal to Noise Ratio: 46 dB; Dynamic Range: 52 dB; Browse Mode: By row; Electronic Exposure: 1 to 510 row; Pixel Coverage: 3.6um x 3.6um; Duck Current: 12 mV/s at 6'C Applications: Cellular phones,PDAs,Toys,Other battery-powered products Packing List: 1 x Camera Module 1 x Cover
