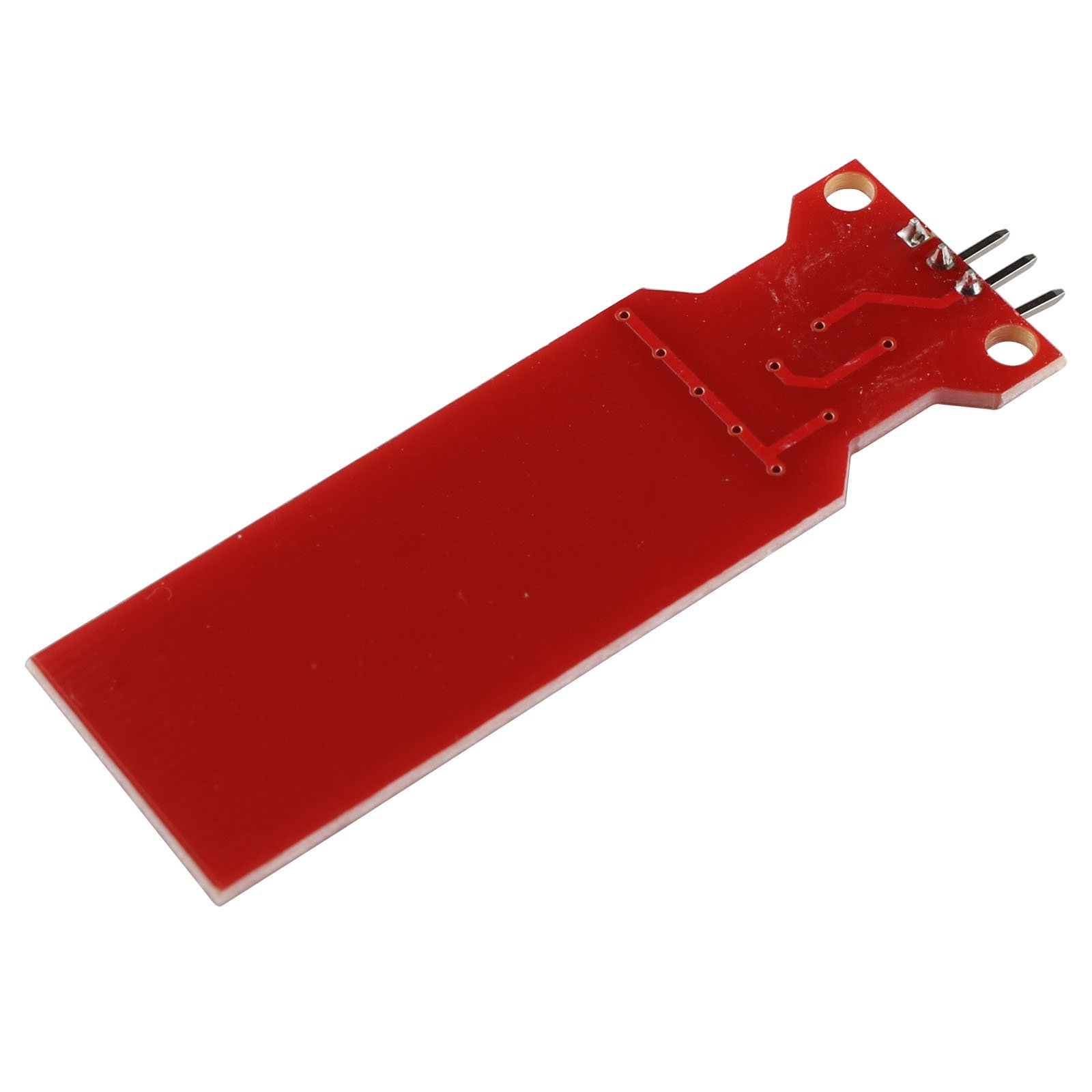

HALJIA Rain Water Level Sensor module Depth of Detection Liquid Surface Height Compatible with Arduino

• Water Sensor is an easy to use, cost effective high level/drop recognition sensor.
• It is obtained by having a series of parallel wires exposed traces measured droplets/water volume in order to determine the water level.
• Easy to complete water to analog signal conversion and output analog values can be directly read arduino development board to achieve the level alarm effect.
• Operating voltage: DC 3-5V, Operating current: less than 20mA, Detection Area: 40mm x 16mm
• Operating temperature: 10'C-30'C, Humidity: 10%-90% non-condensing

Features: The water sensor is a high quality, easy to use, cost-effective sensor that is obtained by having a series of parallel wires exposed to traces measured by droplets/water volume in order to determine the water level. Easy to complete analog signal conversion and output analog values can be directly read on the Arduino development board to achieve the level alarm effect. Product Name: Water Level Sensor Working Voltage: DC 3-5V Working current: less than 20mA Sensor type: analogue. Detection Area: 40mm x 16mm 6. Production process: FR4 double sided HASL Operating temperature: 10 to 30 °C. 8. Humidity: 10% to 90% non-condensing Product size: 62 x 20 x 8 mm. Package includes: 1 x cookie cutter. 1 x Water Level Sensor
