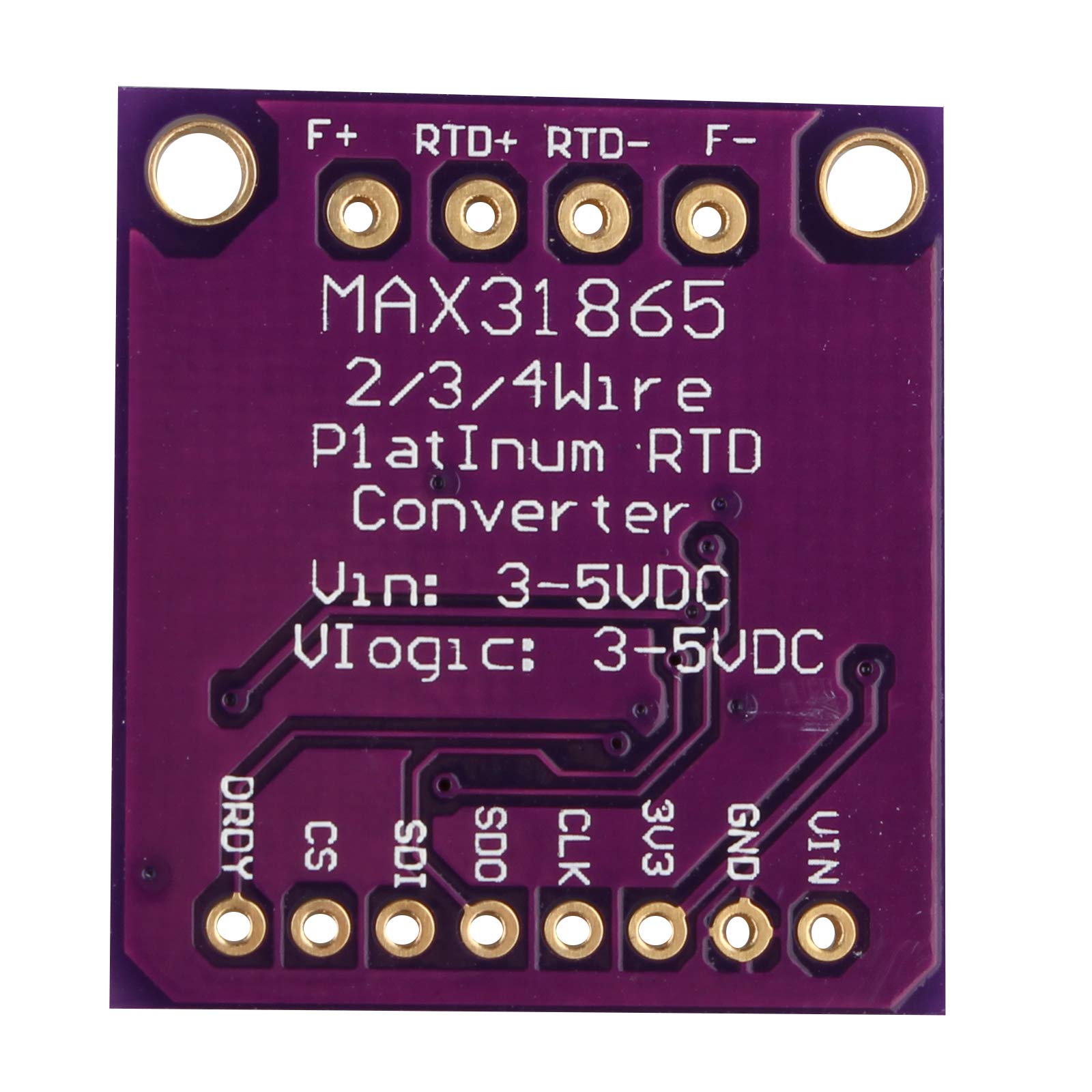

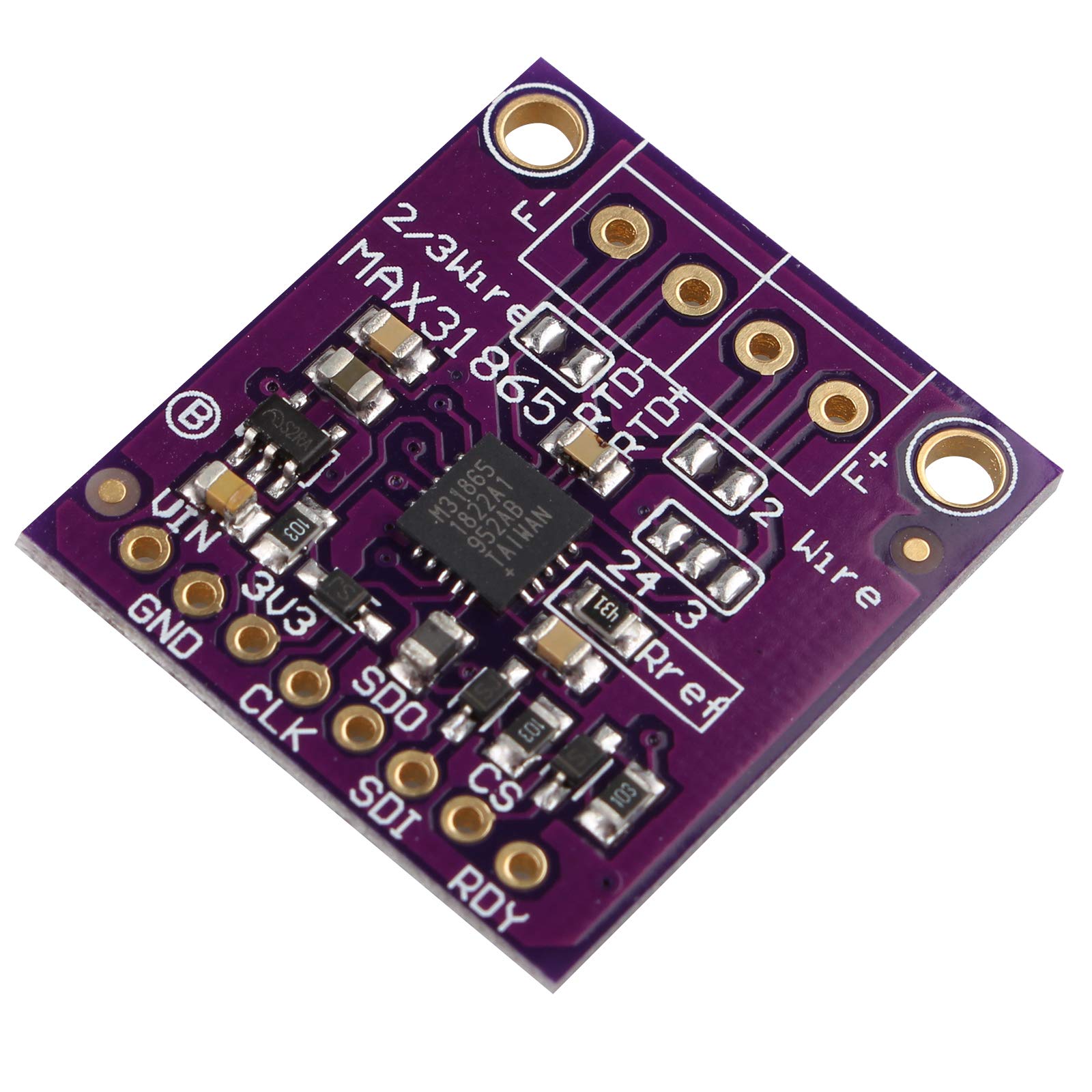

HALJIA PT100 to PT1000 MAX31865 RTD Platinum Resistance Temperature Detector Thermocouple Sensor Amplifier Module Compatible with Arduino

• The MAX31865 is an easy-to-use digital output transducer thermistor optimized for platinum resistance temperature (RTD) detectors.
• The external resistor sets the RTD sensitivity and the high-precision Δ- ΣADC converts the RTD resistor and the reference resistor into the digital output.
• The MAX31865 input has over-voltage protection of up to ± 45V and provides configurable RTD and cable open, short-circuit detection.
• Compensating 3 or 4 wire RTDs for better accuracy, could be used with any 2, 3 or 4 wire PT100 RTD.
• 3.3V regulator and level shifting, could be used with any Arduino or microcontroller.

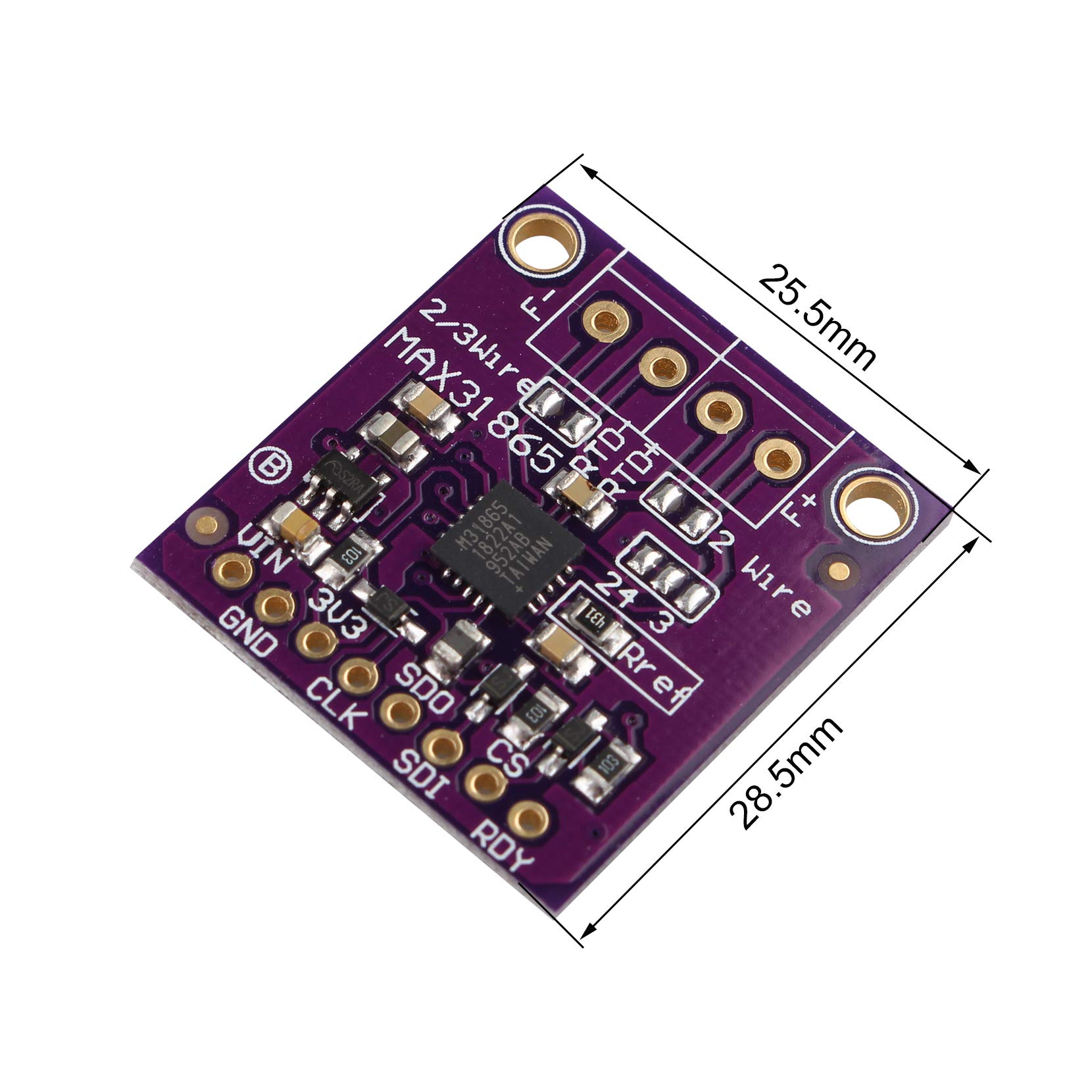

Feature: The MAX31865 is an easy-to-use digital output transducer thermistor optimized for platinum resistance temperature (RTD) detectors. The external resistor sets the RTD sensitivity and the high-precision Δ- ΣADC converts the RTD resistor and the reference resistor into the digital output. The MAX31865 input has over-voltage protection of up to ± 45V and provides configurable RTD and cable open, short-circuit detection. Compensating 3 or 4 wire RTDs for better accuracy. Could be used with any Arduino or microcontroller. 3.3V regulator and level shifting. Could be used with any 2, 3 or 4 wire PT100 RTD. Handling all of your RTD needs. Material: Metal + PC Colour: Purple Module Size: 28.5 x 25.5mm Weight: 4.8g Packing List: 1 x MAX31865 Detector Module
