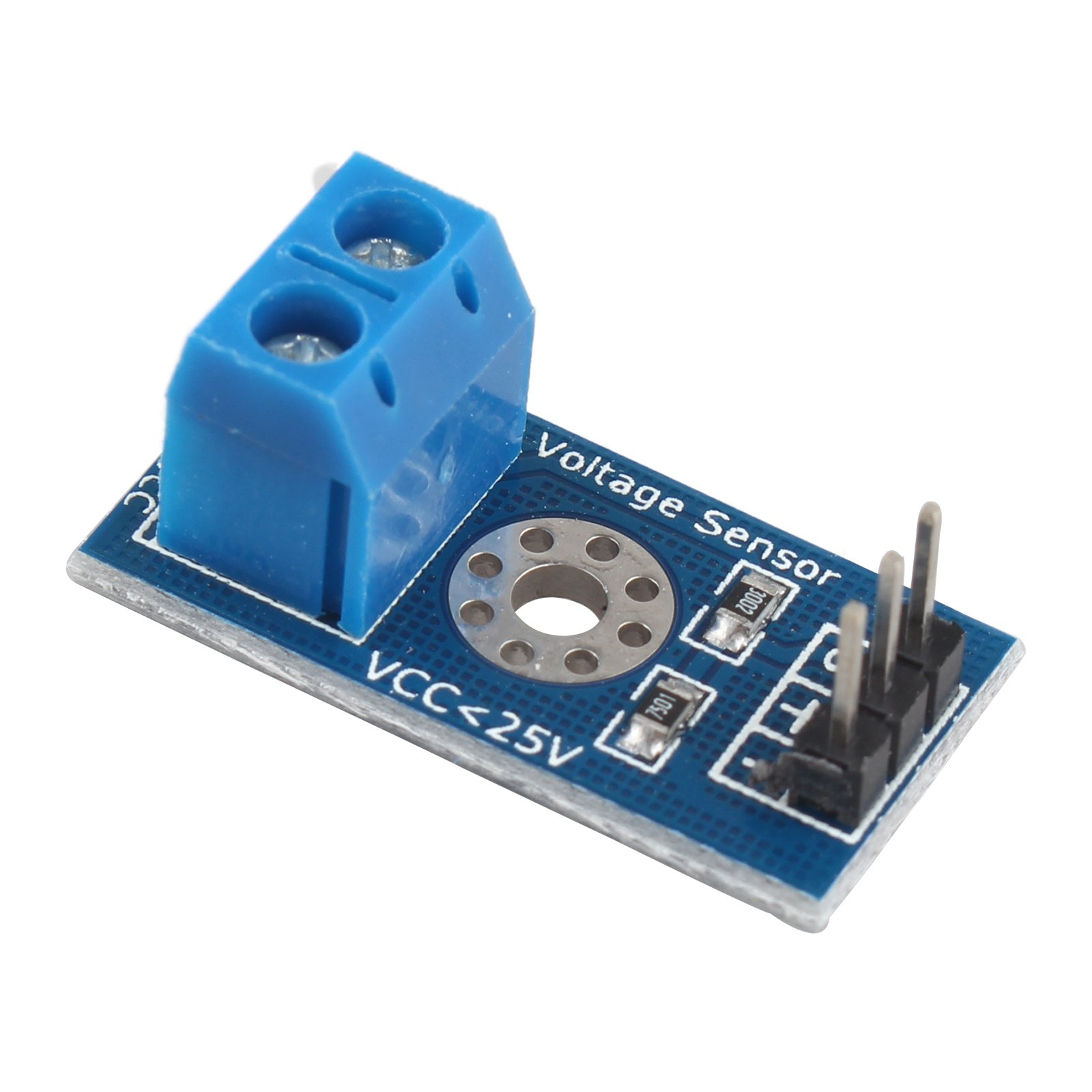

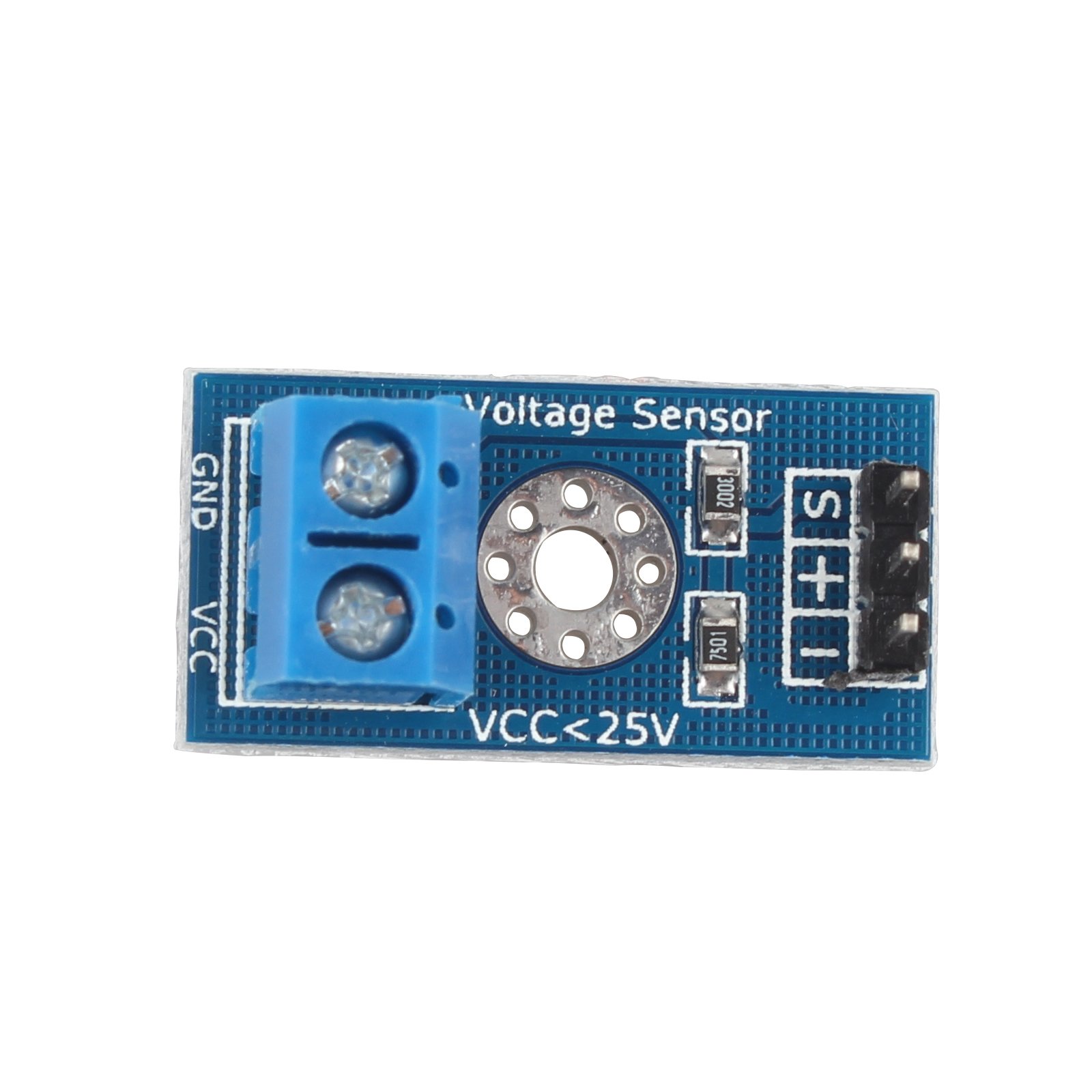

HALJIA Max 25V Voltage Detector Range 3 Terminal Sensor Module Compatible with Arduino

• Country of Manufacture: CHINA; Material: Electric Parts
• Net Weight: 3.3g; Package Content: 1 x Voltage Sensor Module
• Main Color: Blue
• PCB Board Size: 28 x 14mm (L*W)
• Max Voltage Range: 25V

100% brand new and high quality Size: 28mm¡Á14mm(approx) This module is based on principle of resistive voltage divider design, can make the red terminal connector input voltage to 5 times smaller. Arduino analog input voltages up to 5 v, the voltage detection module input voltage not greater than 5Vx5=25V (if using 3.3V systems, input voltage not greater than 3.3Vx5=16.5V). Arduino AVR chips have 10-bit AD, so this module simulates a resolution of 0.00489V (5V/1023), so the minimum voltage of input voltage detection module is 0.00489Vx5=0.02445V. Voltage input range : DC0-25 V Voltage detection range : DC0.02445 V-25 V Voltage analog resolution : 0.00489 V Output Interface :"+ " connected 5/3.3V, "-" connected GND, "s" connected Arduino AD pins DC input interface : red terminal positive with VCC, negative with GND By 3P connector, connect this module with the expansion of board Arduino, not only makes it easier for you to detect voltage battery, can also use the IICLCD1602 LCD to display voltage. Packing List: 1* Max 25V Voltage Detector Range 3 Terminal Sensor Module for Arduino
