HALJIA GY-US42 IIC Flight Control Ultrasonic Range Module Compatible with Arduino Pixhawk 3-5V

• GY-US42 is a low-cost high-quality range sensor module, operating voltage 3-5v, low power consumption, small size, easy installation.
• Its working principle is that the probe emits ultrasonic waves, irradiated to the measured object, the probe receives the return sound waves and calculate the actual distance use time difference. There are three ways to read the data module, that is, serial port UART (TTL level), IIC, pulse PWM mode
• IIC can modify the internal address, to facilitate an IIC bus at the same time access multiple modules. Pulse PWM output, same as SR04. The module can be adapted to a different working environment and connected directly to the microcontroller. When the computer needs USB to TTL module, direct connect.

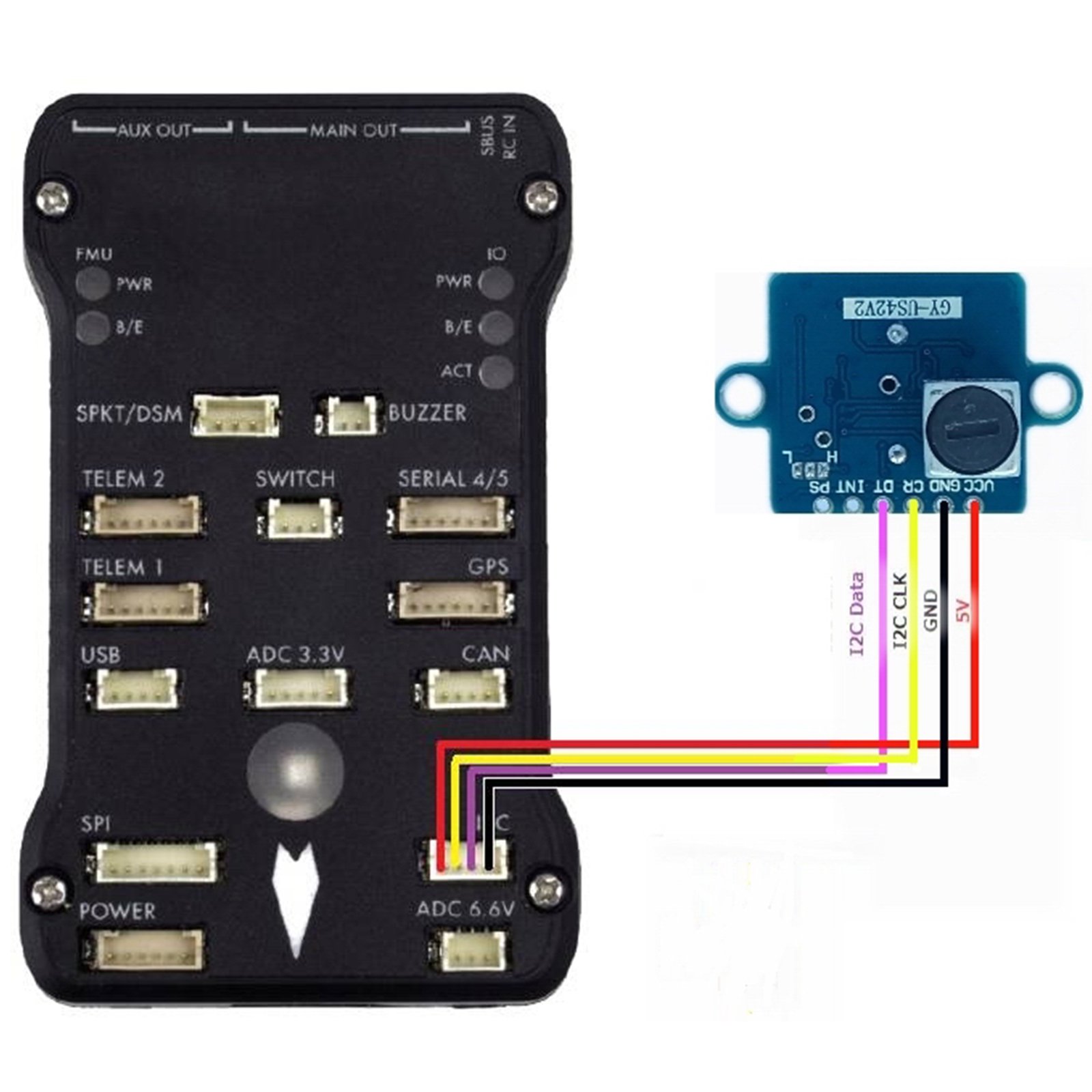

• IIC mode can be directly connected with APM, Pixhawk, and other flight control. As a result of the use of transceiver integrated ultrasonic probe, Within 20cm range is invalid.
• Measuring range: 20cm-720cm (Vcc = 5v).

Feature: 1.GY-US42 is a low-cost high-quality range sensor module, operating voltage 3-5v, low power consumption, small size, easy installation. 2.Its working principle is that the probe emits ultrasonic waves, irradiated to the measured object, the probe receives the return sound waves and calculate the actual distance use time difference . There are three ways to read the data module, that is, serial port UART (TTL level), IIC, pulse PWM mode, 3.IIC can modify the internal address, to facilitate an IIC bus, Pulse PWM output, same as SR04. The module can be adapted to a different working environment and connected directly to the microcontroller. When the computer needs USB to TTL module, direct connection,then you can use it. 4.with IIC mode,you can directly connected with APM, Pixhawk, and other flight control. As a result of the use of transceiver integrated ultrasonic probe, Within 20cm range is invalid. 5.Measuring range: 20cm-720cm (Vcc = 5v). Parameter: Voltage:3-5V Built-in MCU calculates distance IIC and Serial and PWM communication format Close to 40HZ of the measurement cycle integrated probe, small size Measuring range: 20cm -720cm (vcc = 5v); Resolution: 1cm; Response frequency: 15 HZ (full range); Operating voltage: DC 3 - 5 V; Operating current: 9mA (vcc = 5v); Working temperature: - 20 ℃ - 65 ℃; ?Storage temperature: -40 ℃ - 85 ℃; Size: 21.5 × 21 × 24.5mm (L * W * H); Application: Robots Teaching Libraries equipment Production Testing Four-axis aircraft Anthropometric Smart Car Download Link: http://download.haljia.com/download/Sensor/GY_US42/GY_US42.rar Packing List: 1*GY-US42 Flight Control Ultrasonic Ranging Module
