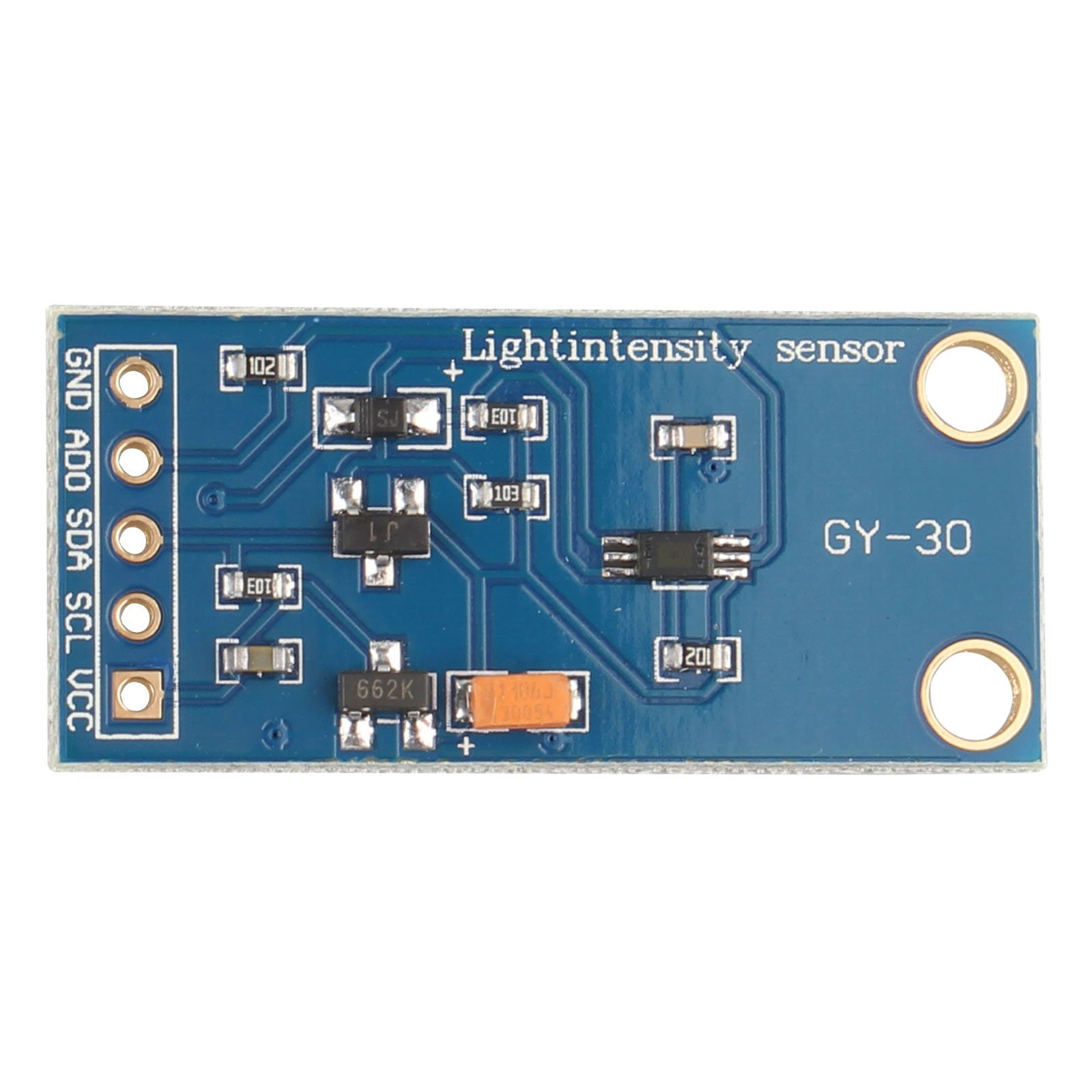

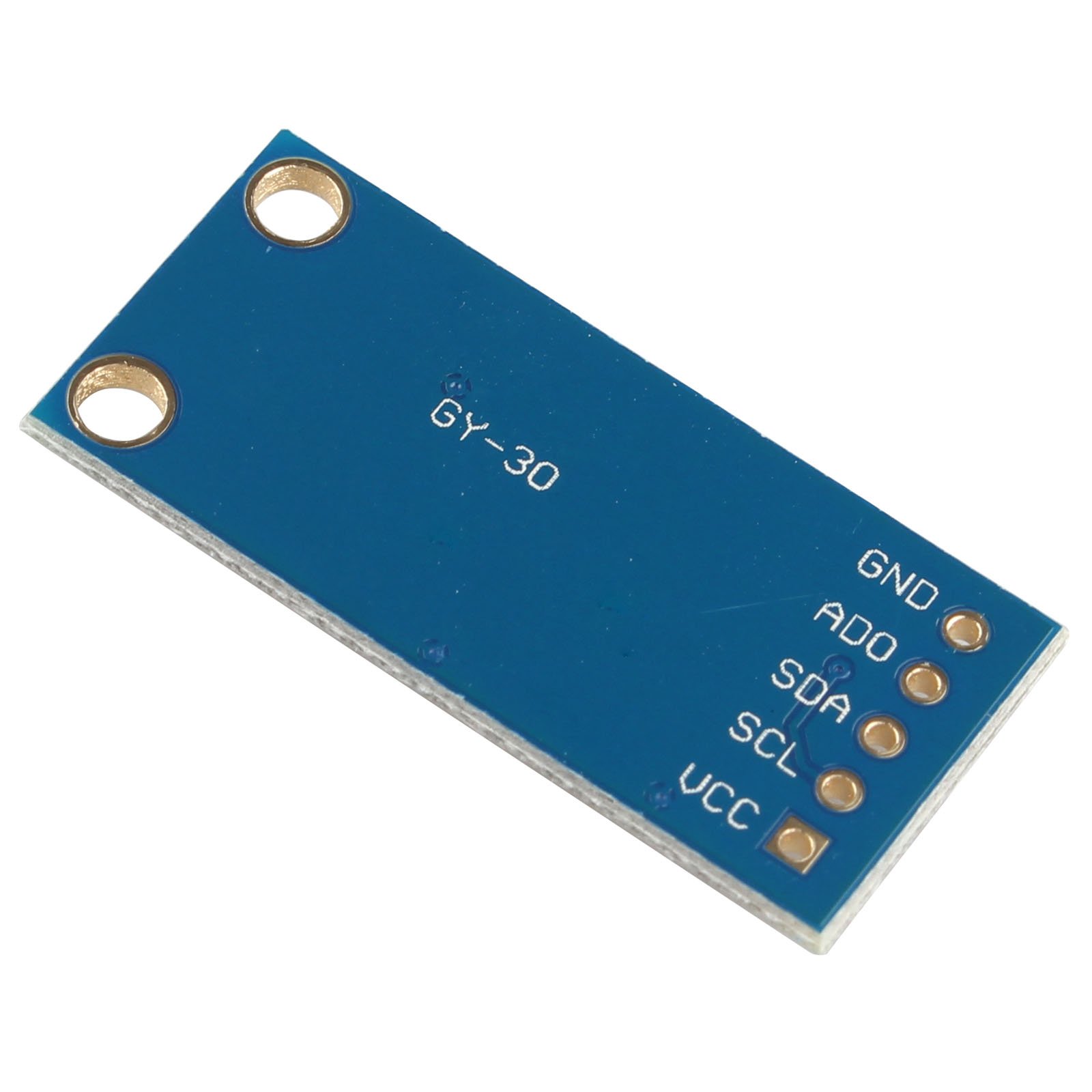

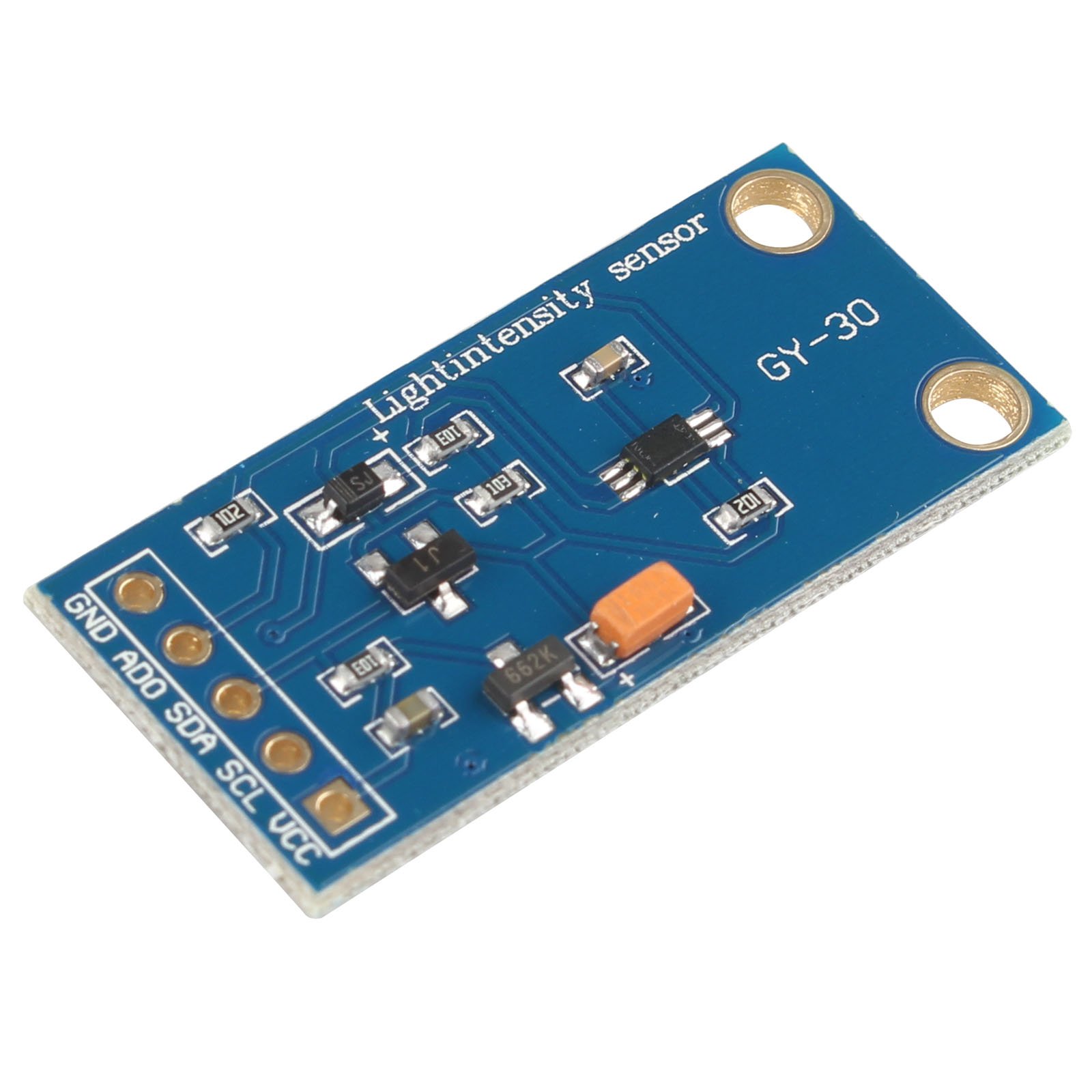

HALJIA GY-30 BH1750FVI Digital Light Intensity Sensor Module Compatible with Arduino AVR 3V-5V

• Material: Metal; Model: GY-30; Core Type: BH1750FVI
• Voltage: 3-5V;
• The BH1750FVI sensor to measure the ambient lighting level. BH1750FVI is a calibrated digital light sensor IC that measures the incident light intensity and converts it into a 16-bit digital number.
• It can measure ambient light intensity ranging from 0 to 65535 Lux (L). The Lux is an SI unit for illuminance and is equal to one lumen per square meter. The BH1750FVI sensor directly gives output in Lux.
• The spectral response function of the sensor is approximately close to that of the human eye. The sensor output can be accessed through an I2C interface. The 7-bit I2C address is 0*23 if the ADDR pin is grounded, or 0*5C if ADDR is tied to VCC.

ROHM original BH1750FVI chip Power supply:3-5v Light intensity range: LX 0-65535 Sensor built-in 16bitAD converter Direct digital output, omit complex computation, omit calibration Environmental light source Spectral characteristics of the visual sensitivity Determination of high precision of 1 lux for a wide range of brightness Standard IIC communication protocol The internal module of the module includes the communication level conversion, and the 5V is directly connected with the IO microcontroller. STC 51 C language test code C C8051F340 language test code M16 C AVR language test code Features: Ambient light sensor IC on easy to interface module 16 Bit Resolution Direct LUX output I2C Interface Packing List: 1* light intensity sensor
