HALJIA Flight Controller APM Power Module Compatible with APM2.5.2 APM2.6 Pixhawk with 5.3VDC BEC

• Supply power for APM2.5.2 APM2.6 Pixhawk flight controller,GPS / Data Transfer / OSD

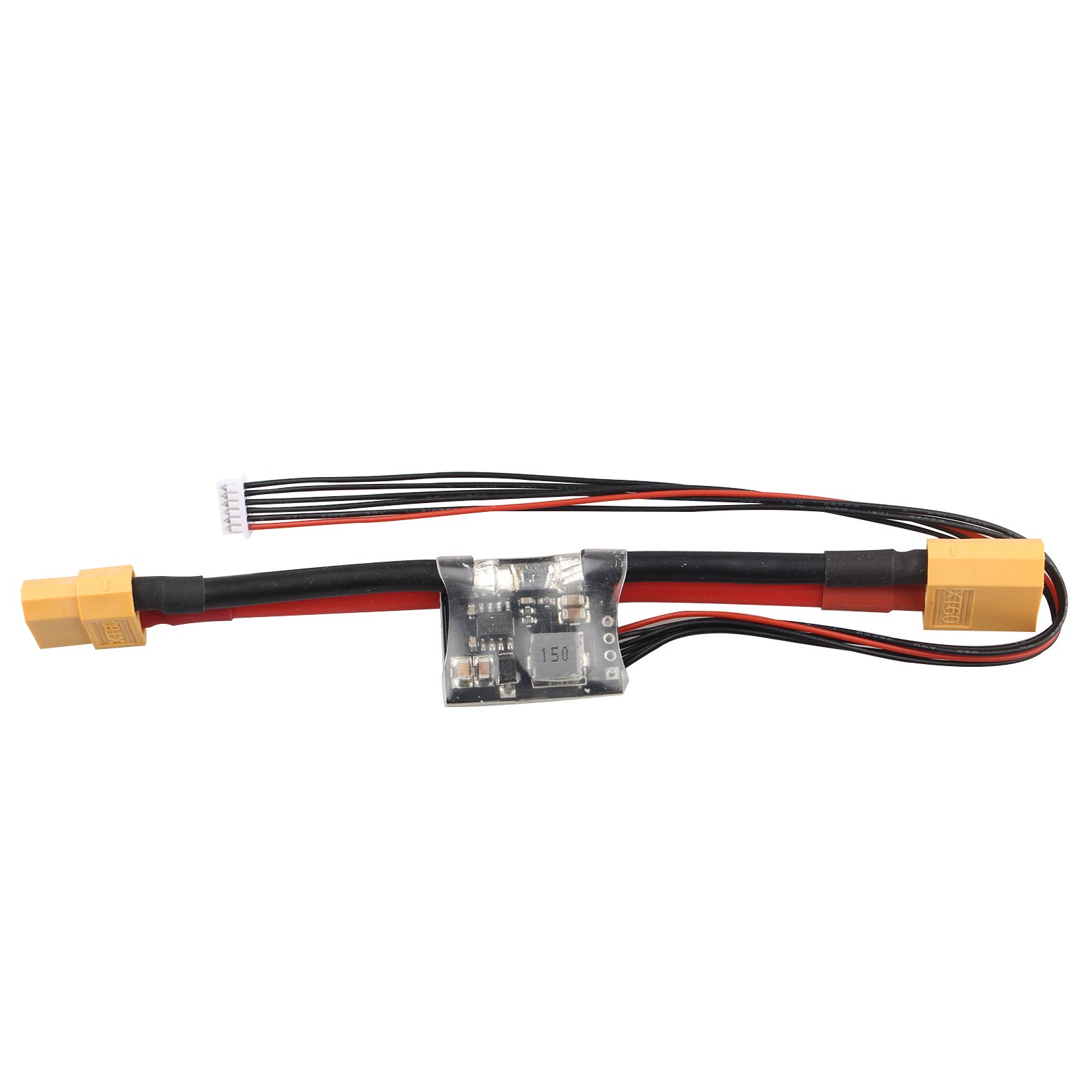

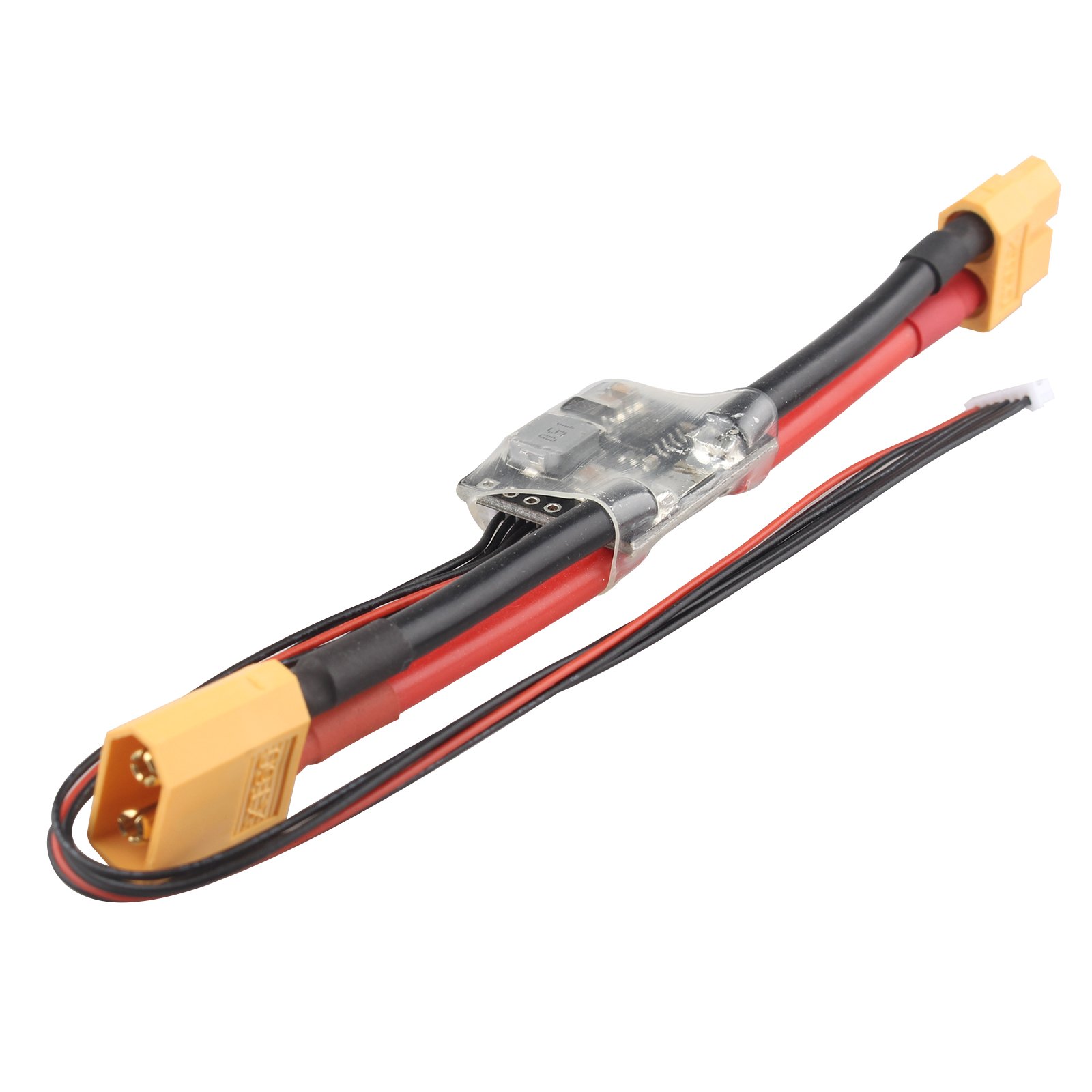

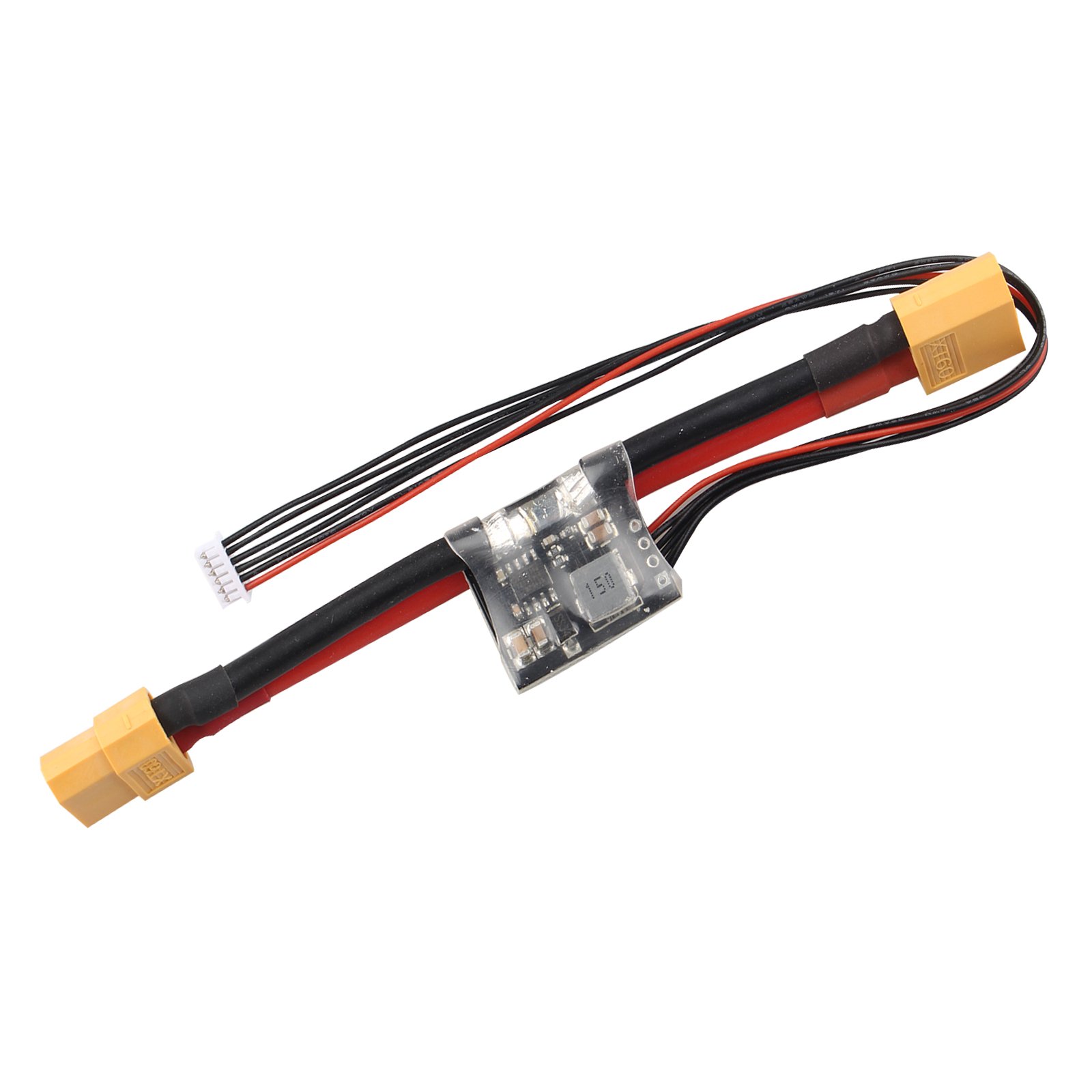

• Power Module is a simple way of providing your APM/Arduflyer with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6P cable.
• The on-board switching regulator outputs 5.3V and a maximum of 3A ，up to a 6S LiPo battery.
• Input voltage: 2~6S LiPo battery (Max. 28V) Output voltage: 5.3V
• The maximum output current: 3A,The maximum measurement current: 90A

Feature: 1.Supply power for APM2.5.2 APM2.6 Pixhawk flight controller,GPS / Data Transfer / OSD 2.Power Module is a simple way of providing your APM/Arduflyer with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6P cable. 3.The on-board switching regulator outputs 5.3V and a maximum of 3A，up to a 6S LiPo battery. 4.Input voltage: 2~6S LiPo battery (Max. 28V) 5.Output voltage: 5.3V 6.The maximum output current: 3A 7.The maximum measurement current: 90A 8.Voltage and current measurement configured for 5V ADC 9.Color: Black + Red 10.Size: Approx. 25mm x 21mm x 9mm / 1 x 0.8 x 0.35 inch 11.Size: Approx. 144mm/5.7inch 12.Cable length: Approx. 192mm / 7.6 inch Note:If the product is equipped with a steering engine, please use BEC or ESC BEC to power the steering engine. Packing List: 1*APM Power Module V1.0
