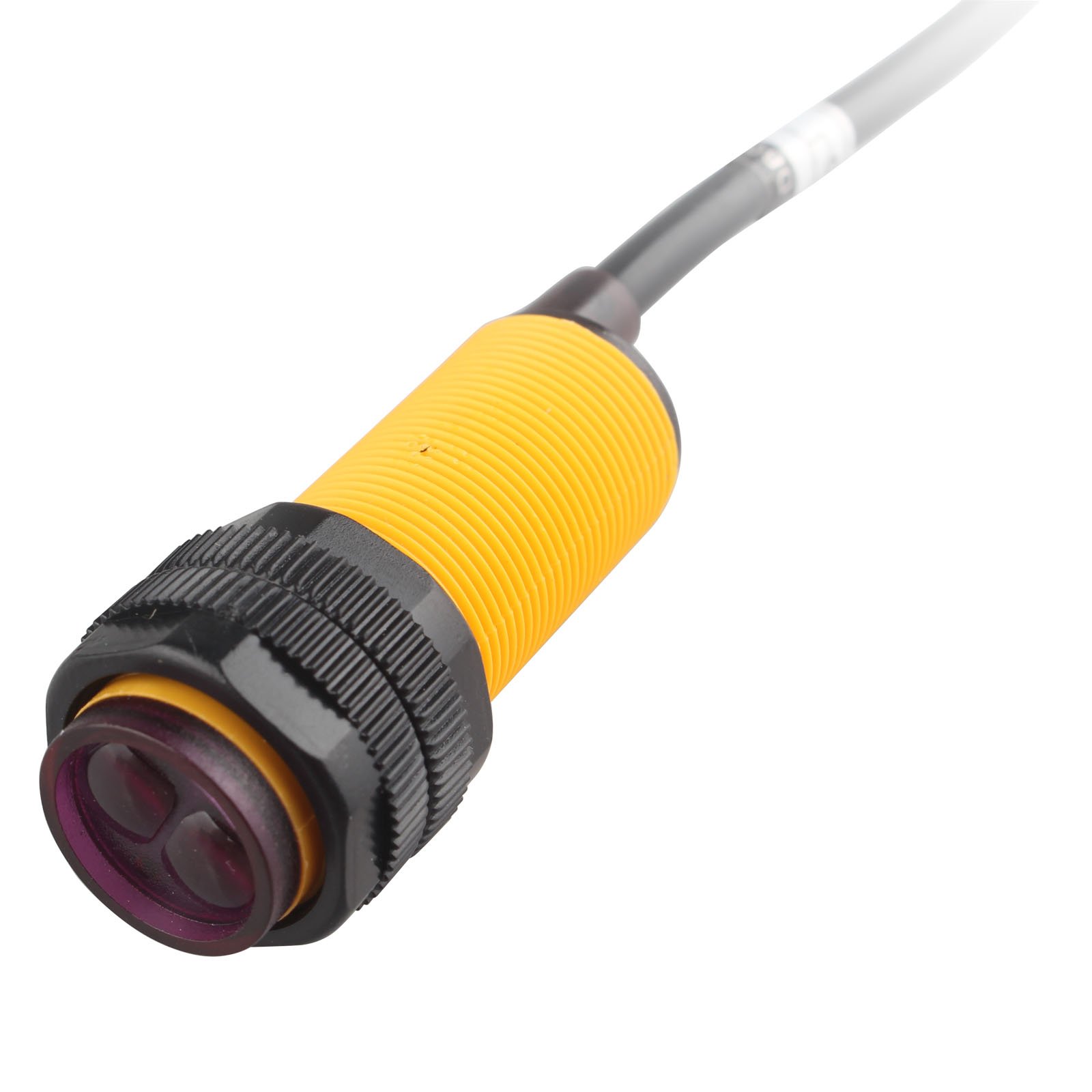

HALJIA E18-D80NK Infrared Obstacle Avoidance Sensor Module 3 to 50cm Adjustable Photoelectric Switch Compatible with Arduino Smart Car

• This is a set of transmitter and receiver in one of the photoelectric sensor.
• Detection distance can be adjusted according to requirements.
• The sensor has a detection distance, interference by visible light, cheap, easy to assemble, easy to use, can be widely used in robot obstacle avoidance, line piecework and many other occasions.
• Output current DC / SCR / Relay Control output: 100mA/5V supply.
• Current consumption DC < 25mA.

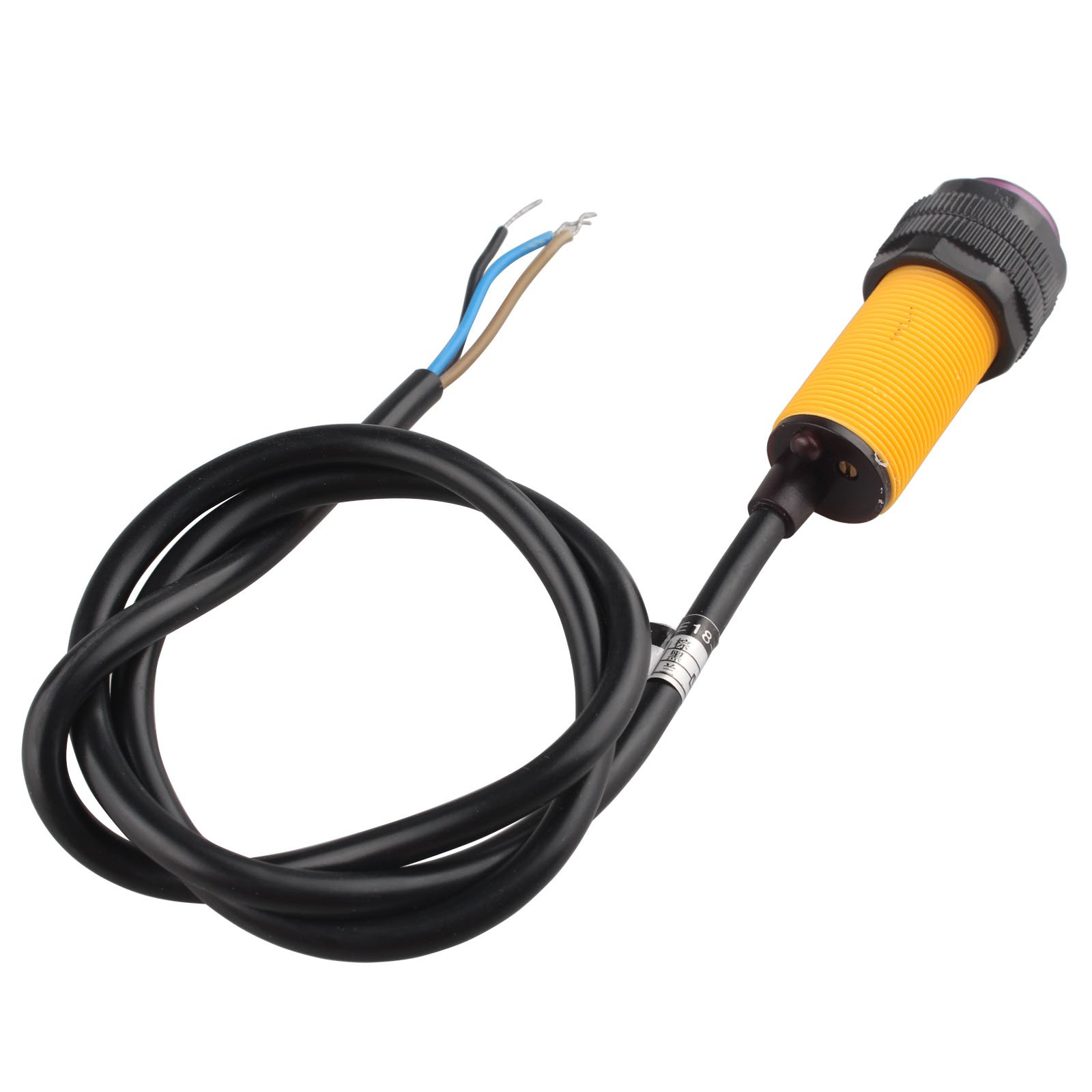

This is a set of transmitter and receiver in one of the photoelectric sensor. Detection distance can be adjusted according to requirements. The sensor has a detection distance, interference by visible light, cheap, easy to assemble, easy to use, can be widely used in robot obstacle avoidance, line piecework and many other occasions. Output current DC / SCR / Relay Control output: 100mA/5V supply. Current consumption DC <25mA. Response time <2ms. Point angle: less than 15', the effective distance adjustable 3-50cm Detected object: transparent or opaque body Operating ambient temperature: -25'C ~ +55'C Standard sensing object: less sunlight 10000LX incandescent 3000LX Diameter: 18mm ( 23/32 in ) Sensor length: 45mm ( 1 25/32 in ) Lead Length: 50cm ( 10 1/4 in ) Brown: connected 4.5-5V power supply high Black: connected microcontroller output TTL level to the microcontroller Blue: GND 0V power low Electrical Characteristics: U: 5VDC I: 100Ma Sn :3-50CM Appearance: Threaded cylindrical Material: Plastic Guard mode: Reverse polarity protection Ambient temperature: -25-70'C Package Included: 1 x E18-D80NK Sensor
