HALJIA CJMCU-2551 MCP2551 High Speed CAN Communication Protocol Controller Bus Interface Module

• CJMCU-2551 MCP2551 High Speed CAN Communication Protocol Controller Bus Interface Module.
• The CJMCU-2551 is a fault tolerant high-speed CAN device that acts as a CAN protocol controller and a physical bus interface.
• The MCP2551 provides differential transceiver capability for the CAN protocol controller, including 24V voltage requirements.
• Typically, each node on the CAN system must have a device that converts the digital signal generated by the CAN controller into a signal suitable for bus transmission.
• It also adds buffers between the CAN controller and the high voltage spikes on the CAN bus, which may be generated by external devices.

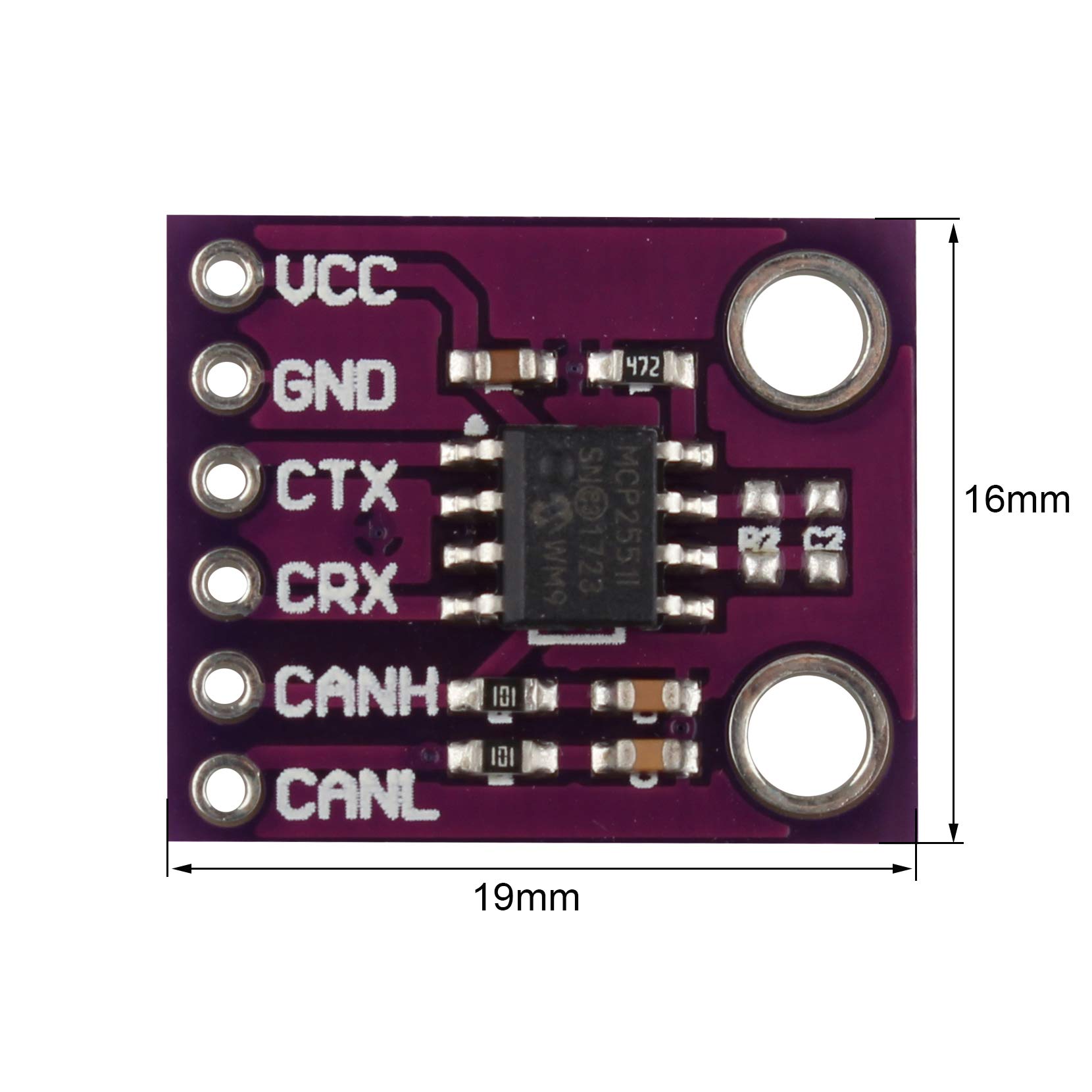

Feature: Support 1MB / S operating rate. Meet the ISO-11898 standard physical layer requirements. Suitable for 12V and 24V systems. Slope External Control, Reduced RFI. Automatically detects a ground fault at the TXD input. Power-on reset and voltage event undervoltage protection. No power-up node or undervoltage does not affect the CAN bus. Low current standby operation. Up to 112 nodes can be connected. Material: Metal Size: 19 x 16mm Colour: Purple Weight: 1.4g Packing List: 1 x CAN Communication Protocol Controller Bus Interface Module
