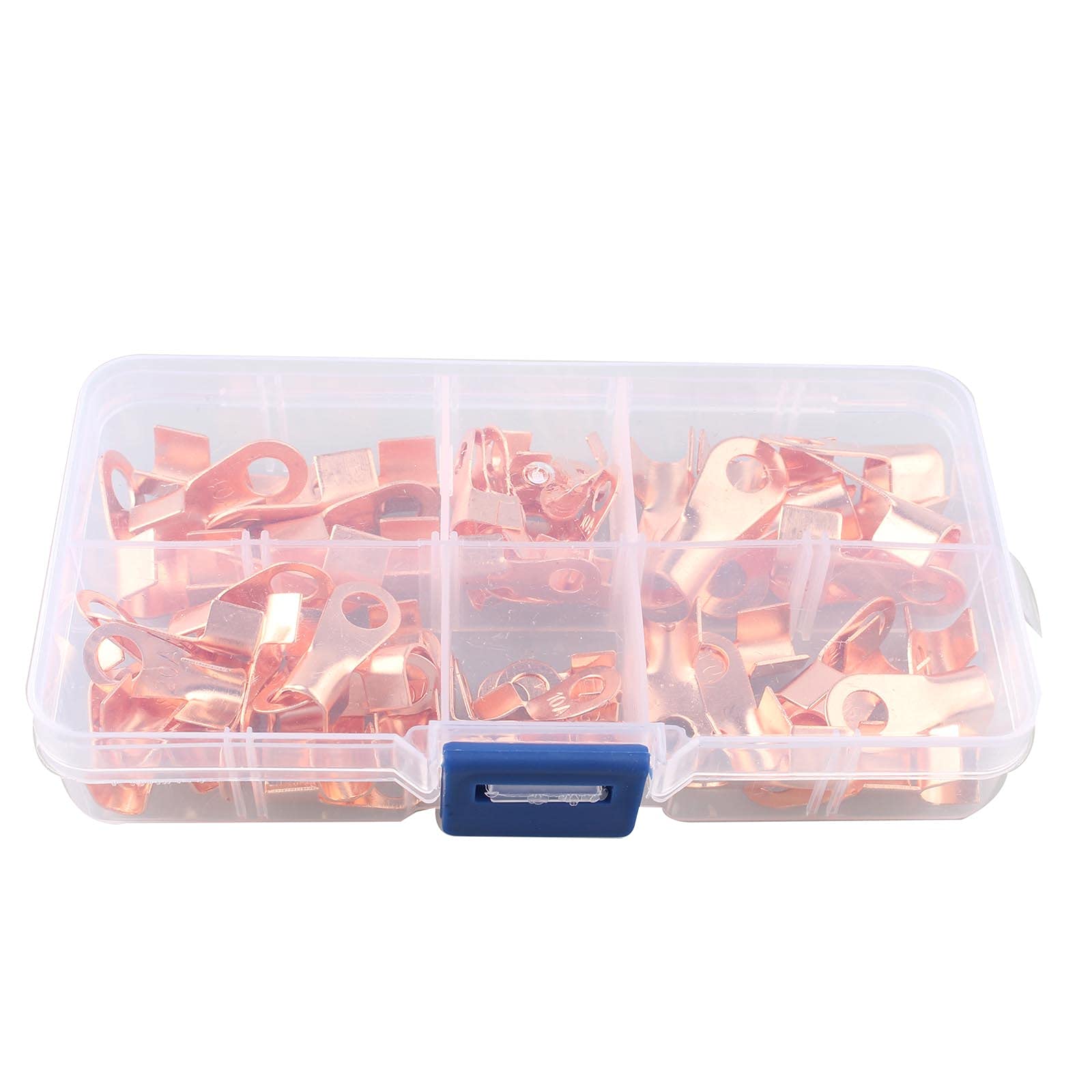

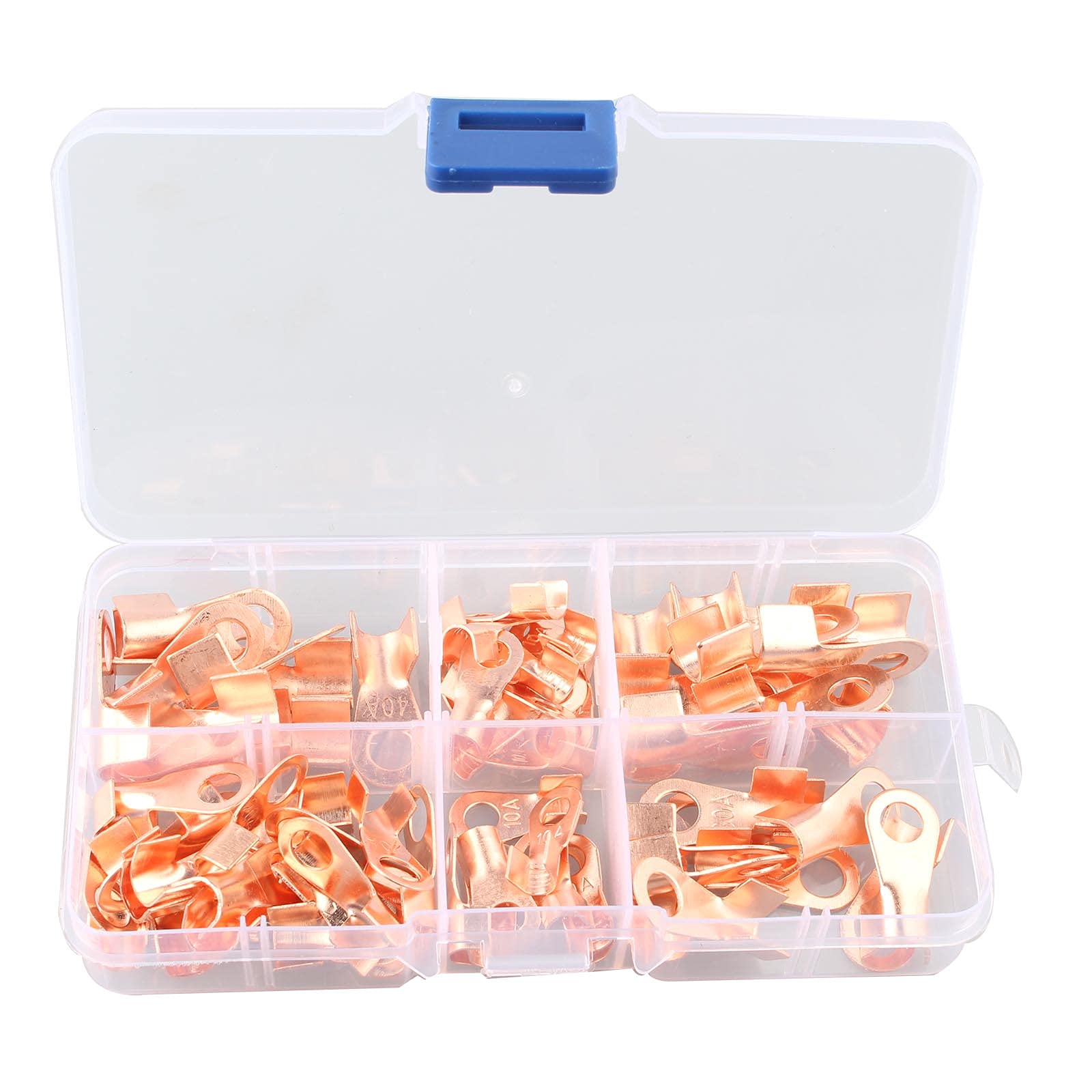

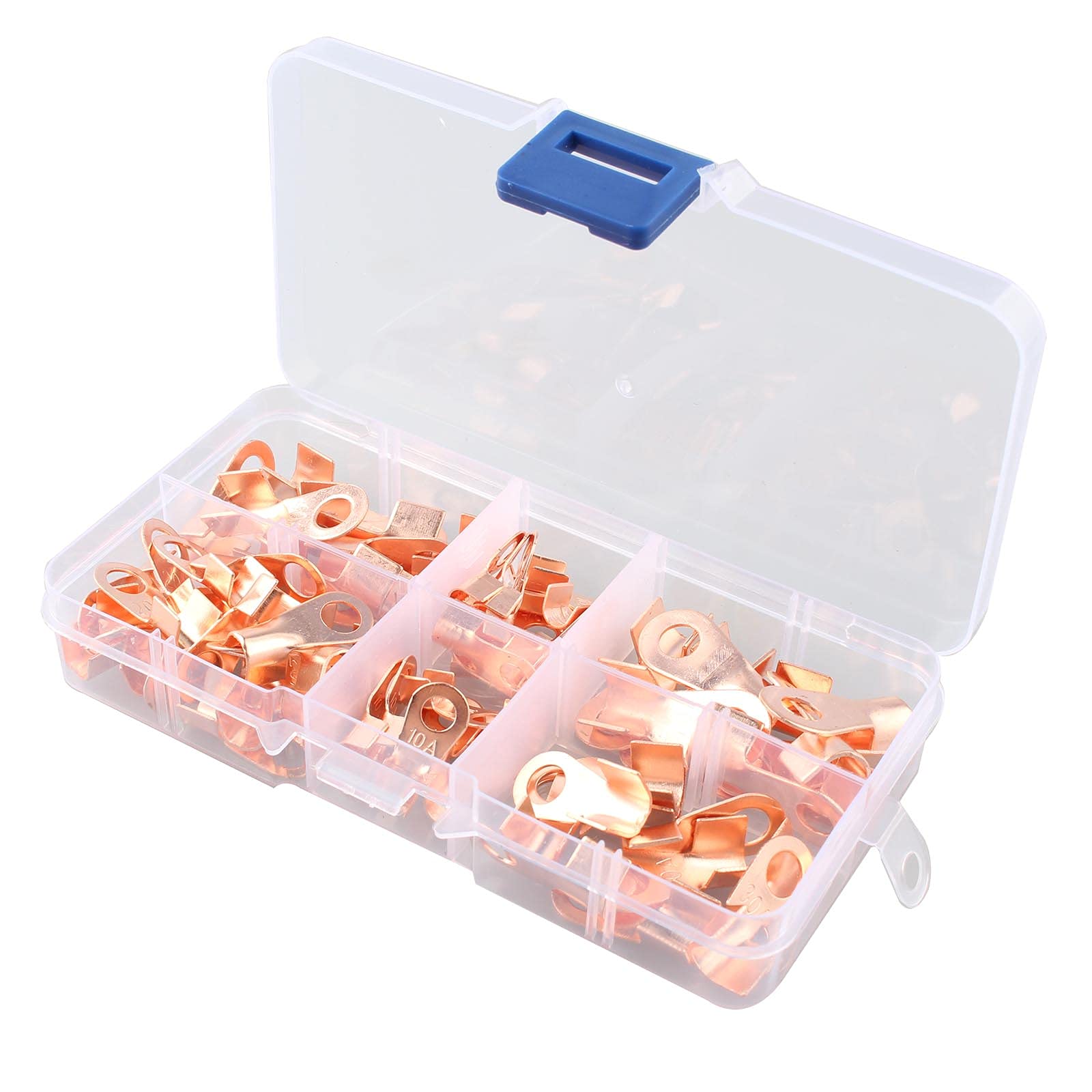

HALJIA 70PCS Open Barrel Copper Ring Assortment Kit Lug Terminals Cable Wire Crimp Connector OT Wire Crimp Connectors Assortment Kit, OT 10A 20A 30A 40A 50A

• The Open Barrel Copper Ring Lug set includes 20 x OT-10A, 20 x OT-20A, 10 x OT-30A, 10 x OT-40A, 10 x OT-50A (5 Types 70pcs)
• These open barrel lug terminals are made of high quality copper for better performance and safety. They have good electrical conductivity, very practical and reliable.
• The open barrel wire crimp is easier to crimp and solder than the standard closed sleeve type, and this design can work well with any cable. Use a crimping tool to carefully fold the edges over and then solder the connection well.
• Easy to identify and store. Values remarked on terminals, it’s convenient for users to distinguish and store these terminals. The attached storage box is suitable for users to classify and store these terminals.
• Copper electrical lugs can be used for machine, railway, electrical, household appliances, transformers, circuit breakers, isolation switches or substation wall threading.

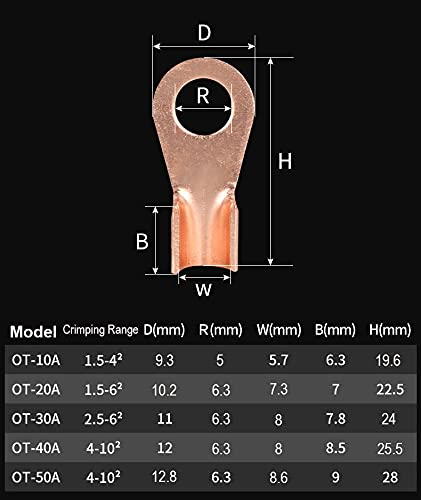

Specification: Terminal Material: Copper Terminal Types: Open Barrel Cable Lug Ring Terminal Model: OT-10A OT-20A OT-30A OT-40A OT-50A Package Size: 12.7 × 6.8 × 2.2 cm Package Weight: 119.7 g OT-10A Specification: Overall Length: 19.6mm Tail Length: 6.3mm Ring Diameter: 5mm(Inner), 9.3mm(outer) Wire Section: 1.5-4mm2(AWG 16-12) Quantity: 20pcs OT-20A Specification: Overall Length: 22.5mm Tail Length: 7mm Ring Diameter: 6.3mm(Inner), 10.2mm(outer) Wire Section: 1.5-6mm2(AWG 16-10) Quantity: 20pcs OT-30A Specification: Overall Length: 24mm Tail Length: 7.8mm Ring Diameter: 6.3mm(Inner), 11mm(outer) Wire Section: 2.5-6mm2(AWG 14-10) Quantity: 10pcs OT-40A Specification: Overall Length: 25.5mm Tail Length: 8.5mm Ring Diameter: 6.3mm(Inner), 12mm(outer) Wire Section: 4-10mm2(AWG 10-8) Quantity: 10pcs OT-50A Specification: Overall Length: 28mm Tail Length: 9mm Ring Diameter: 6.3mm(Inner), 12.8mm(outer) Wire Section: 4-10mm2(AWG 10-8) Quantity: 10pcs Packing List: 1 x Plastic Box 20 x OT-10A 20 x OT-20A 10 x OT-30A 10 x OT-40A 10 x OT-50A
