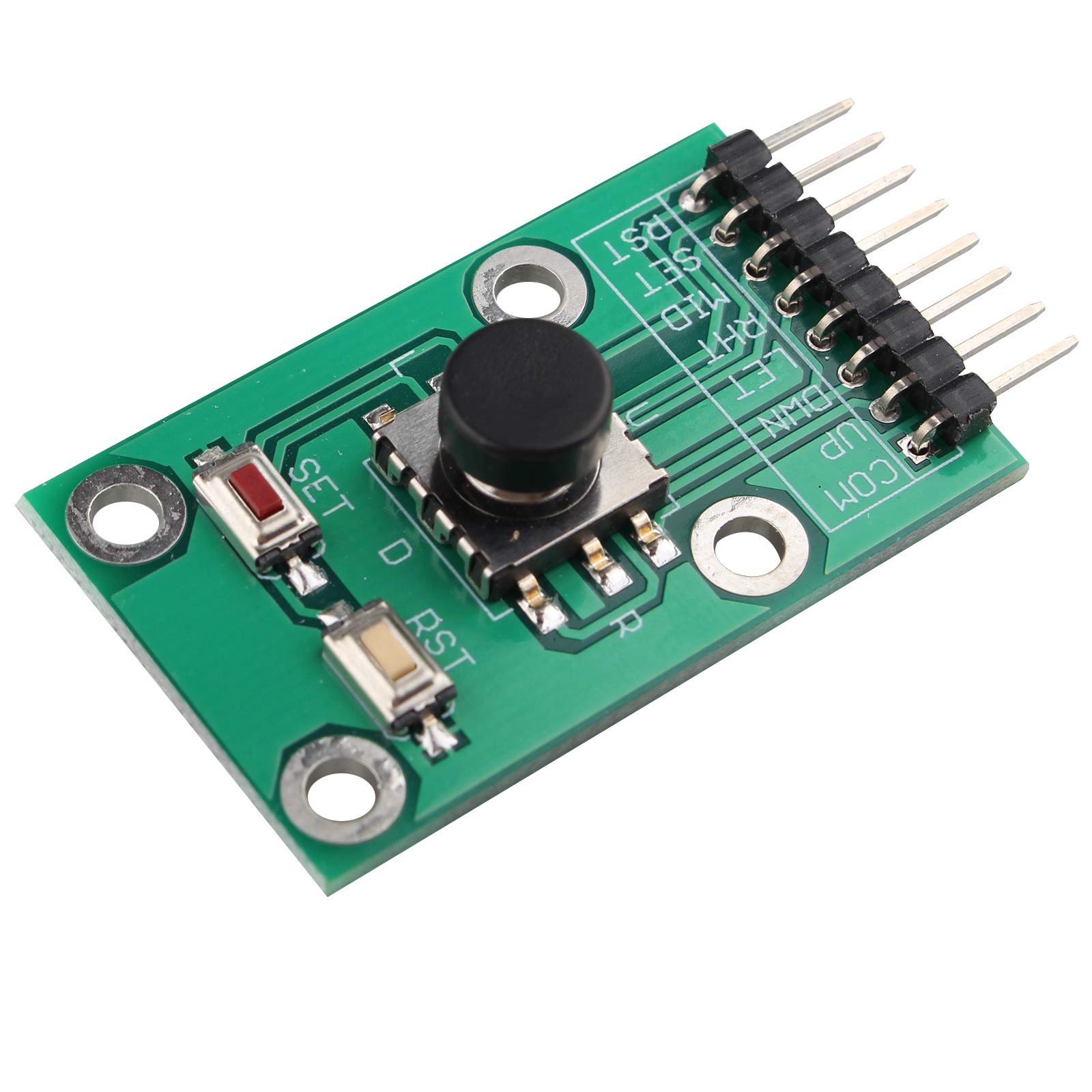

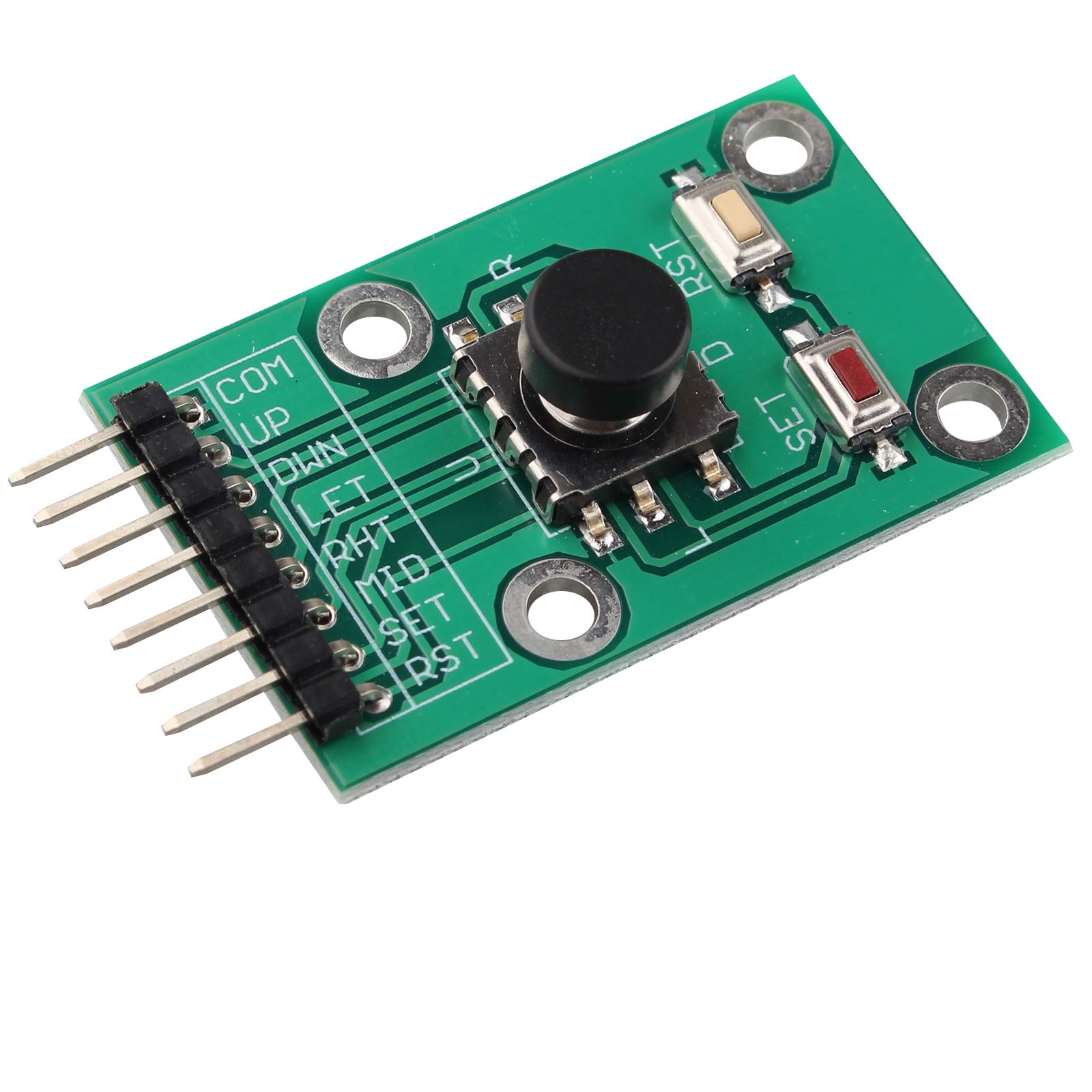

HALJIA 5Pcs Five Direction Navigation Button Module DIY Electronic PCB Board for MCU AVR Game 5D Rocker Joystick Independent Keyboard Switch Button Single Chip Compatible with Arduino Module

• Five Direction Navigation Button Module for 5D Rocker Joystick Inde MCU AVR Game.
• 5D navigation key module support up/down/left/right/middle 5 directions with extra set and reset button.
• 5 direction navigation button module has 2V-9V wide working voltage and all pins (7 IO) port pinout compatible for most MCU development board.
• Compatiable with 3.3V and 5V. Operating voltage is 2.0V to 9.0V.

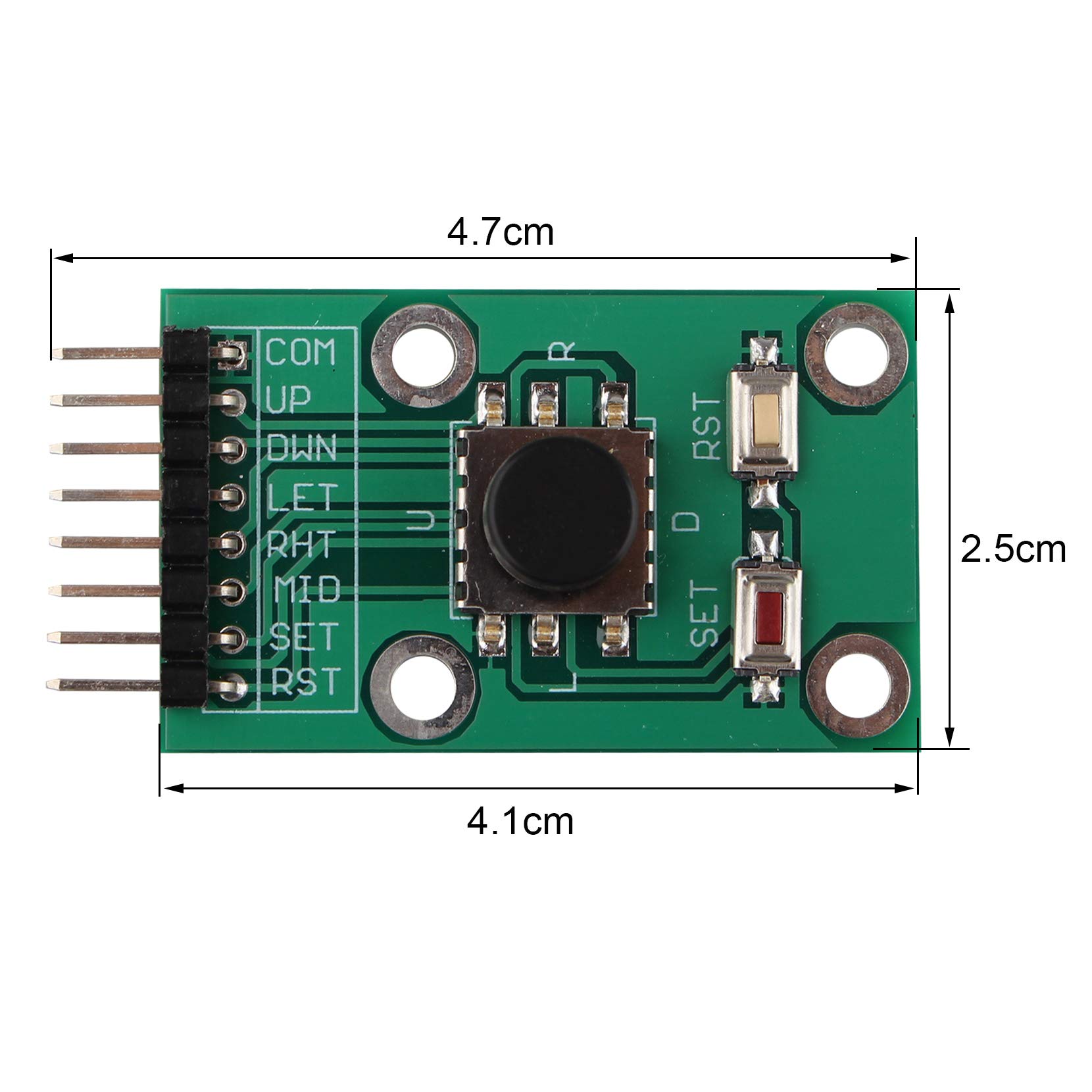

• Module Size: 41 x 25mm; Operating temperature: -40℃- 85℃.

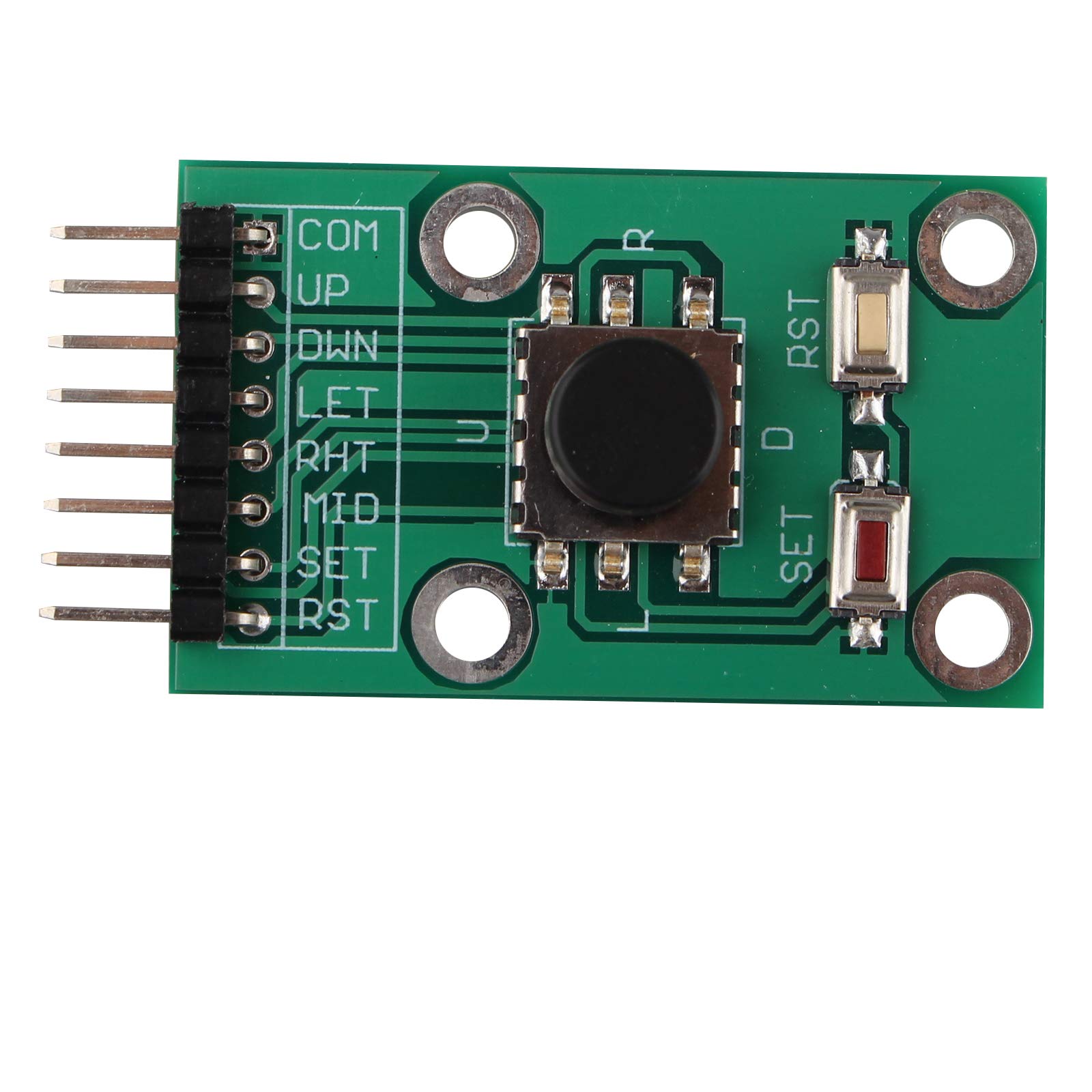

Descripition: COM(Commonport): connect to the VCC or GND of the MCU development board UP(Up direction button): connect to the IO pin of MCU DWN(Down direction button): connect to the IO pin of MCU LFT(Left direction button): connect to the IO pin of the MCU RHT(Right direction button): connect to the IO pin of the MCU MID(Middle direction button): connect to the IO pin of the MCU SET(Set button): connect to the IO pin of the MCU RST(Reset button): connect to the IO pin of the MCU Feature: 5D navigation key module support up/down/left/right/middle 5 directions with extra set and reset button. 5 direction navigation button module has 2V-9V wide working voltage and all pins (7 IO) port pinout compatible for most MCU development board. Type : Voltage regulator Application : Computer The number of IO: 7 Operating voltage: 2.0V-9.0V Operating temperature: -40℃-85℃ Size: 41 x 25mm Weight: 5g Packing List: 5 x Navigation Button Module Joystick Module
