HALJIA 4-Channel Infrared Tracking Obstacle Avoidance Sensor Module 4CH IR Line Track Follower Sensor PCB Board Compatible with Smart Car/Arduino

• When the module detects obstacles signal, red indicator lights on and OUT port continuous outputs low voltage level signals at the same time

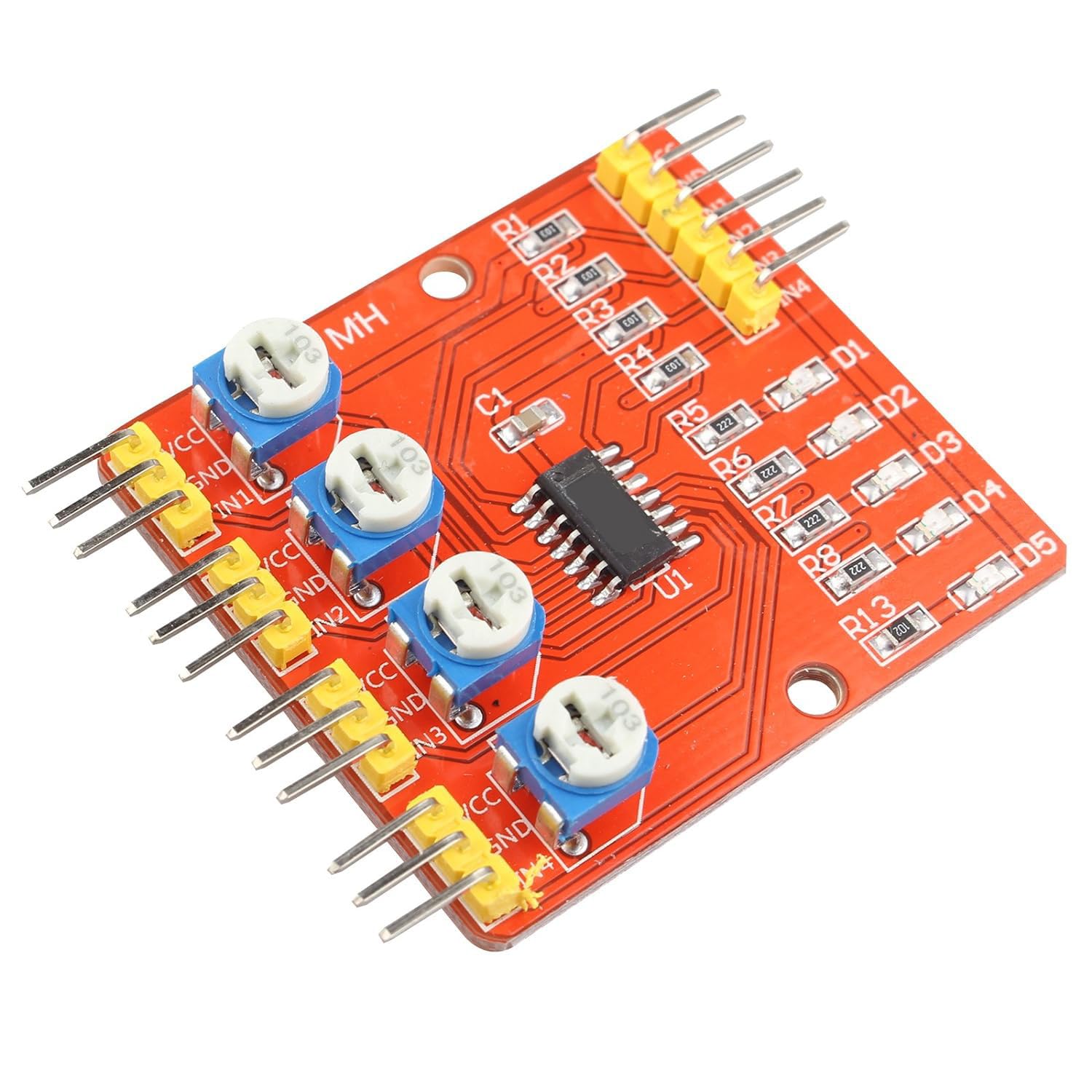

• Effective detect range of 2 ~ 60cm, working voltage of 3.3V-5V. The detection range of sensor can be adjusted by a potentiometer,clockwise to increase and counterclockwise to reduce
• Target's reflectivity and shape is the key point of detection distance. Small and black objects have minimum detection distance, while large and white ones have maximum distance
• Output port can be directly connected to the SCM IO port, also can drive a 5V relay module or buzzer module directly,Connection: VCC-VCC; GND-GND; OUT-IO
• Widely used for robot obstacle avoidance, car obstacle avoidance, assembly line counting and black white line tracking

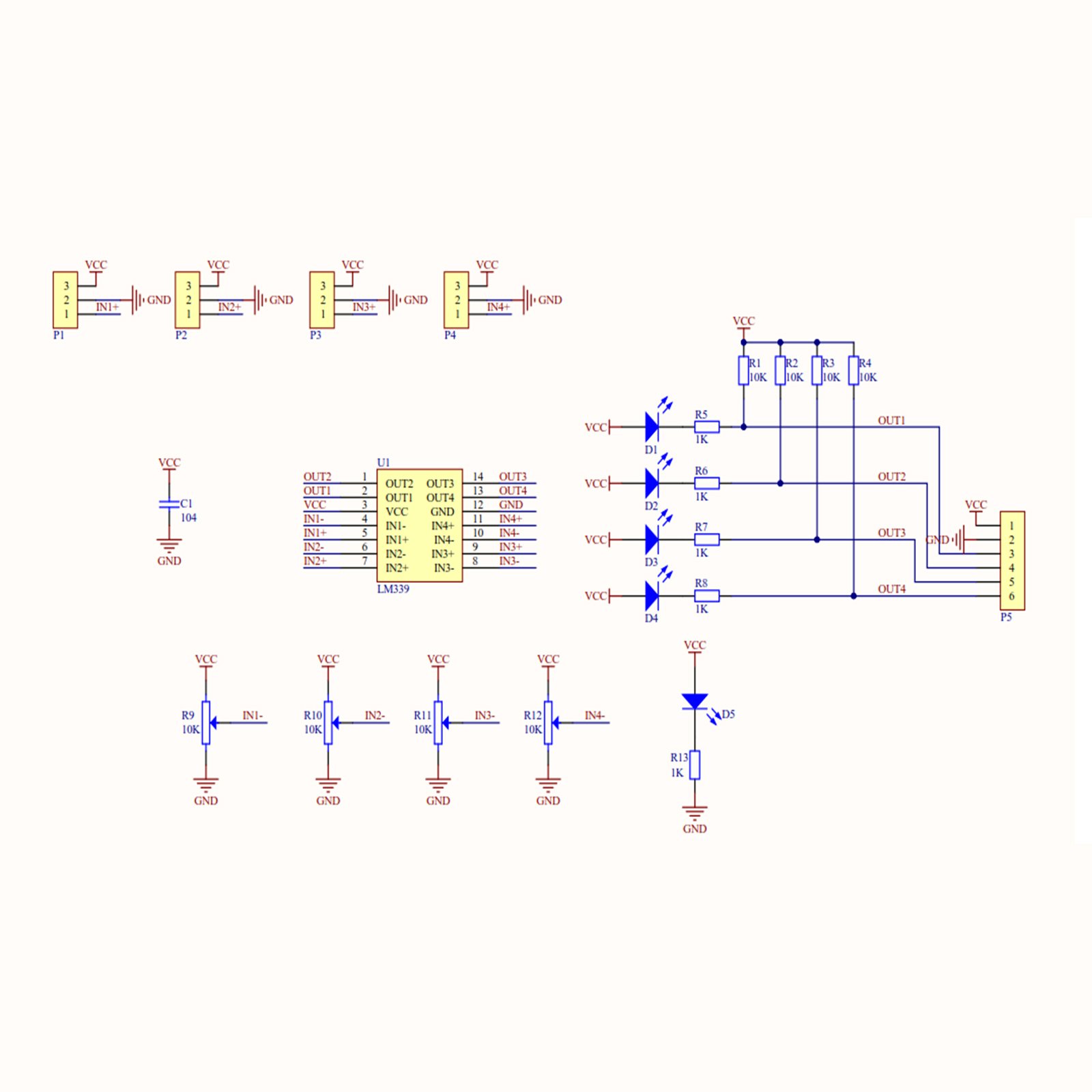

Feature: 1.When the module detects obstacles signal, red indicator lights on and OUT port continuous outputs low voltage level signals at the same time 2.Effective detect range of 2 ~ 60cm, working voltage of 3.3V-5V. The sensor's detection range can be adjusted by a potentiometer,clockwise to increase and counterclockwise to reduce 3.Target reflectivity and shape is the key point of detection distance. Small and black objects have minimum detection distance, while large and white ones have maximum distance 4.Output port can be directly connected to the SCM IO port, also can drive a 5V relay module or buzzer module directly, Connection: VCC-VCC; GND-GND; OUT-IO 5.Widely used in robot obstacle avoidance, car obstacle avoidance, assembly line counting and black white line tracking 6.the comparator uses LM339,work stably; Specifications: Working Voltage: 3.3V-5V DC Working Current: >1A Detection Distance: 2~60cm Detection Angle: 35° Size: Big Board: 42*40*12mm Small Board: 25*12*12mm Mounting Hole Diameter: 3mm Note: 1, Do not put probe toward sunlight. the probe will be interfered by Sunlight . 2, Sensitivity should not be regulated excessively high because high sensitivity can easily lead to false trigger. Packing List: 1 x Track Sensor Module
