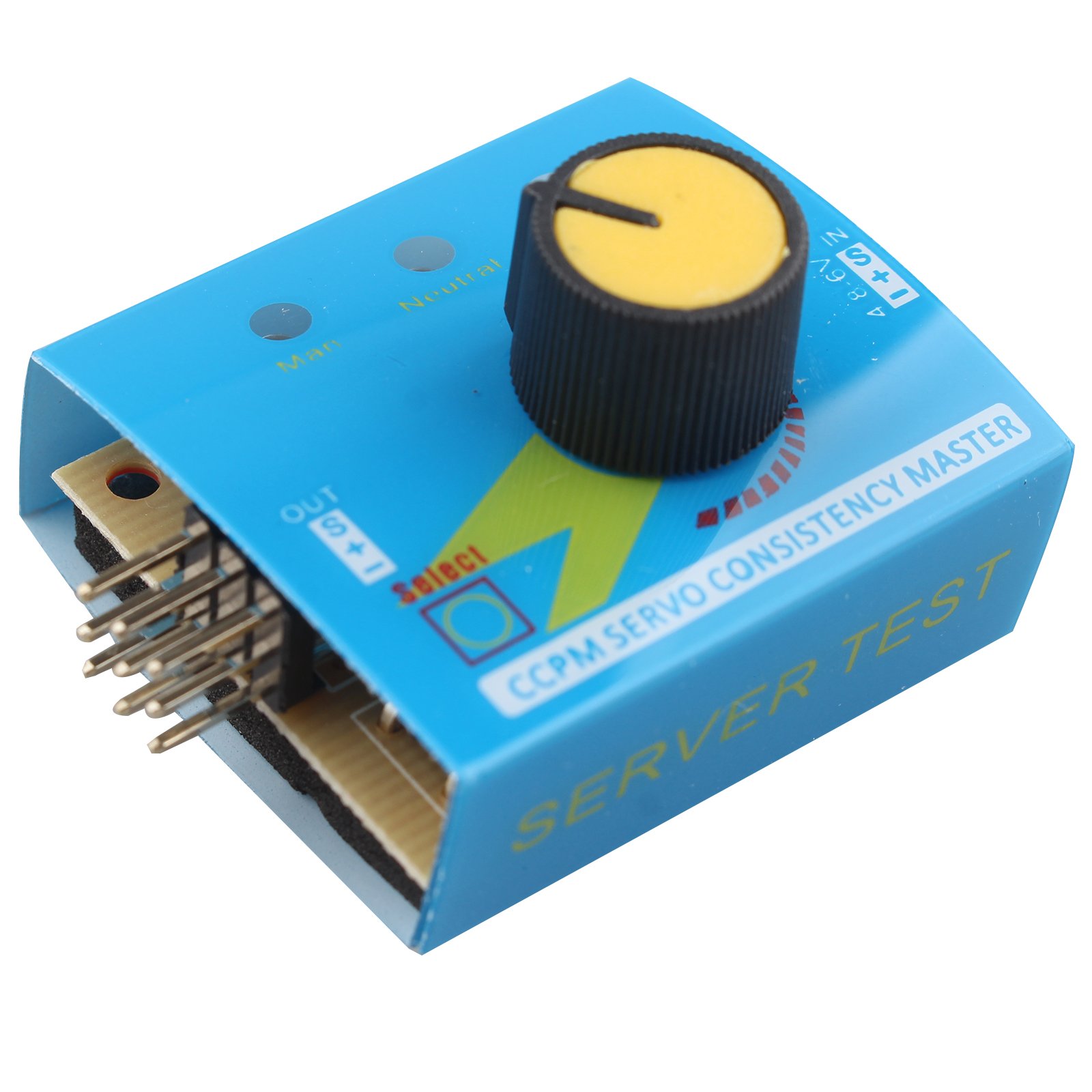

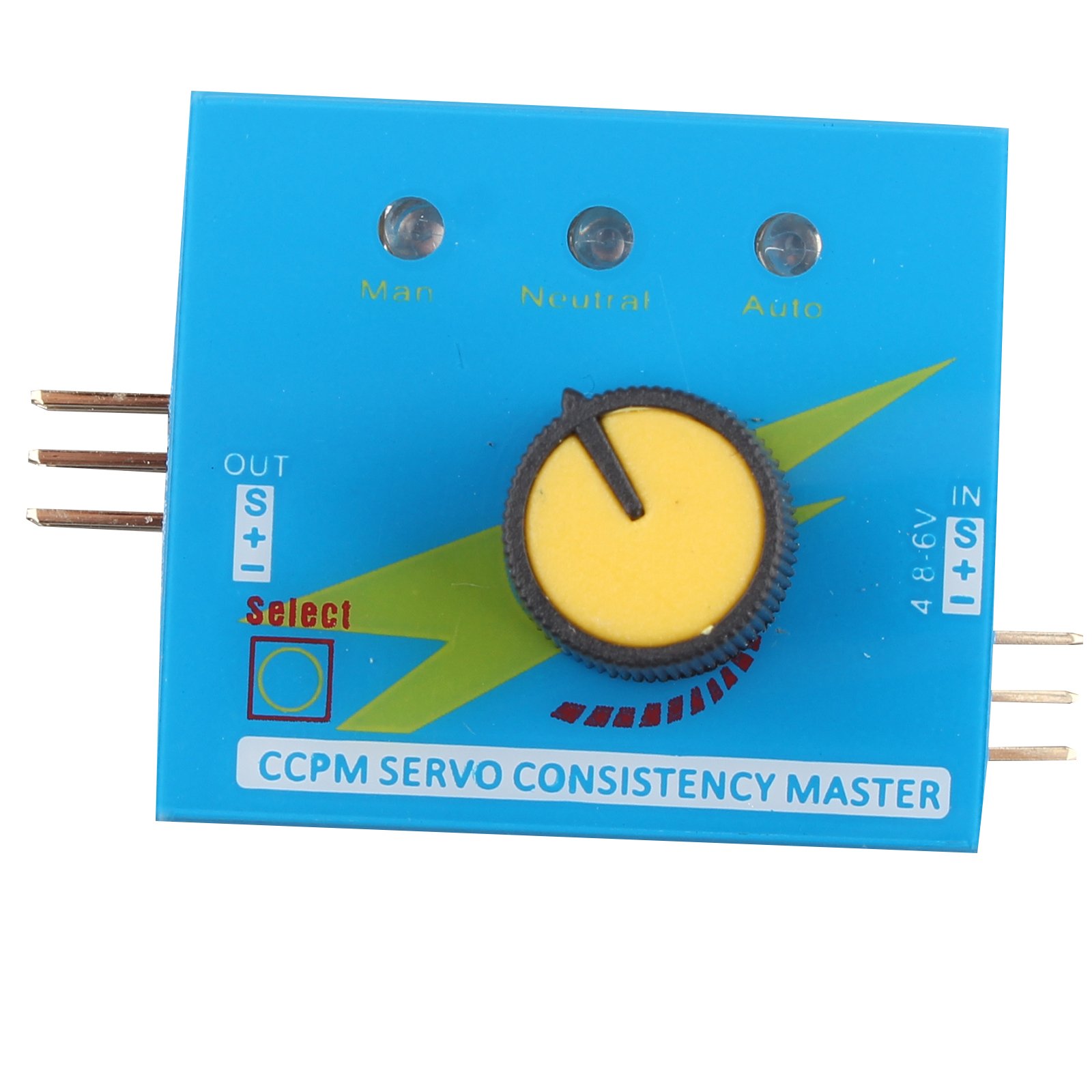

HALJIA 3 Mode Servo Tester & ESC Speed Controller Checker 4.8-6V CCPM Consistency Master Servo RC for Plane Helicopter Car

• Output: ≤15mA (5.0)
• Input: DC 4.8-6.0v
• Output signal: 1.5ms ± 0.5ms
• Size: 46 * 32 * 25MM
• Adjustment method: manual, automatic, median.

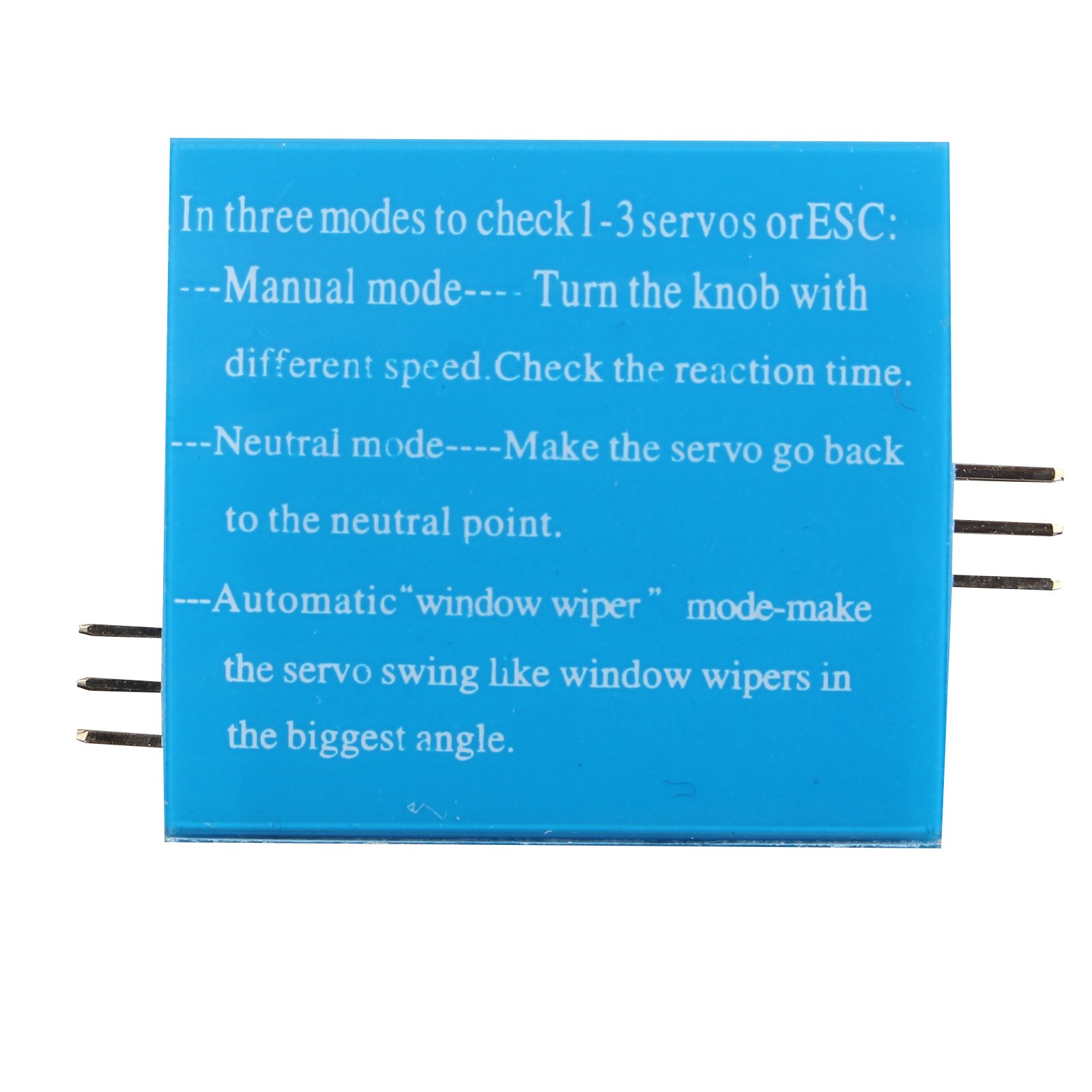

Product Specifications: (1) Output: ≤15mA (5.0) (2) Input: DC 4.8-6.0v (3) output signal: 1.5ms ± 0.5ms (4) Size: 46 * 32 * 25MM (5) adjustment: manual, automatic, and the median. Feature: The Super Simple Servo & ESC Tester - Small size, low power consumption, high reliability and easy to use. Offering MCU control, good stability & high accuracy It can easily detect and configure server virtual bit, jitter and middle position. Can be used as a signal generator for electric speed controller (ESC), then you can test your motor system without using a transmitter and receiver Can connect 1-3 servos simultaneously and test,such as 1-3 servos consistency and so on. Also allows the connection of 1-3 ESC to test and compare their reaction time respectively Offers 3 modes to check servos or ESC: 1) Manual mode: turn the knob with different speed, check the reaction time 2) Median mode: make the servo go back to the neutral point 3) Automatic "window wiper" mode: make the servo swing like a window wipers in the biggest angle Packing List: 1*Servo Tester
