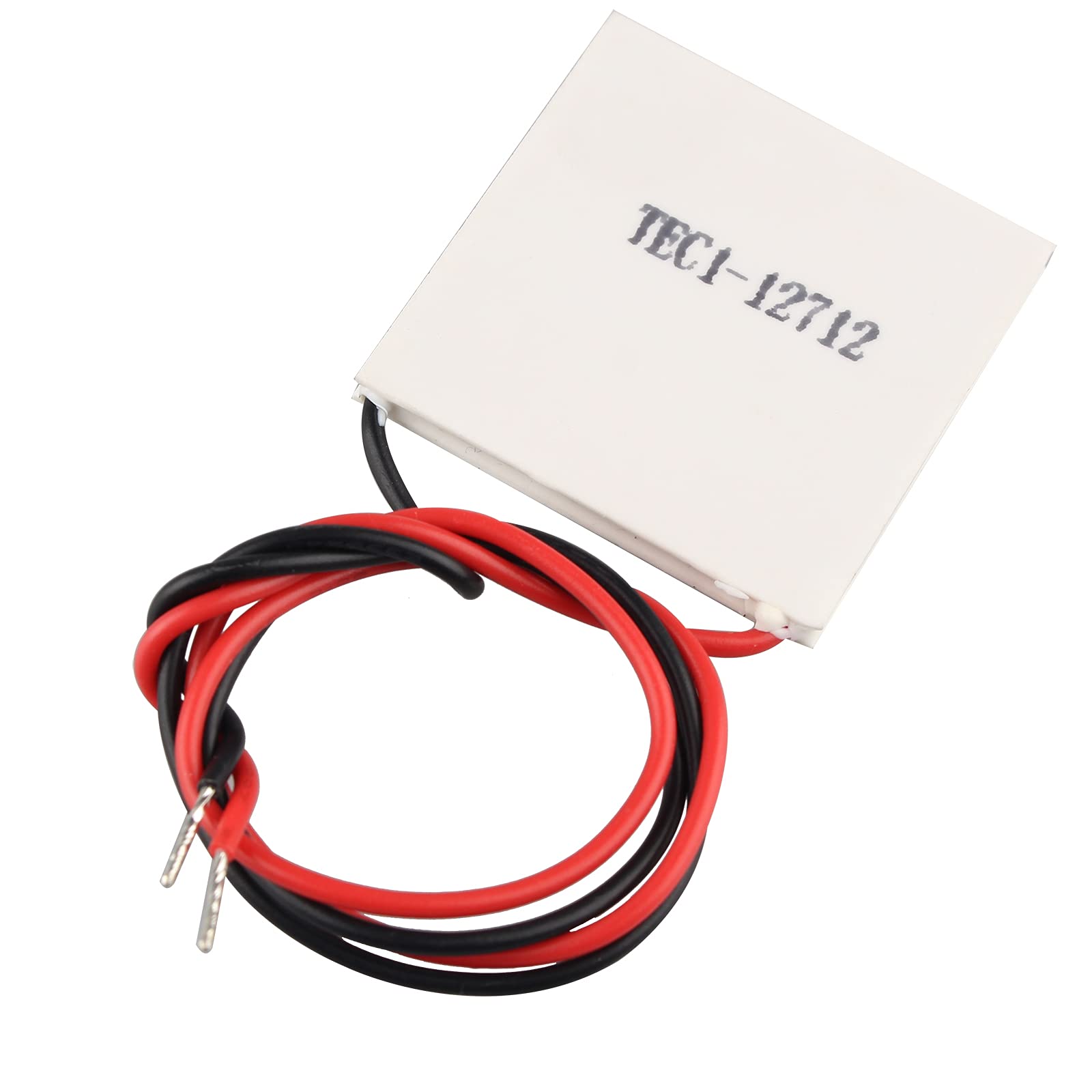

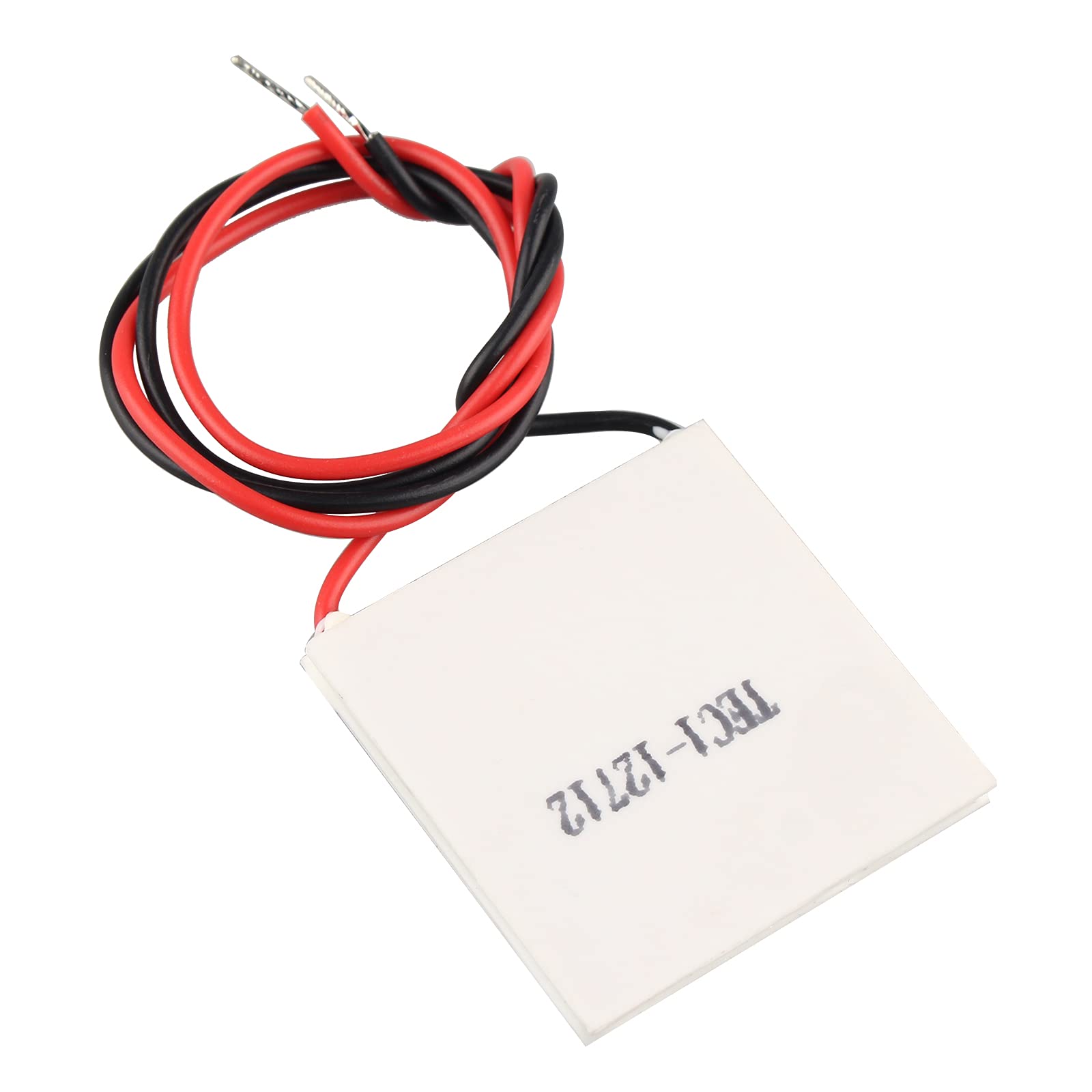

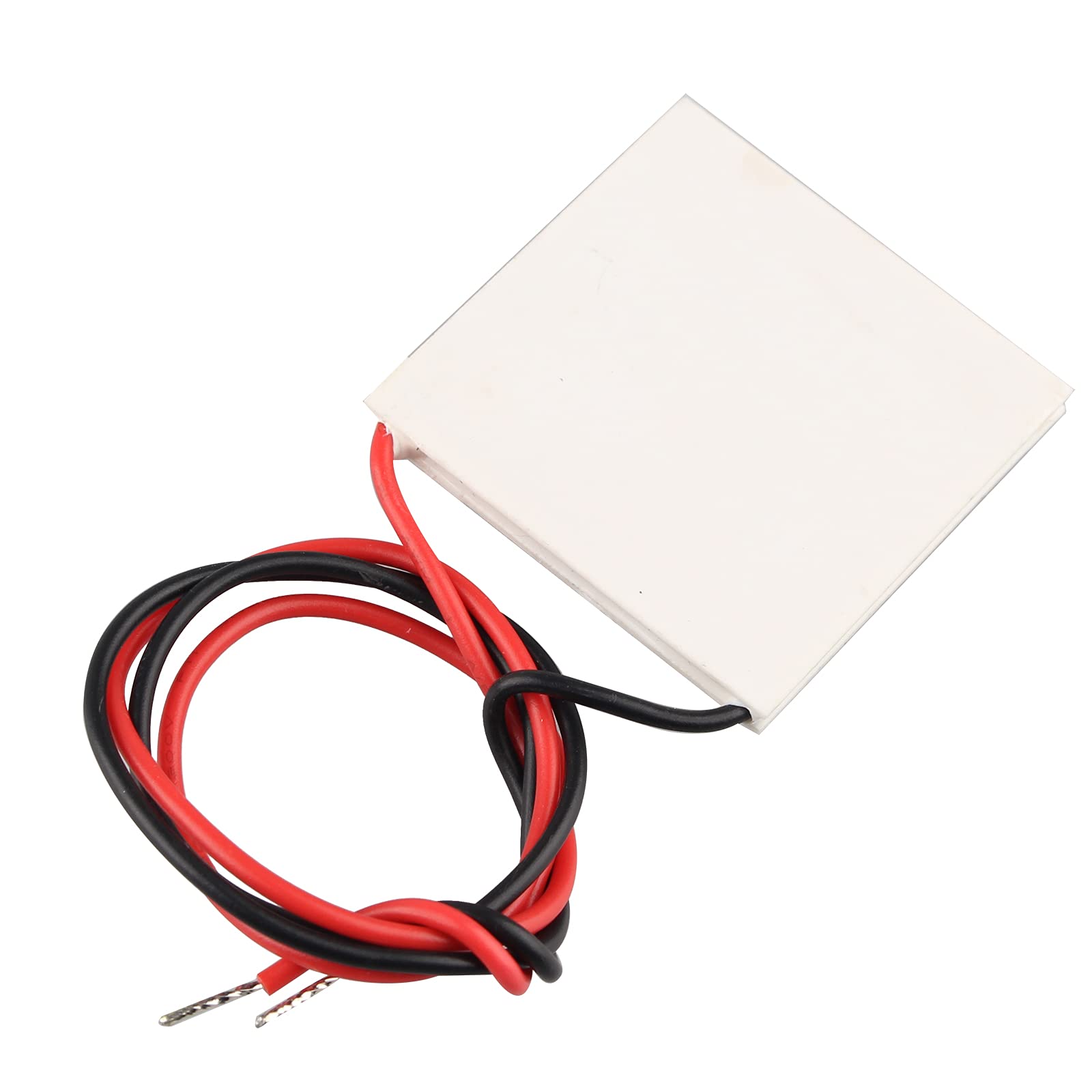

HALJIA 2PCS TEC1-12712 Thermoelectric Heatsink Thermoelectric Cooler Cooling Peltier Plate Module 12V 107W 40 x 40 mm

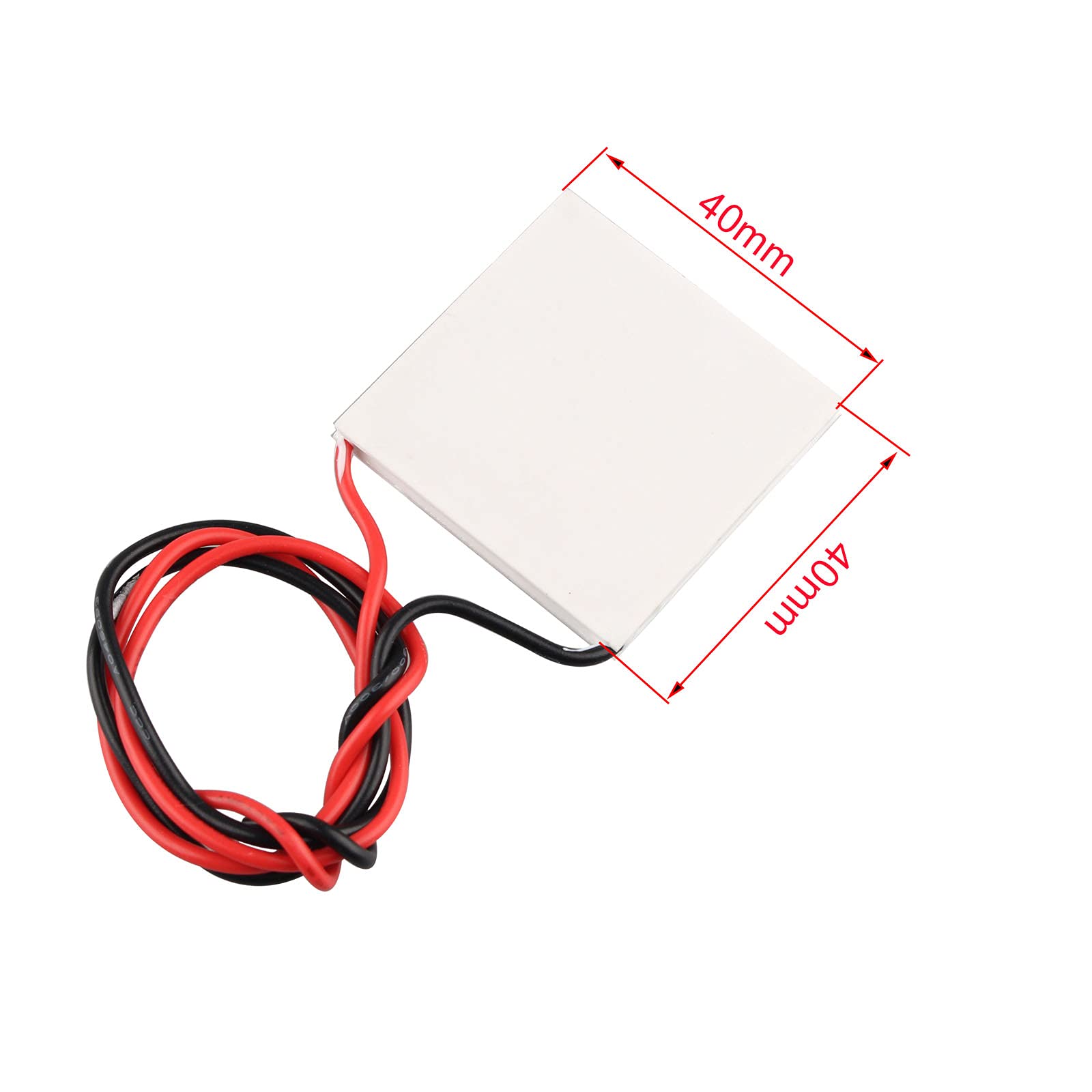

• Model: TEC1-12712; Size: about 40mm x 40mm x 3.5 mm; Wire Length: about 30cm
• Rated voltage: DC12V; Cooling power: Qcmax 107W
• Solid state, vibration free, noise-free; reverse the polarity to get device cold in minutes or heat.
• Each device is full and inspected tested. Easy to install and operate.
• Used for many situations from CPU coolers to alternate power sources; perfect for cooling down semiconductor devices.

Feature: Perfect for cooling down semiconductor devices. Solid state, vibration free, noise-free. Easy to install and operate. Small and compact. Used for many applications from CPU coolers to alternate power sources. Great for your own custom car drink warmer/cooler as well.Since they of primarily consit semiconductor ceramic plates and have no moving parts sandwiched between material. It must be used in conjunction with a hypothesis devices heat sink to avoid burned. Specification: Model: TEC1-12712 Rated voltage: DC12V (Vmax: 15.5V) Cooling power: Qcmax 107W Maximum temperature difference: △ Tmax (Qc = 0) 60 ℃ above. Operating current: Imax = 12A Assembly pressure: 85N / cm2 Working environment: temperature range -55 ℃ ~ 83 ℃ (high temperature will directly affect the cooling efficiency) Red wire to the positive, black wire to the negative. Dimensions: Approx. 40mm x 40mm x 3.5 mm Cable Length: Approx. 30cm Weigt: 27g How to operate: 1. Prepare the Refrigeration tablets, radiator,grease,heat insulated pad, power module before working. 2. Brush the grease on the heat side and cool side of the refrigeration tablets(cool side is with word,and heat side is without word) . 3. Install the refrigeration tablets on the heat sink, put heat insulated pad in the middle. 4. Tighten the screw and wire up, then start cooling. Note: Word side is Cool side; Blank side is Heat side. When installing, please pay attention to clean and flat surfaces. The refrigeration tablet is that one side is cooling and the other side is heating, and the heating surface must be well dissipated during work. Use only with the use of thermal grease. Only in combination with a sufficiently dimensioned heat sink. Heat side requires heat sink all the time. Packing List: 2 x TEC1-12712 Thermoelectric Cooler
