HALJIA 2PCS APDS-9960 GY-9960-3.3 APDS9960 RGB Infrared Gesture Sensor Module Motion Direction Recognition Moving Direction Ambient Light RGB Proximity Sensor Module IR Move Sensor

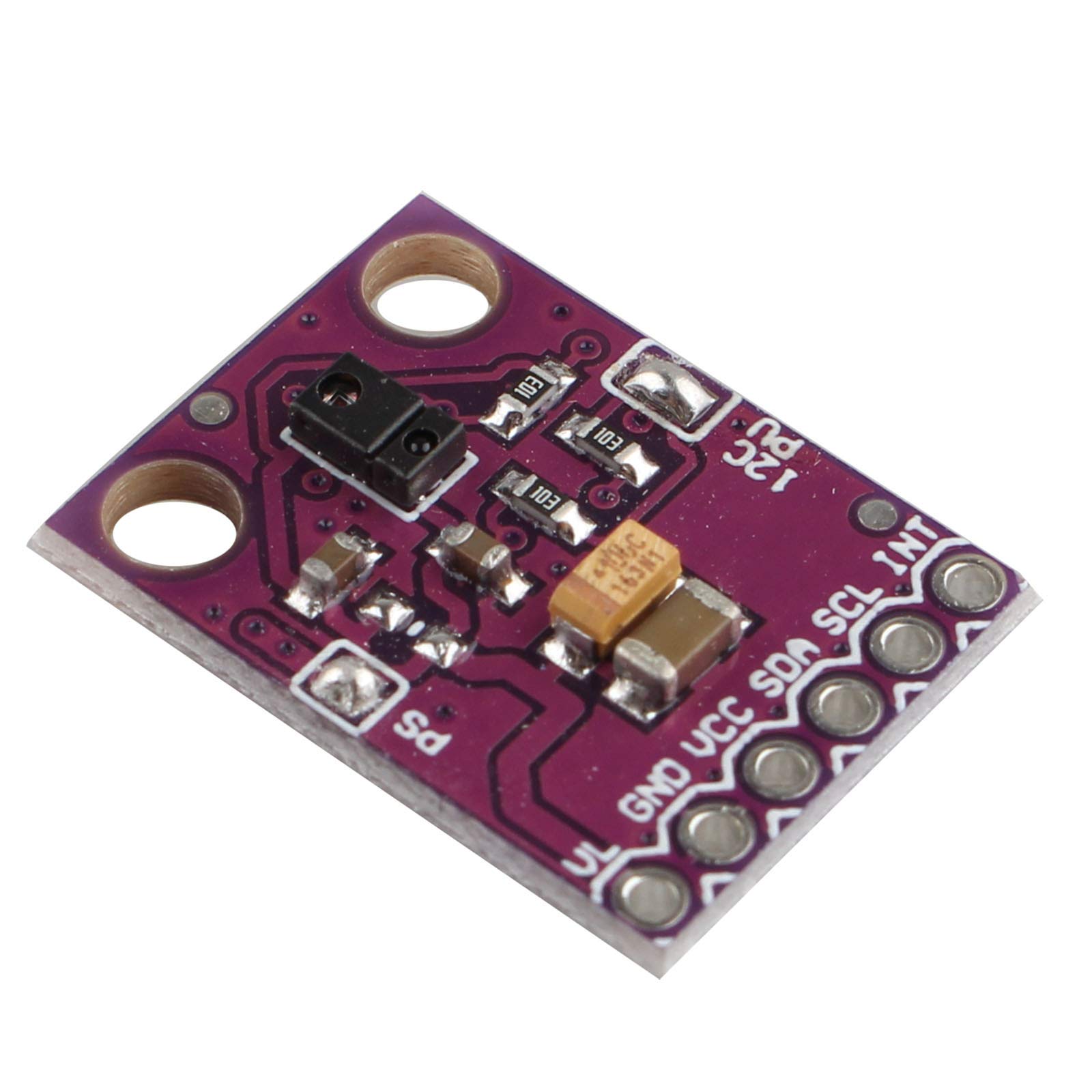

• This is the RGB and Gesture Sensor, a small breakout board with a built in APDS-9960 sensor that offers ambient light and color measuring, proximity detection, and touchless gesture sensing.
• Working Voltage: 3.3V
• Chip: APDS-9960
• Communication method: IIC communication protocol
• Detating Range: 4-8in (10-20cm)

Description: The APDS-9960 is an ambient light sensor with integrated ALS, infrared LED and proximity sensors and ambient light sensing (ALS). It uses a double photodiode to achieve an illumination of about 0.01 lux to approximate the visual reaction of the human eye. It can work accurately under the large 1.0 mm air gaps without external insulation processing, which greatly facilitates the structural design of the customer. Its waiting state power consumption - 90μA typical value, sleep mode power - 2,2μA typical value, more energy saving; Up to 400kHz (I2C Fast Mode) dedicated interrupt pin, I2C interface compatible, fully integrated solution, convenient structure and circuit design, I believe users can bring a better design experience and product value! With this RGB and Gesture Sensor you will be able to control a computer, microcontroller, robot, and more with a simple swipe of your hand! This is, in fact, the same sensor that the Samsung Galaxy S5 uses and is probably one of the best gesture sensors on the market for the price. The APDS-9960 is a serious little piece of hardware with built in UV and IR blocking filters, four separate diodes sensitive to different directions, and an I2C compatible interface. For your convenience we have broken out the following pins: VL (optional power to IR LED), GND (Ground), VCC (power to APDS-9960 sensor), SDA (I2C data), SCL (I2C clock), and INT (interrupt). Each APDS-9960 also has a detection range of 4 to 8 inches (10 to 20 cm). Parameter: Chip: APDS-9960 Power supply: 3.3v Communication method: IIC communication protocol Detating Range: 4-8in (10-20cm) Interface type: I2C Interface (I2C Address: 0x39) Board Size: 20.7mm*15.3mm Weight: 1.4g Packing List: 2 × APDS-9960 RGB Infrared Gesture Sensor Module
