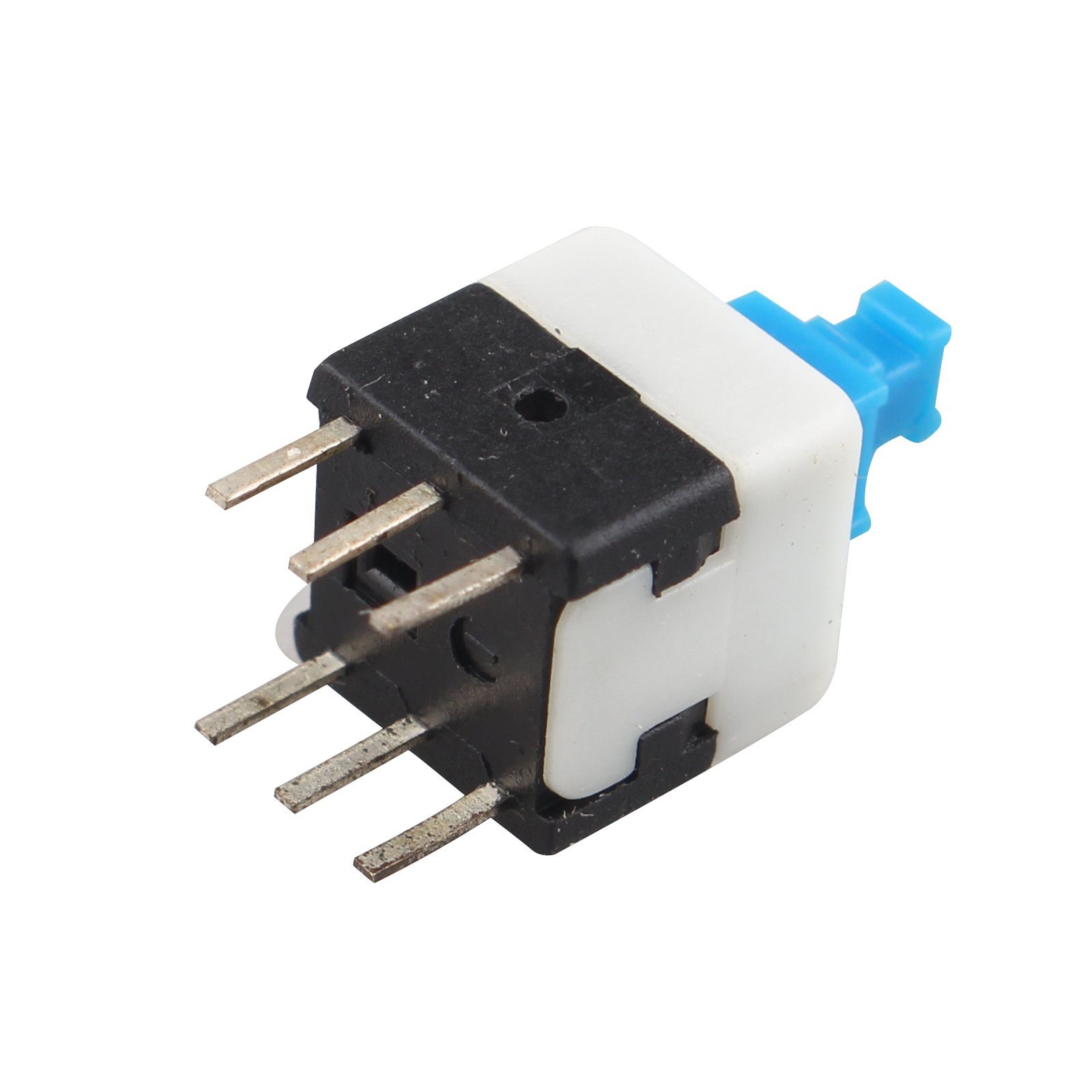

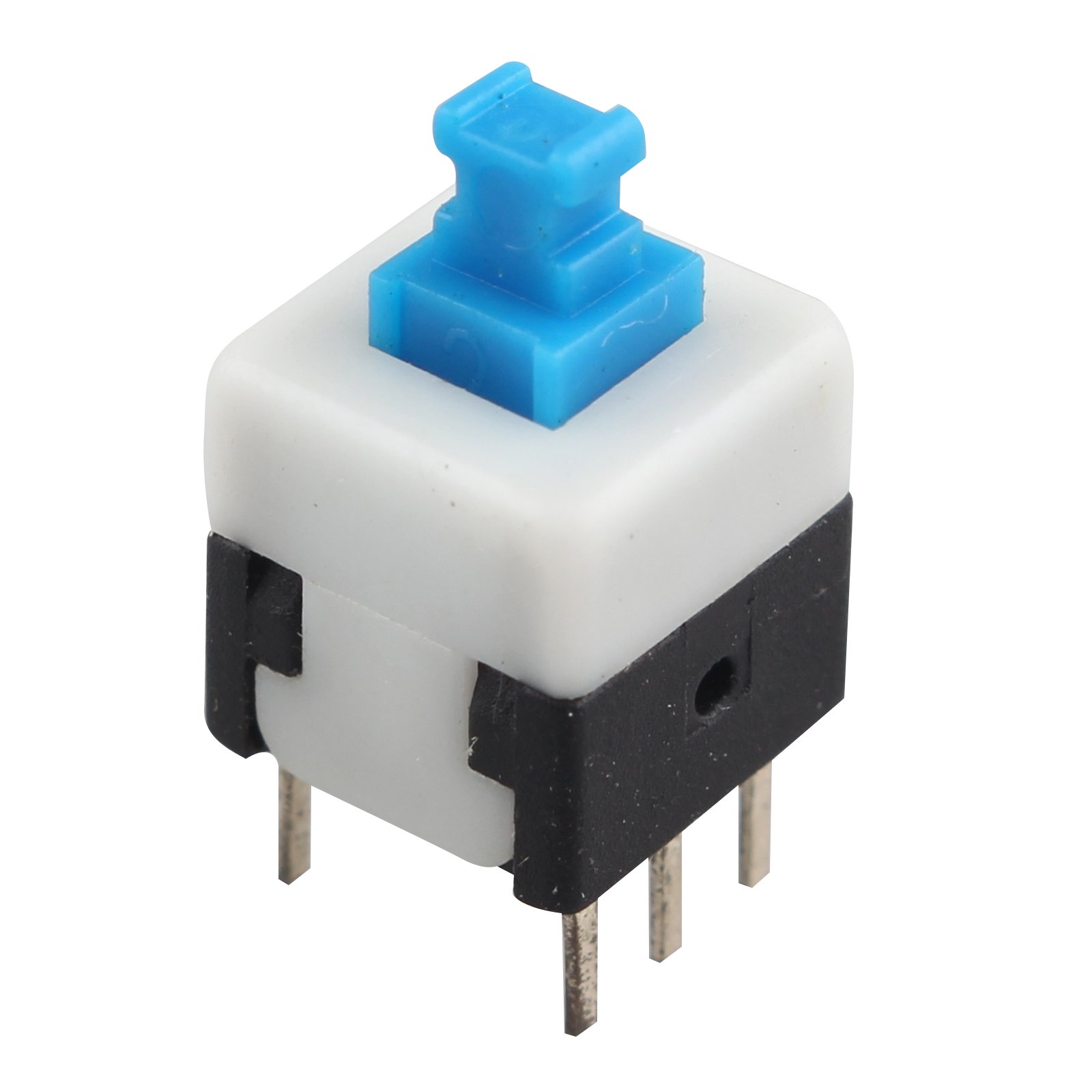

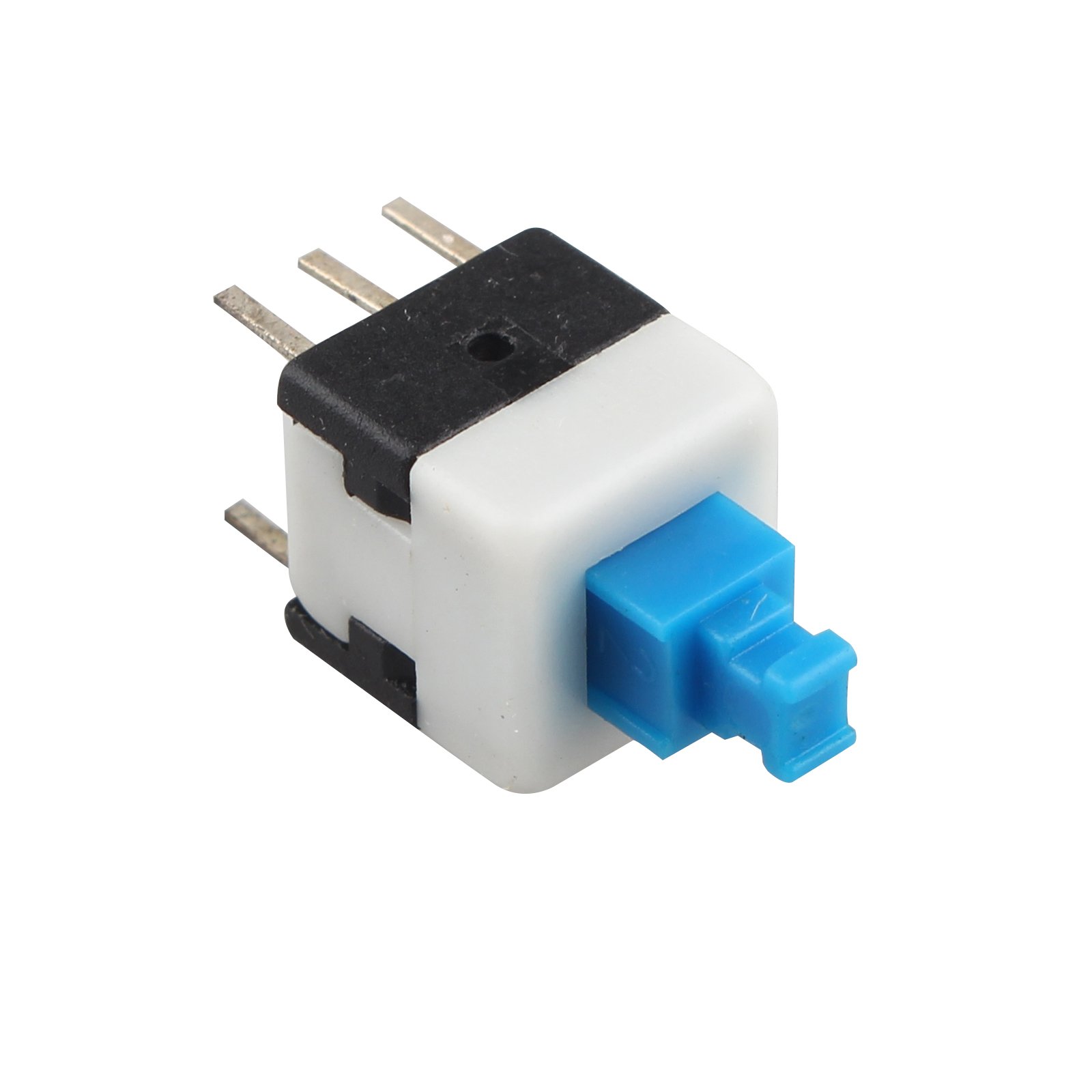

HALJIA 10pcs 6 Pin Self-locking Switch Push Button Switches DPDT 8 x 8mm

• Product Name : Push Button Switch;Contact Type : Latching
• WIDELY APPLICATIONS:Multimeter,circuit board,electronics, computer mouse, instrument and meter, household appliances and more.
• THE HIGH PRECISION mechanism design of this self-locking switch provides precise operation and LONG LIFETIME.
• Dimension : 8 x 8mm / 0.31" x 0.31" (L*W);Overall Height : 18mm / 0.7''
• Pin Pitch : 5 x 2mm / 0.2" x 0.08'' (L*W);Pin Length : 4mm/0.16''

Feature: Product Name :Push Button Switch ;Contact Type : Latching WIDELY APPLICATIONS:Multimeter,circuit board,electronics, computer mouse, instrument and meter, household appliances and more. THE HIGH PRECISION mechanism design of this self-locking switch provides precise operation and LONG LIFETIME. Dimension : 8 x 8mm / 0.31" x 0.31" (L*W);Overall Height : 18mm / 0.7'' Pin Number : 6 Pin Pitch : 5 x 2mm / 0.2" x 0.08'' (L*W);Pin Length : 4mm/0.16'' Material : Plastic, Metal, Electric Parts; Color : Blue, White, Black, Silver Tone Rated load: 10mA / 30V Insulation resistance: ≥100mΩ Contact resistance: ≤50mΩ Electrical life: ≥ 100,000 times Temperature range: -25 ~ 65 ℃ Withstand voltage: AC250V (50Hz) / 1min Packing List: 10*6 Pin Self-locking Switch
