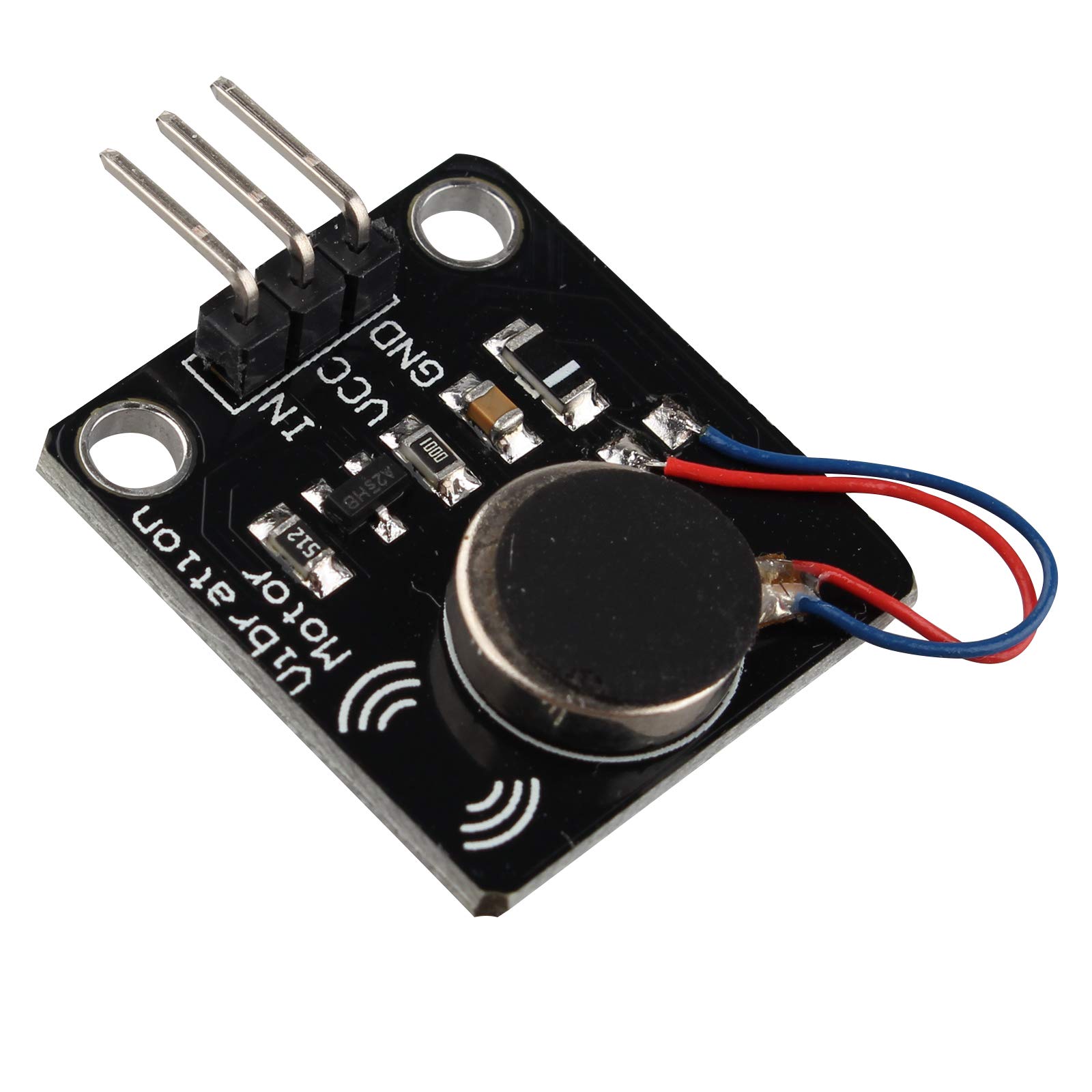

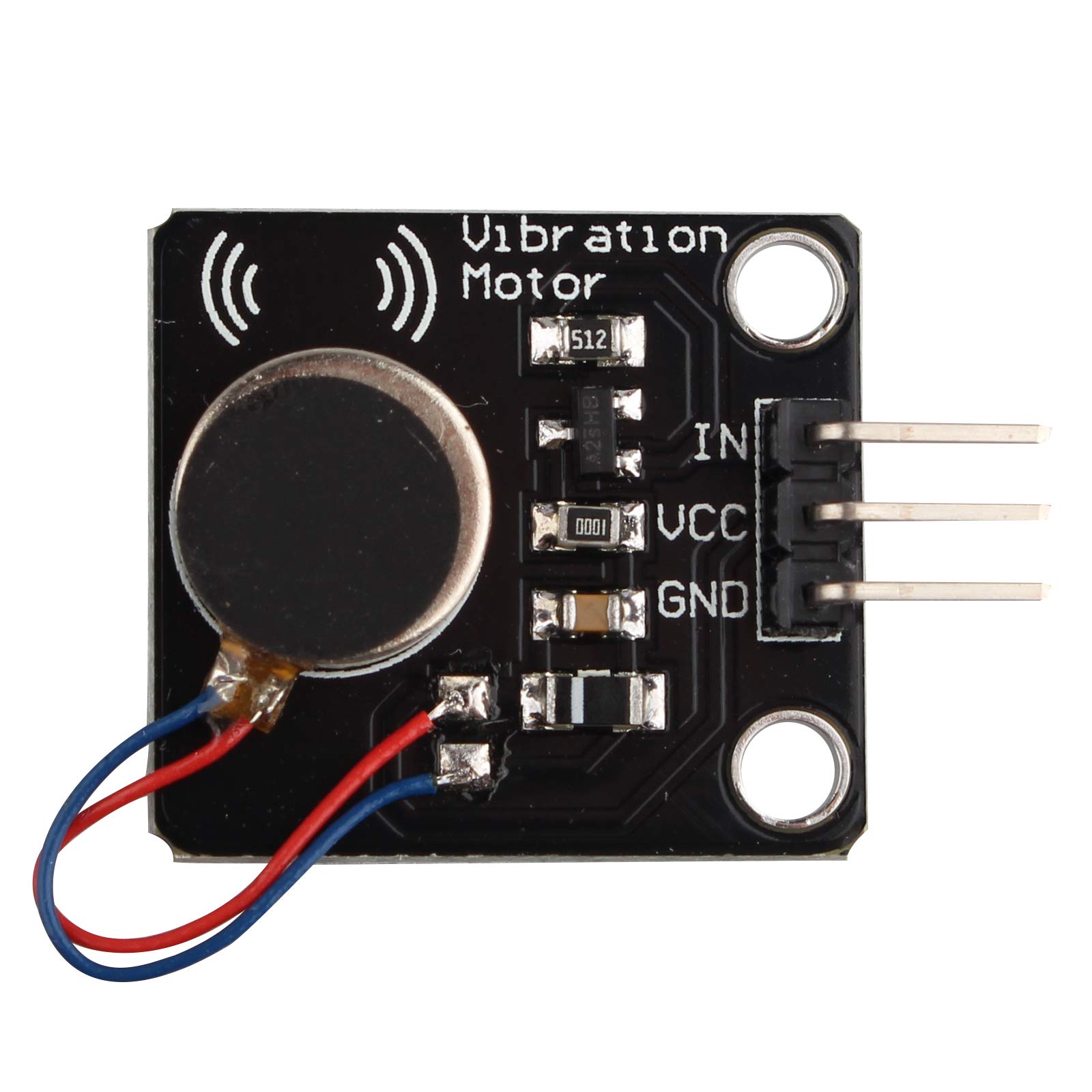

HALJIA 1027 3.0-5.3V / 60mA DC Mobile Phone Mini Flat Vibrating Motor Shock Motor Module Mobile Phone Vibration Module DIY Compatible with Arduino

• This is a small vibration motor suitable as a non-audible indicator. When the input is high, the motor vibrates, just like your cell phone on silent mode.
• High-quality mobile phone vibration motor, the vibration effect is obvious. MOS amplification driver, can be controlled directly through the digital port.
• The vibration intensity of the motor can be controlled by PWM.
• This module can easily convert electrical signals to mechanical vibration.
• Suitable for the production of vibration-sensitive interactive products, wearable smart device vibration reminders, etc.

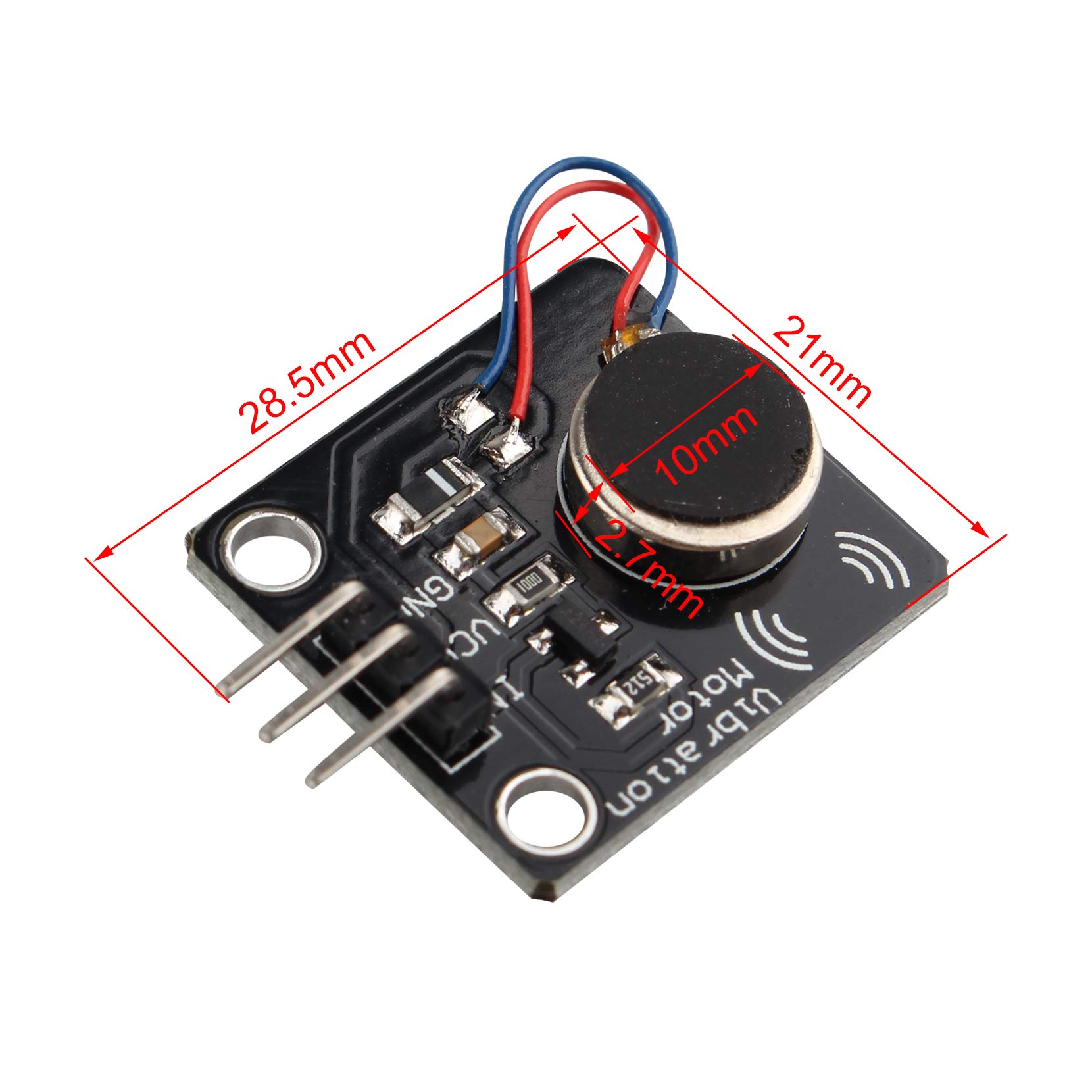

Feature: Motor diameter 10mm thickness 2.7mm flat motor. Drive MOS tube high-level trigger, low cut-off. Suitable for Arduino platform, microcontroller. Specification: Rated Voltage: 5.0V DC Working Voltage: 3.0~5.3V DC Rated Rotate Speed: Min. 9000RPM Rated Current: Max. 60mAh Starting Current: Max. 90mAh Starting Voltage: DC 3.7V Insulation Resistance: 10Mohm Compatibility: Compatible with Arduino UNO R3 / Arduino Mega2560 Material: PCB + Alloy + Plastic Rate Voltage: 5V Power Range: 3.0~5.3V Input Voltage: DC 3.0~5.3V Revolutions Per Minute (RPM): 9000RPM Working Current: 60mA Size: 2.85 cm x 2.1 cm x 0.6cm Fixed hole: 3mm Pitch: 15mm Weight: 2.7g Packing List: 1 x Vibration Motor Module
