HALDER 22420.0028 Clamping Locking Bolt, with Mushroom Handle, Black, d1=6 mm / l1=40 mm

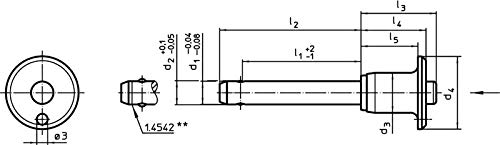

• Nominal dimensions: d1 = 6 mm / l1 = 40 mm / stainless steel 1.4542, precipitation-hardened
• With mushroom handle
• Made in Germany

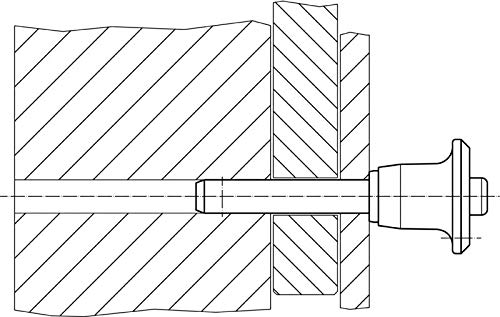

For quick fixing, locking, adjusting, changing and securing in blind holes (H11) without additional mounting sockets. Quick and easy release for frequently repetitive connections. Flexible use by clamping the balls between the bolt and the bore. All designs are corrosion resistant. For the material stainless steel 1.4542: high-strength, hardened bolt, therefore extremely resilient, high wear protection. Material bolt part. Stainless steel 1.4542, precipitation-hardened. Handle aluminium, black similar to RAL 9005. Push button stainless steel, yellow similar to RAL 1016 spring. Stainless steel. Mounting holes H11 are sufficient for use. Special design on request. The clamping lock bolt Must not be used as a load lifting device. Accessory attachment option for retaining rope EH 22400.
