HALDER 22380.0745 Self Ball Locking Pin with Elastic Grip Bolt, Orange, d1=10 mm / l1=25 mm

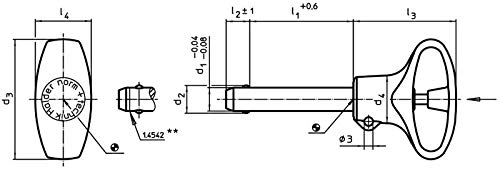

• Nominal dimensions: d1 = 10 mm / l1 = 25 mm / stainless steel 1.4542, excretion hardened
• Self-locking, with elastic handle
• Made in Germany

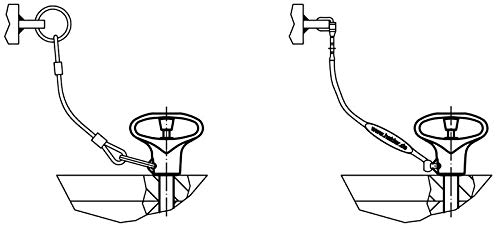

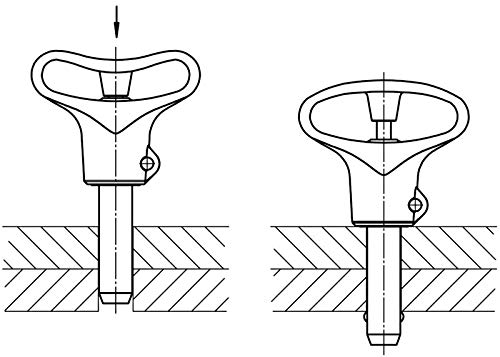

For quick fixing, locking, adjusting, changing and securing. For versatile applications in different areas, e.g. sports, leisure, rehabilitation, medicine, mechanical and plant construction, etc. Quick and easy to release for frequent repetitive connections. All designs are corrosion resistant. For the material of stainless steel 1.4542: high-strength, hardened bolt, therefore extremely resilient, high wear protection. Elastic, ergonomic handle with integrated reset (lock). New, modern, patented design. Material: bolt part: stainless steel 1.4542, excretion-hardened. Handle thermoplastic (PBT/TPE), grey/orange. Operation. By pressing the button, the balls are unlocked. Marking: stainless steel 1.4542 with marking. below the balls. Notes: special design on request. Accessories, mounting option for holding rope EH 22400.
