HALDER 22350.1962 Sealing, Plan, Mounting Bushes, for Ball Bearing Bolts, Stainless Steel, Excretion Hardened

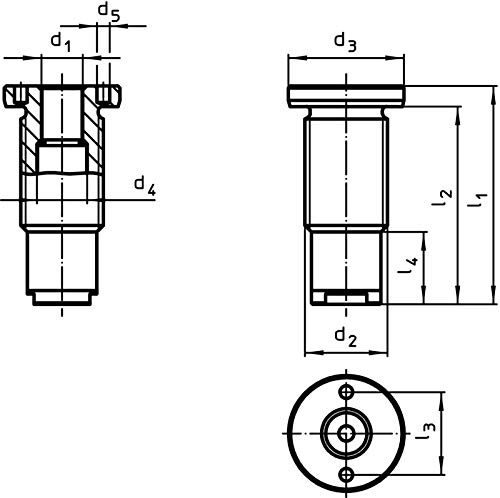

• Nominal dimensions: d1 = 12 mm / d2 = M24 x 1.5 / for nominal length L = 15 mm
• Rustproof stainless steel
• Made in Germany

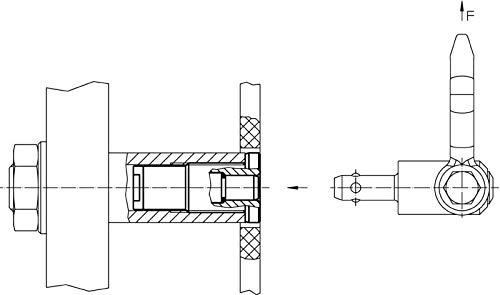

The seal prevents the ingress of liquids and dirt. The socket is therefore also particularly suitable for outdoor use. The receptacle sockets are a safe and fast mounting option for ball bearing bolts EH 22350 / EH 22351. This version is suitable for applications requiring a flat surface when screwed on. A face hole wrench is required for assembly. As an accessory, we offer a standard adjustable, cranked face hole wrench and a forehead hole socket. The forehead hole socket wrench is particularly suitable for use in confined spaces. Corrosion resistant and wear resistant. Material bushing stainless steel 1. 4542, precipitation hardened, O-ring, NBR, spring, stainless steel, assembly, easy and process safe installation. Can be installed in different carrier materials. This version can be screwed in flat using an optional mounting tool. Can be installed in blind holes. For thin-walled parts, installation is carried out by means of a lock nut.
